Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this PL65 Light Tower.
|
General Info
|
|
|---|---|
| Condition: | New |
| Manufacturer: | Bobcat |
| Model: | PL65 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | D1005 |
| Engine Make: | Kubota |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Operating Weight: | 1669 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 52.4 gal |
Description

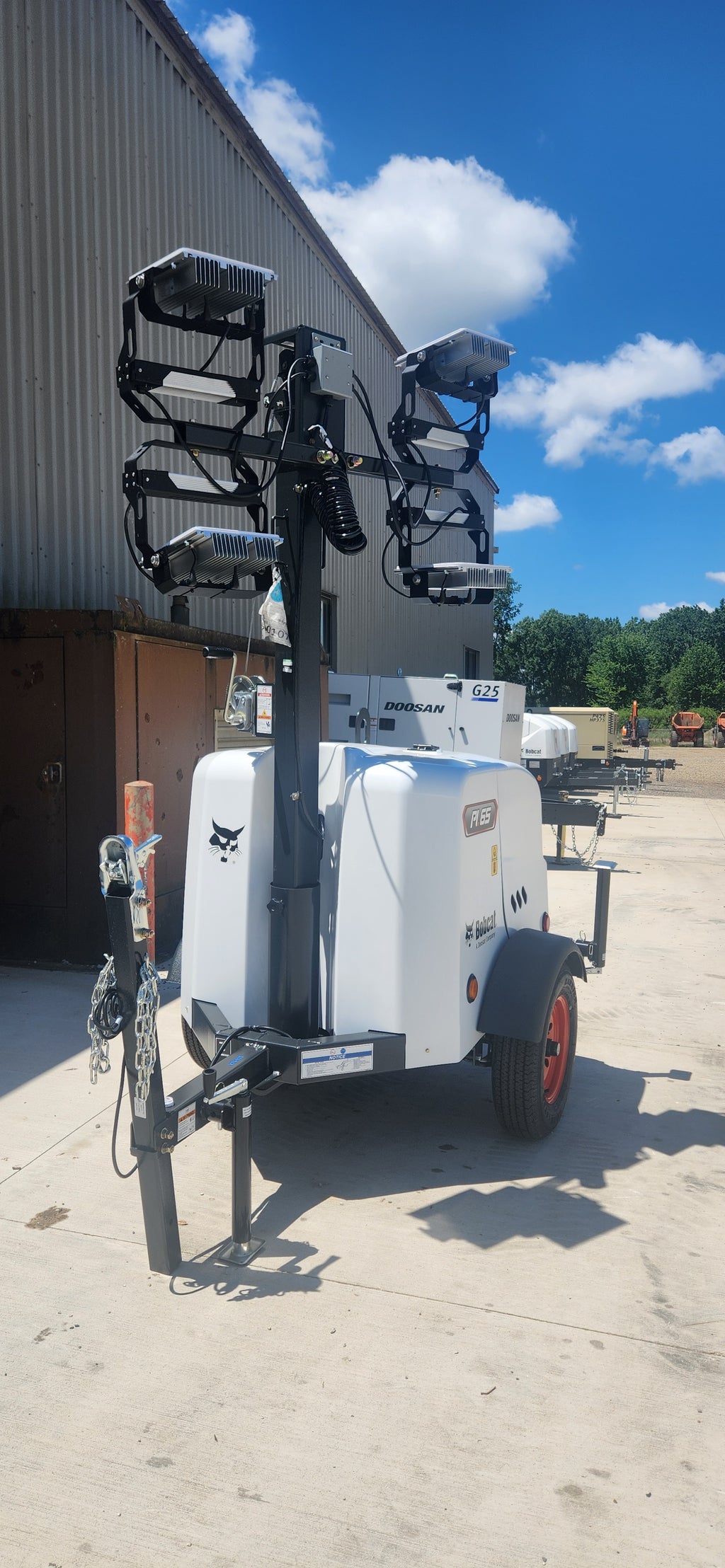

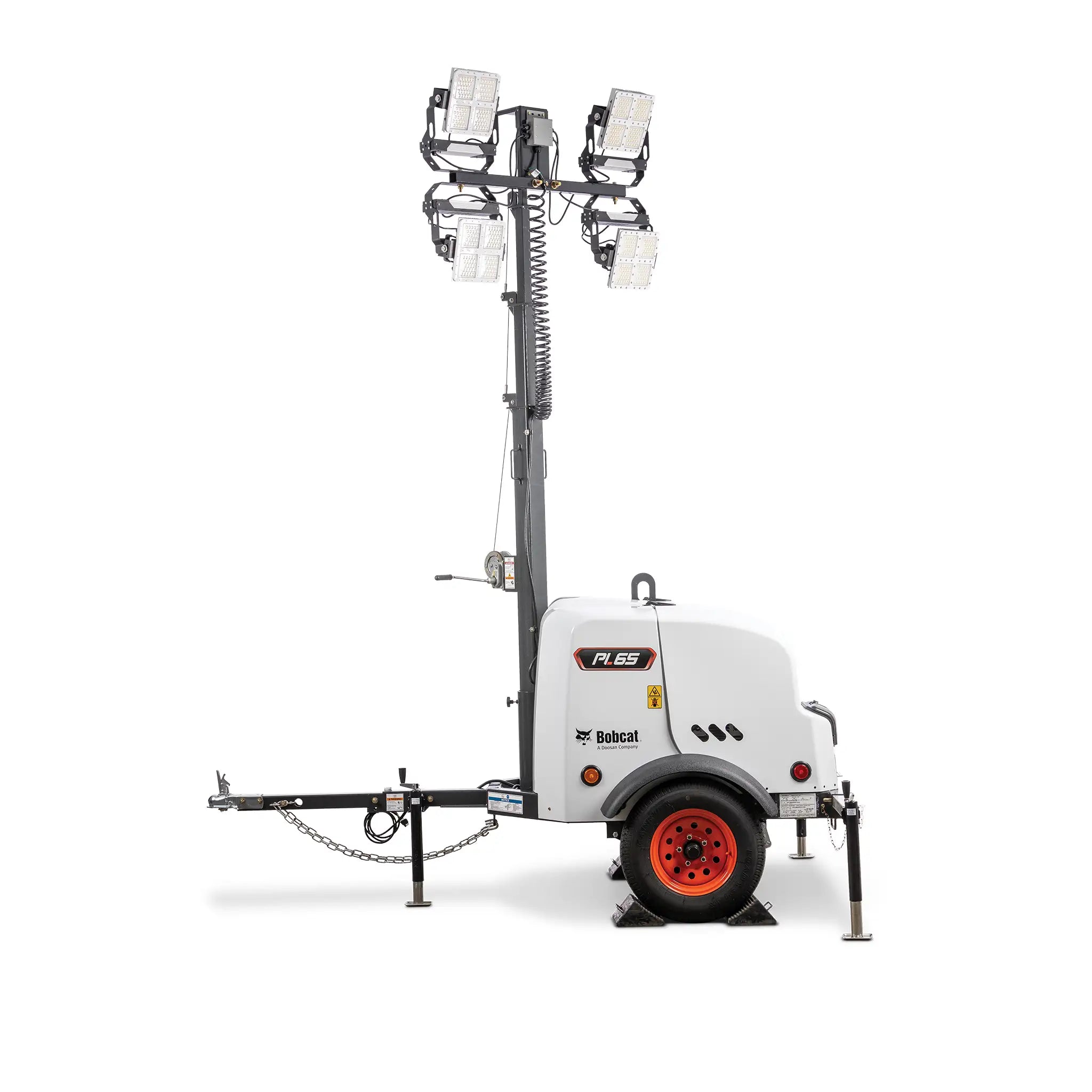

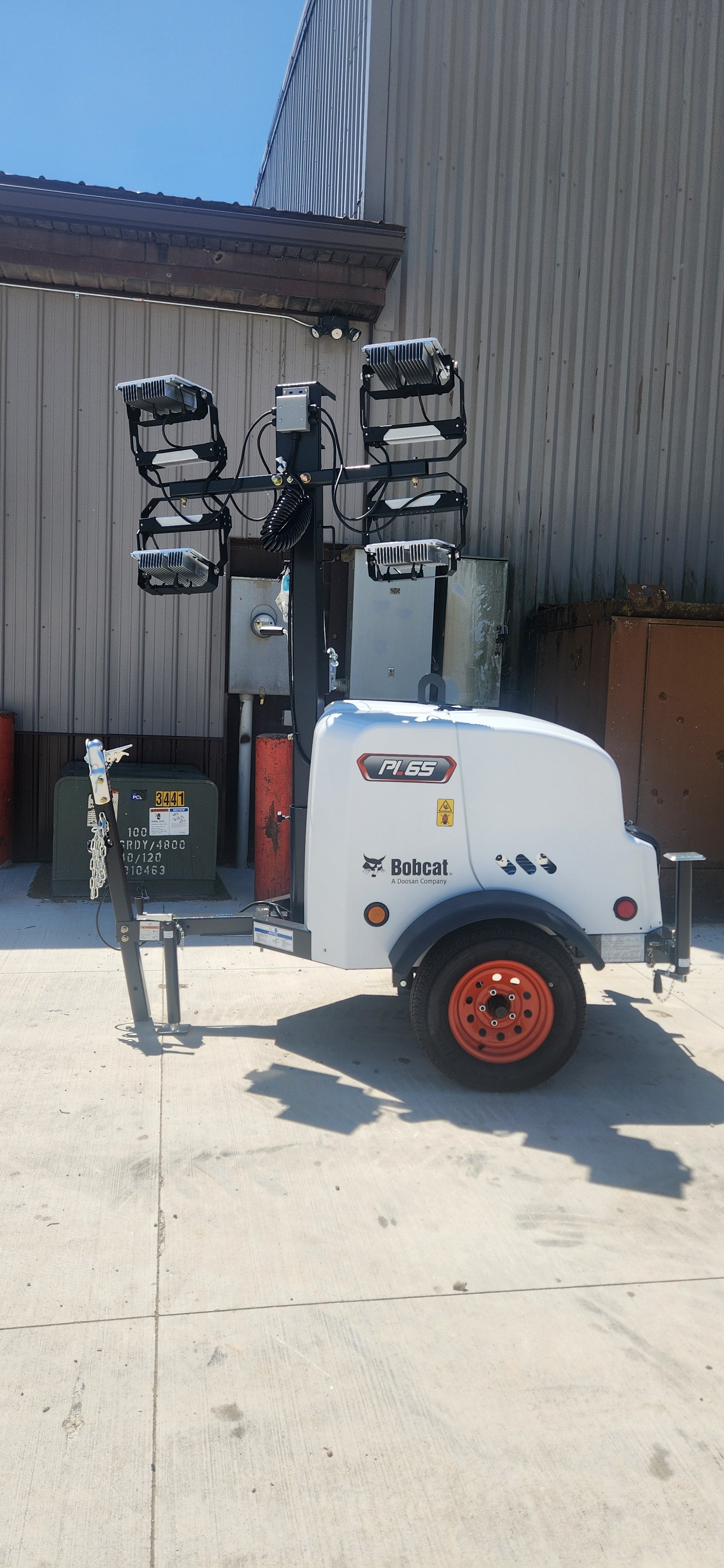

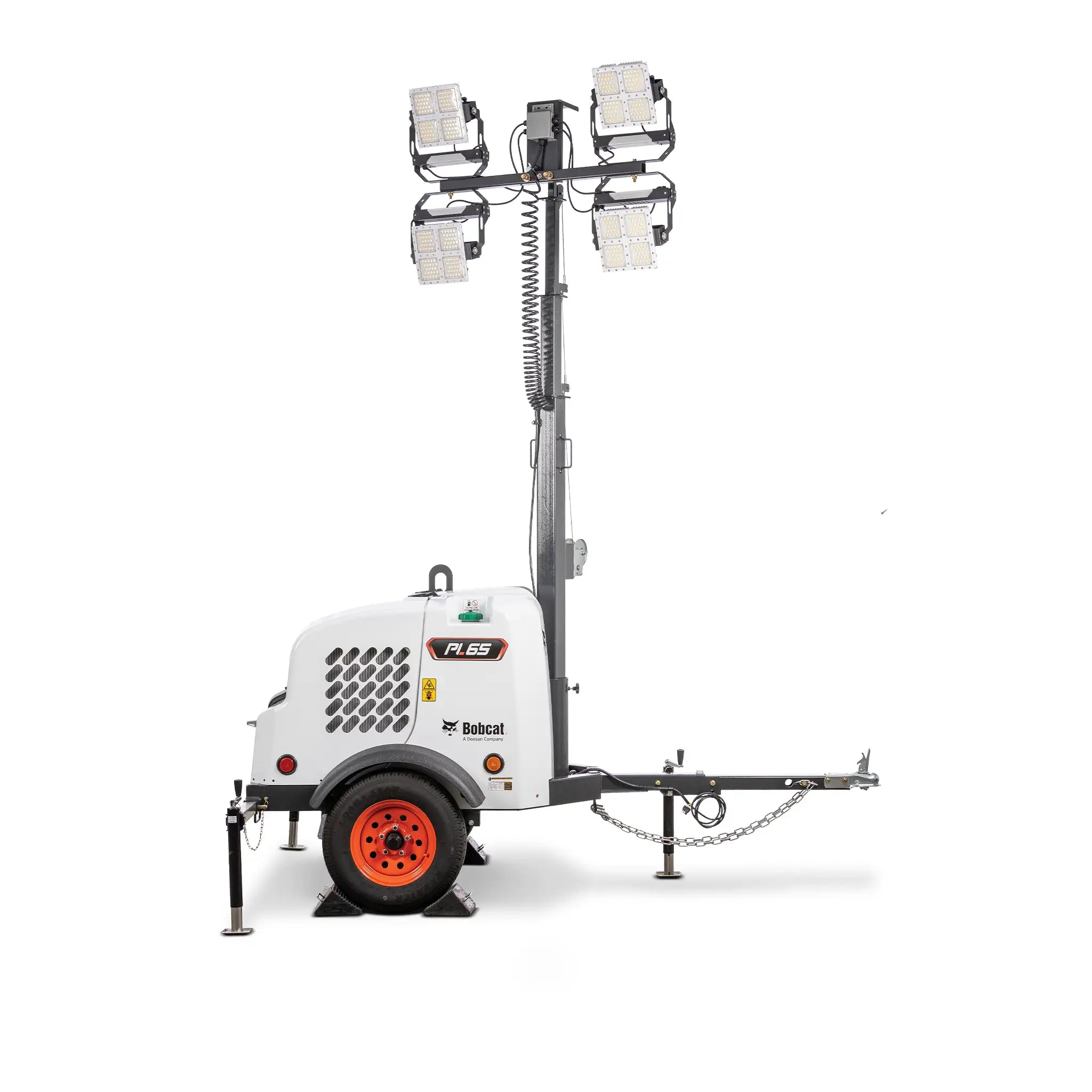

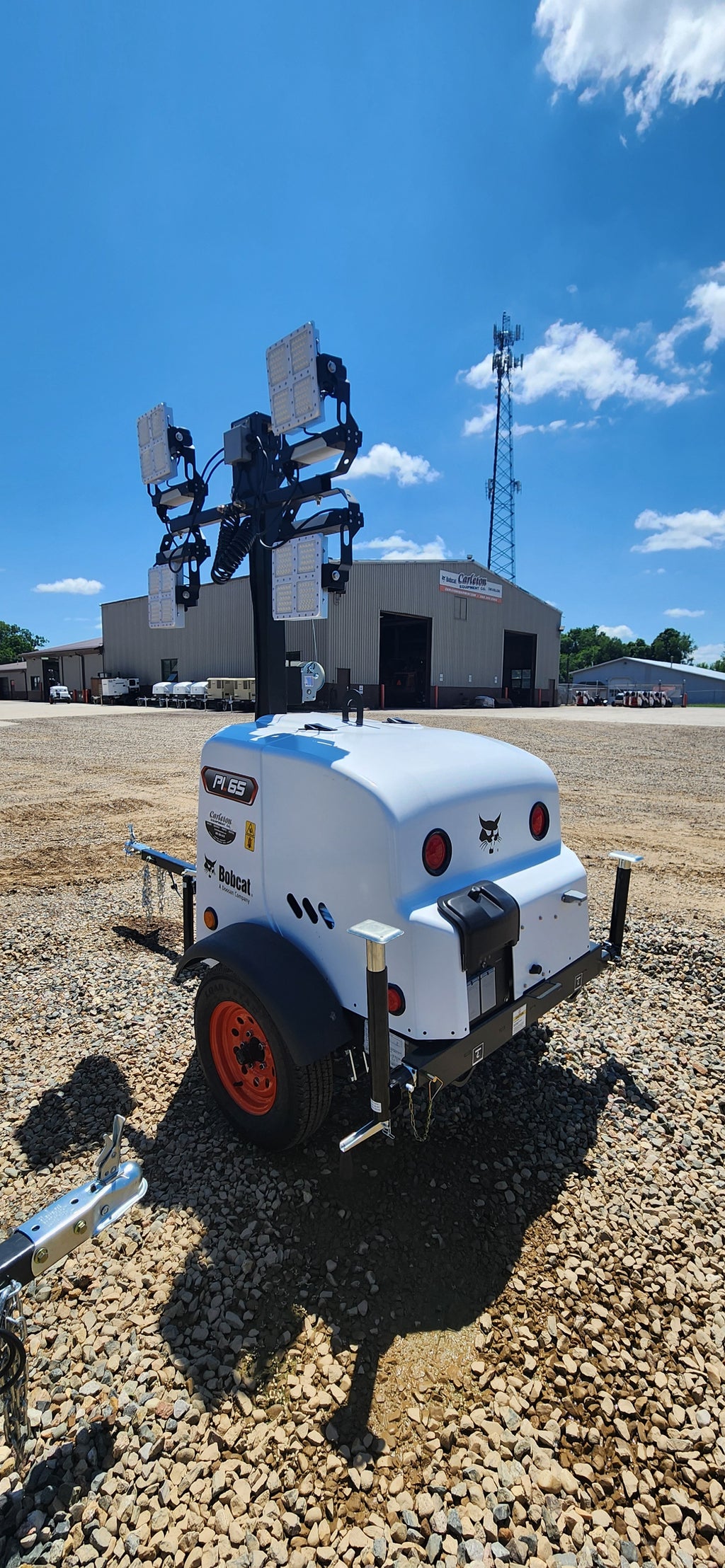

PL65 Light Tower
- Package: PL65WKBT, SE PACKAGE, 6KW, 60HZ
The Bobcat® PL65 portable light tower provides long runtimes and even longer maintenance intervals for easy, hassle-free operation.
- One of the most compact light towers available
- Optional LED lamps extend runtime with a 50,000-hour lifespan
- Composite clamshell gives you easy access to all service components
- Ideal for construction, disaster relief, parking lots and special events
From illuminating construction sites for 24-hour productivity to bringing much-needed light to assist with emergency disaster relief operations, count on the Bobcat PL65 portable light tower and its impressive class-leading 119-hour runtime.
The PL65 is a programmable light tower that can be set to turn on at dusk and turn off at dawn for uninterrupted productivity. The mast rotates a full 360 degrees and extends up to 23 feet high for broad coverage, while each of the lights can be pointed independently. When it comes time to reposition, the PL65 is compact and light enough to be maneuvered by hand.
The Bobcat PL65 vertical mast light tower features a compact footprint for increased jobsite mobility and cost-effective transport – you can fit 17 on a single flatbed truck. It’s powered by a reliable Kubota® engine paired with a high-output 6-kilowatt alternator, giving you both light and power at the same time.
Like all Bobcat products, the PL65 was engineered for maximum productivity, ease of use and low lifetime cost of operation. The innovative clamshell-style canopy is made of a durable, lightweight composite material that lifts easily for quick access to all service points. The Kubota engine has one of the longest maintenance intervals on the market, capable of running for 1,000 hours in between oil changes, reducing downtime and maintenance costs.
If your workday doesn't end, or your event heats up after the sun goes down, trust the Bobcat PL65 to provide safe working conditions with zero interruptions.
| Specification | Value |
|---|---|
| LIGHTING | |
| Number of Lights | 4 |
| Runtime with 4 Metal Halide Lights | 119 hr |
| Runtime with 4 LED Lights | 210 hr |
| ENGINE | |
| Engine Brand | Kubota® |
| Number of Cylinders | 3 |
| Emissions Tier Level | Tier 4 Final |
| Cooling System | Water / Glycol |
| Fuel Type | #2 Ultra-Low Sulfur Diesel |
| Fuel Capacity | 52.4 gal |
| PERFORMANCE | |
| Prime Power Rating | 8 HP |
| Rated Speed | 1,800 RPM |
| Operating Weight | 1,669 lbs |
| GENERATOR / ELECTRICAL | |
| Available AC Voltage | 120V Single-Phase |
| Alternator Output | 6 kW |
| 120V GFCI Duplex (NEMA 5-20R) | (1) Standard / (2) Optional |
| 240V Twist Lock (NEMA L6-30R) | (1) Optional |
| DIMENSIONS | |
| Height with Tower Deployed | 23 ft |
| Height with Tower in Transport Position | 8.5 ft |
| Length with Drawbar Up | 82 in |
| Length with Drawbar Down | 109 in |
| Width | 55 in |
| Width without Outriggers Deployed | 82 in |
| Track Width | 47.4 in |
What Makes the PL65 Different
Class-Leading 119-Hour Runtime
From 24-hour construction sites to emergency disaster-relief operations, count on the PL65 and its impressive class-leading 119-hour runtime on four metal-halide lamps — up to 210 hours with LED.
Programmable Dusk-to-Dawn
The PL65 is a programmable light tower that can be set to turn on at dusk and off at dawn for uninterrupted productivity — safe working conditions with zero interruptions.

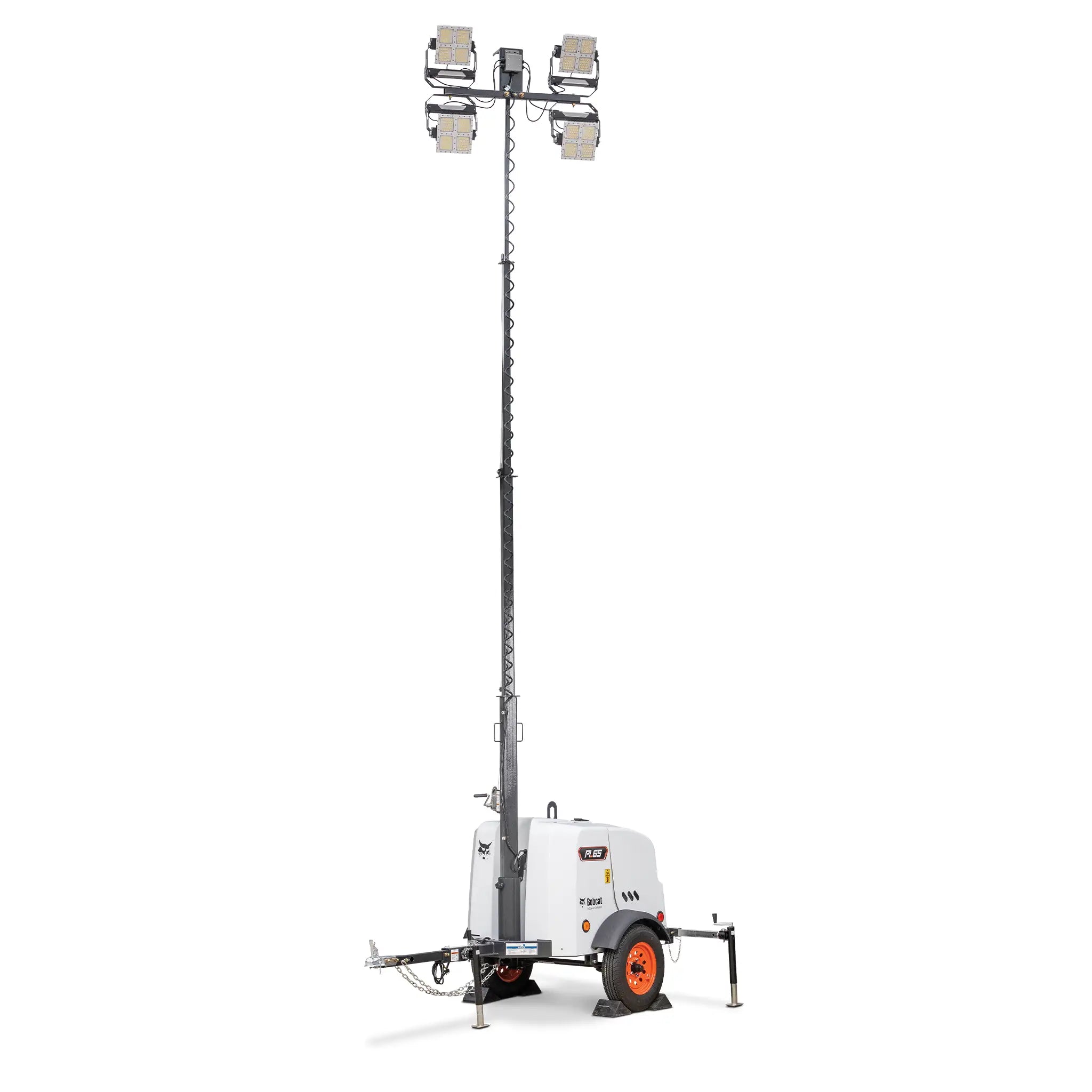

360° Mast, 23 ft High, Independent Lamps
The vertical mast rotates a full 360 degrees and extends up to 23 feet for broad coverage, while each of the four lamps can be pointed independently to light exactly where you need it.
Light & Power at the Same Time
A reliable Kubota® engine paired with a high-output 6-kilowatt alternator gives you both light and power at once — run hand tools and small equipment without a separate generator.
Compact — Fit 17 on a Flatbed
The vertical-mast design has a compact footprint for increased jobsite mobility and cost-effective transport — you can fit 17 PL65 units on a single flatbed truck, and it's light enough to reposition by hand.
Clamshell Composite Canopy
The innovative clamshell-style canopy is made of a durable, lightweight composite material that lifts easily for quick access to all service points.
Kubota Engine — 1,000-Hour Oil Intervals
The Kubota engine has one of the longest maintenance intervals on the market, capable of running 1,000 hours between oil changes — reducing downtime and maintenance costs for a low lifetime cost of operation.
Optional LED — 210-Hour Runtime
Choose optional LED lamps for an even longer 210-hour runtime, maintenance-free operation and a 50,000-hour rated lamp life — maximum productivity with minimum interruptions.
Compare the Light Towers
 |
 |
|
| PL65Viewing | PL80 | |
|---|---|---|
| Lighting & Runtime | ||
| Lamp Fixtures | 4 (aim independently) | 4 (aim independently) |
| Lamp Options | Metal halide or LED | Metal halide or LED |
| Runtime — 4 LED Lamps | 210 hr | 180 hr |
| Runtime — 4 Metal Halide | 119 hr | 97 hr |
| Runtime @ 100% Load | 105 hr | 75 hr |
| Mast | Vertical · 360° · 23 ft | Vertical · 360° · 23 ft |
| Programmable | Dusk-to-dawn | Dusk-to-dawn |
| Onboard Generator | ||
| Prime Power (1.0 PF) | 6.0 kW | 8.0 kW |
| Available AC Voltage | 120 / 240 V · 1Ø | 120 / 240 V · 1Ø |
| Frequency | 60 Hz | 60 Hz |
| 120 V GFCI Duplex (5-20R) | 1 × 20 A | 2 × 20 A |
| 240 V Twist-lock (L6-30R) | 1 × 25 A (opt.) | 1 × 30 A |
| Engine | ||
| Make & Model | Kubota D1005 | Kubota D1105 |
| Displacement | 61.1 cu in (1.0 L) | 68.5 cu in (1.1 L) |
| Cylinders | 3 | 3 |
| Power @ Rated Speed | 13.1 bhp (9.7 kW) | 15.4 bhp (11.5 kW) |
| Cooling | Water / Glycol | Water / Glycol |
| DC System | 12 VDC / 520 CCA | 12 VDC / 520 CCA |
| Emissions | Tier 4 Final | Tier 4 Final |
| Usable Fuel Tank | 52.4 gal (198.4 L) | 52.4 gal (198.4 L) |
| Oil Change Interval | 1,000 hr | 1,000 hr |
| Dimensions & Weight (with Running Gear) | ||
| Height — Tower Deployed | 276.0 in (23 ft) | 276.0 in (23 ft) |
| Height — Transport | 100.8 in | 100.8 in |
| Length — Drawbar Down | 109.0 in | 109.0 in |
| Length — Drawbar Up | 82.0 in | 82.0 in |
| Width — Standard | 55.0 in | 55.0 in |
| Width — Outriggers Deployed | 121.0 in | 121.0 in |
| Track Width | 47.4 in | 47.4 in |
| Operating Weight | 1,669 lbs | 1,793 lbs |
| Shipping Weight | 1,309 lbs | 1,430 lbs |
Both light towers share the same towable chassis, vertical 360° mast (23 ft lighting height), four independently-aimed metal-halide or LED lamps, programmable dusk-to-dawn operation and a Tier 4 Final Kubota engine with 1,000-hour oil intervals and a 52.4-gallon tank. The PL80 steps up to a larger Kubota D1105 engine and an 8 kW alternator (vs. 6 kW) with more receptacle capacity, trading some runtime for more onboard power. Dimensions are with running gear.
PL65 Features & Benefits
Lighting & Runtime 4
Class-Leading 119-Hour Runtime
Run all night and then some — a class-leading 119 hours on four metal-halide lamps, ideal for 24-hour jobsites and emergency disaster-relief operations.
Optional LED — 210-Hour Runtime
Optional LED lamps extend runtime to 210 hours, are maintenance-free and rated for 50,000 hours of life — maximum productivity with minimum interruptions.
Programmable Dusk-to-Dawn
Set the tower to turn on at dusk and off at dawn for hands-off, uninterrupted productivity.
Four Independently-Aimed Lamps
Each of the four lamps points independently, so you can put light exactly where the work is.
Mast & Coverage 2
360° Rotation, 23 ft High
The vertical mast rotates a full 360 degrees and extends up to 23 feet for broad, even coverage across the site.
Compact & Hand-Maneuverable
A compact vertical-mast footprint makes the PL65 easy to reposition by hand and cost-effective to transport — fit 17 on a single flatbed truck.
Light & Power 2
6 kW Onboard Power
A high-output 6-kilowatt alternator delivers 120/240 V single-phase power for hand tools and small equipment — light and power from one machine.
Jobsite Receptacles
A 120 V GFCI duplex (NEMA 5-20R) comes standard, with additional 120 V duplex and a 240 V twist-lock (NEMA L6-30R) available as options.
Engine & Serviceability 3
Reliable Kubota Engine
A liquid-cooled, 3-cylinder Kubota® diesel meets Tier 4 Final emissions and sips fuel from a 52.4-gallon tank for long, dependable runtimes.
1,000-Hour Oil Intervals
One of the longest maintenance intervals on the market — up to 1,000 hours between oil changes — for less downtime and a low lifetime cost of operation.
Clamshell Composite Canopy
A durable, lightweight composite clamshell canopy lifts easily for quick access to every service point.
Why Buyers Choose the PL65
Class-leading 119-hr runtime (210 hr with LED) for all-night, all-week work
Programmable dusk-to-dawn on/off for hands-off productivity
360° mast extends to 23 ft; each of four lamps aims independently
6 kW alternator delivers light and tool power from one machine
Compact vertical mast — fit 17 on a flatbed, maneuver by hand
Clamshell composite canopy for fast access to all service points
Kubota engine with 1,000-hr oil intervals — low lifetime operating cost
Tier 4 Final clean diesel, 52.4-gal fuel tank for long runtimes
Who Uses the PL65 and What For
From 24-hour construction sites to emergency disaster relief and after-dark events, the PL65 pairs a class-leading runtime with a 360° mast and onboard 6 kW power — safe working conditions with zero interruptions.
- 24-hour jobsite productivity
- 360° mast to 23 ft for broad coverage
- 6 kW power for tools, no extra generator
- Programmable dusk-to-dawn
- Class-leading 119-hr (210-hr LED) runtime
- 52.4-gal tank for long unattended runs
- Hand-maneuverable, fast to deploy
- Reliable Kubota Tier 4 Final engine
- Quiet, independently-aimed lighting
- Fit 17 on a flatbed for low transport cost
- LED option — maintenance-free, 50,000-hr
- 1,000-hr oil intervals for fleet uptime
What Makes the PL65 Different
Class-leading 119-hour runtime on four metal-halide lamps — up to 210 hours with LED — for 24-hour jobsites and emergency disaster relief.
A vertical mast rotates a full 360° and extends to 23 ft for broad coverage, while each of the four lamps aims independently.
A Kubota® engine paired with a high-output 6-kilowatt alternator gives you light and power at the same time — one machine instead of two.
Set the tower to turn on at dusk and off at dawn for uninterrupted, automatic productivity — zero interruptions.
A reliable Tier 4 Final Kubota diesel runs up to 1,000 hours between oil changes — one of the longest intervals on the market.
A compact footprint means cost-effective transport — fit 17 PL65 units on a single flatbed — and it's light enough to reposition by hand.
Full Specifications
Lighting & Mast
| Lamp Fixtures | 4 fixtures (each aims independently) |
| Lamp Options | Metal halide or LED |
| Runtime — 4 LED Lamps | 210 hr |
| Runtime — 4 Metal Halide Lamps | 119 hr (class-leading) |
| Runtime @ 100% Load | 105 hr |
| Mast Type | Vertical telescoping mast |
| Mast Rotation | 360° rotation |
| Lighting Height | 23 ft (276 in) |
| Programmable | Yes — programmable dusk-to-dawn on/off |
Onboard Generator
| Prime Power Rating (1.0 PF) | 6.0 kW |
| Available AC Voltage | 120 / 240 V single-phase |
| Available Frequency | 60 Hz |
| 120 V Receptacle | 120 V GFCI duplex (NEMA 5-20R) — 1 × 20 A |
| 240 V Receptacle | 240 V twist-lock (NEMA L6-30R) — 1 × 25 A (optional) |
Engine
| Engine Make / Model | Kubota D1005 |
| Cylinders | 3 |
| Displacement | 61.1 cu in (1.0 L) |
| Power @ Rated Speed | 13.1 bhp (9.7 kW) @ 1,800 rpm |
| Cooling System | Water / glycol (liquid-cooled) |
| DC System | 12 VDC / 520 CCA |
| Fuel Type | #2 Ultra-Low Sulfur Diesel |
| Usable Fuel Capacity | 52.4 gal |
| Emissions | Tier 4 Final (T4F) |
| Oil Change Interval | 1,000 hr between oil changes |
Dimensions & Weight
| Height — Tower Deployed | 276.0 in (23 ft / 7,000 mm) |
| Height — Transport Position | 100.8 in (8.4 ft / 2,600 mm) |
| Length | 109.0 in (2,768 mm) — drawbar down |
| Length | 82.0 in (2,083 mm) — drawbar up |
| Width | 55.0 in (1,397 mm) — standard |
| Width | 121.0 in (3,084 mm) — outriggers deployed |
| Track Width | 47.4 in (1,206 mm) |
| Operating Weight | 1669 lb |
| Shipping Weight | 1,309 lbs (595 kg) |
Standard Equipment
| Programmable Operation | Set the tower to turn on at dusk and off at dawn for uninterrupted, hands-off productivity |
| 360° Mast & Aimable Lamps | Vertical mast rotates a full 360° and extends to 23 ft; each of the four lamps aims independently for broad, targeted coverage |
| Light & Power Together | High-output 6 kW alternator delivers 120/240 V jobsite power for tools alongside the lights — one machine instead of two |
| Compact & Mobile | Compact vertical-mast footprint, light enough to reposition by hand; fits 17 units on a single flatbed truck |
| Clamshell Composite Canopy | Durable, lightweight composite clamshell canopy lifts easily for quick access to all service points |
| Long Service Intervals | Reliable Kubota D1005 engine runs up to 1,000 hours between oil changes — one of the longest intervals on the market |
| Running Gear | Towable trailer with running gear and outriggers for stable, road-ready transport |
Specifications are based on the official Bobcat PL65 data and are subject to change. Some items are optional or vary by configuration — contact Carleton Equipment to confirm exact specifications and availability.
