Rebates & Special Offers
Get as low as 0% for 36 months* or $13,000 cash rebate* in lieu of financing.
Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this E220 | Bobcat.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | E220 |
| Machine Type: | Excavator |
| Coupler: | Pin Grabber |
|
Engine
|
|
|---|---|
| Horsepower: | 174.0 |
|
Performance
|
|
|---|---|
| Bucket Digging Force: | 35,464 lbf |
| Arm Digging Force: | 25,402 lbf |
| Max Digging Reach (Ground): | 381.7 in |
| Max Digging Depth: | 259.4 in |
| Operating Weight: | 52738 lb |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 111.2 |
|
Dimensions
|
|
|---|---|
| Width: | 125.6 in |
| Fuel Tank: | 103.6 gal. |
Description

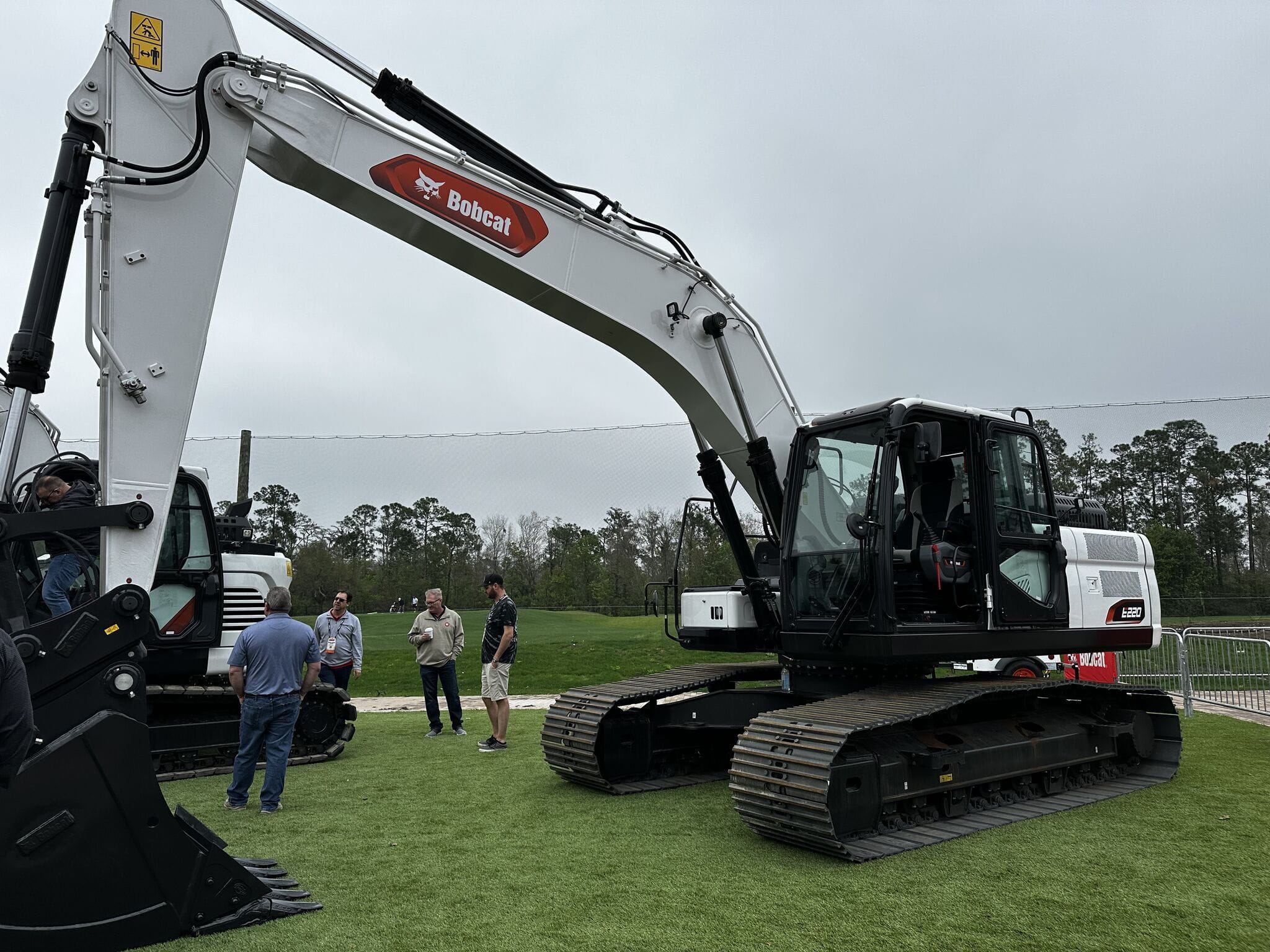

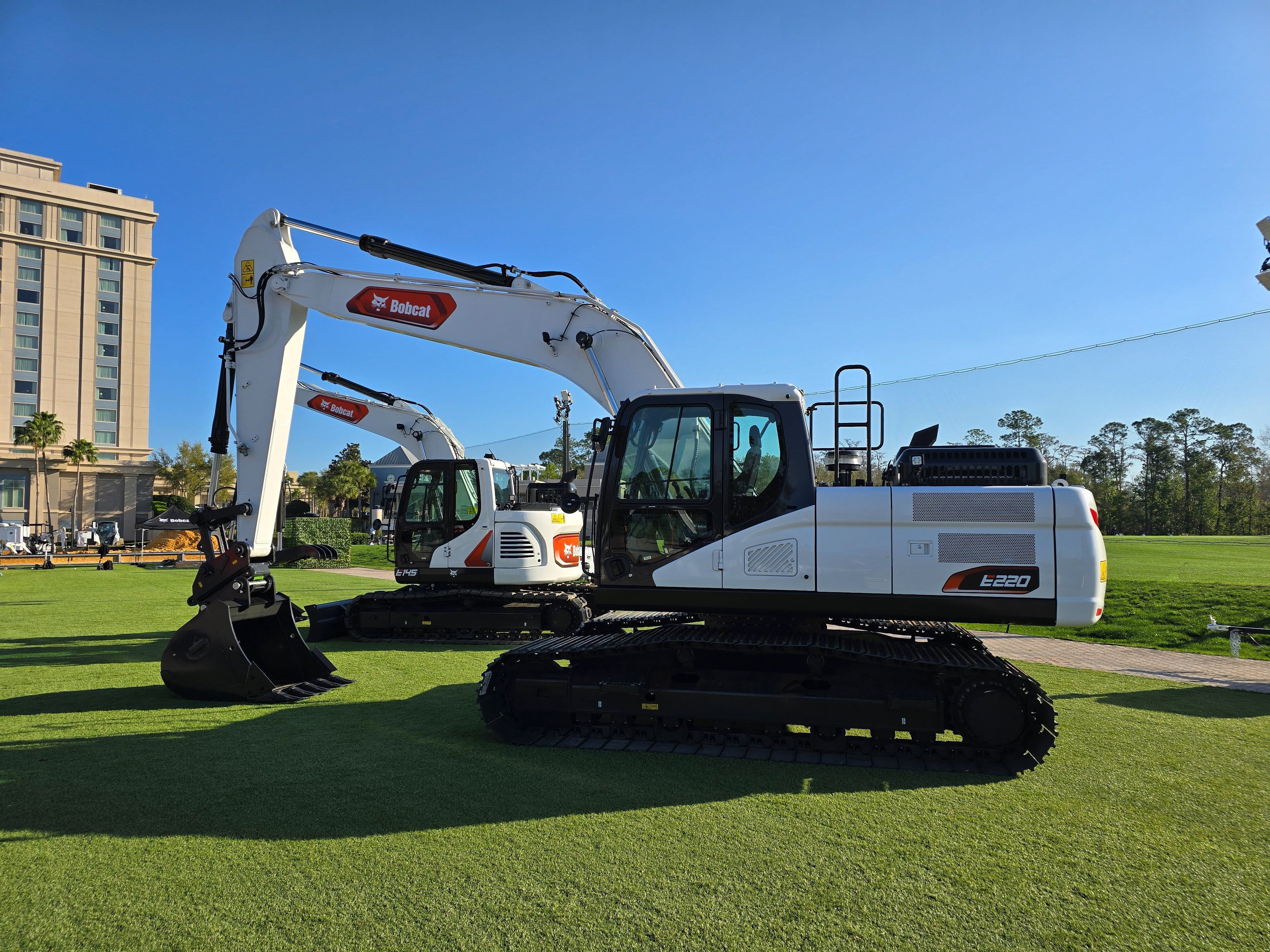

Bobcat E220 Large Excavator
3 Year / 5,000 Hour Warranty
The Bobcat E220 is a powerful option in our large excavator lineup. With its standout performance and operator-friendly features, it’s an easy sell to customers looking for high lift capabilities and excellent operating efficiency. The E220 is designed to handle the toughest jobs with ease while giving operators the comfort and control they need to stay productive.
This powerful machine has a conventional tail swing with a side overhang of 4 ft. 3.7 in. It provides impressive performance and strength when work requires the best possible lift capacity. 174 hp and exceptional swing torque deliver the digging forces necessary to take productivity beyond the limits.
What Makes the E220 Different
174 HP Production Power
The 24-ton E220 delivers 174 hp for high-output excavation, loading and lifting work.
Deep Reach and Strong Breakout
259.4 in dig depth, 381.7 in reach, 35,464 lbf bucket force and 25,402 lbf arm force keep heavy work moving.
Conventional Tail Swing, Strong Lift Capacity
Conventional tail swing provides excellent lift capacity for heavy picks, digging and attachment work.
High-Flow Hydraulics
111.2 gpm main hydraulic flow and selectable auxiliary hydraulics support fast cycles and demanding work tools.
Power and Work Modes
Selectable modes help match machine response to digging, lifting and attachment applications.
Operator-Focused Cab
The enclosed, climate-controlled cab supports visibility, comfort and control throughout long shifts.
Compare the Large Excavator Family
 |
 |
 |
 |
|
| E145 | E165 | E220Viewing | E245 | |
|---|---|---|---|---|
| Specifications | ||||
| Weight Class | 16 t | 17 t | 24 t | 26 t |
| Operating Weight | 34,946 lb | 38,376 lb | 52,738 lb | 56,908 lb |
| Horsepower | 115 hp | 131 hp | 174 hp | 189 hp |
| Max Dig Depth | 19.6 ft | 20 ft | 259.4 in | 263 in |
| Reach at Ground Level | 27.9 ft | 28.8 ft | 381.7 in | 379.7 in |
| Max Dump Height | 23.2 ft | 21.3 ft | 268.9 in | 312.6 in |
| Bucket Digging Force | 24,471 lbf | 25,794 lbf | 35,464 lbf | 35,464 lbf |
| Arm Digging Force | 13,228 lbf | 18,077 lbf | 25,402 lbf | 24,703 lbf |
| Main Hydraulic Flow | 30.1 gpm | 80.4 gpm | 111.2 gpm | 117.4 gpm |
| Travel Speed (High/Low) |
2.9/1.7 mph | 3.1/1.9 mph | 3.4/1.9 mph | 3.6/2 mph |
| Width | 102 in | 8.5 ft | 125.6 in | 125.6 in |
| Tail Swing Overhang | — | 3 ft | 51.8 in | 5.1 in |
Specifications subject to change without notice.
E220 Features & Benefits
Performance 8
Push Link With Lift Eye
The cast push link with lift eye makes it easier to move heavy objects into and out of the trench.
Four Power Modes
Power+, Power, Standard and Economy modes let operators prioritize production, heavy digging, balanced work or fuel efficiency.
Smart Power Control and Dual Pumps
SPC matches load to engine and pump response; two variable-displacement pumps support fast cycles and multifunctioning.
Standard Lift Arm and No-DPF Engine
The nearly 3-meter arm balances breakout force and reach, while the turbocharged Tier 4 engine avoids DPF regeneration downtime.
Variable Speed, Auto Idle and Auto Shift
Automatic controls reduce fuel use, noise and unnecessary engine wear while maintaining responsive travel.
Conventional Tail Swing and Counterweight
The E220's conventional tail swing and standard counterweight support excellent lift capacity for heavy digging and attachment work.
Auto Shutdown
When enabled, shuts the machine down after a selected idle interval to save fuel and reduce wear.
Durability 6
X-Frame and D-Channel Frame
Sloped X-frame surfaces shed debris, while the reinforced upper frame helps withstand side impacts.
Advanced Cooling
Split cooling, a variable-speed hydraulic fan and air-to-air fuel cooling protect the engine and hydraulic system in severe conditions.
Heavy-Duty Work Group
Castings, forged-steel pivots, protected hydraulic routing and wear plates are designed for harsh digging conditions.
Protected Undercarriage
Sealed track pins and recessed drive motors reduce maintenance and protect vital components.
Security and Telematics
Anti-theft password, lockable covers and Machine IQ telematics help protect the investment and uptime.
Comfort 6
Roomy, Quiet Cab
Pressurized sound isolation, vibration damping and a heated air-suspension seat support long, productive shifts.
Visibility, Cameras and Lighting
Large windows, overhead glass, side and rear cameras, pantograph wiper and LED lighting improve awareness in all conditions.
Automatic Climate Control
High-capacity heating and cooling with automatic temperature control maintains the desired cab setting.
8-Inch Display and Connectivity
Touch display, Bluetooth audio, keyless start and remote door locking improve daily convenience.
Serviceability 5
Easy Component Access
Wide covers, a hinged belly pan and steel side covers simplify daily service.
Fluid and Filter Management
Water separator, fuel heater, DEF-fill support, centralized filters and oil-life tracking help crews stay ahead of service.
Centralized Grease Points and Diagnostics
Boom grease banks, improved seals and the LCD diagnostics monitor help reduce routine maintenance time.
Versatility 4
Attachment Versatility and Quick Coupler
Use approved buckets, thumbs and hydraulic tools; an optional pin-grabber coupler speeds compatible attachment changes.
Selectable Work Modes
Digging, lifting, one-way and two-way modes match auxiliary flow to the attachment.
Hydraulic Attachment Management
Configure pressure and flow limits across attachment presets, with password protection available.
Roller Switch and Foot Pedal Control
Vary the speed of two-way hydraulic attachments from the joystick or foot pedal.
Why Buyers Choose the E220
174 hp and a 24-ton operating class for high-production earthmoving
Deep reach, strong breakout force and high-flow hydraulics for demanding work
Conventional tail swing for strong lift capacity and confident material placement
Selectable work modes and auxiliary flow support versatile attachment use
Who Uses the E220 and What For
The E220 is built for contractors that need serious production, deep reach and strong lifting performance on infrastructure and site-development work.
Arm Options
Choose the arm configuration that best matches your work.
Standard Arm
Provides maximum breakout force and lifting ability. The best choice when power and digging performance are the priority.
Long Arm
Gives you longer reach and more dig depth. Ideal when you need to work farther from the machine or dig deeper trenches.
Extendable Arm
Delivers the power and performance of a standard arm with extra reach on demand — up to 2 feet greater than the long arm, depending on the model.
E220 Key Performance — Standard Arm Configuration
Specifications subject to change without notice.
What Makes the E220 Different
High-output performance for heavy construction.
Strong bucket breakout and 25,402 lbf arm force.
Strong lift capacity for heavy picks and material placement.
Full Specifications
General
| Condition | Showroom |
| Machine Type | Excavator |
Engine
| Horsepower | 174.0 |
| Turbocharged Engine | ■ Standard |
Performance
| Travel Speed | 3.4 / 1.9 mph |
| Weight Class | 24 t |
| Dig Depth | 259.4 in |
| Max Reach at Ground Level | 381.7 in |
| Max Dump Height | 268.9 in |
| Bucket Digging Force | 35,464 lbf |
| Arm Digging Force | 25,402 lbf |
Capacities
| Fuel Tank | 103.6 gal. |
Hydraulics
| System Relief @ Quick Couplers | 4,978 psi |
| Main Hydraulic System Maximum Flow | 111.2 gpm |
| Auxiliary Std Flow | 111.2 |
Dimensions & Weight
| Cab Height | 117.3 in |
| Length | 376.8 in |
| Width | 125.6 in |
| Operating Weight | 52738 lb |
| Tail Swing Overhang | 51.8 in |
Serviceability
Features
| Tail Swing Type | Conventional |
| Air Conditioning | ■ Standard |
| Dozer Blade | — Not Applicable |
| Cab Enclosure | ■ Standard |
| Cab Heater | — Not Applicable |
| Heater Air Conditioning | ■ Standard |
| Radio | ■ Standard |
| Turbocharged Engine | ■ Standard |
| Engine Shutdown | ■ Standard |
| Auxiliary Hydraulics | ■ Standard |
| Quick Tach System | ○ Optional |
| Rubber Track | — Not Applicable |
| Selectable Aux. Flow | ■ Standard |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
