Horsepower
131 hp
Turbocharged power for heavy digging, lifting and truck loading.
Rebates & Special Offers
Get as low as 0% for 36 months* or $14,000 cash rebate* in lieu of financing.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | E165 |
| Machine Type: | Excavator |
| Coupler: | Pin Grabber |
|
Engine
|
|
|---|---|
| Horsepower: | 131.0 |
|
Performance
|
|
|---|---|
| Bucket Digging Force: | 25,794 lbf |
| Arm Digging Force: | 18,077 lbf |
| Max Digging Reach (Ground): | 28.8 FT. |
| Max Digging Depth: | 20 FT. |
| Operating Weight: | 38376 lb |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 80.4 GPM |
|
Dimensions
|
|
|---|---|
| Width: | 102 IN. |
| Fuel Tank: | 77.1 GPM |
Description

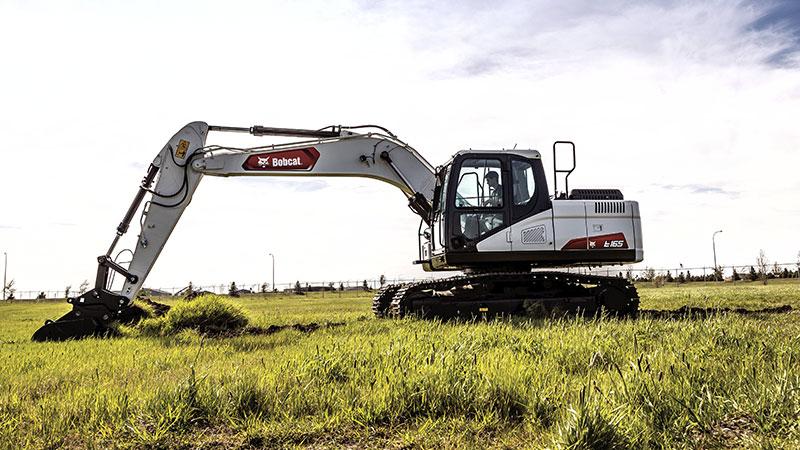

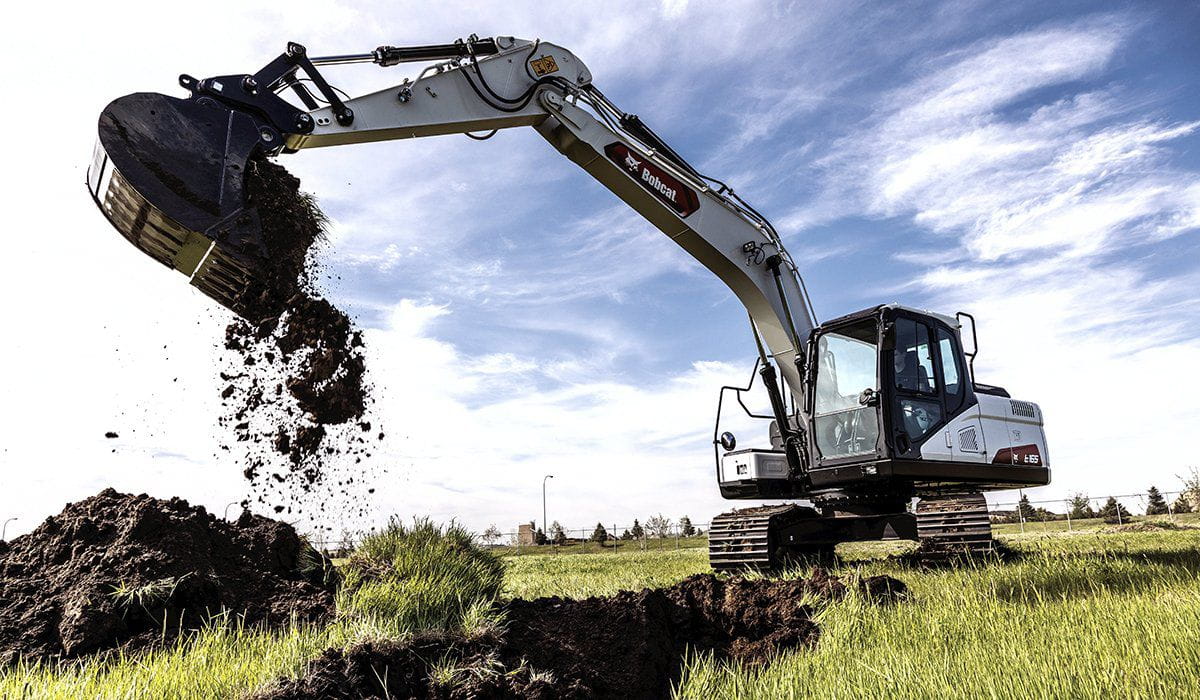

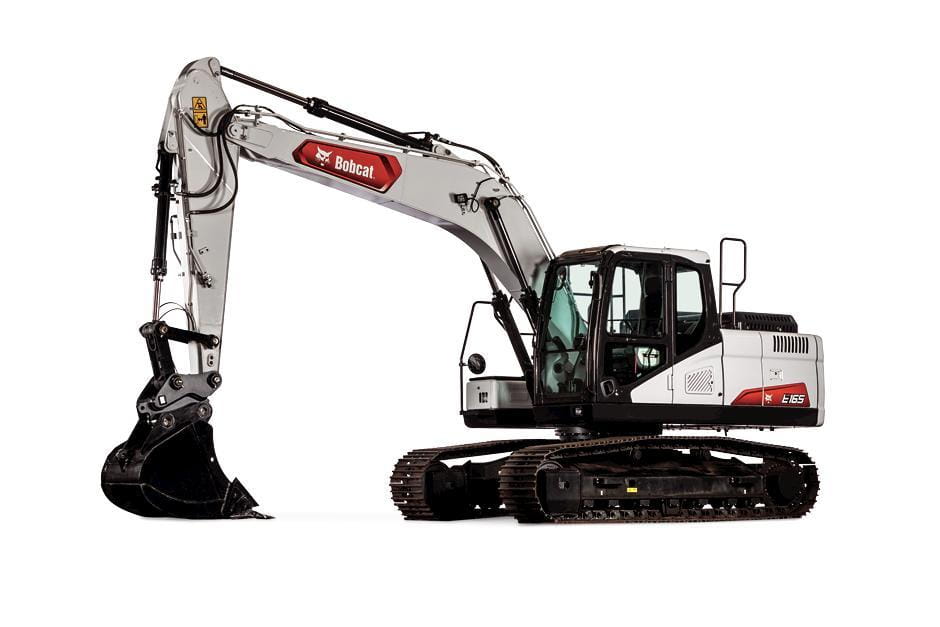

Bobcat E165 Large Excavator
The turbo-charged Bobcat® E165 large excavator provides optimized performance for heavy digging and lifting operations. Class-leading hydraulics give operators reliable, steady power to the work group to save time with every digging cycle. The E165 large excavator offers a conventional tail swing that brings you the best possible lift capacity, so you can pick and place heavy items with ease.
This 131-hp excavator, in the 16 – 18 ton size class, is ideal for roadways, railroads, bridges, infrastructure, and commercial and urban jobsites. Plus, more slewing torque means increased power for slewing, backfilling and all-around better productivity on your jobsite.
E165 Key Features
What Makes the E165 Different
131 HP Heavy-Duty Performance
The turbocharged 131 hp E165 brings the power and hydraulic performance needed for demanding digging, lifting and truck-loading work.
Conventional Tail Swing, Strong Lift Capacity
Its conventional tail swing design supports excellent lifting confidence for placing pipe, barriers, materials and other heavy loads.
Deep Digging and Long Reach
A 20 ft dig depth, 28.8 ft reach at ground level and 21.3 ft maximum dump height help crews work productively across large jobsites.
Four Power and Work Modes
Selectable power and work modes let operators tune performance for digging, lifting, breakers, shears and efficient routine work.
Attachment-Ready Hydraulics
An 80.4 gpm main hydraulic system, selectable auxiliary flow and optional quick coupler support productive attachment changes and demanding hydraulic tools.
Comfort and Easy Service Access
A pressurized, climate-controlled cab supports long shifts, while wide access panels, a hinged belly pan and centralized grease banks simplify daily maintenance.
Bobcat Large Excavators
Compare the Large Excavator Family
 |
 |
 |
 |
|
| E145 | E165Viewing | E220 | E245 | |
|---|---|---|---|---|
| Specifications | ||||
| Weight Class | 16 t | 17 t | 24 t | 26 t |
| Operating Weight | 34,946 lb | 38,376 lb | 52,738 lb | 56,908 lb |
| Horsepower | 115 hp | 131 hp | 174 hp | 189 hp |
| Max Dig Depth | 19.6 ft | 20 ft | 259.4 in | 263 in |
| Reach at Ground Level | 27.9 ft | 28.8 ft | 381.7 in | 379.7 in |
| Max Dump Height | 23.2 ft | 21.3 ft | 268.9 in | 312.6 in |
| Bucket Digging Force | 24,471 lbf | 25,794 lbf | 35,464 lbf | 35,464 lbf |
| Arm Digging Force | 13,228 lbf | 18,077 lbf | 25,402 lbf | 24,703 lbf |
| Main Hydraulic Flow | 30.1 gpm | 80.4 gpm | 111.2 gpm | 117.4 gpm |
| Travel Speed (High/Low) |
2.9/1.7 mph | 3.1/1.9 mph | 3.4/1.9 mph | 3.6/2 mph |
| Width | 102 in | 8.5 ft | 125.6 in | 125.6 in |
| Tail Swing Overhang | — | 3 ft | 51.8 in | 5.1 in |
Specifications subject to change without notice.
E165
E165 Features & Benefits
Performance 7
Powerful Hydraulics
Powerful hydraulic, arm and bucket forces, plus power boost and higher slew torque, support fast digging, lifting and backfilling. Two variable-displacement piston pumps deliver efficient cycle times.
Four Power Modes
Power+, Power, Standard and Economy modes let operators match output and fuel use to hard digging, loading, lifting, routine work or precision grading.
Selectable Work Modes
Digging, Smart Power Control, lifting, breaker and shear modes tailor engine response, pump torque and auxiliary flow to the task or attachment.
Turbocharged Tier 4 Engine
Turbocharged power, variable-speed control and pump-torque control maintain dependable performance while helping reduce fuel use and avoid engine overload.
Auto Shift and Auto Idle
Auto shift responds to changing load, while auto idle reduces engine speed and noise when the controls are inactive.
X-Frame Undercarriage
Sloped undercarriage surfaces shed debris to preserve clearance and reduce cleanup time.
Conventional Tail Swing
Conventional tail swing delivers maximum lift capacity for confident heavy picks and placement.
Comfort 2
Premium Cab
A pressurized, sound-isolated cab, heated air-suspension seat and adjustable controls help reduce fatigue during long shifts.
Clear Visibility
Large front, side and overhead windows, narrow pillars and sun shades provide unobstructed views of the work area.
Uptime Protection 3
Protected Components
Heavy-duty protected components and an automatic belt tensioner help reduce wear and maintain performance.
Vandalism Protection
An anti-theft password plus lockable covers and fuel-fill points help protect the machine and fuel supply.
Easy Service Access
Wide access covers, a hinged belly pan, centralized boom grease points and self diagnostics simplify daily maintenance.
Versatility 1
Attachment Control
Use the right-joystick roller switch or foot pedal to vary the speed of two-way hydraulic attachments such as a hydraulic clamp.
Bobcat E165 Large Excavator
Why Buyers Choose the E165
131 hp turbocharged engine and 17-ton operating class for heavy digging and lifting
20 ft dig depth and 28.8 ft ground-level reach for utility, roadway and site-development work
Conventional tail swing provides strong lift capacity for placing pipe, barriers and materials
25,794 lbf bucket force and 18,077 lbf arm force for hard digging conditions
Four power modes, work modes and power boost balance output, control and fuel use
Side and rear cameras, a premium cab and easy-access service points support productive long shifts
Customers & Applications
Who Uses the E165 and What For
The Bobcat E165 is built for contractors and public-works crews who need substantial hydraulic power, reach and lift capacity on heavy-duty projects.
- Commercial and residential excavation
- Mass grading and site preparation
- Truck loading and material placement
- Foundation and retaining-wall excavation
- Road, bridge and railroad work
- Water, sewer and storm utilities
- Large-diameter pipe installation
- Municipal and right-of-way projects
- Breakers, shears and grapples
- Hydraulic coupler changes
- Demolition support
- Heavy material handling
E165 Configuration
Arm Options
Choose the arm configuration that best matches your work.
Standard on E165
Standard Arm
Provides maximum breakout force and lifting ability. The best choice when power and digging performance are the priority.
Not Available
Long Arm
Gives you longer reach and more dig depth. Ideal when you need to work farther from the machine or dig deeper trenches.
Not Available
Extendable Arm
Delivers the power and performance of a standard arm with extra reach on demand — up to 2 feet greater than the long arm, depending on the model.
E165 Key Performance — Standard Arm Configuration
Working Dimensions
Dig Depth
240 in
Max Reach
345.6 in
Dump Height
255.6 in
Digging Forces
Bucket Force
25794 lbf
Arm Force
18077 lbf
Specifications subject to change without notice.
Bobcat E165
What Makes the E165 Different
Operating Weight
38,376 lb
A 17-ton-class excavator for substantial site and infrastructure work.
Digging Force
25,794 lbf
Bucket breakout force backed by 18,077 lbf of arm force.
Reach
28.8 ft
Long ground-level reach with a 20 ft maximum dig depth.
Hydraulics
80.4 gpm
High main-system flow for fast cycles and hydraulic attachments.
Tail Swing
Conventional
Designed for strong lift capacity and confident material placement.
Full Specifications
General
| Condition | Showroom |
| Machine Type | Excavator |
Engine
| Horsepower | 131.0 |
| Turbocharged Engine | ■ Standard |
Performance
| Travel Speed | 3.1 / 1.9 mph |
| Weight Class | 17 t |
| Dig Depth | 20 FT. |
| Max Reach at Ground Level | 28.8 FT. |
| Max Dump Height | 21.3 ft |
| Bucket Digging Force | 25,794 lbf |
| Arm Digging Force | 18,077 lbf |
Capacities
| Fuel Tank | 77.1 GPM |
Hydraulics
| System Relief @ Quick Couplers | 4,694 psi |
| Main Hydraulic System Maximum Flow | 80.4 gpm |
| Auxiliary Std Flow | 80.4 GPM |
Dimensions & Weight
| Cab Height | 115.2 in |
| Length | 27.1 ft |
| Width | 102 IN. |
| Operating Weight | 38376 lb |
| Tail Swing Overhang | 3 ft |
Serviceability
Features
| Tail Swing Type | Conventional |
| Air Conditioning | ■ Standard |
| Cab Enclosure | ■ Standard |
| Cab Heater | ■ Standard |
| Heater Air Conditioning | ■ Standard |
| Radio | ■ Standard |
| Turbocharged Engine | ■ Standard |
| Auxiliary Hydraulics | ■ Standard |
| Quick Tach System | ○ Optional |
| Rubber Track | — Not Applicable |
| Selectable Aux. Flow | ■ Standard |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
