Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this Bobcat L85 - Rental.
|
General Info
|
|
|---|---|
| Condition: | Rental |
| Manufacturer: | Bobcat |
| Model: | L85 |
| Machine Type: | Compact Wheel Loader |
| Coupler: | Bob-Tach |
|
Engine
|
|
|---|---|
| Horsepower: | 68.0 |
|
Performance
|
|
|---|---|
| Operating Weight: | 11164 lb |
| Height to Bucket Hinge Pin: | 10.66 FT. |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 27 GPM |
| Aux. High Flow: | 19.8 GPM |
|
Dimensions
|
|
|---|---|
| Width: | 74.8 IN (with bucket) |
Description

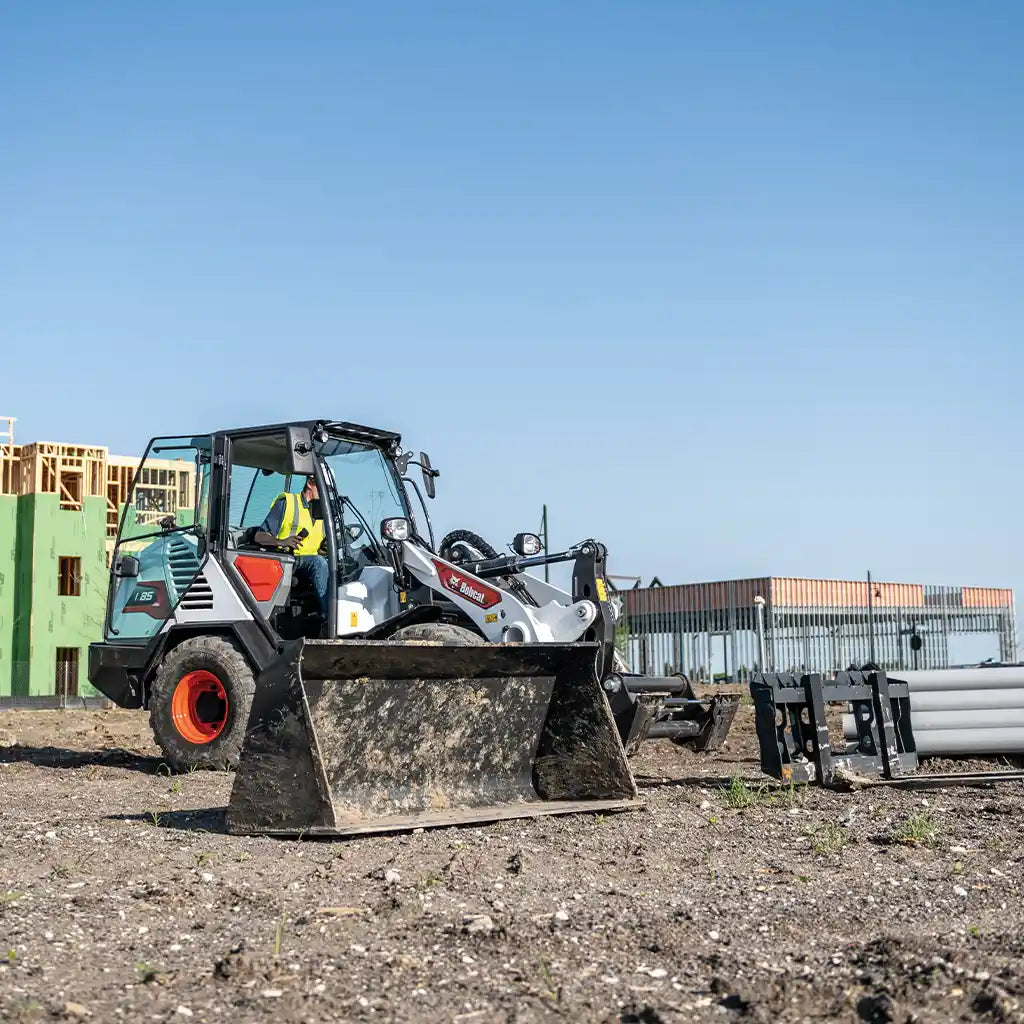

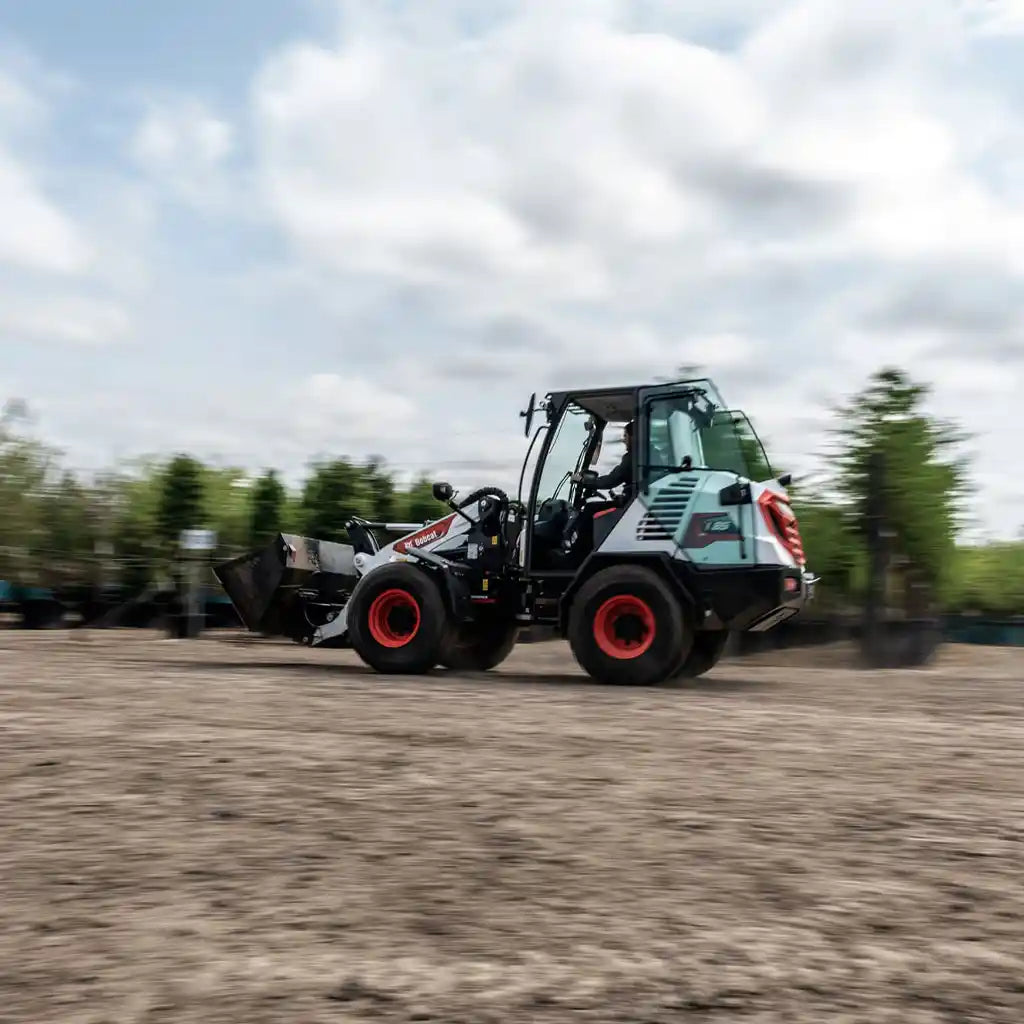

Rent a Bobcat L85 Articulating Loader - Bobcat Rental in Michigan

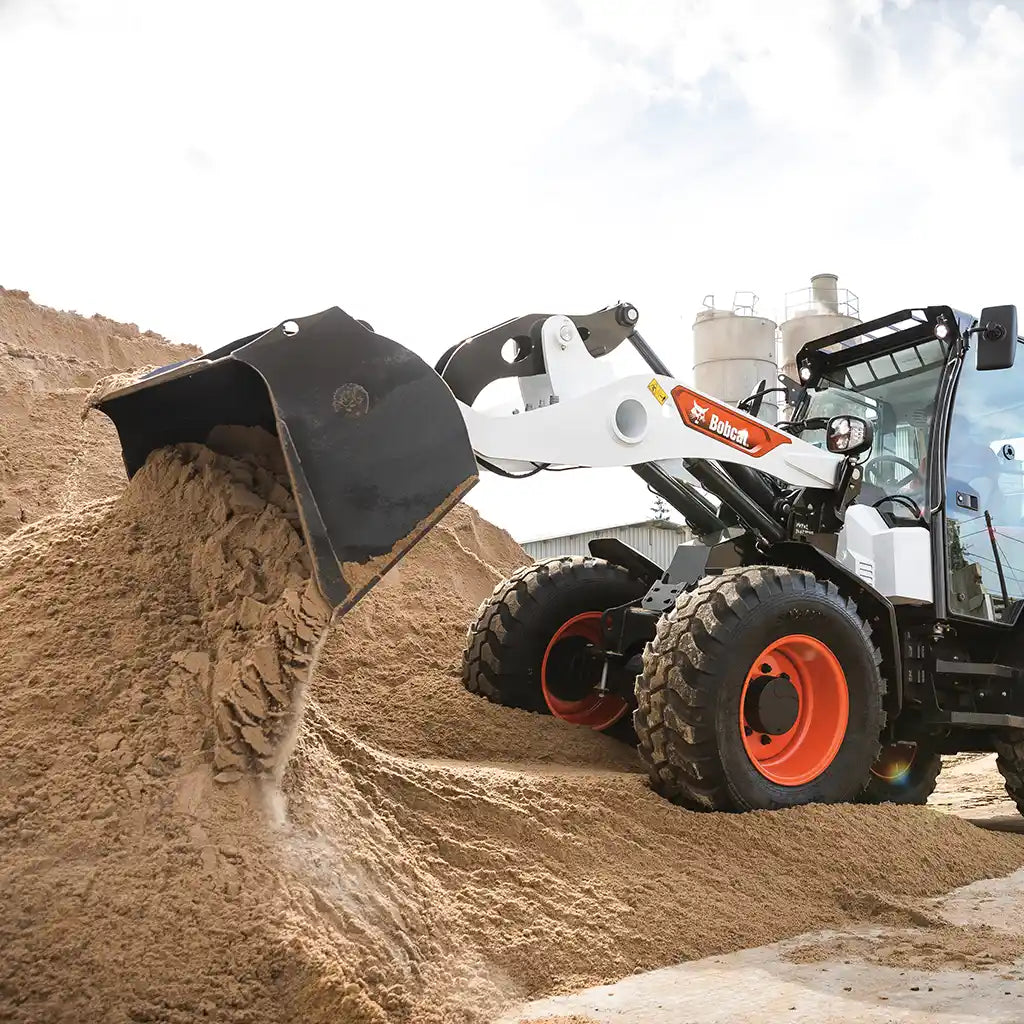

If you have the will, the Bobcat® L85 compact wheel loader will provide the way with leading performance, maneuverability and versatility. With a high lift height and standard bucket capacities of up to 1-cubic yard, the L85 compact wheel loader excels at material-handling jobs and many other applications.
- Bobcat Tier 4, turbo-charged engine delivers powerful, high-torque performance, high efficiency and convenient service

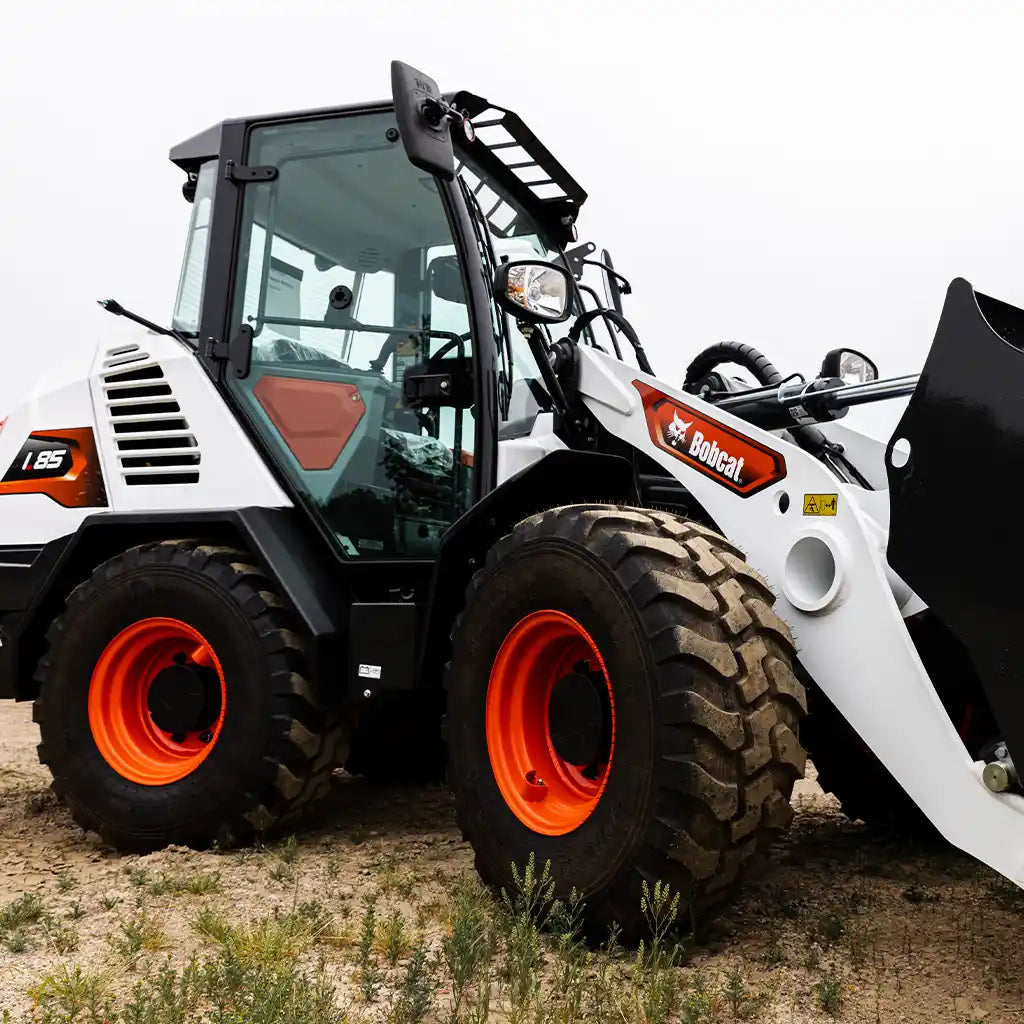

- Articulated steering for a tight-turning radius and high maneuverability
- Standard high-flow hydraulics
- Advanced attachment operations
- Full-color, 5-inch display panel
Specs
Key Specs
| Horsepower | 68 hp |
| Rated Operating Capacity with Bucket - Straight | 3,974 lb |
| Rated Operating Capacity with Bucket - Articulated | 3,257 lb |
| Rated Operating Capacity with Forks - Straight | 4,786 lb |
| Rated Operating Capacity with Forks - Articulated | 3,977 lb |
| Bucket Capacities |
1.0- 1.6 yd3 |
| Operating Weight |
11,164 lb |
| Travel Speed - High |
4.8 mph |
| Travel Speed - Low |
16.3 mph |
| Auxiliary Standard Flow | 19.8 gal/min |
| Auxiliary High Flow | 27 gal/min |
| Width (Over Tires) | 70.9 in |
Engine
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 68 hp |
| Turbocharged Engine |
Yes |
Performance
| Rated Operating Capacity with Bucket - Straight | 3,974 lb |
| Rated Operating Capacity with Bucket - Articulated | 3,257 lb |
| Rated Operating Capacity with Forks - Straight | 4,786 lb |
| Rated Operating Capacity with Forks - Articulated | 3,977 lb |
| Tipping Load with Bucket - Straight | 7,947 lb |
| Tipping Load with Bucket - Articulated | 6,515 lb |
| Bucket Capacities |
1.0- 1.6 yd3 |
| Operating Weight |
11,164 lb |
| Travel Speed - Low | 4.8 mph |
| Travel Speed - High | 16.3 mph |
Capacities
| Fuel Tank | 20.8 gal |
Hydraulic System
| Auxiliary Std Flow | 19.8 gal/min |
| Auxiliary High Flow | 27 gal/min |
Dimension
| Length with Standard Bucket | 220 in |
| Width (Over Tires) | 70.9 in |
| Width (With Bucket) | 74.8 in |
| Inside Turning Radius with Bucket | 1,986 mm |
| Turning Radius Outside | 169.9 in |
| Outside Turning Radius with Forks | 4,591 mm |
| Wheelbase | 82.7 in |
| Articulation Angle | 40° |
| Oscillation Angle | 8° |
| Dump Angle @ Maximum Height | 45° |
| Ground Clearance | 12.3 in |
| Height to Bucket Hinge Pin | 10.66 ft |
| Rollback Angle | 50° |
| Tire Size | 405/70 R18 |
| Wheel Tread | 54.8 in |
| Height with Operator Cab | 98.3 in |
Compare the CWL Family
 |
 |
 |
|
| L65 | L85Viewing | L95 | |
|---|---|---|---|
| Specifications | |||
| Horsepower | 55 hp | 68 hp | 74.4 hp |
| Rated Operating Capacity (articulated, with bucket) |
2,618 lb | 3,257 lb | 3,335 lb |
| Height to Bucket Hinge Pin | 126.9 in | 127.9 in | 128.9 in |
| Bucket Capacity | 0.85 yd³ | 1.0 yd³ | 1.25 yd³ |
| Max Travel Speed | 15.1 mph | 16.3 mph | 24.2 mph |
| Operating Weight | 10,169 lb | 11,389 lb | 11,993 lb |
| Features | |||
| Z-Bar Linkage | Standard | Standard | Standard |
| 2-Speed Travel | Standard | Standard | Standard |
| Power Bob-Tach® | Standard | Standard | Standard |
| High-Flow Hydraulics | Optional | Standard | Standard |
| Enclosed Cab with HVAC | Optional | Optional | Optional |
Specifications subject to change without notice.
L65
The entry-level Bobcat® compact wheel loader — 55 hp and a tight turning radius make it efficient and maneuverable on constrained jobsites.
- 2,618 lb ROC (articulated, with bucket)
- 69.7 in wide over tires
- Z-Bar linkage for powerful breakout forces
- 15.1 mph max travel speed
L85
You're HereA step up in capacity — 68 hp and standard high-flow hydraulics for operators who need more attachment performance.
- 3,257 lb ROC (articulated, with bucket)
- 1.0 yd³ standard bucket capacity
- Standard high-flow hydraulics (27 gpm)
- 16.3 mph max travel speed
L95
The most capable Bobcat® compact wheel loader — 74.4 hp, the largest bucket, and the fastest travel speed in the family.
- 3,335 lb ROC (articulated, with bucket)
- 1.25 yd³ standard bucket capacity
- Standard high-flow hydraulics
- 24.2 mph max travel speed
Full Specifications
General
| Condition | Rental |
| Machine Type | Compact Wheel Loader |
Engine
| Horsepower | 68.0 |
Performance
| Bucket Hinge Pin Height | 10.66 FT. |
Hydraulics
| Aux. Standard Flow | 27 GPM |
| Aux. High Flow | 19.8 GPM |
Dimensions & Weight
| Width | 74.8 IN (with bucket) |
| Operating Weight | 11164 lb |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
