Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this TR75 | Bobcat.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | TR75 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Engine: | 3TNV80F |
| Engine Make: | Yanmar |
| Horsepower: | 19.6 |
| Emissions: | Tier 4 Final |
|
Performance
|
|
|---|---|
| Operating Weight: | 3174 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Height: | 52" |
| Length: | 78" |
| Width: | 24" |
| Fuel Tank: | 7.4 gal. |
Description

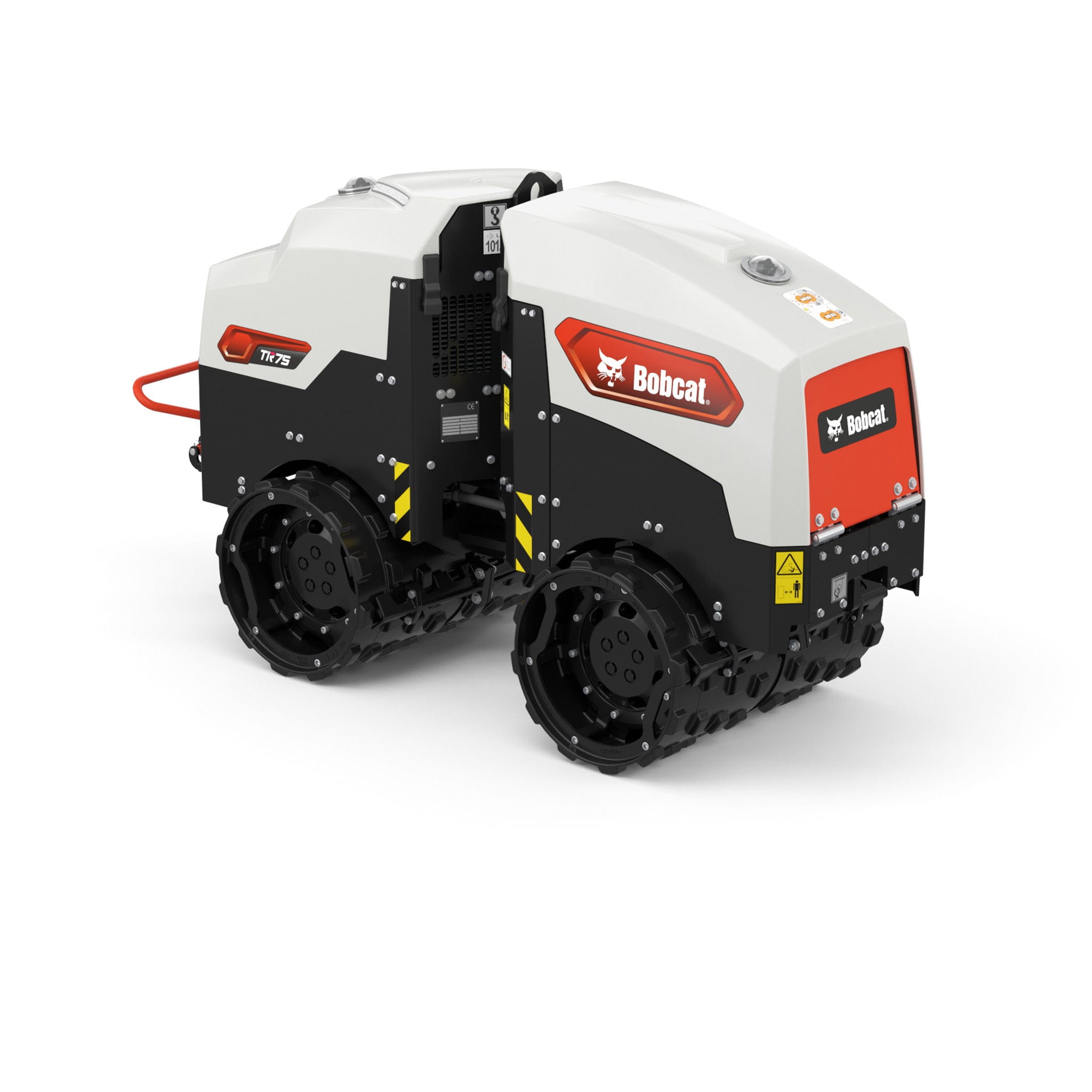

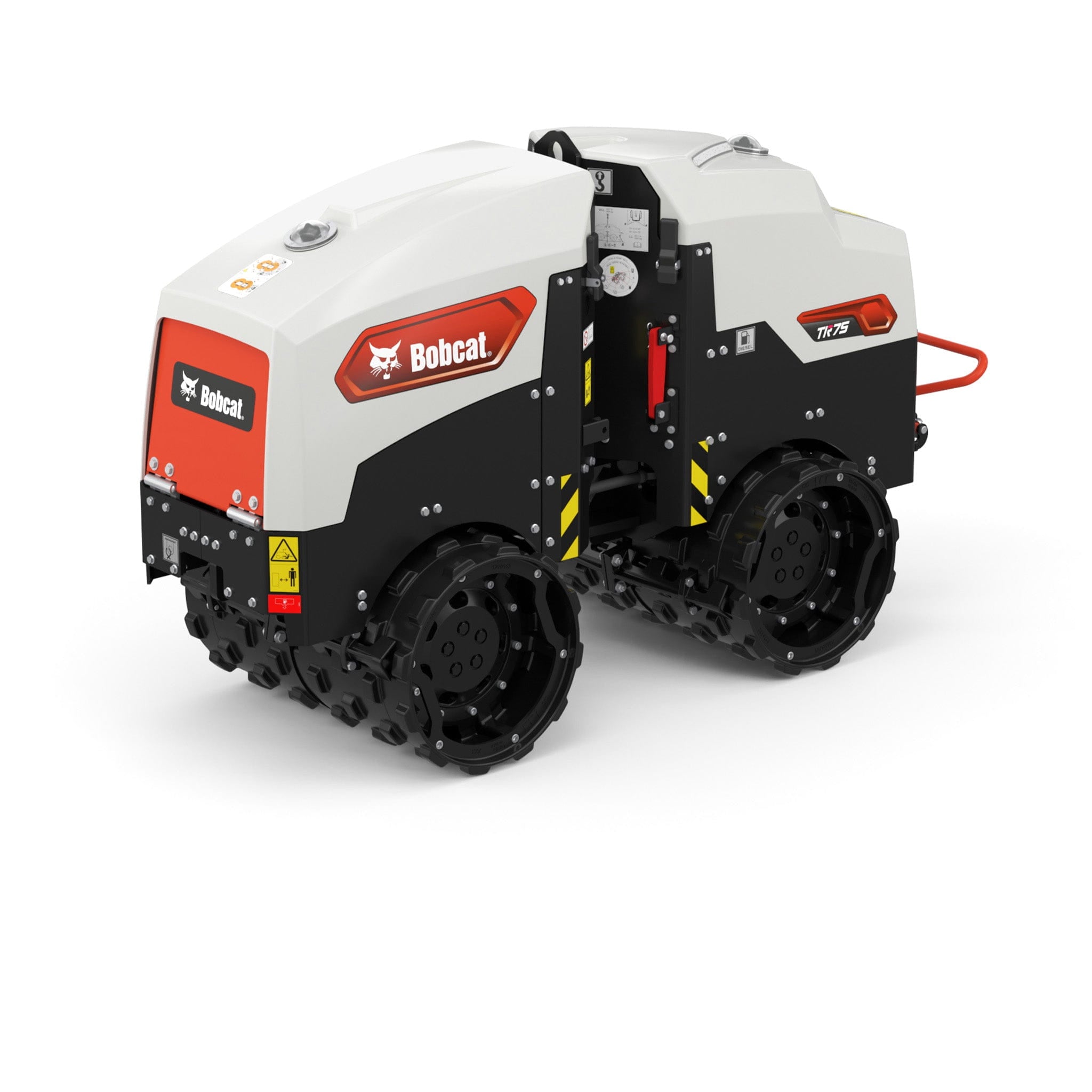

Bobcat TR75 Trench Roller

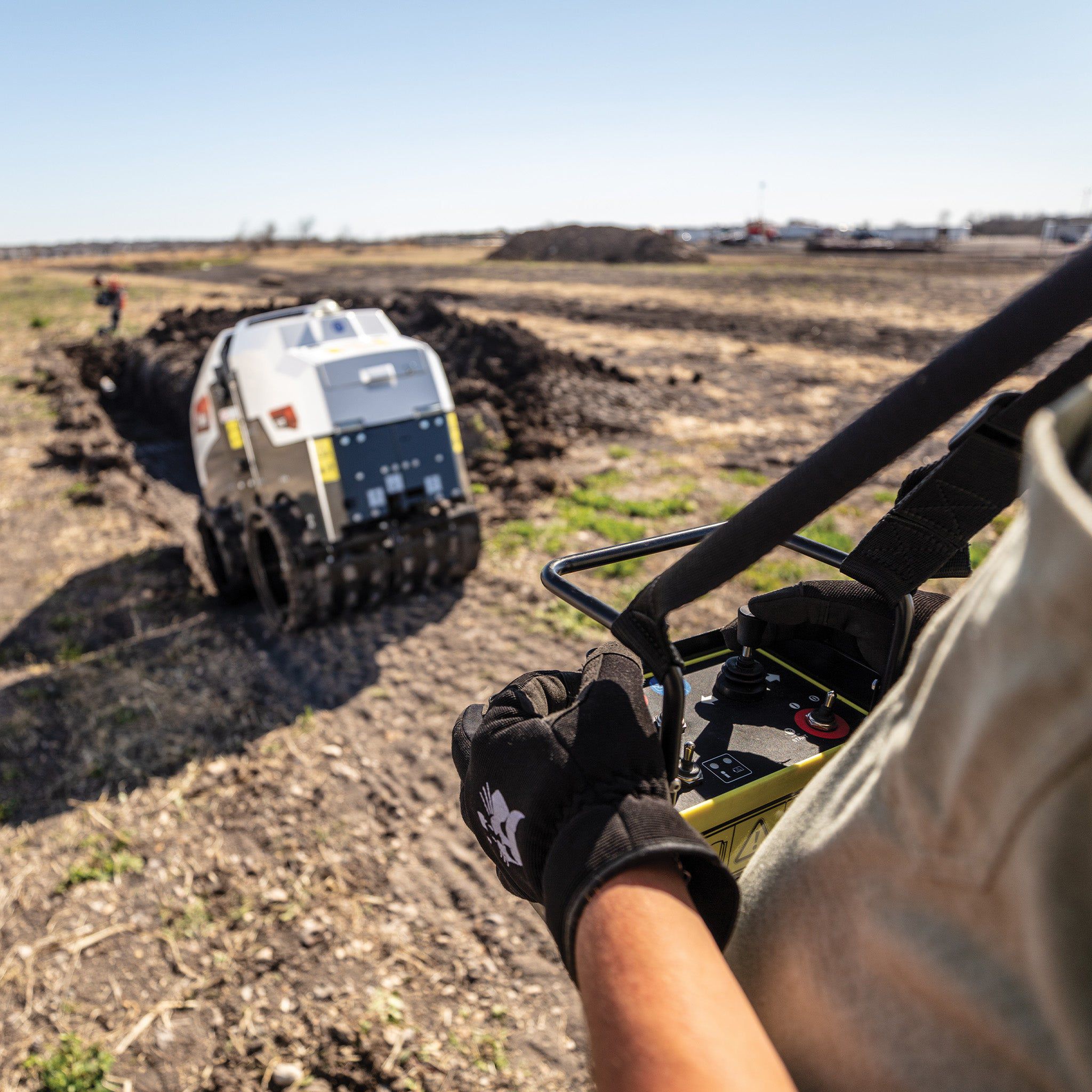

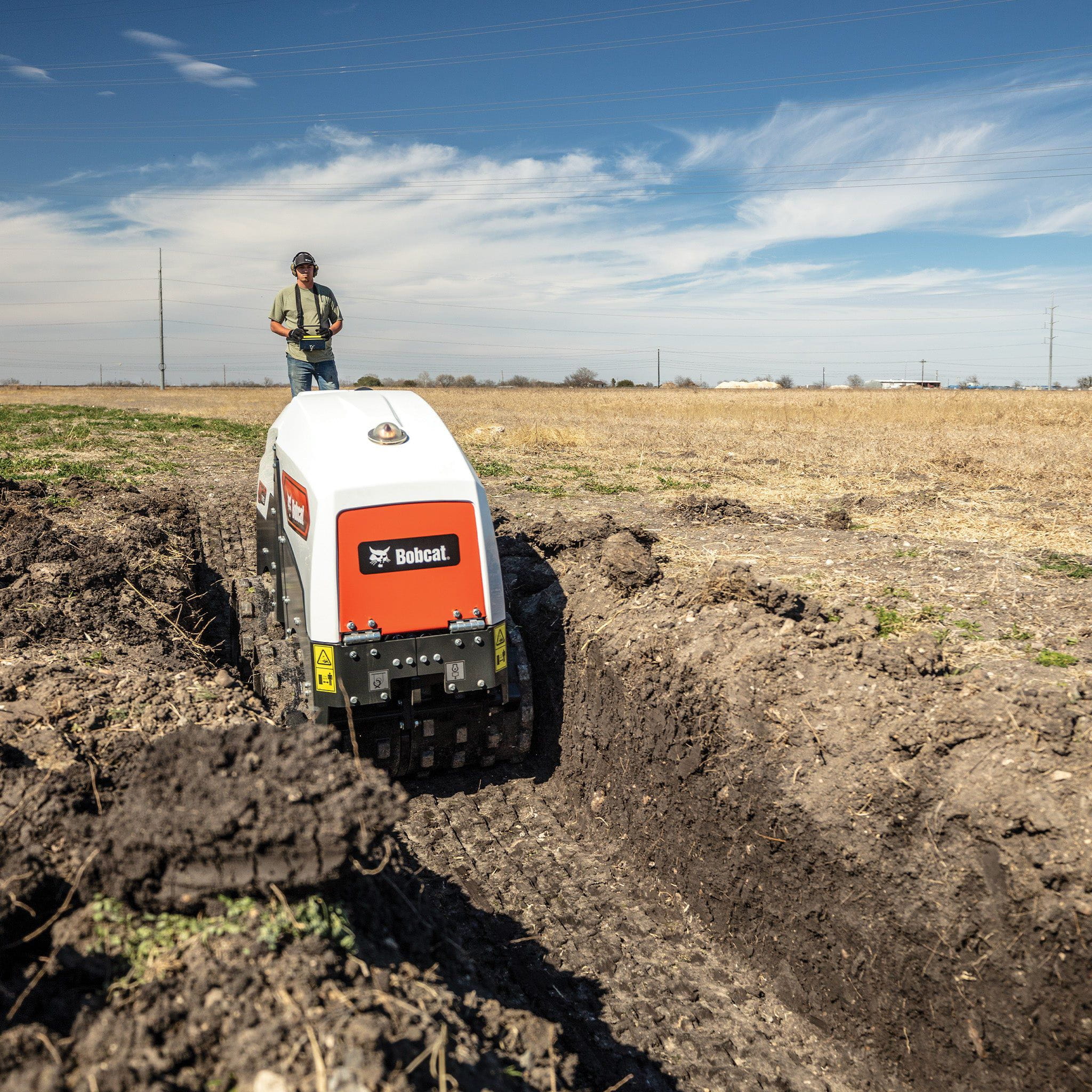

Tackle trench work and many other compaction jobs with the remote-controlled Bobcat TR75 Trench Roller.
Features:
- Solar-powered remote control
- High-compaction performance
- Oscillating drums deliver greater ground contact
- Ideal in a wide variety of applications
- Standard drum extensions
Overview:
- Outsmart operator fatigue and get impressive compaction results with the remote-controlled Bobcat® TR75.
- The TR75 achieves ideal compaction on a wide range of materials, including dense soils.
- The powerful TR75 is ideal for a variety of compaction applications including pipeline trench construction, commercial, industrial and residential development, structure backfill work, as well as electric and cable installation.
- With a tight turning radius, low center of gravity and an oscillating articulated joint, the TR75 is highly maneuverable and maintains more complete contact on uneven ground.
Compare the Family
Bobcat Compact Track Loaders
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| T450 | T550 | T595 | T62 | T64-2 | T66-2 | T650 | T76-2 | T86-2 | |
|---|---|---|---|---|---|---|---|---|---|
| Frame / Role | Compact classic | Mid-size classic | Current classic | Non-current mid-frame | Mid-frame | Mid-frame | Larger classic | Large-frame | High-output large-frame |
| Horsepower | 55 hp | 68 hp | 70 hp | 68 hp | 68 hp | 74 hp | 74 hp | 74 hp | 115 hp |
| Rated Operating Capacity | 1,490 lbs | 1,995 lbs | 2,100 lbs | 2,150 lbs | 2,300 lbs | 2,400 lbs | 2,500 lbs | 2,900 lbs | 3,925 lbs |
| Tipping Load | 4,257 lbs | 5,700 lbs | 6,000 lbs | 6,143 lbs | 6,571 lbs | 6,857 lbs | 7,143 lbs | 8,285 lbs | 11,214 lbs |
| Operating Weight | 6,424 lbs | 7,557 lbs | 7,906 lbs | 8,612 lbs | 8,440 lbs | 8,560 lbs | 8,980 lbs | 9,592 lbs | 12,104 lbs |
| Travel Speed | 7 / 11 mph | 7.1 / 10.4 mph | 7.1 / 10.4 mph | 7.2 mph | 6.4 / 9.3 mph | 5.5 / 9.3 mph | 6 / 8.7 mph | 6.8 / 9.2 mph | 5.5 / 10.7 mph |
| Standard Aux Flow | 16.7 gpm | 17.1 gpm | 17.1 gpm | 17.6 gpm | 17.6 gpm | 17.6 gpm | 23 gpm | 23.3 gpm | 23 gpm |
| High / Super Flow | — | 26.7 gpm | 26.7 gpm | 26.9 gpm | 26.9 gpm | 26.9 gpm | 30.5 gpm | 30.3 gpm | 36.6 / 42 gpm |
| Height to Hinge Pin | 109.5 in | 114.5 in | 119 in | 114.5 in | 120 in | 120 in | 124 in | 128.3 in | 144 in |
| Overall Width | 55 in | 67 in | 66.6 in | 67 in | 67.8 in | 67.8 in | 72.9 in | 73.5 in | 78 in |
Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
Full Specifications
General
| Condition | Showroom |
| Machine Type | Other |
Engine
| Engine Make | Yanmar |
| Engine Model | 3TNV80F |
| Horsepower | 19.6 |
| Emissions | Tier 4 Final |
Performance
Hydraulics
Dimensions & Weight
| Height | 52" |
| Length | 78" |
| Width | 24" |
| Operating Weight | 3174 lb |
| Fuel Tank | 7.4 gal. |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
