Tine Rake

Bobcat
More specifications
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: Tine Rake
Engine
Performance
Hydraulics
Dimensions

Description

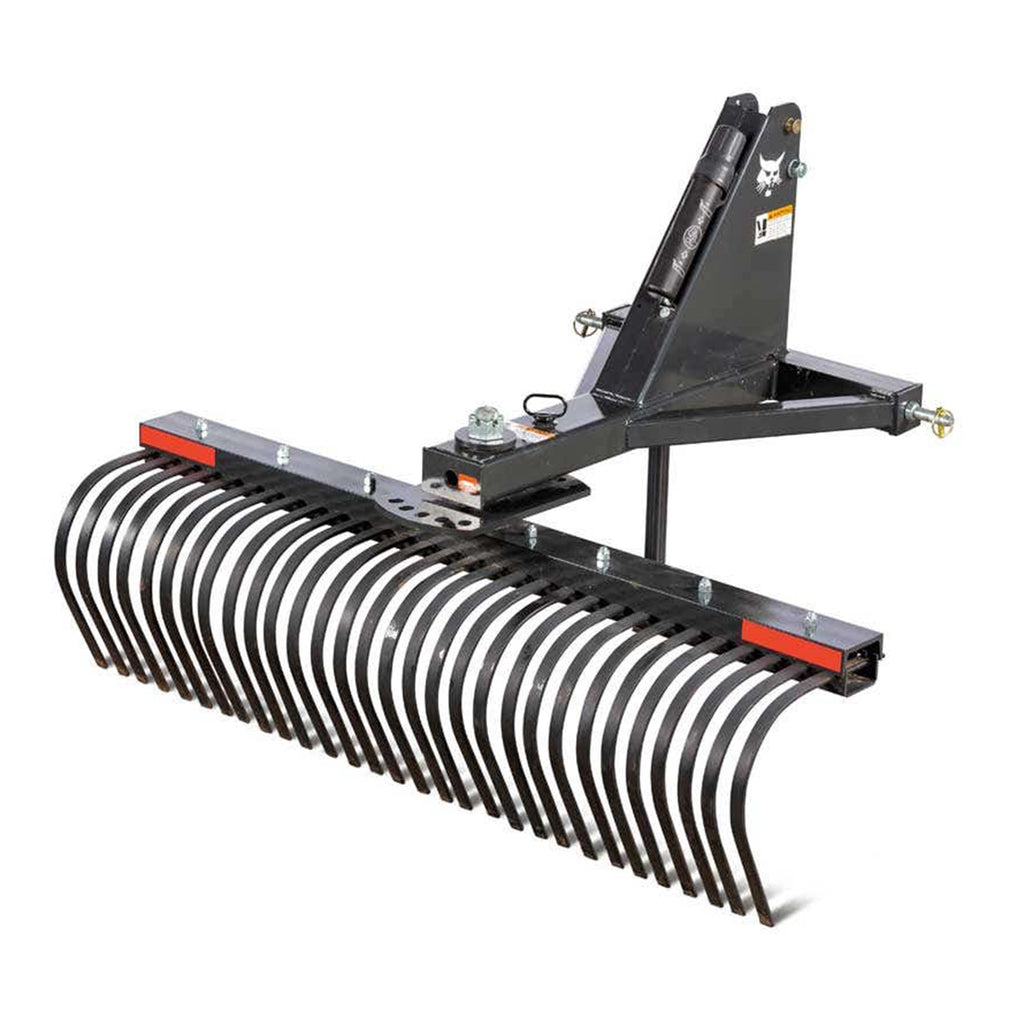

Tine Rake by Bobcat

The tine rake implement easily collects debris and smooths lawns in preparation for reseeding and fertilizing. Or put it to work maintaining gravel parking lots, driveways or walking trails on your property.

This compact tractor implement is ideal for smoothing, raking or contouring soil surfaces in preparation for planting or seeding. You can quickly get rid of unwanted surface debris, including rocks, roots, hay, weeds, leaves and small tree limbs. Angle the 3-point rake to pull debris off to the side, straighten it to pull debris into a pile or reverse it to push debris piles out of the way.

Description

How The Tine Rake Works

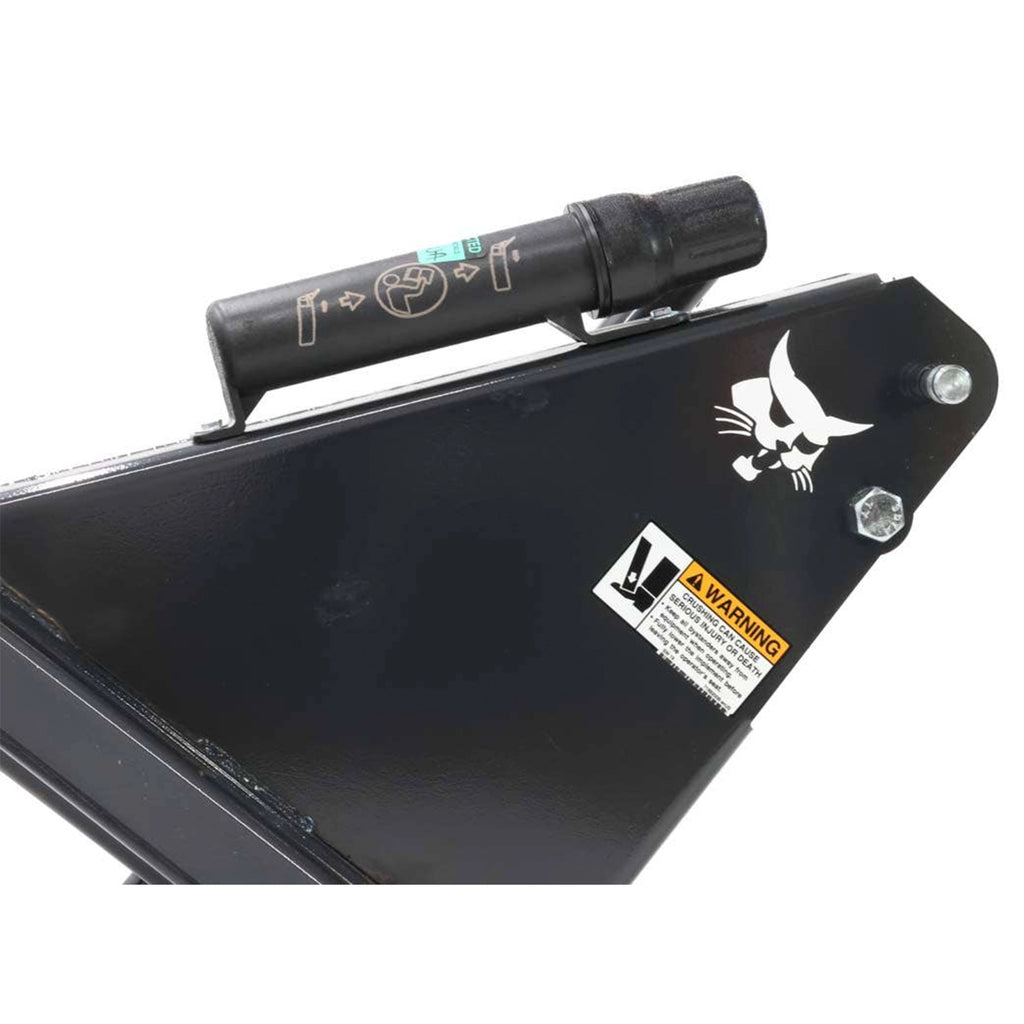

The tine rake implement does not require power take-off (PTO). Simply attach it to the 3-point hitch and get started. It rotates a full 360 degrees with five forward and five reverse settings to be pulled or pushed, making it easy to collect and move material. Can be angled or reversed simply by relocating the index pin.

Things To Do With A Tine Rake

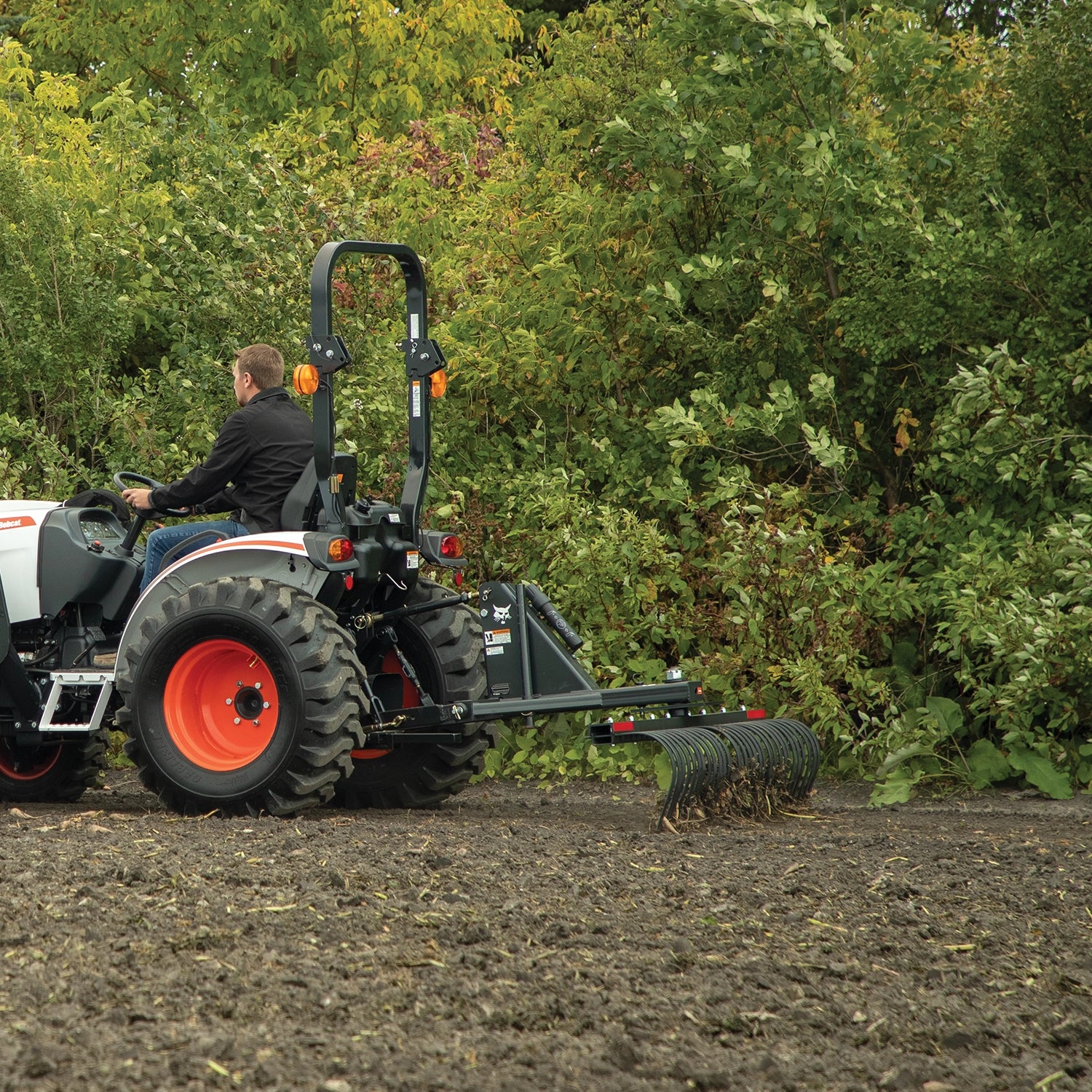

  • Tractor tine rake removes surface debris and prepares seedbeds for planting.
  • Smooths soil.

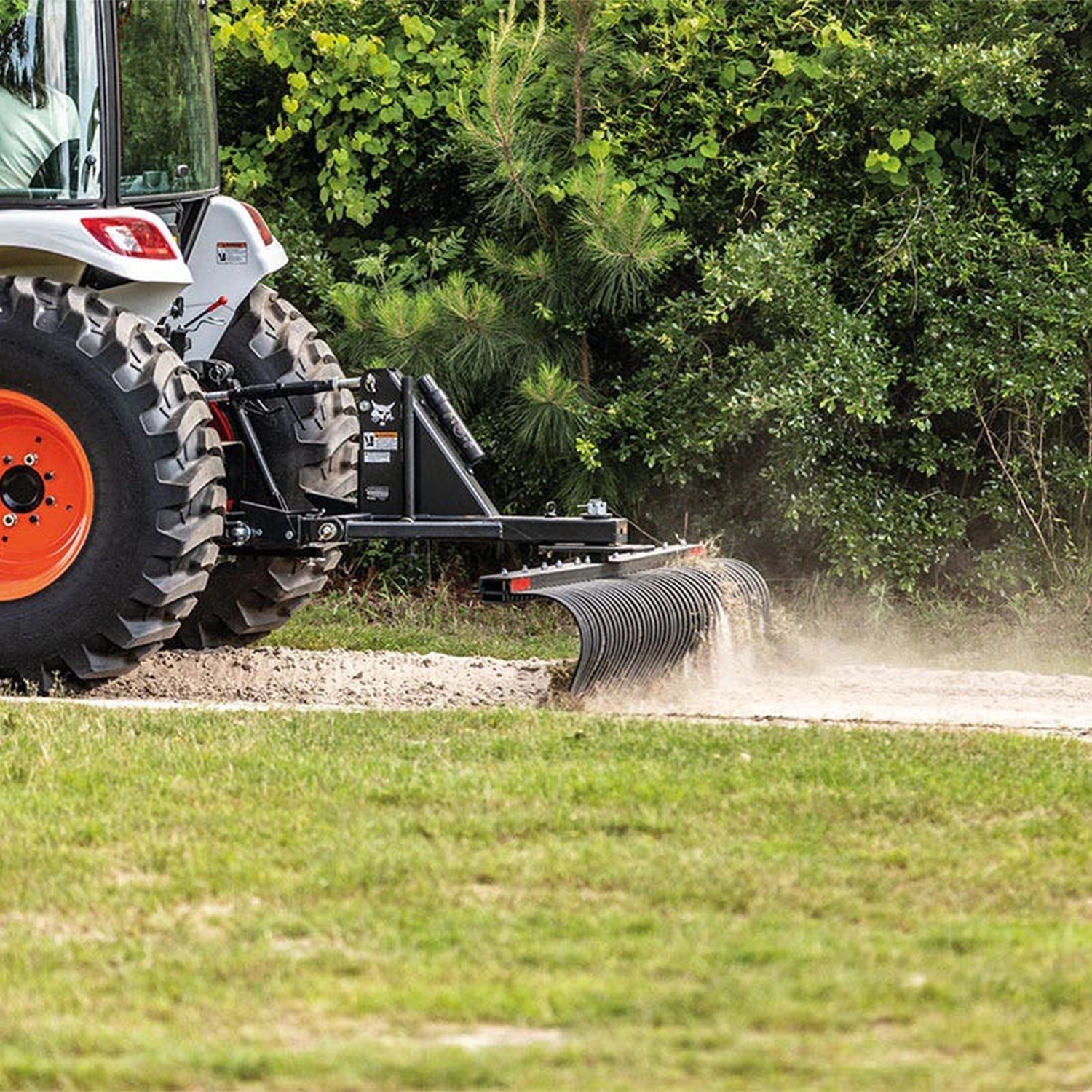

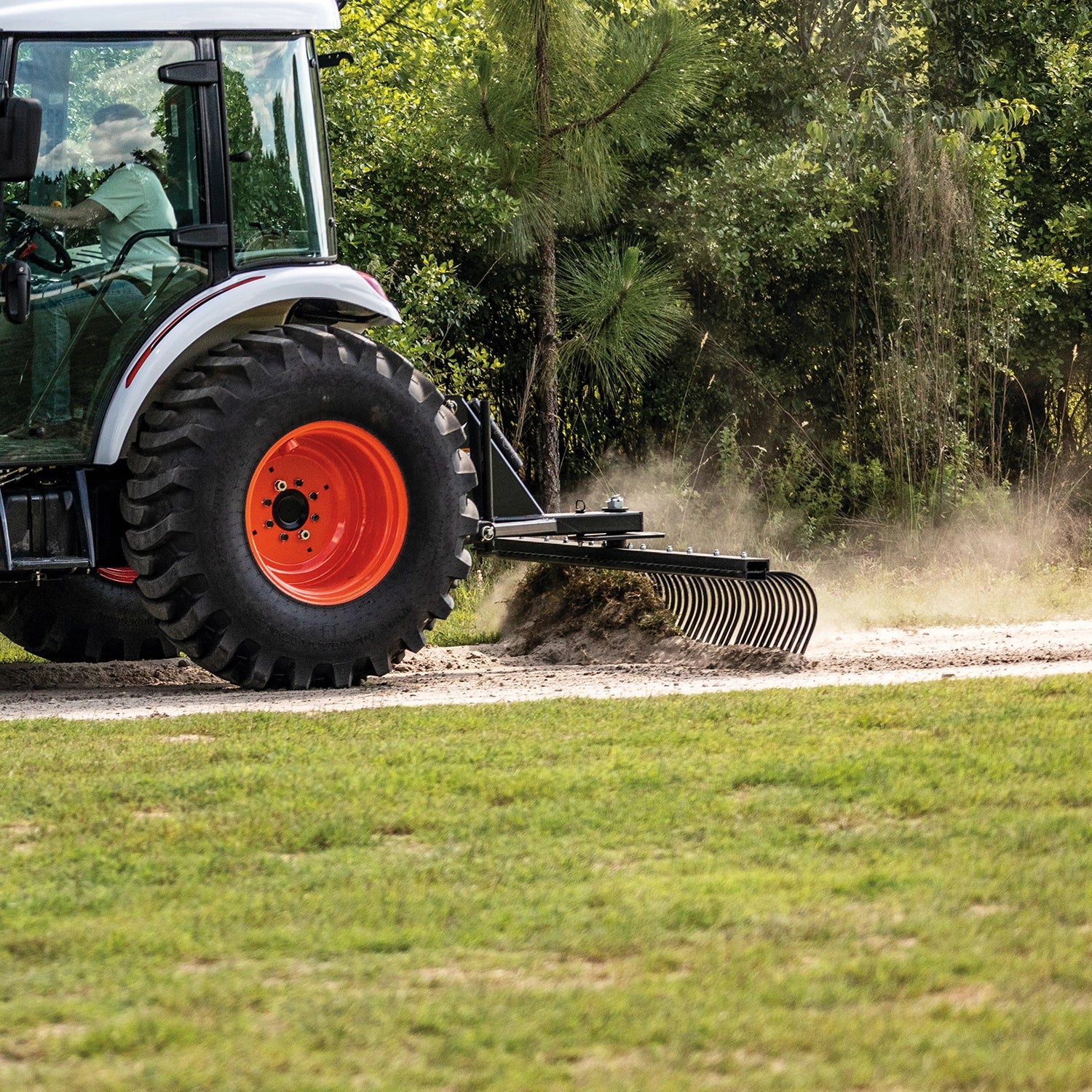

  • Maintains gravel driveways or walking paths.
Features
  • Rotates/Reverses: 3-point rake rotates a full 360 degrees with five forward and five reverse settings to be pulled or pushed.
  • Three Widths: Available in 60-inch, 72-inch and 84-inch tractor tine widths.
  • Replaceable Tines: High-carbon curved tines withstand wear and tear and can be replaced to increase the life of the implement.
  • Category 1 3-Point Hitch: A 3-point hitch is used to attach your rear-mounted tine rake implement. An adjustable top link is centered above two lower link arms, comprising the three points. The tine rake implement quickly and easily attaches with connecting pins at each point.
  • Durable, Corrosion-Resistant Powder-Coat Finish: Protects the rake for extra-long life out in the elements.
Compare the Family

Bobcat Compact Track Loaders

Bobcat T450 compact track loader
T550
 Bobcat T595 compact track loader
T62
 Bobcat T64-2 compact track loader Bobcat T66-2 compact track loader Bobcat T7X all-electric compact track loader Bobcat T650 compact track loader
T740
 Bobcat T770 compact track loader Bobcat T76-2 compact track loader Bobcat T86-2 compact track loader
T450 T550 T595 T62 T64-2 T66-2 T7X T650 T740 T770 T76-2 T86-2
Frame / RoleCompact classicMid-size classicCurrent classicNon-current mid-frameMid-frameMid-frameAll-electricLarger classicLarge classicLargest classicLarge-frameHigh-output large-frame
Horsepower55 hp68 hp70 hp68 hp68 hp74 hp100 hp74 hp74 hp92 hp74 hp115 hp
Rated Operating Capacity1,490 lbs1,995 lbs2,100 lbs2,150 lbs2,300 lbs2,400 lbs3,056 lbs2,500 lbs3,200 lbs3,475 lbs2,900 lbs3,925 lbs
Tipping Load4,257 lbs5,700 lbs6,000 lbs6,143 lbs6,571 lbs6,857 lbs8,743 lbs7,143 lbs9,143 lbs9,929 lbs8,285 lbs11,214 lbs
Operating Weight6,424 lbs7,557 lbs7,906 lbs8,612 lbs8,440 lbs8,560 lbs12,590 lbs8,980 lbs10,127 lbs10,515 lbs9,592 lbs12,104 lbs
Travel Speed7 / 11 mph7.1 / 10.4 mph7.1 / 10.4 mph7.2 mph6.4 / 9.3 mph5.5 / 9.3 mph5.7 / 8.7 mph6 / 8.7 mph6 / 8.3 mph6.6 / 10.7 mph6.8 / 9.2 mph5.5 / 10.7 mph
Standard Aux Flow16.7 gpm17.1 gpm17.1 gpm17.6 gpm17.6 gpm17.6 gpmNo hydraulics23 gpm23 gpm23 gpm23.3 gpm23 gpm
High / Super Flow—26.7 gpm26.7 gpm26.9 gpm26.9 gpm26.9 gpm—30.5 gpm30.5 gpm36.6 gpm30.3 gpm36.6 / 42 gpm
Height to Hinge Pin109.5 in114.5 in119 in114.5 in120 in120 in128.4 in124 in132 in132 in128.3 in144 in
Overall Width55 in67 in66.6 in67 in67.8 in67.8 in78 in72.9 in78 in78 in73.5 in78 in

Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
