T62 | Bobcat

R-Series

Configuration: Starting at $65,479

Offers & Financing

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: T62
Machine Type: Compact Track Loader
Coupler: Bob-Tach
Engine
Horsepower: 68.0
Performance
Rated Operating Capacity (ISO): 2,150 lb
Operating Weight: 8612 lb
Height to Bucket Hinge Pin: 114.5 IN.
Hydraulics
Aux. Standard Flow: 17.6 GPM
Aux. High Flow: 26.9 GPM
Dimensions
Width: 66.2 IN.
Fuel Tank: 28.3 GAL.

Description

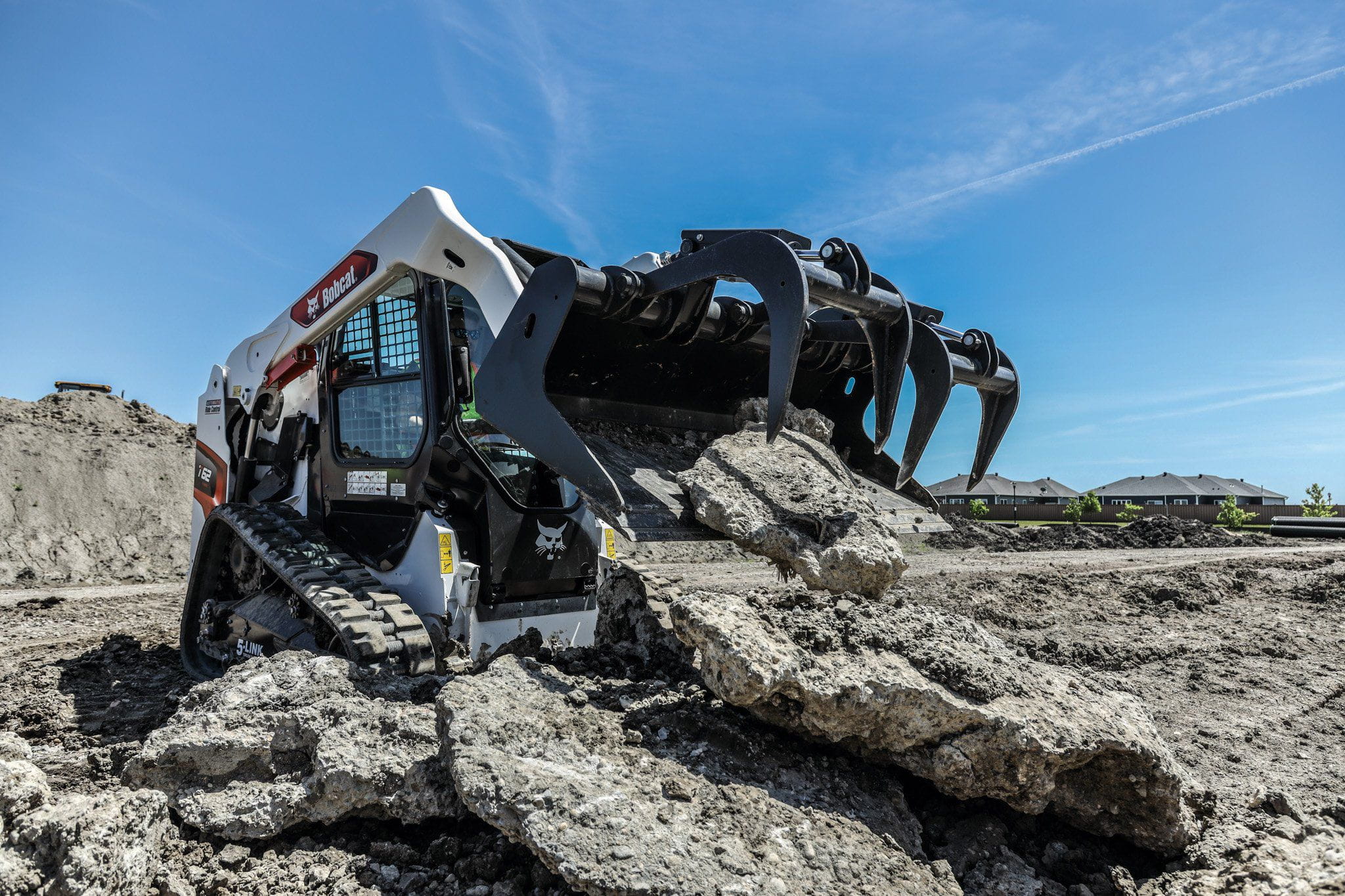

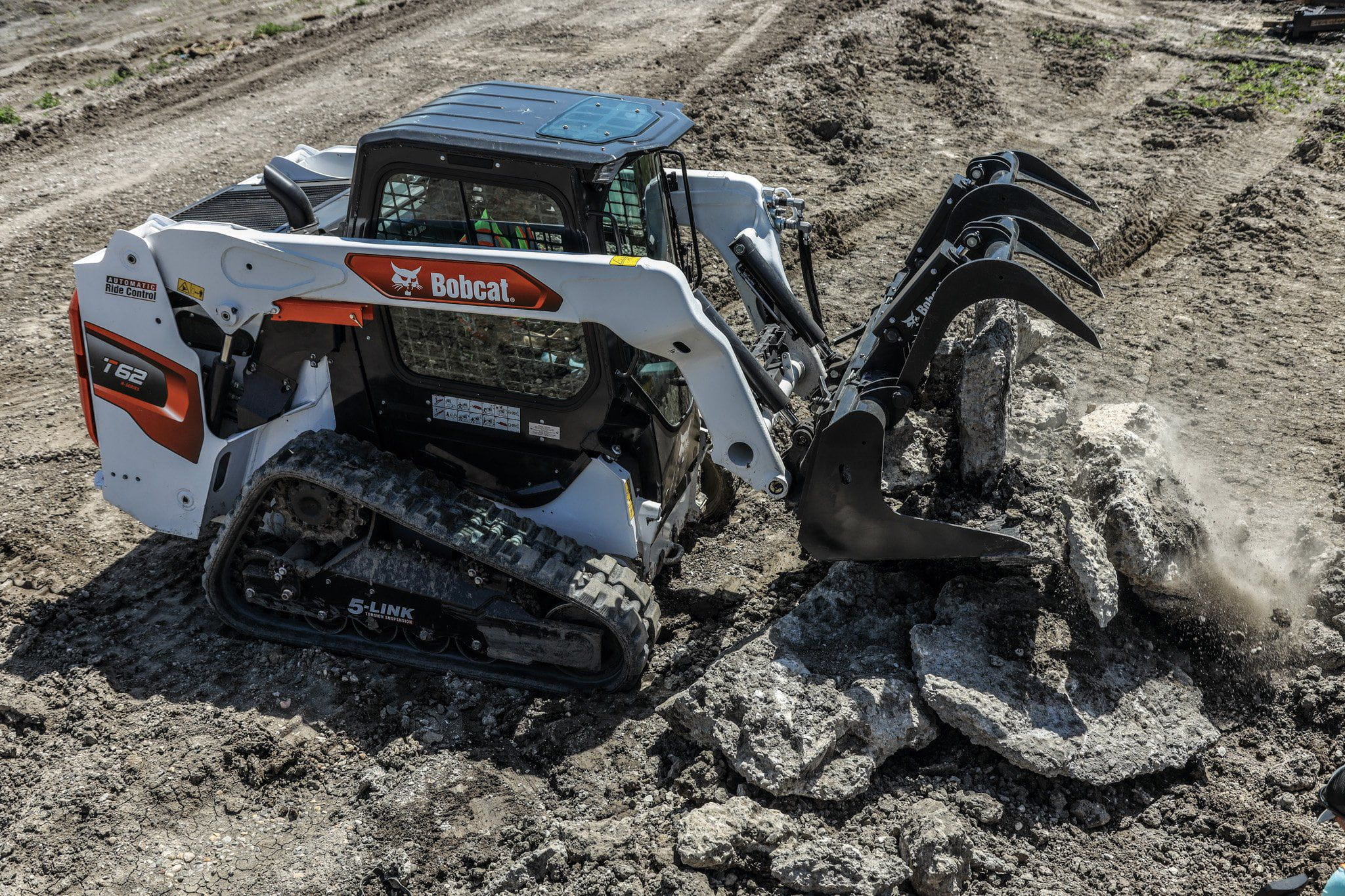

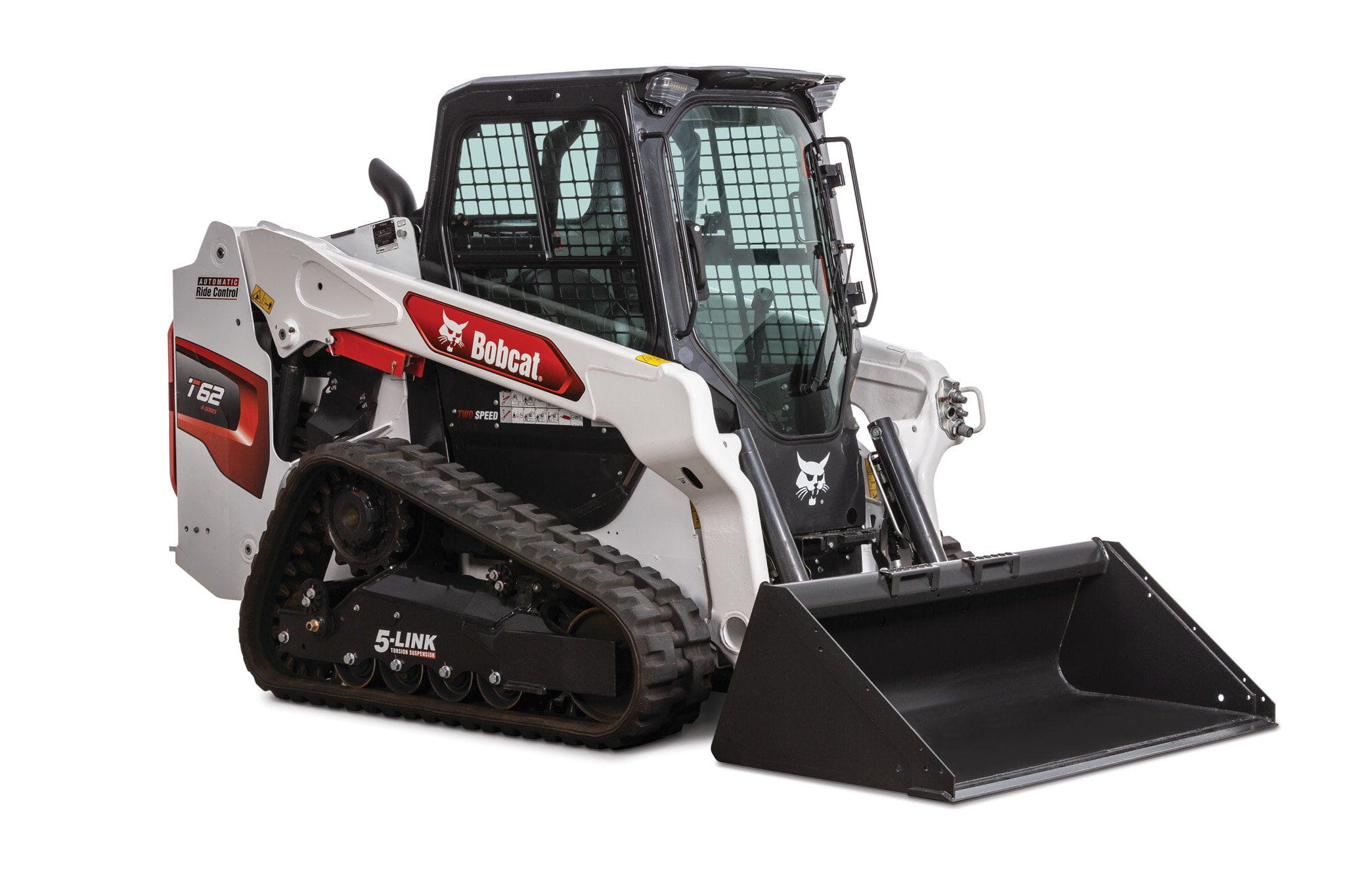

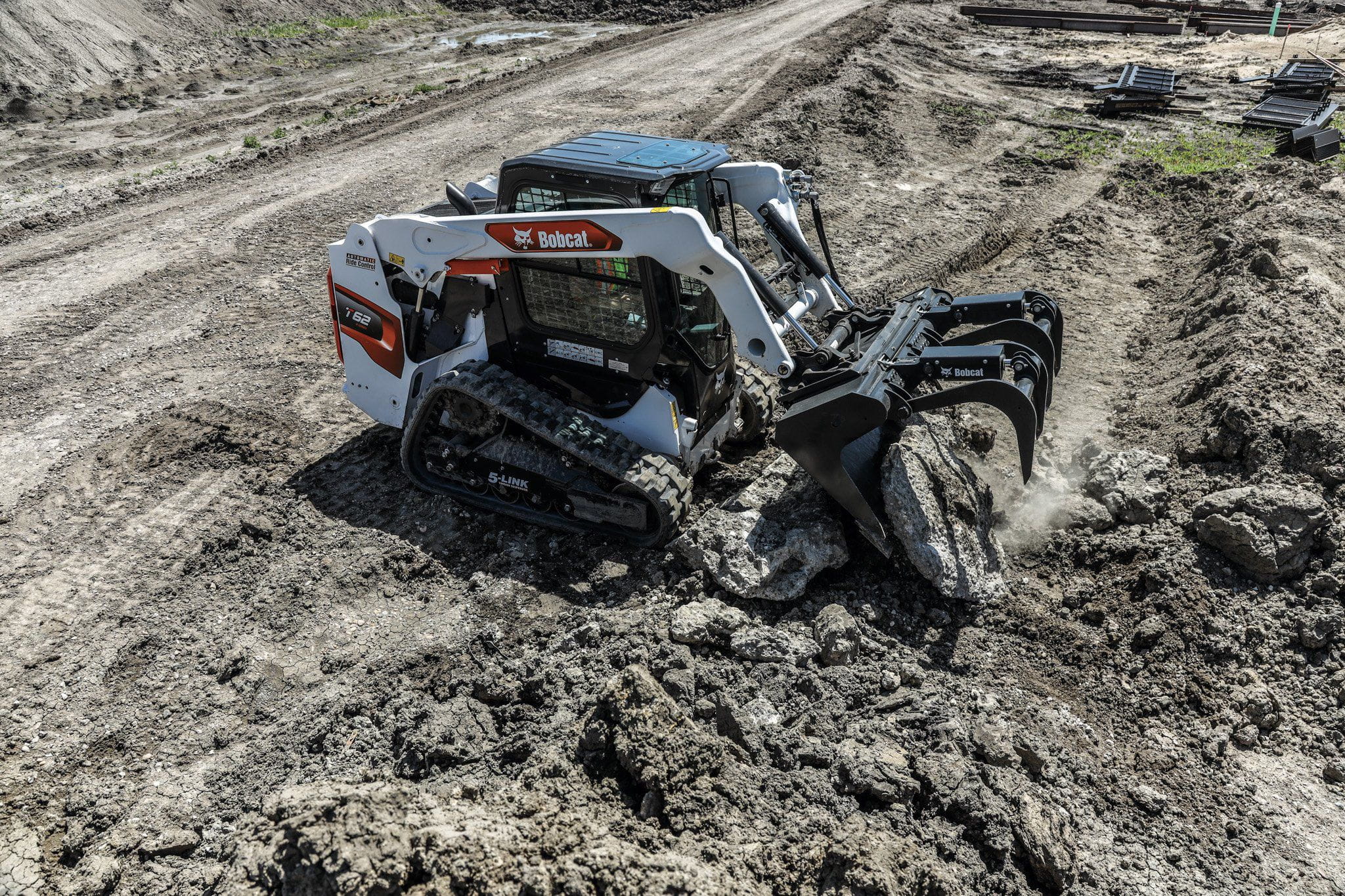

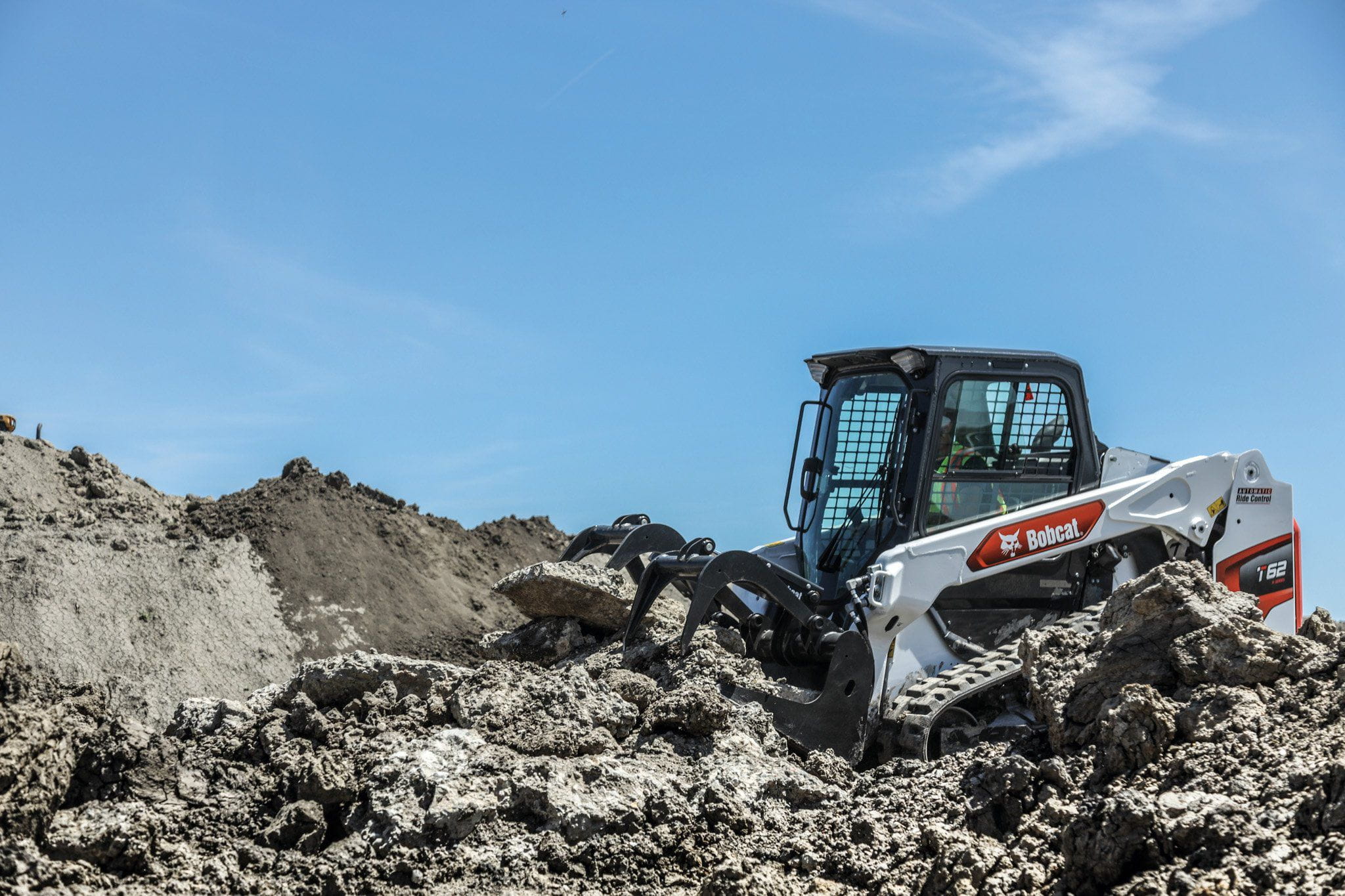

Bobcat T62 Compact Track Loader

The Bobcat T62 R-Series compact track loader offers improved performance and durability on the jobsite. Featuring an inline engine and direct-drive system, excellent visibility and unmatched comfort, this radius-lift-path compact track loader – also referred to as a skid-steer with tracks – is engineered to get the big jobs done. Boasting an increased lifting capability, the 68-hp T62 delivers powerful digging and grading performance and generous reach at mid range heights.

Elevate your performance even higher thanks to powerful breakout forces and hydraulics, streamlined maintenance and fast cycle times. For enhanced comfort and productivity on long days, the T62 features a one-piece sealed and pressurized cab and advanced displays and precision controls. Our optional Clear-Side enclosure maximizes side visibility while our in-cab displays seamlessly integrate to the optional rear camera which can be set to on-demand, in reverse, or continuous rear views. A cast-steel Bob-Tach® attachment mounting system strengthens the loader’s connection point. Combine that with a redesigned Bobcat engine and lift arms with cast-steel construction and you have a compact machine tough enough to handle your biggest jobs, even in soft, sandy or muddy conditions.

  • Powerful and efficient Tier 4 non-DPF engine
  • Fast cycle times
  • Premium comfort
  • Reduced and simplified routine maintenance

Specs

Rated Operating Capacity 2,150 lb
Operating Weight 8,612 in
Ground Pressure - Rubber Track 5.64 psi
Auxiliary Standard Flow 17.6 gal/min
Auxiliary High Flow 26.9 gal/min
Emissions Tier Tier 4
Engine Fuel Diesel
Horsepower 68 hp
Turbocharged Engine Yes
Rated Operating Capacity 2,150 lb
Operating Capacity - 50% of Tip 3,071 lb
Tipping Load 6,143 lb
Operating Weight 8,612 lb
Travel Speed 7.2 mph
Travel Speed - 2 Speed Option 10.2 mph
Ground Pressure 5.64 psi
Auxiliary Standard Flow 17.6 GPM
Auxiliary High Flow 26.9 GPM
System Relief @ Quick Couplers 3,500 PSI
Length 134.9 in
Length without Attachment 107 in
Length with Standard Bucket 134.9 in
Width 67 in
Width with Bucket 68 in
Height 80.5 in
Height to Bucket Hinge Pin 114.5 in
Reach @ Maximum Height 23 in
Turning Radius 81.6 in
Length of Track on Ground 54.3 in
Track Width 12.6 in

Features

A radius lift path provides maximum reach at truck bed height. Arm movement forms an arc. More than 80% of that arc delivers better reach at truck bed height. A radius lift path excels in jobs at mid-range heights, like dumping, backfilling or unloading flatbed trucks.Bobcat Radius Lift Path
The large fan achieves more cooling at a slower rotation. This consumes less power and reduces noise in the cab and around the machine. A reversible fan option purges debris buildup from the rear screen, reducing the need for manual cleaning. An auto mode reverses airflow automatically, and operator-controlled purge mode gives
you the ability to reverse the
fan at any time.
DRIVE RESPONSE MODE

Drive response mode allows you to choose how the drive responds to joystick movement. Whether you like a more gradual response, quicker response or something in between, three different settings put you in control.

Bobcat Selectable Joystick Controls

SPEED MANAGEMENT

Simply “dial in” your required travel speed in small increments to match speed to your operation requirements and maximize attachment performance. Speed management gives you a full range of joystick motion with maximum driveline torque and full hydraulic power at slower machine speed.

STEERING DRIFT COMPENSATION

Steering drift compensation keeps you on a straight path by helping you make minor adjustments to the steering. It’s beneficial when you side-shift certain attachments, such as planers or trenchers, as this will tend to pull the machine to one side. You can also use it while driving on surfaces that cause the loader to gradually drift left or right, such as crowned roads. Make fine steering adjustments to either side and stay on target.

HORSEPOWER MANAGEMENT

Bobcat horsepower management automatically adjusts the loader drive system to maximize pushing and digging power while minimizing your chance of stalling. Unlike other anti-stall systems, Bobcat horsepower management lets the operator obtain maximum engine and drive torque to match the toughest digging conditions. If you prefer to work without it, simply disengage with the push of a button.

Use your iPhone® to control your machine remotely. Bobcat MaxControl remote operation is an iOS app that makes operating your machines easier and more convenient than ever before. It acts like an extra set of hands when help is limited. Two-person jobs can now be handled by one worker, and you can say goodbye to unnecessary trips in and out of the cab. Bobcat Maxcontrol Remote Control on Iphone
