Split-Fire® Skid Steer Log Splitter

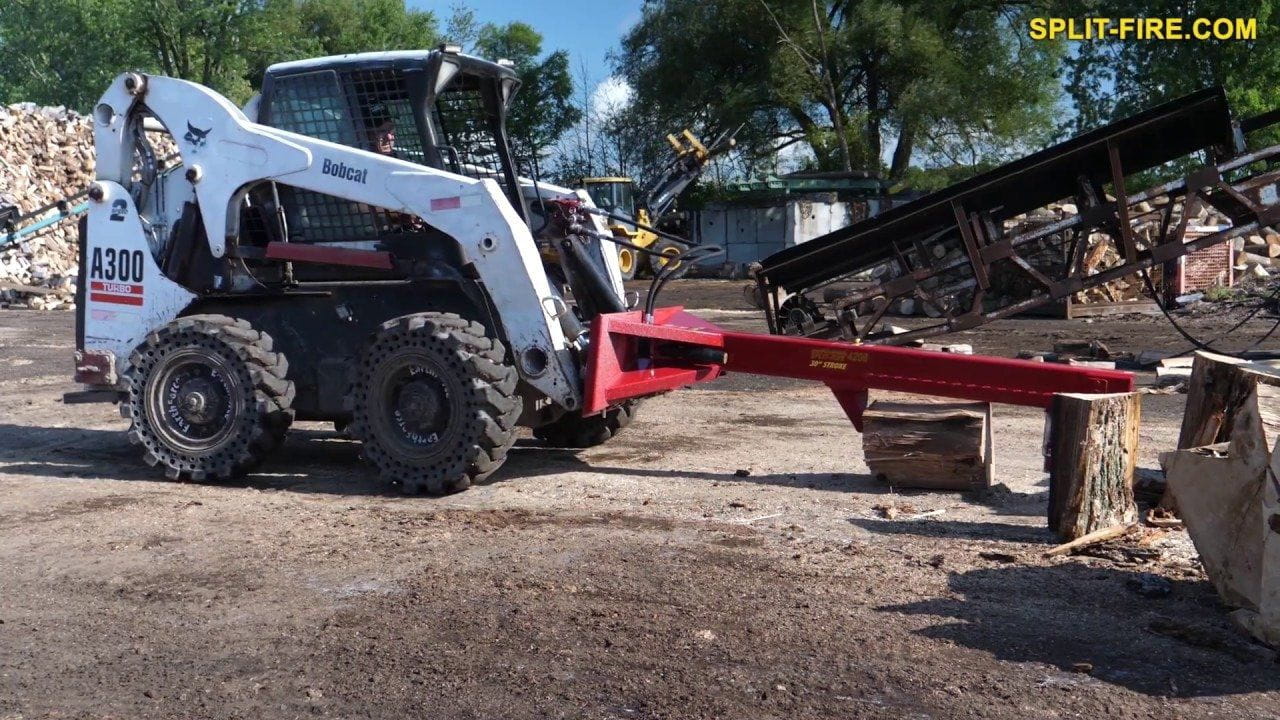

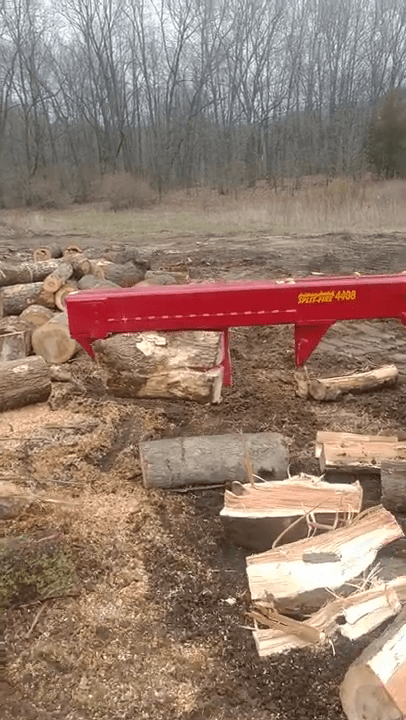

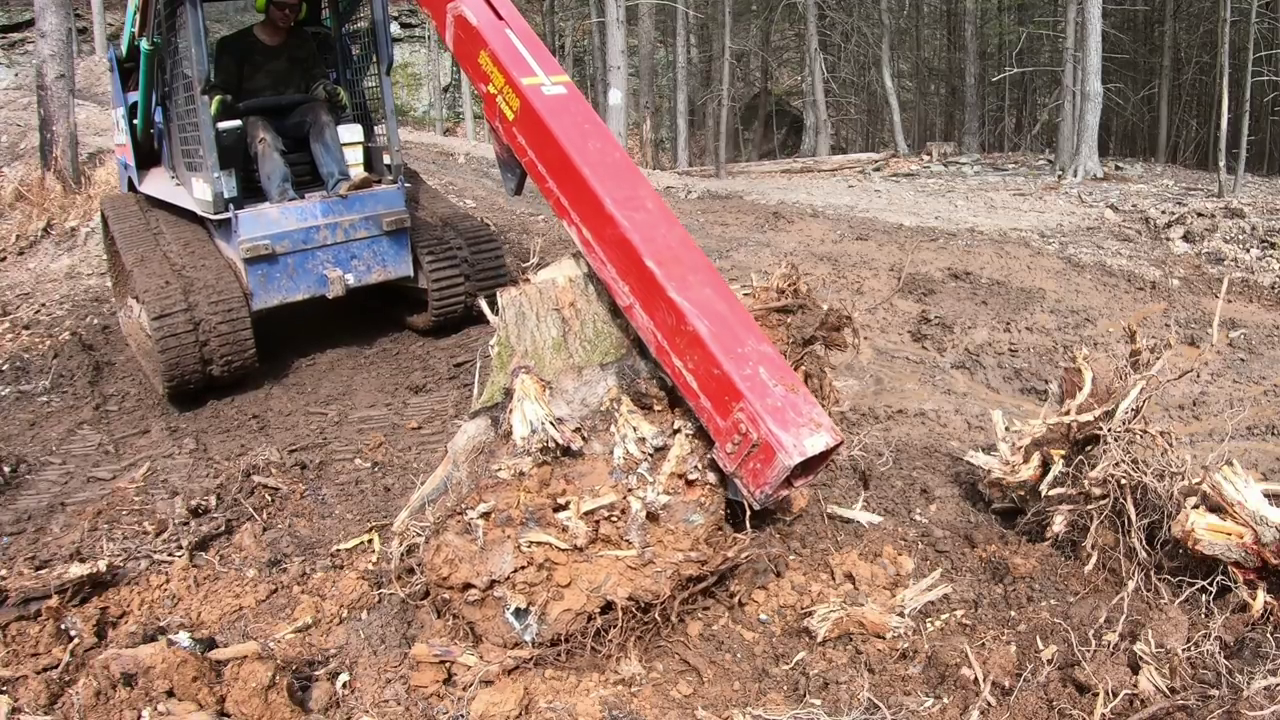

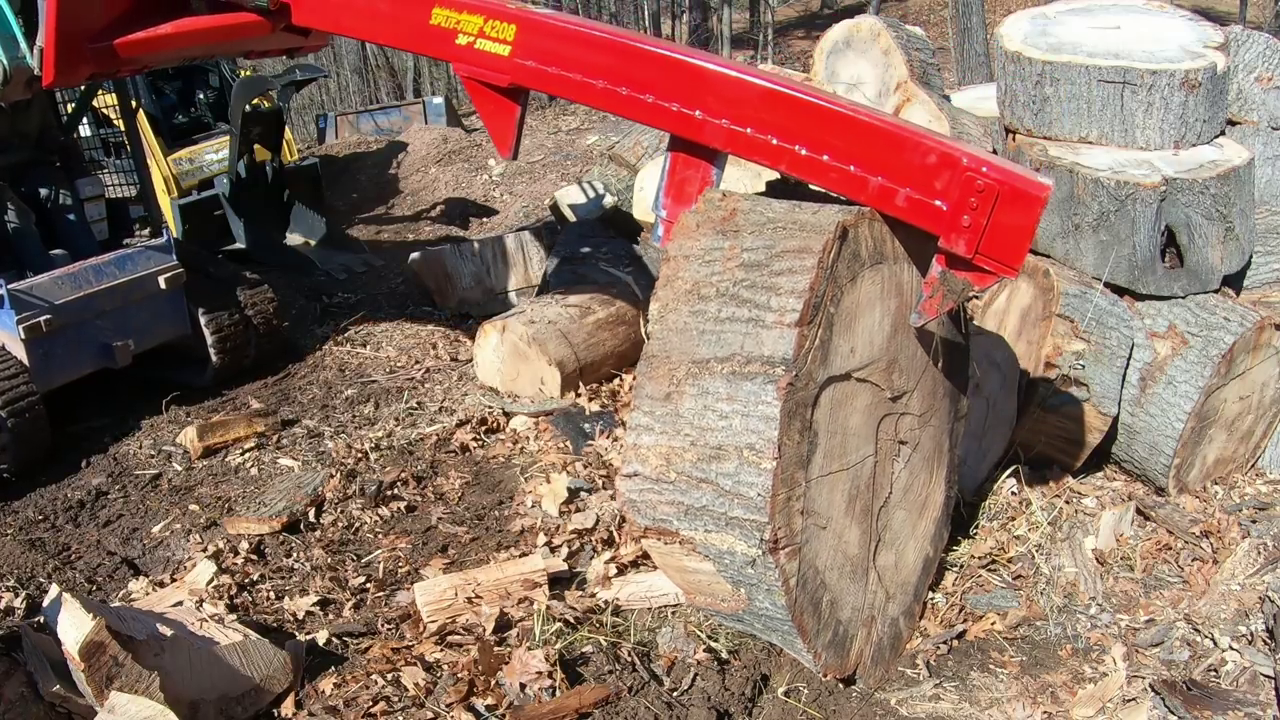

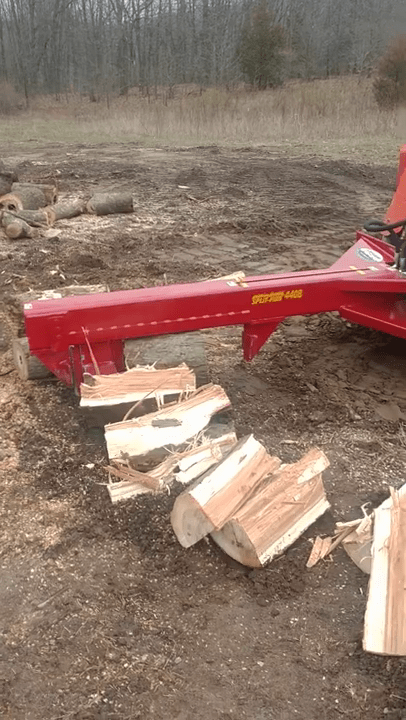

Without the engine, Split-Fire's skid steer log splitter products are indeed maintenance-free and designed to be used heavily year-after-year. Available in both upright and inverted configurations, the skid steer log splitter can either be operated from internal cab controls, or a valve on the top of the machine. Inverted configurations offer the ability to split large unmanageable rounds from the comfort of the skid steer cab (with visibility of the knife position via the yellow flag); while upright configurations are controlled via valve operation to offer a more conventional splitting experience. Due to Split-Fire’s combination of machine features that reduce fluid and sliding friction, the most efficient delivery of splitting force is ensured. You’ll find Split-Fire’s unique friction reducing engineering attributes, and value-added features on all of our 2-Way log splitters; including the use of sliders made of extremely tough plastic (UHMW) with high abrasion and wear resistance to glide the knife back-and-forth with reduced energy losses. Our machines also feature our internally mounted hydraulic cylinder design for added system rigidity; and “V” shaped log stops that are unique to Split-Fire too, and further enhance the log splitters efficiency and safety.
Specs
Skid Steer Plates raise/lowerModel | 3207 |
3407 |
4207 |
4208 |
4407 |
4408 |
Frame | 6" x 6" steel tube |
6" x 6" Steel Tube | 7" x 7" Steel Tube | 7" x 7" Steel Tube | 7" x 7" Steel Tube | 7" x 7" Steel Tube |
Tonnage | 20 tons @ 2900 psi |
20 tons @ 2900 psi | 32 tons @ 2900 psi | 32 tons @ 2900 psi | 32 tons @ 2900 psi | 32 tons @ 2900 psi |
Cycle Speed | Governed by skidsteer volume |
Governed by skidsteer volume | Governed by skidsteer volume | Governed by Skidsteer volume | Governed by skidsteer volume | Governed by skidsteer volume |
Power Source |
Skid Steer Attach | Includes 5' of hose |
Skid Steer Attach | Includes 5' of hose | Skid Steer Attach | Includes 5' of hose | Skid Steer Attach | Includes 5' of hose | Skid Steer Attach | Includes 5' of hose | Skid Steer Attach | Includes 5' of hose |
Pump | Skid Steer Pump Displacement |
Skid Steer Pump Displacement | Skid Steer Pump Displacement | Skid Steer Pump Displacement | Skid Steer Pump Displacement | Skid Steer Pump Displacement |
Reservoir | Skid Steer |
Skid Steer | Skid Steer |
Skid Steer | Skid Steer | Skid Steer |
Stroke Length | 24" |
24" | 24" | 24" | 24" | 24" |
Bed Width |
15" |
15" |
16" | 16" | 16.5" | 16.5" |
Quick Connects |
Not Included |
Not Included | Not Included |
Not Included |
Not Included | Not Included |
Overall Width |
47" |
47" | 47" | 47" |
47" | 47" |
Overall Length |
75 1/2" |
76 1/2" | 76" |
76" |
79" | 80" |
Overall Height |
18 1/2" |
18 1/2" | 18 1/2" | 18 1/2" |
18 1/2" | 18 1/2" |
Weight |
370 lbs |
430 lbs |
500 lbs | 460 lbs |
600 lbs |
700 lbs |
Bed Height |
Skid Steer Plates raise/lower |
Skid Steer Plates raise/lower | Skid Steer Plates raise/lower |
Skid Steer Plates raise/lower |
Skid Steer Plates raise/lower | Skid Steer Plates raise/lower |
Knife Height |
8" |
9 1/2" / 2-way | 9 1/2" 4-way |
9" |
9" |
12" / 2-way | 12" / 4-way | 12" / 2-way | 12" / 4-way |
Cylinder Size |
3 1/2" x 24" |
3 1/2" x 24" |
4 1/2" x 24" | 4 1/2" x 24" | 4 1/2" x 24" | 4 1/2" x 24" |
Hydraulic Flow |
4 gpm - 12 gpm |
4 gpm - 12 gpm | 8 gpm - 20 gpm | 8 gpm - 20 gpm | 8 gpm - 20 gpm | 8 gpm - 20 gpm |
