Bobcat
Stock:
In stock

Download Spec Sheet

Get detailed specifications, dimensions, and performance data for this SC24H | Bobcat.

Download Spec Sheet →
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: SC24H
Machine Type: Other
Engine
Performance
Hydraulics
Dimensions

Description

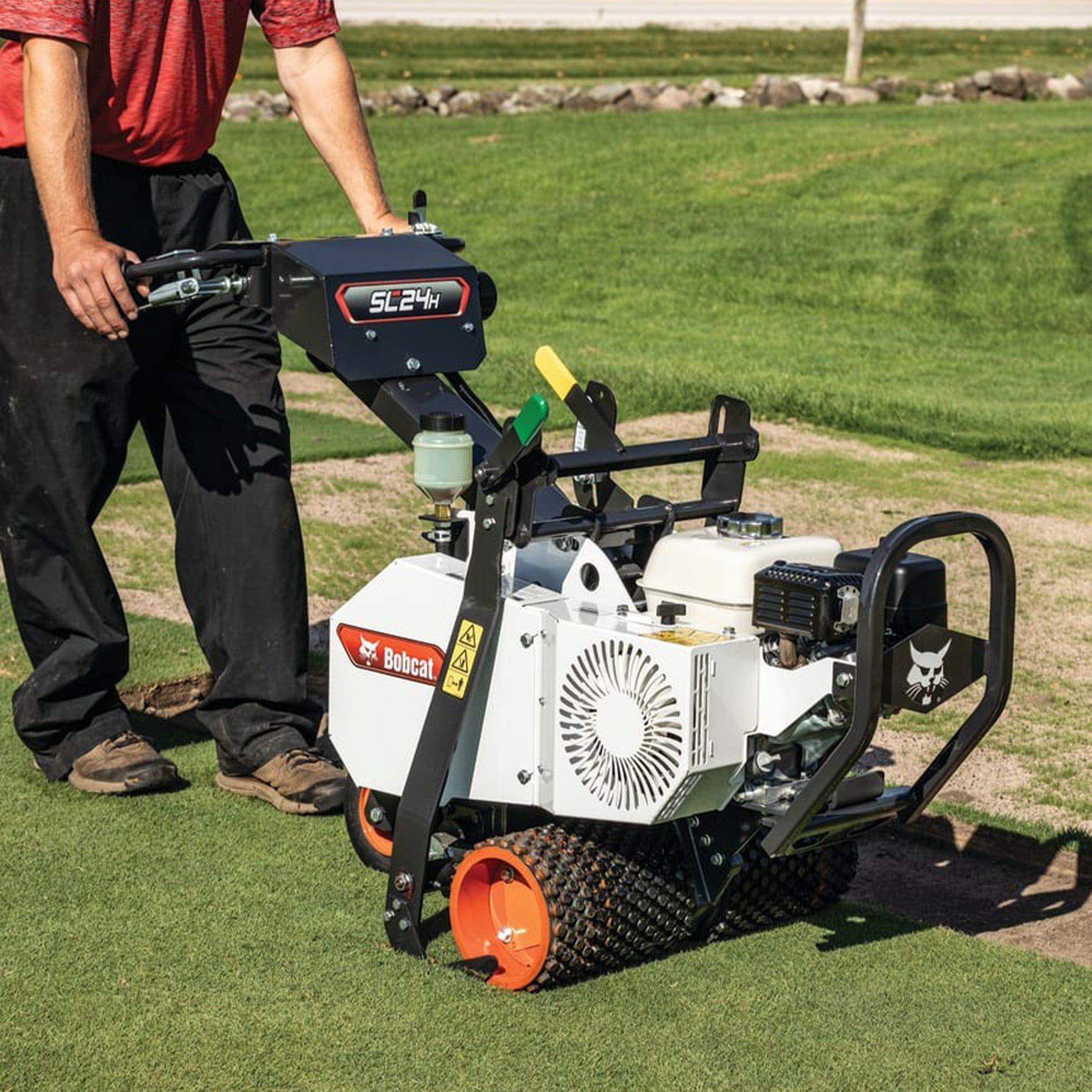

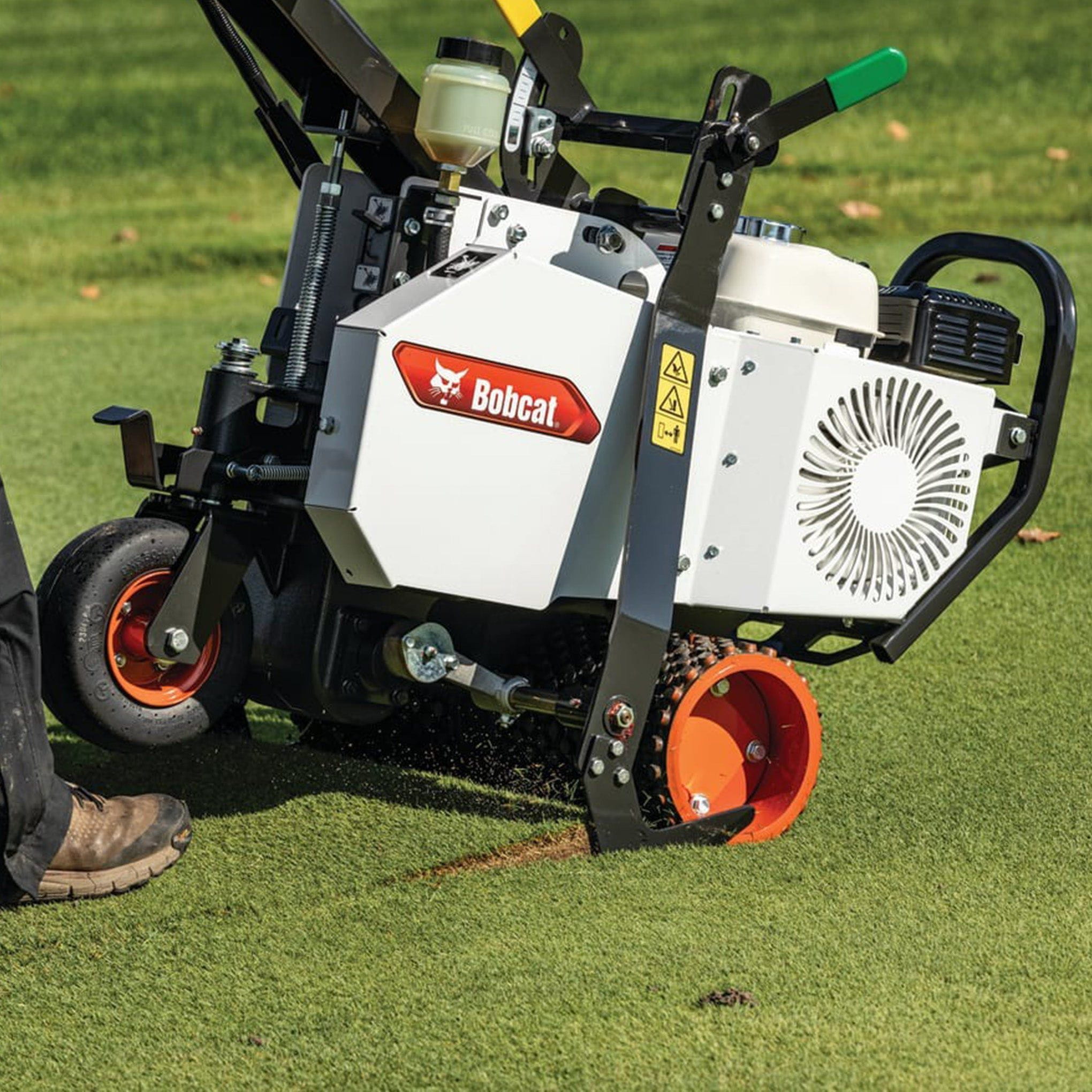

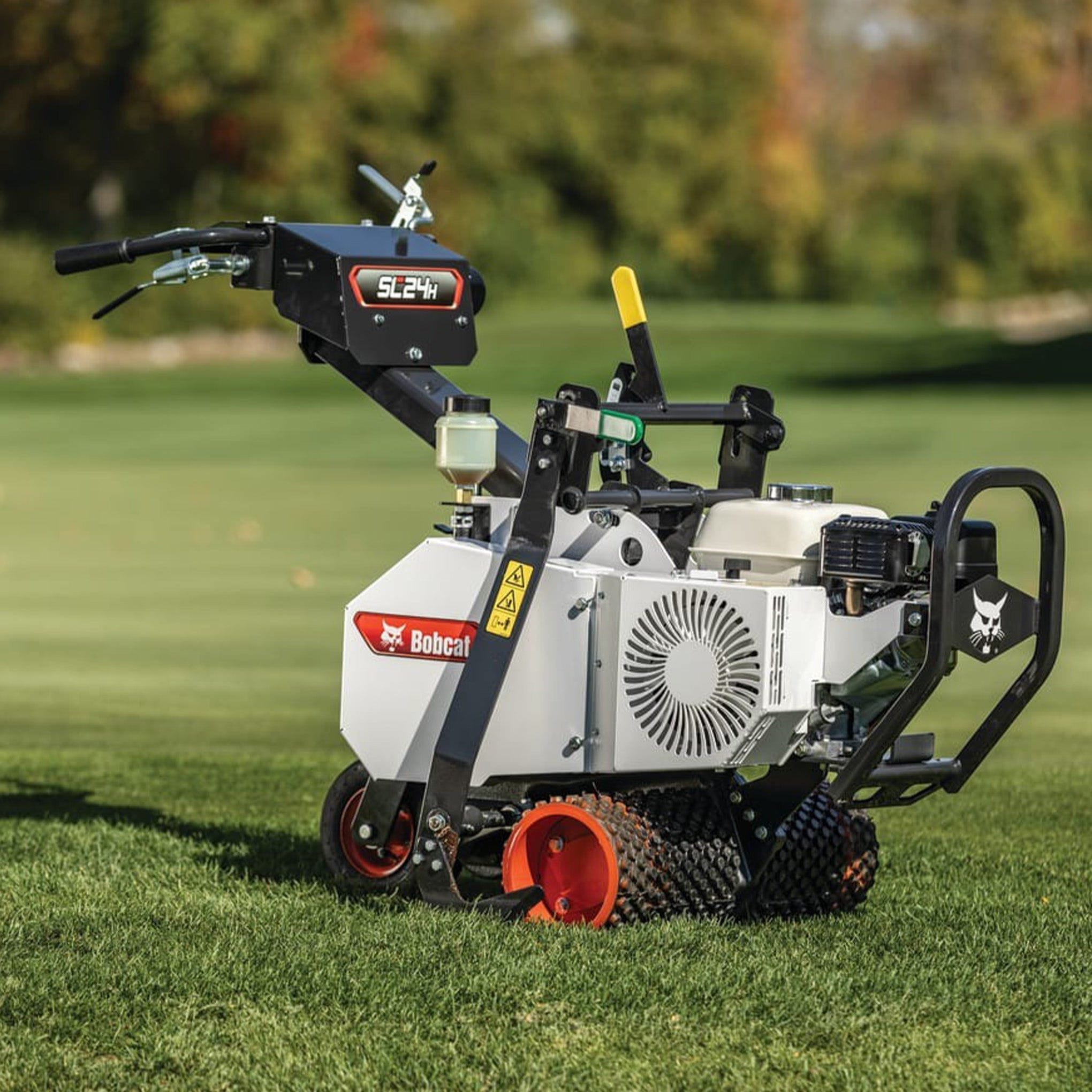

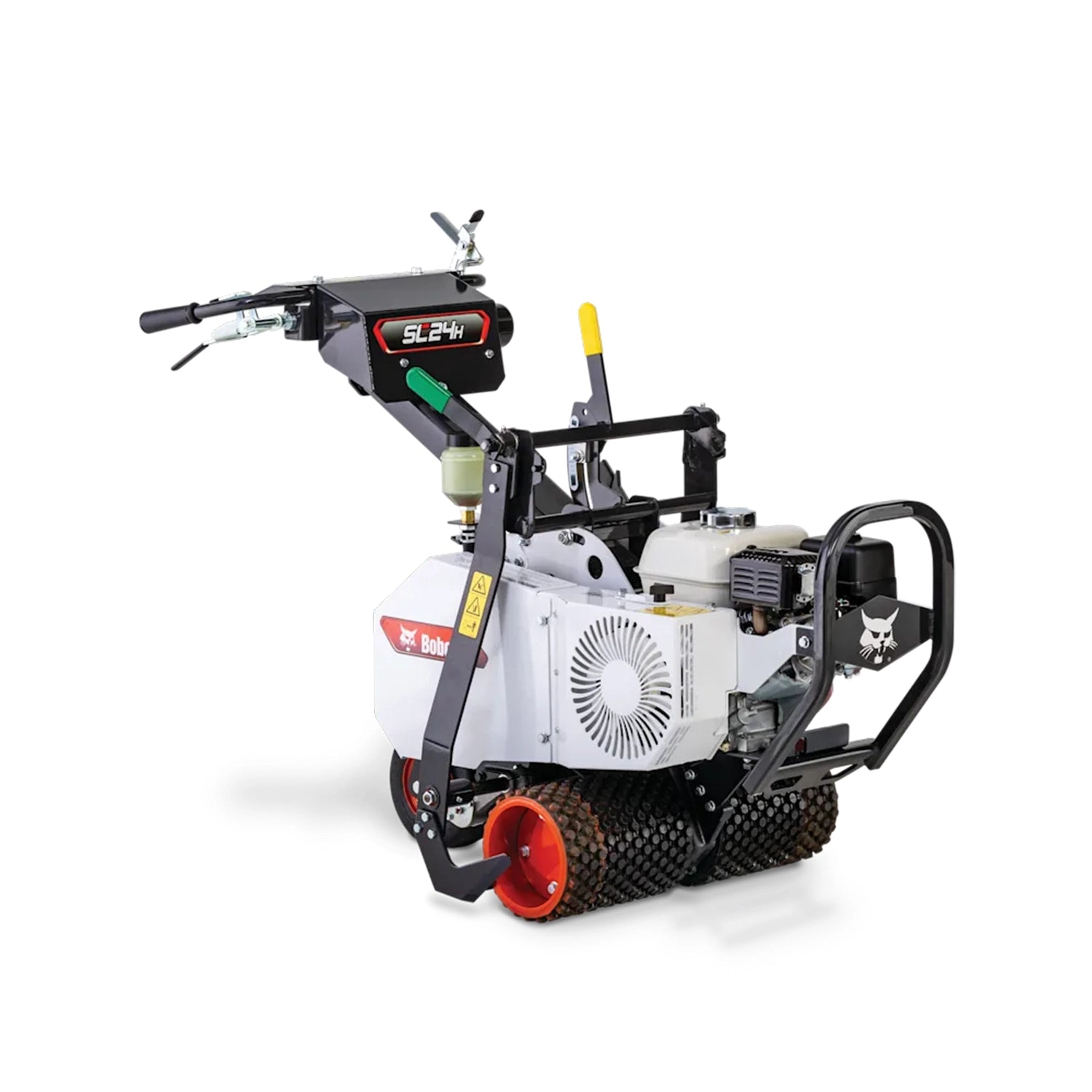

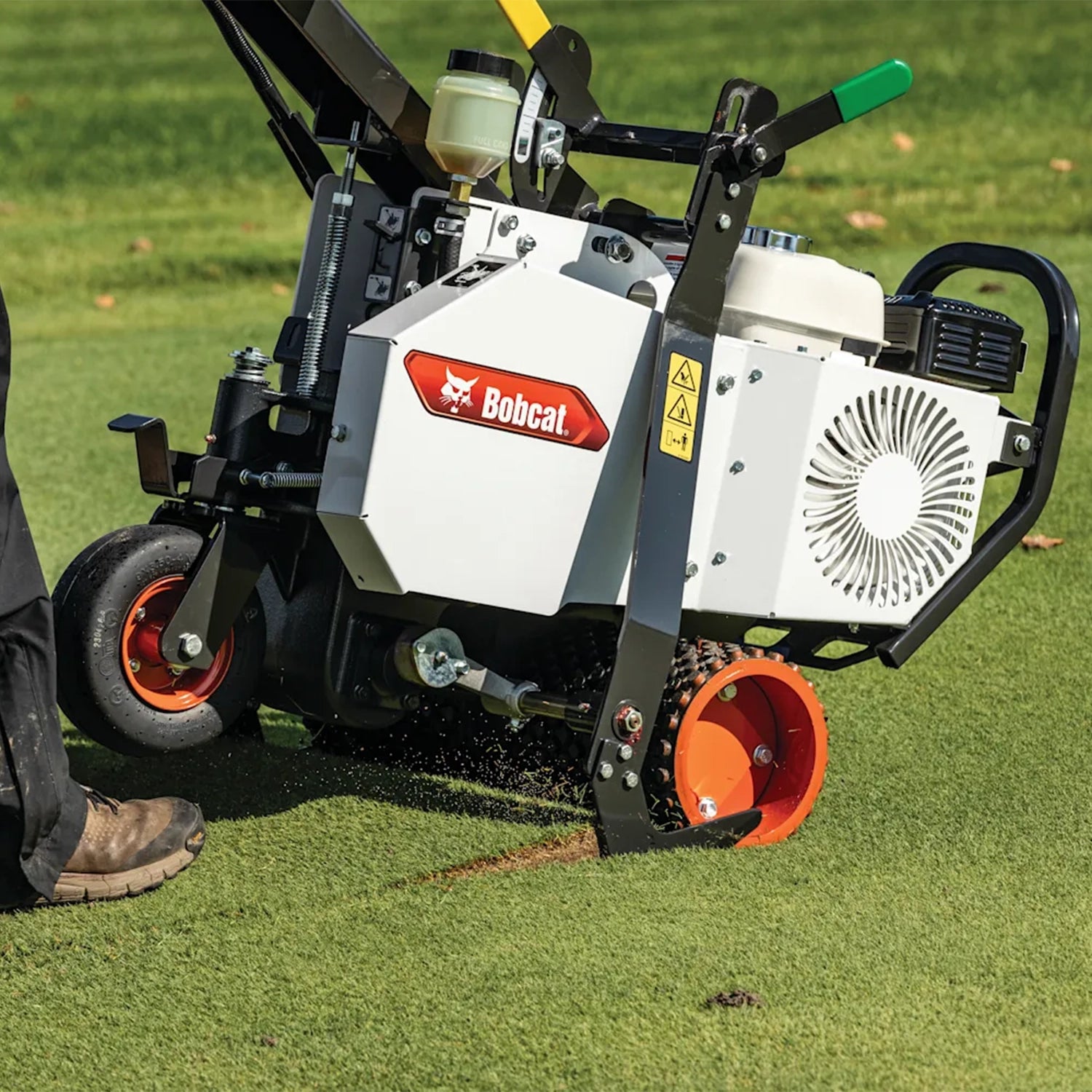

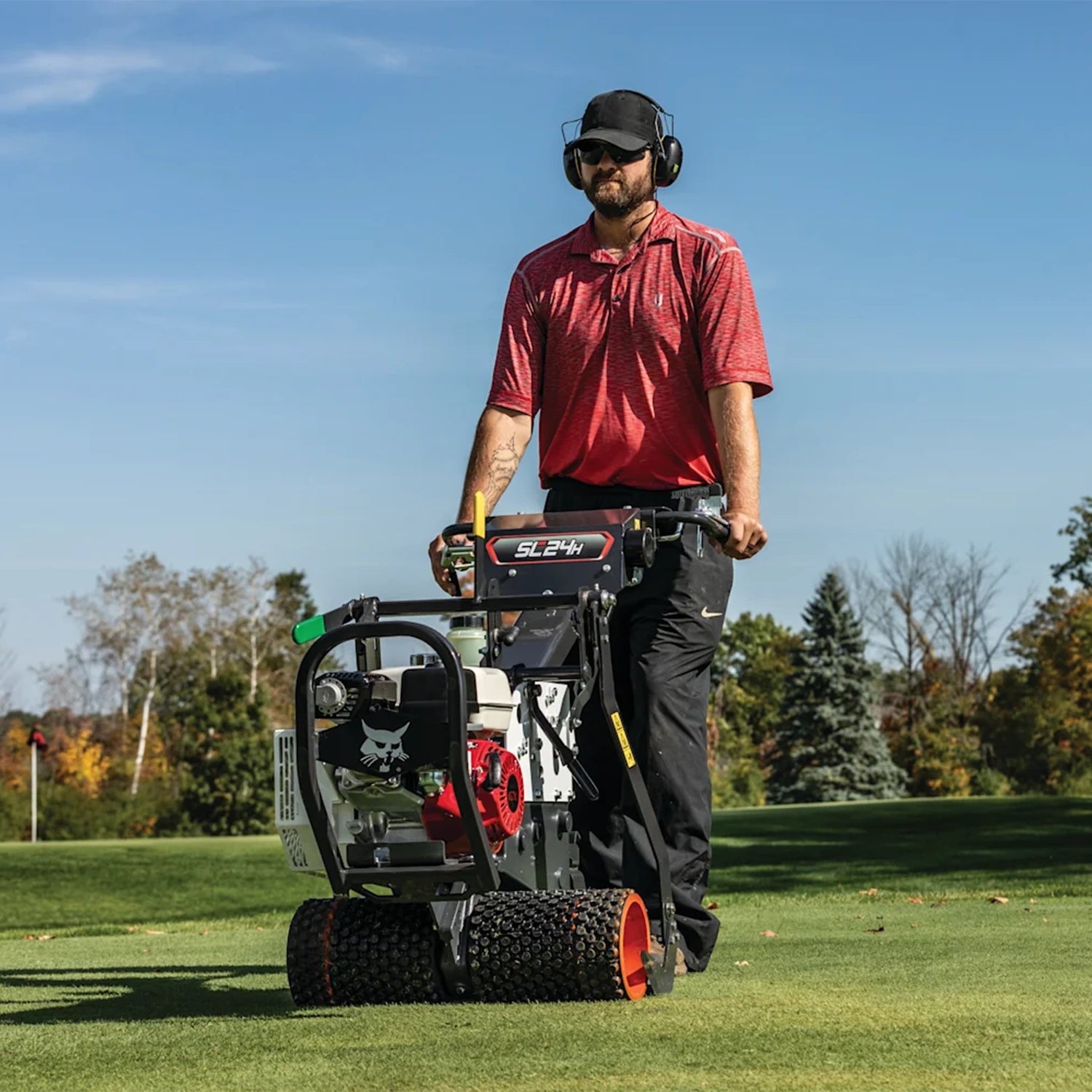

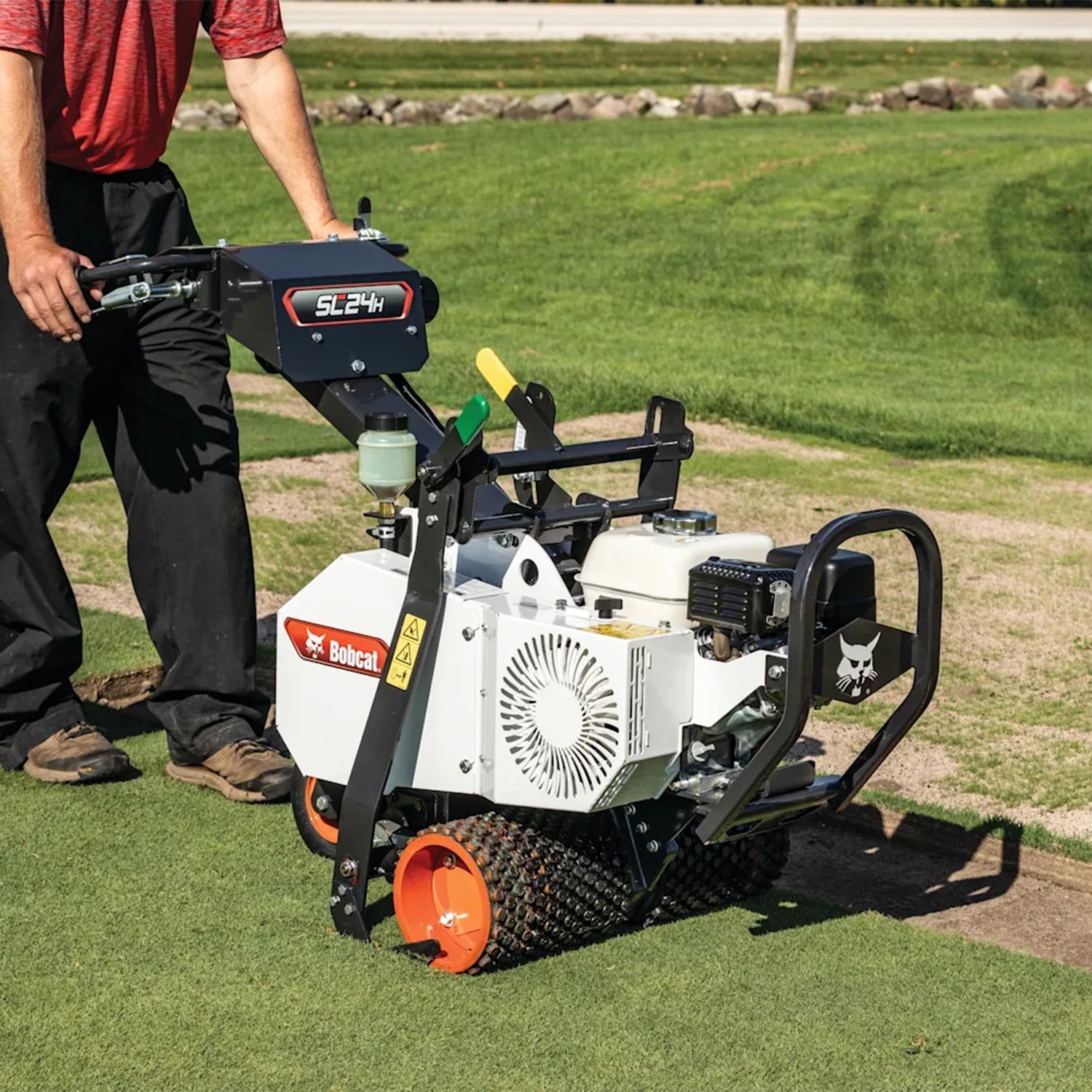

Bobcat SC24H Sod Cutter

Legendary performance meets new transmission technology for easier-to-control, smoother, and more stable sod cutting.

  • Hydrostatic, variable-speed transmission
  • Ultra-low vibration technology
  • EasySteer technology
  • User friendly operation
  • Simple depth and blade-angle adjustment

The Bobcat® SC24H sod cutter’s innovative, hydrostatic, variable-speed transmission lets you power through the cut while its heavy-duty, long-lasting, cast-iron gear case and hydraulic cooling system stand up to the toughest demands – season after season.

  • A user-friendly, color-coded interface makes it easy to adjust blade depth and angle for precise cutting – no matter the soil condition.
  • Unlock the pneumatic rear caster wheel to easily and tightly maneuver around landscaping, then lock it for unmatched precision on straightaways.
  • Featuring ultra-low vibration technology, the rubber isolation mount absorbs shock and machine vibration before they ever reach your hands, saving your arms from fatigue.

Engine

Engine Model Honda GX160
Engine Displacement 9.9 in³
Horsepower 4.8 hp
Fuel Capacity 0.82 gal

Performance

Weight 398 lb

Dimensions

Length 52.5 in
Width 25 in
Height 35.5 in

Blade

Blade Material Heat-treated 10B38 Boron Steel
Cutting Width 24 in
Max Cutting Depth 2.5 in
Max Blade Speed 1,225 rpm
Depth Adjustment Locking Lever releases to desired depth

Drive

Drive System A-section belt from engine to hydrostat that transfers power through enclosed lubricated gearcase; Wheels: gears and chain reduction to drive wheels; Blade: gears to blade eccentric shaft
Transmission Hydro-Gear #BDU-10S-127; 10cc pump
Gearbox 0.25" thick cast iron housing
Hydraulic Oil Capacity 2.1 qt
Max Forward Speed 4 mph
Max Reverse Speed 2 mph
