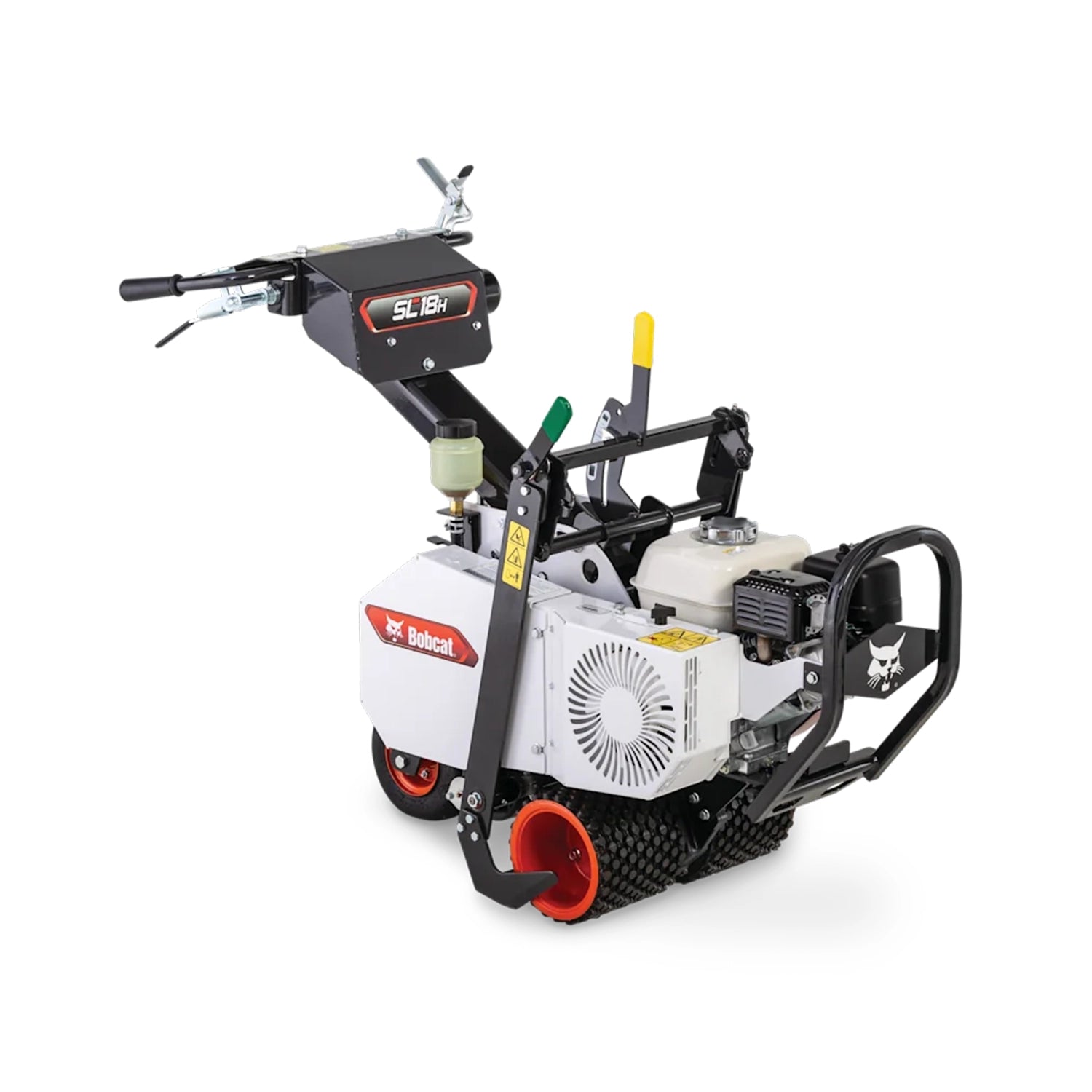

Bobcat SC18H Sod Cutter
Legendary performance meets new transmission technology for easier-to-control, smoother, and more stable sod cutting.
- Hydrostatic, variable-speed transmission
- Ultra-low vibration technology
- Easy steer technology
- User friendly operation
- Simple depth and blade-angle adjustment
The Bobcat® SC18H sod cutter’s innovative, hydrostatic, variable-speed transmission lets you power through the cut while its heavy-duty, long-lasting, cast-iron gear case and hydraulic cooling system stand up to the toughest demands – season after season.
- A user-friendly, color-coded interface makes it easy to adjust blade depth and angle for precise cutting – no matter the soil condition.
- Unlock the pneumatic rear caster wheel to easily and tightly maneuver around landscaping, then lock it for unmatched precision on straightaways.
- Featuring ultra-low vibration technology, the rubber isolation mount absorbs shock and machine vibration before they ever reach your hands, saving your arms from fatigue.
Key Specs
| Engine Model |
Honda GX160 |
| Engine Displacement |
9.9 in³ |
| Width |
25 in |
| Cutting Width |
18 in |
| Maximum Cutting Depth |
2.5 in |
| Max Blade Speed |
1,225 rpm |
| Drive System |
A-section V-belt from engine to gear case; Wheels: gears and roller chain to drive wheels; Blade: double roller chain to blade eccentric shaft; transmission has separate clutches to engage cutting blade and traction drive |
| Gearbox |
0.25" Thick Cast Iron Housing |
| Transmission |
Hydro-Gear #BDU-10S-127; 10cc pump |
Engine
| Engine Model |
Honda GX160 |
| Engine Displacement |
9.9 in³ |
| Horsepower |
4.8 hp |
| Fuel Capacity |
0.82 gal |
Performance
Dimensions
| Length |
52.5 in |
| Width |
25 in |
| Height |
35.5 in |
Blade
| Blade Material |
Heat-treated 10B38 Boron Steel |
| Cutting Width |
18 in |
| Max Cutting Depth |
2.5 in |
| Max Blade Speed |
1,225 rpm |
| Depth Adjustment |
Locking Lever releases to desired depth |
Drive
| Drive System |
A-section belt from engine to hydrostat that transfers power through enclosed lubricated gearcase; Wheels: gears and chain reduction to drive wheels; Blade: gears to blade eccentric shaft |
| Transmission |
Hydro-Gear #BDU-10S-127; 10cc pump |
| Gearbox |
0.25" thick cast iron housing |
| Hydraulic Oil Capacity |
2.1 qt |
| Max Forward Speed |
4 mph |
| Max Reverse Speed |
2 mph |
