Get detailed specifications, dimensions, and performance data for this SC12 | Bobcat.

General Info
Condition:	Showroom
Manufacturer:	Bobcat
Model:	SC12
Machine Type:	Other

Engine

Performance

Hydraulics

Dimensions

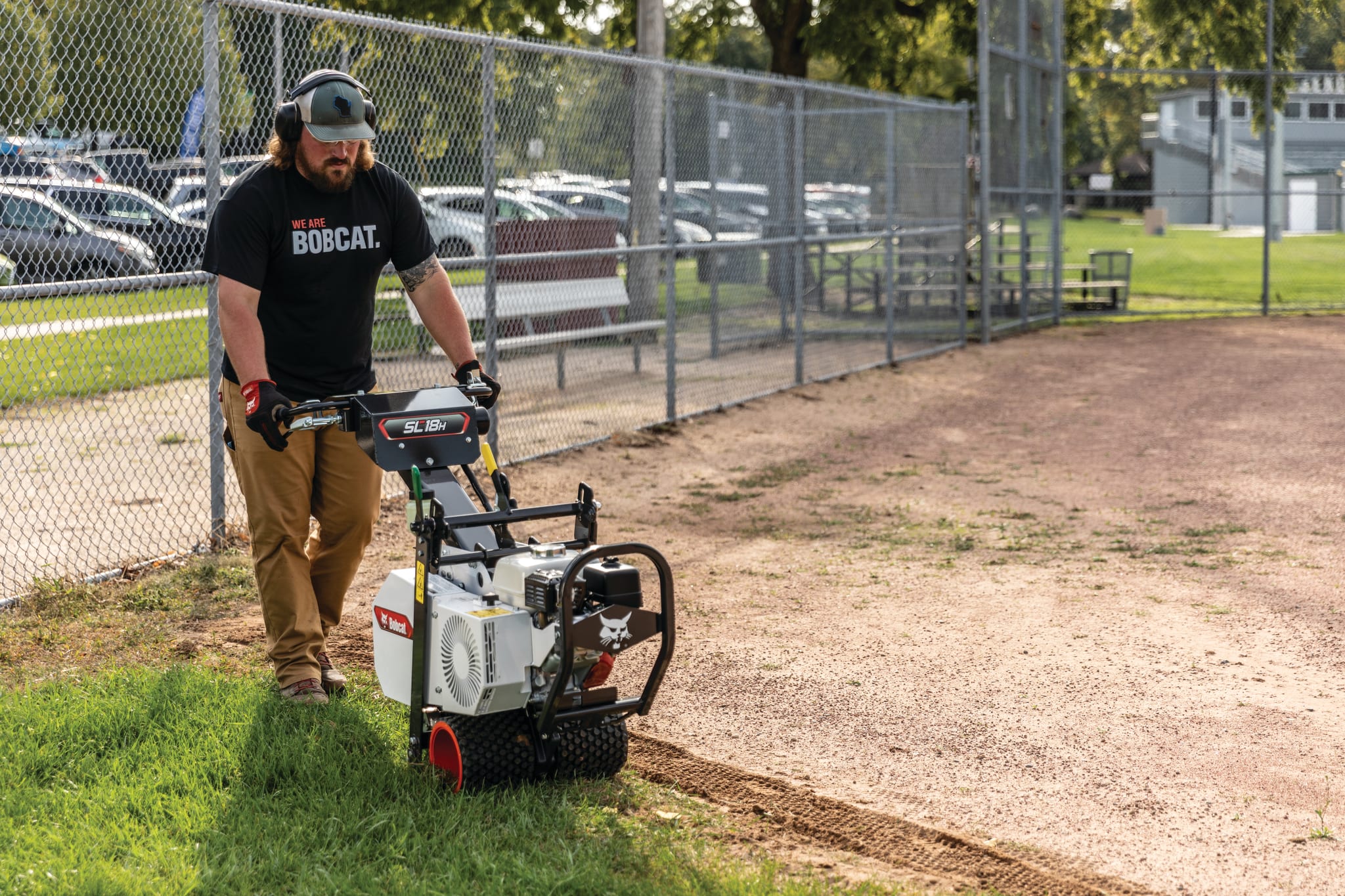

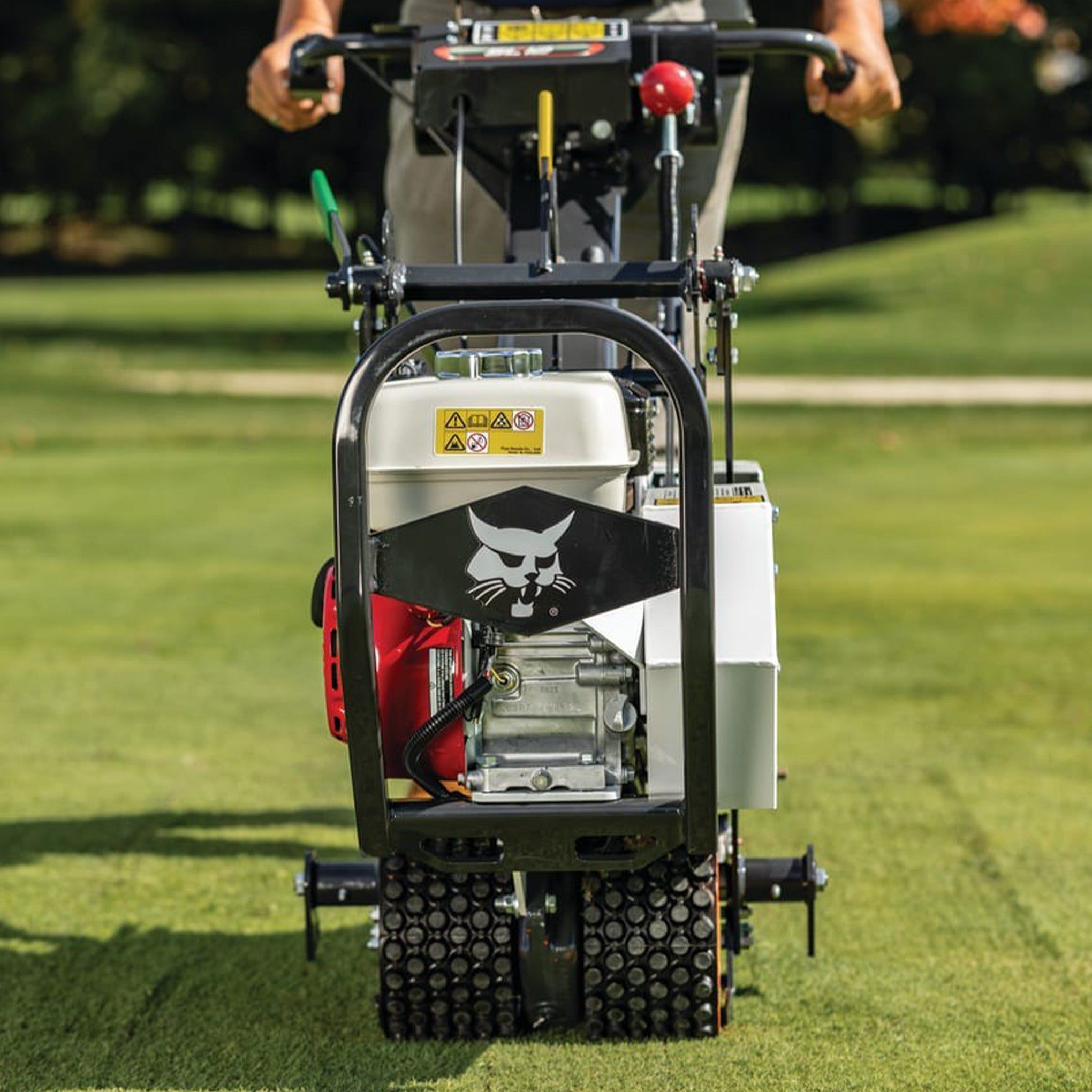

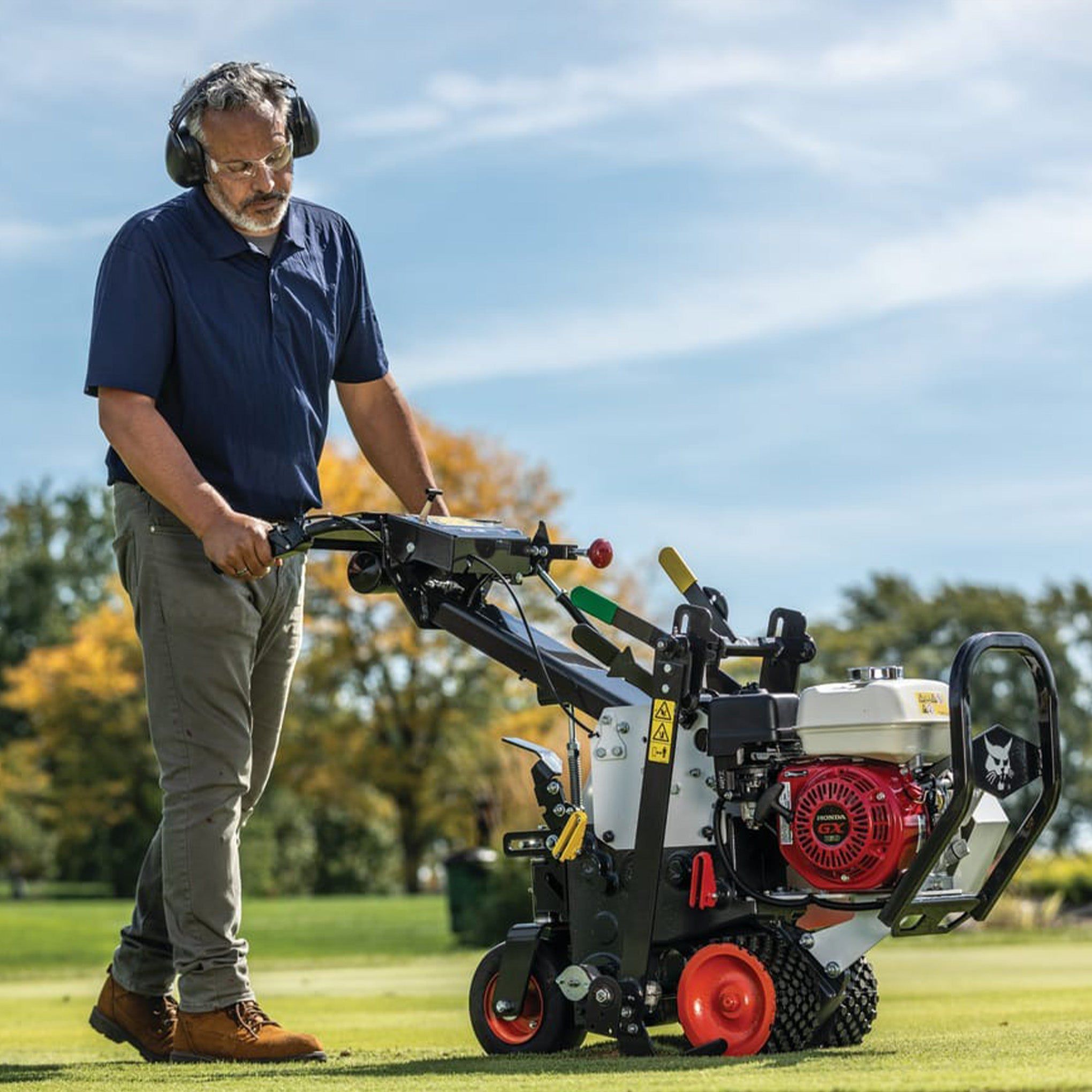

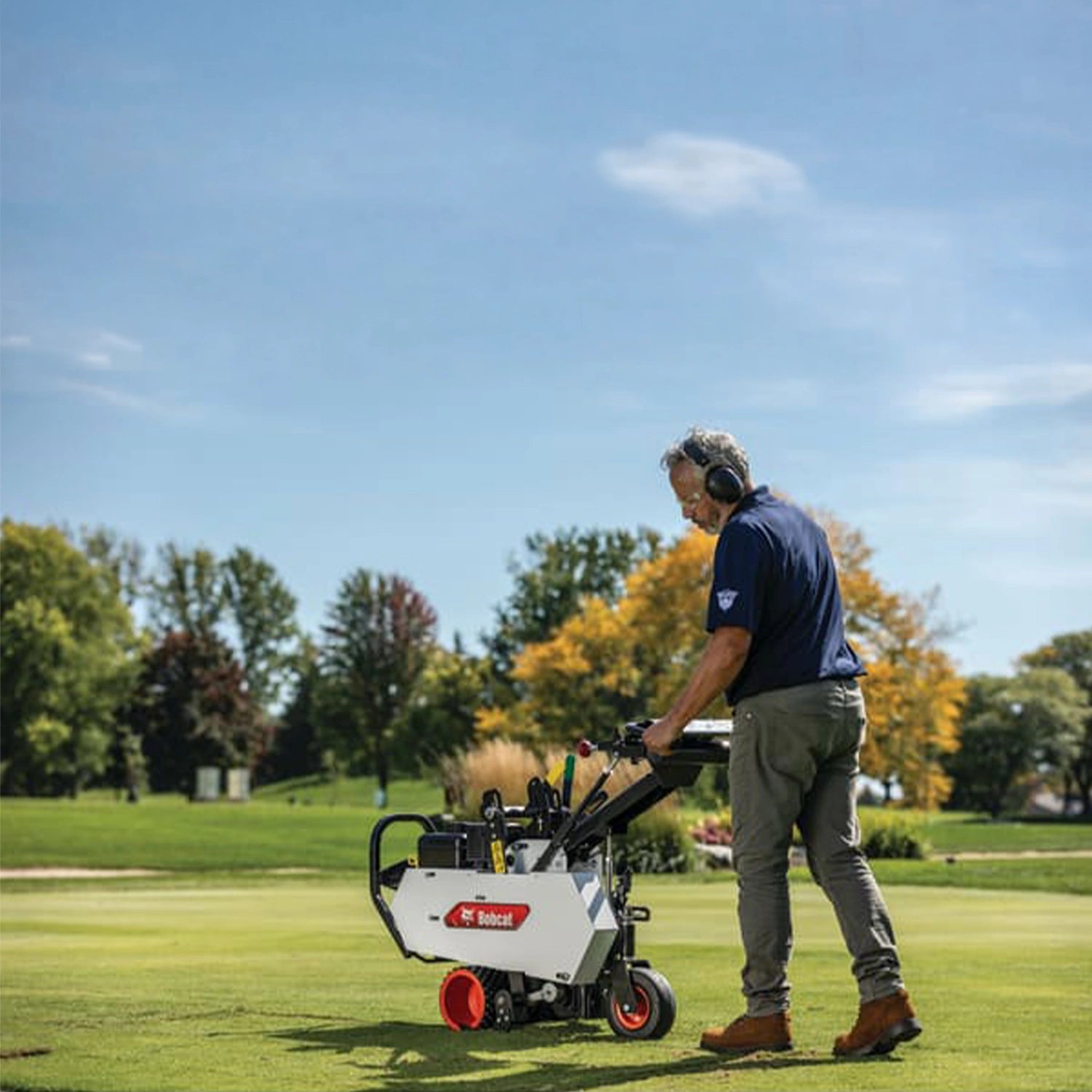

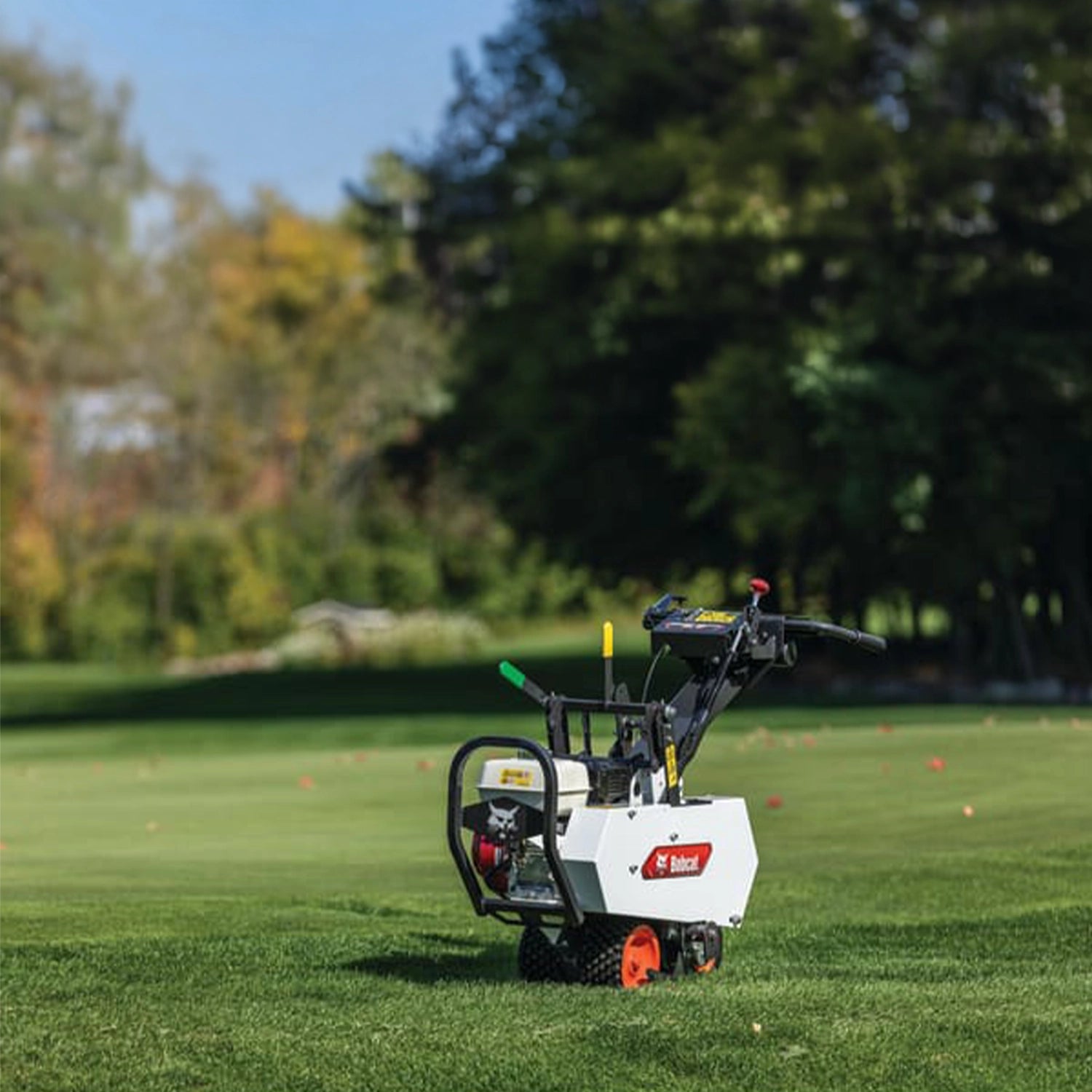

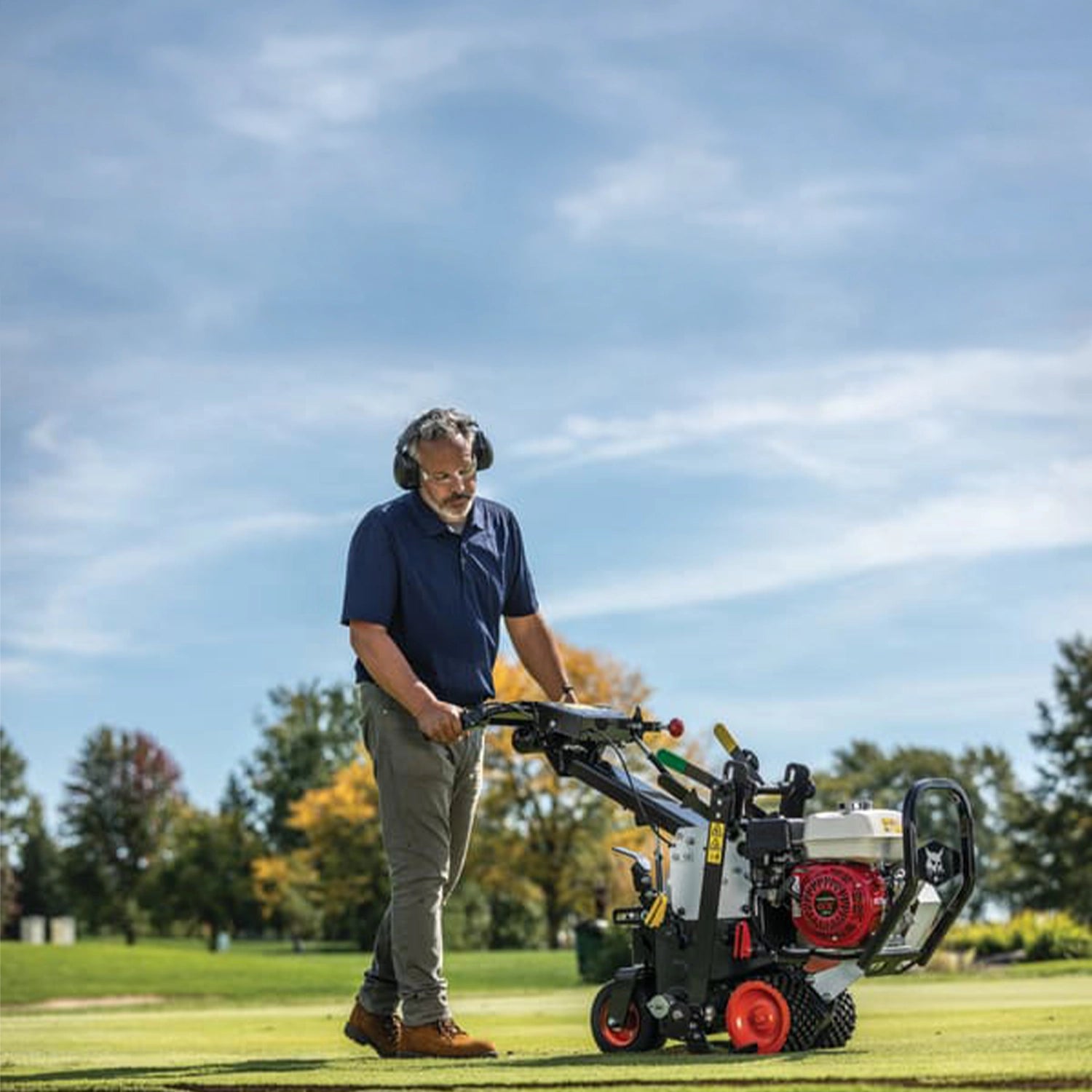

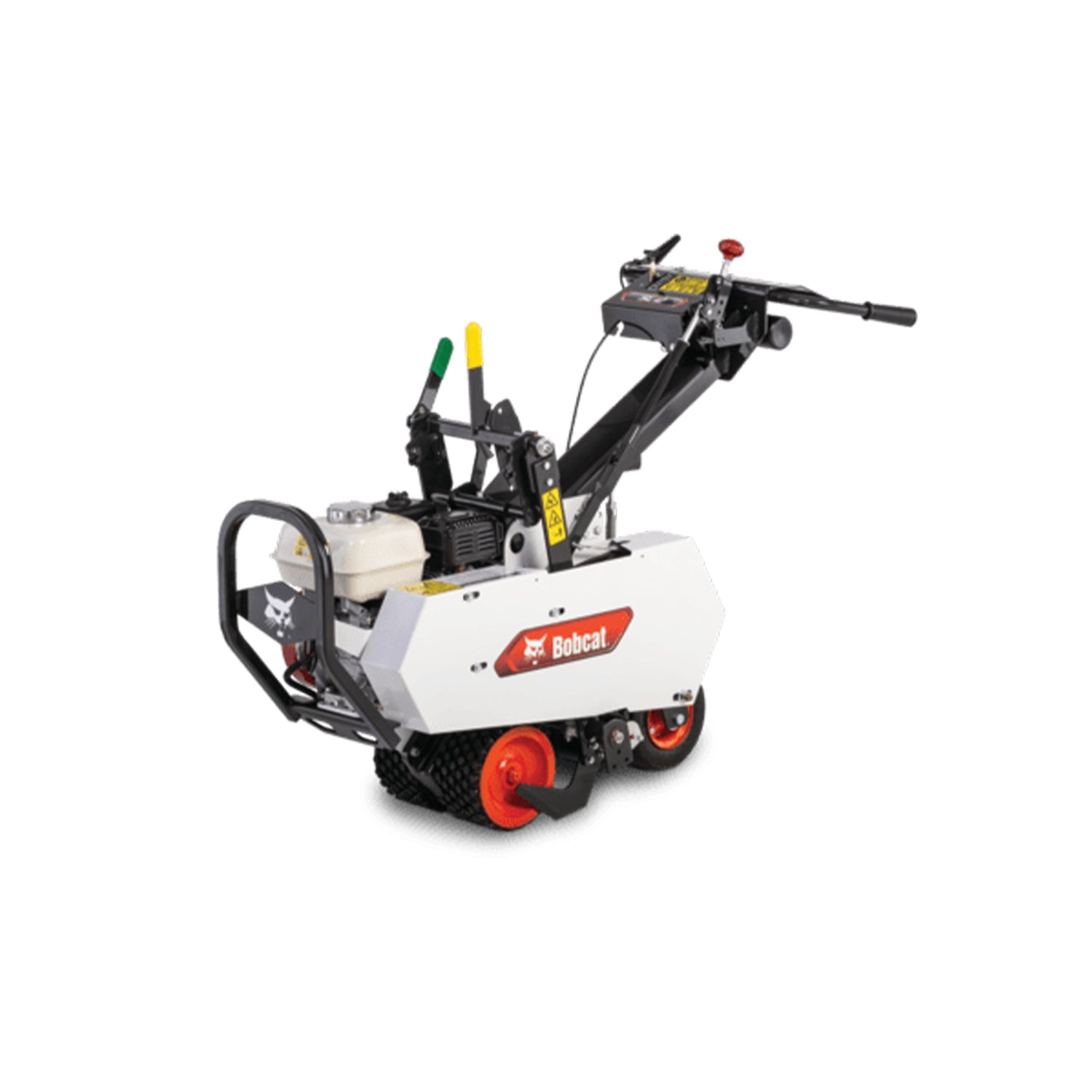

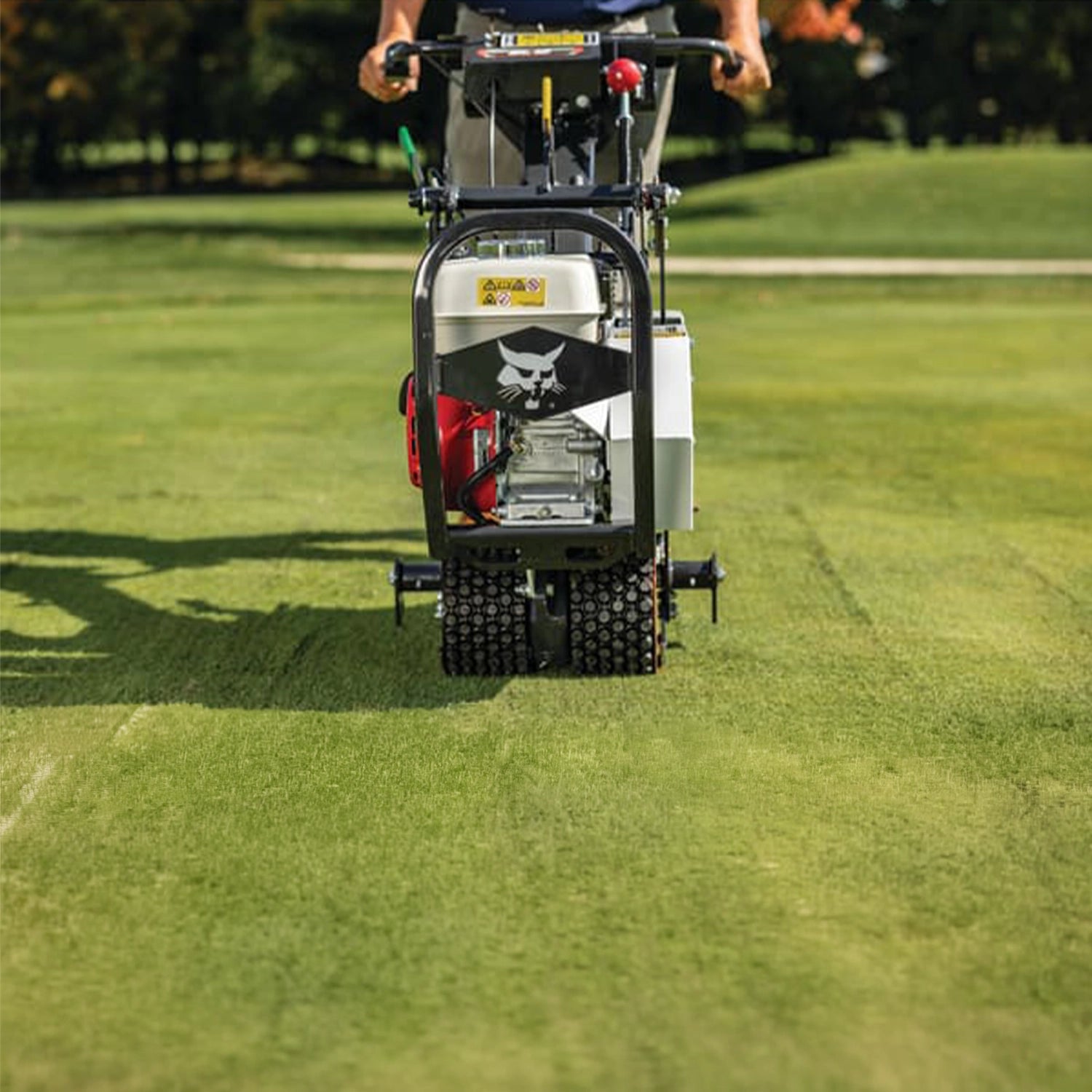

Bobcat SC12 Sod Cutter

The gold standard in the golf, sports turf, rental and landscape industries, the SC12 packs the long-lasting durability and dependable performance you’ve come to expect from Bobcat.

12 in. working width
User friendly operation
Ultra-low vibration technology – a rubber isolation mount absorbs shock, cutting energy-draining vibration by 75% and saving your arms from giving out.
A user-friendly control panel makes it easy for anyone to grab, cut, and finish the job.
Easy-Steer technology – unlock the pneumatic rear caster wheel to tightly maneuver with unmatched precision. Going straight? Lock the wheel and make it so.
No matter the terrain or soil condition, easily change blade depth and angle for unmatched, precision cutting.

Key Specs

Engine Model	Honda GX160
Engine Displacement	9.9 in³
Width	25 in
Cutting Width	12 in
Maximum Cutting Depth	2.5 in
Max Blade Speed	1,225 rpm
Drive System	A-section V-belt from engine to gear case; Wheels: gears and roller chain to drive wheels; Blade: double roller chain to blade eccentric shaft; transmission has separate clutches to engage cutting blade and traction drive
Gearbox	0.25" Thick Cast Iron Housing

Engine

Engine Model	Honda GX160
Engine Displacement	9.9 in³
Horsepower	4.8 hp
Fuel Capacity	0.82 gal

Performance

Weight

333 lb

Dimensions

Length	53 in
Width	25 in
Height	40 in

Blade

Blade Material	Heat-treated 10B38 Boron Steel
Cutting Width	12 in
Max Cutting Depth	2.5 in
Max Blade Speed	1,225 rpm
Depth Adjustment	Locking Lever releases to desired depth
