R430 | Kubota

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Kubota
Model: R430
Machine Type: Compact Wheel Loader
Engine
Horsepower: 47.6
Emissions: Tier 4
Performance
Operating Weight: 7758 lb
Height to Bucket Hinge Pin: 9' 2"
Hydraulics
Aux. Standard Flow: 11.1 GPM
Dimensions
Fuel Tank: 14.3 gal.

Description

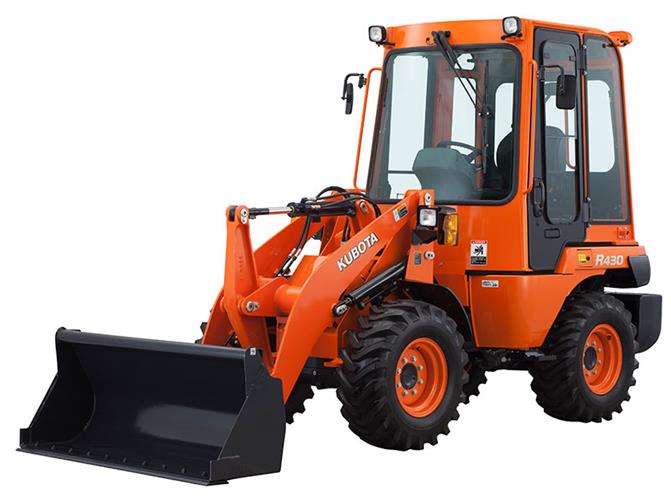

Kubota R430 Wheel Loader

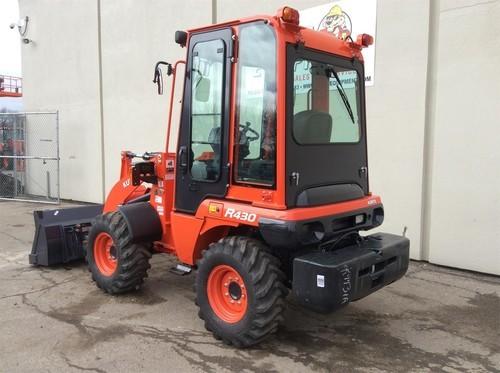

Compact design with impressive power allows the R430 to get the work done where larger loaders can't  fit. The R430 also delivers big on comfort in every season with an available enclosed cab featuring heat and A/C.

Features

POWERFUL KUBOTA ENGINE

The R430 boasts a gross rating of 47.6 HP (SAE J 1995) that provides the extra muscle needed for all of the chores that the loader is capable of performing.

COMFORTABLE WORK STATION

Comfort and convenience are the keys to operator efficiency. The working station is mounted on rubber ISO mounts to minimize sounds and vibrations. Increase your comfort level in all seasons with an enclosed heated and A/C cooled cab.

LOAD SENSING TRANSMISSION

As the travel and loading conditions change, the R430's transmission automatically shifts to compensate to provide maximum torque and speed for efficient ground speed operation. The manual switch can be operated with a convenient button located on the loader control level.

LIMITED SLIP DIFFERENTIAL

Mud, sand, snow are no problem for the R430's front limited slip axle. If a front wheel slips, the power is transferred to the opposite wheel to restore traction.

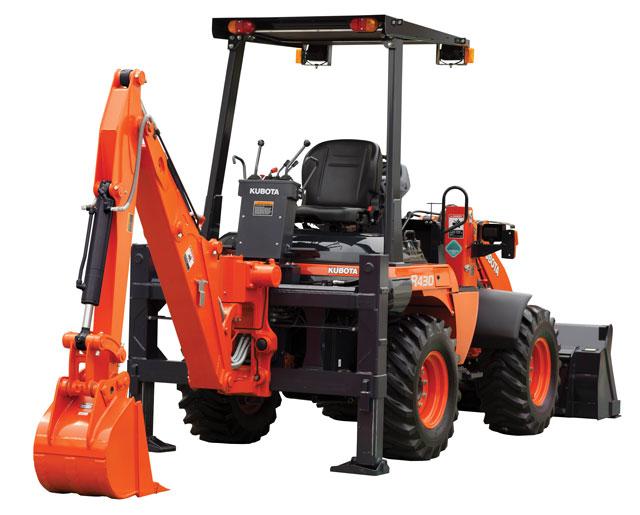

REAR BACKHOE

The R430 takes versatility to a new level in compact wheel loaders with an optional backhoe attachment. The RBK4009SA backhoe allows the operator to dig a trench up to seven feet deep and 24 inches wide.

HYBRID LINK DESIGN

The well-balanced cylinder position of the Z link provides strong bucket break out forces and a lift path almost parallel to the ground for superior reach and lift.



Specs

Engine

Engine D1803-CR-TIE4-WL5
Emissions Tier 4
Output (SAE J1995 gross) HP (kW)/rpm 47.6 (35.5) / 2600
Output (SAE J1349 net) HP (kW)/rpm 44.5 (33.2) / 2600
Displacement cu.in. (cc) 111 (1826)



Transmission

Type Hydrostatic Transmission



Dimensions

Overall Length (mm) 14' 4" (4355)
Overall Height 8' 3" (2515)
Overall Width (w/o Bucket) 4' 12" (1520)
Ground Clearance 11"



Auxiliary Circuit

Auxiliary Hydraulic Flow 11.1 (42.1)
Auxiliary Hydraulic Pressure 2697 (18.6)



Drive System

Tire Size 12.5 / 70-16-8PR
Travel Speed Low/High 3 mph / 12.4 mph
Max. Traction Force 5485 lbs
Front Axle Traction Lock Limited Slip Differential
Articulation Angle 40° (Each Direction)
Angle of Rear Frame Oscillation ±8°
Loader Clearance Circle 12' 1" (3695)
Turning Radius Track Circle 10' 1" (3085)
Brakes (Service) Enclosed Wet Disc
Brakes (Parking) Spring Applied Hydraulic Released Wet Disc



Lifting Specifications

Tipping Load (Straight (w/ Bucket)) 5335 (5743) lbs

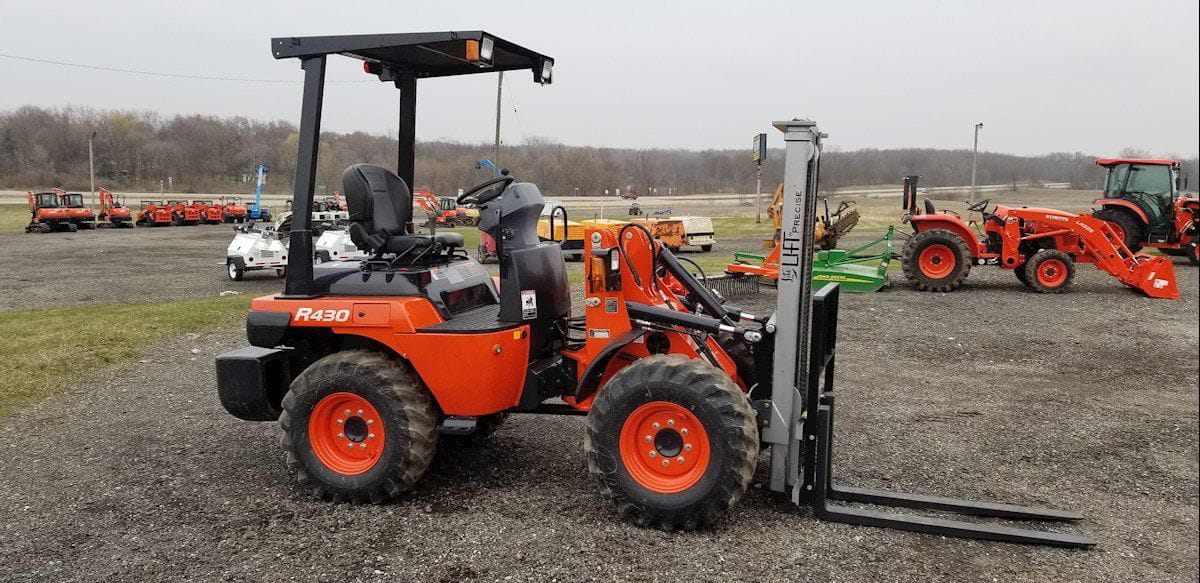

Tipping Load (Straight (w/ Pallet Forks)) 5743 (3770) lbs
Tipping Load (Full Turn (w/ Bucket)) 4596 (4949) lbs
Tipping Load (Full Turn (w/ Pallet Forks)) 3009 (3251) lbs
Rated Operating Capacity (50% of Tipping Load (w/ Bucket)) 2298 (2474) lbs
Rated Operating Capacity (50% of Tipping Load (w/ Pallet Forks)) 1504 (1625) lbs



Operational Specifications

Standard Bucket Capacity .5 yd³
Breakout Force 5215 lbs
Lifting Capacity at Ground Level 3687 lbs
Loader Raise / Lower Time 4.4 / 3.3 sec
Fuel Tank 14.3 gal
Hydraulic System 15.3 gal
Hydraulic Reservoir 11.1 gal
Operating Weight (Including Operator Weight @ 165 lbs) 7758 (8232)
