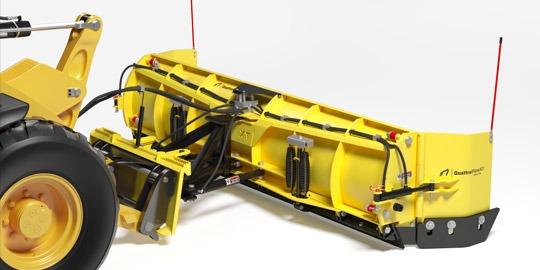

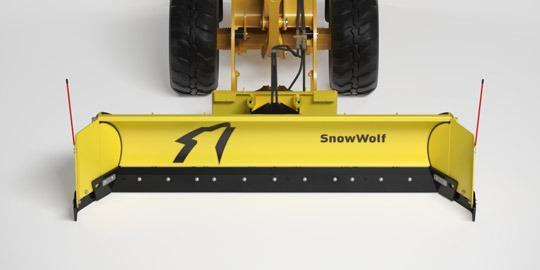

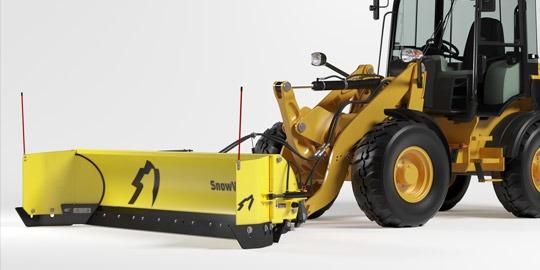

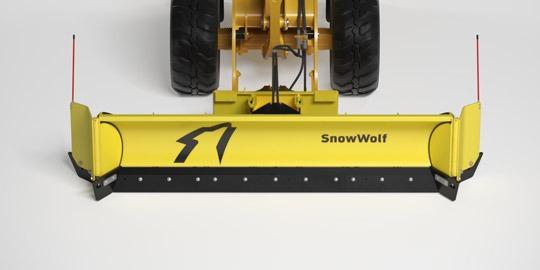

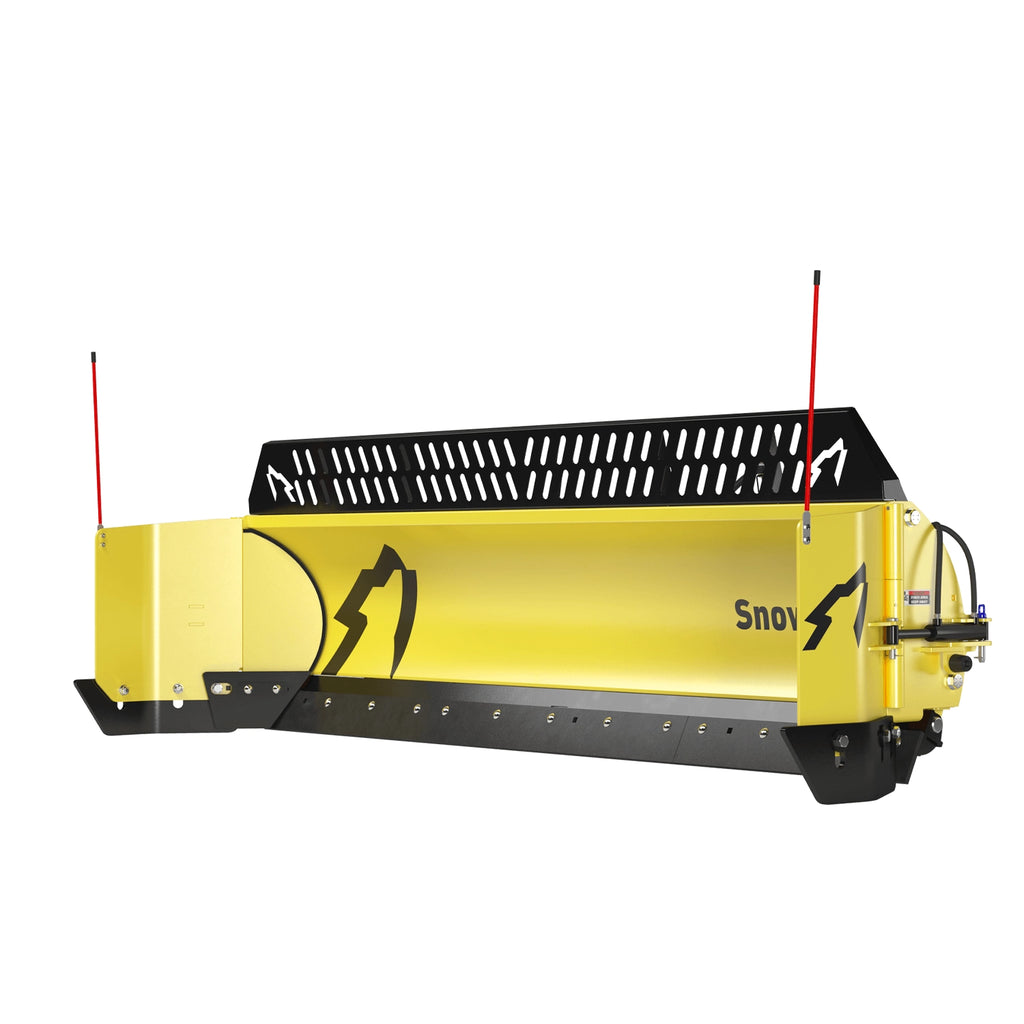

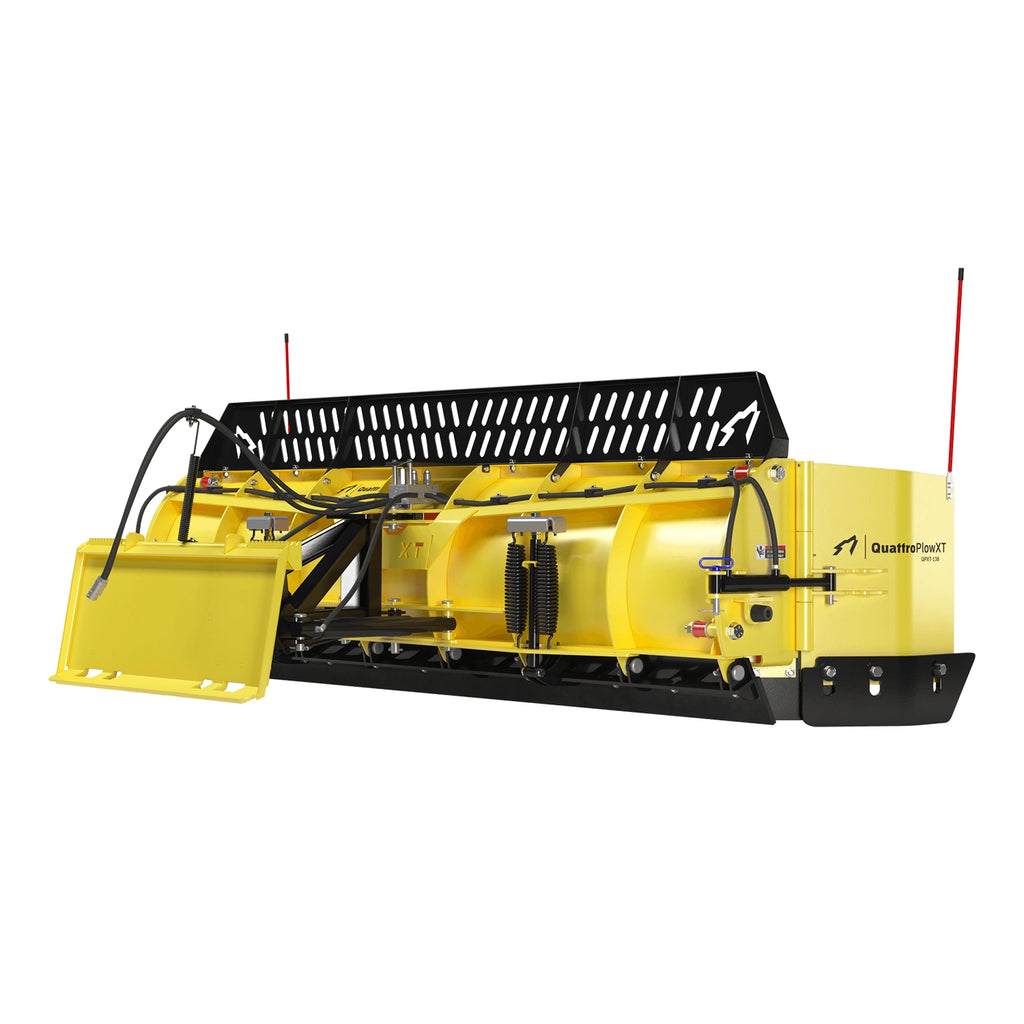

QuattroPlowXT by SnowWolf
For: 10,000-15,000 lb. Machinery
Bigger Machines Demand Extra Toughness.
Description
Built for Mid-weight to Heavy Machines.
The QP-XT Series AutoWing plow is a standardized package that was devised to meet the needs of the mid-weight to heavy equipment operator. When your customer wants “Heavy-duty”, recommend the QuattroPlowXT.
- Patented HD FlexFrame®
- Floating AR400 Steel Sideplate Shoes
- Patented Cushioned Sideplate Mounts
- Reinforced Moldboard Construction
The QP-XT Package is available in the popular 9’ (126), 10’ (138) and 11’ (150) moldboard widths. It’s ideal for Compact Wheel Loaders, Skid Steers or Compact Track Loaders over 10,000 lbs.
Specifications
| Model Number | QPXT-126 | QPXT-138 | QPXT-150 |
| Blade Width (A) | 126” (10’-6”) | 138” (11’-6”) | 150" (12'-6") |
| Moldboard Width (B) | 108” (9.0’) | 120” (10.0’) | 132" (11.0') |
| Overall Width at Full Angle (C) | 113.9” | 123.9" | 133.9" |
| Clearing Width at Full Angle (D) | 89.8" | 99.8" | 109.8" |

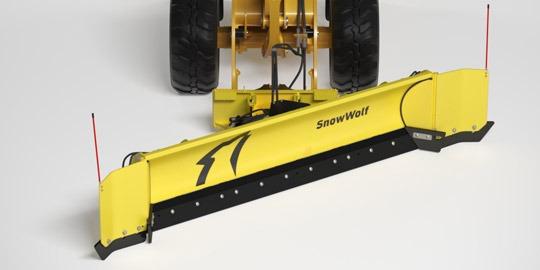

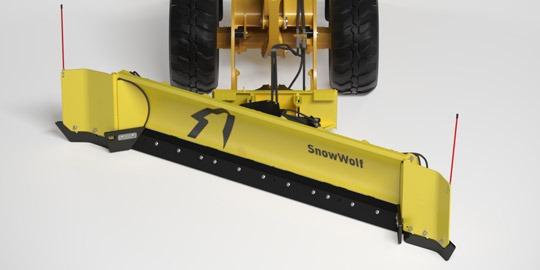

| Clearing Width at Wide Angle (E) | 154" | 166" | 178" |
| Blade Height | 30" | 30" | 30" |
| Weight (lbs.) – actual, not ship weight | 1,116 | 1,178 | 1,220 |
| Moldboard Gauge | 10 Ga. | 10 Ga. | 10 Ga. |
| Trip Springs | 4 Ext. | 4 Ext. | 4 Ext. |
| Wear Shoes | Opt. | Opt. | Opt. |
| Moldboard Cutting Edge | 5/8” x 6” Reversible High Carbon Standard, Carbide Optional | ||
| Angle Rams | 2" x 13" Nitro Steel UltraMAX | ||
| Vertical Ribs | 6 | 6 | 6 |
| Moldboard Radius | 14" | 14" | 14" |
| XT Flex Frame w/Full Down Pressure | Standard | ||
| Universal Skid Steer Compatible | Standard | ||
| Crossover Relief Valve | Standard | ||
| Slide Plate Thickness | 3/8" Grade 50 | ||
| Side Plate Wear Shoes | Floating AR400 Steel Sideplate Shoe (Standard) | ||
| Side Plate Hinge Pin | 1-3/8" x 21-1/2" | ||
| Side Plate Cylinder | Double Acting, Chrome Plate Rod | ||
| PowerWing Upgrade | Optional | ||
Full Specifications
General
| Condition | Showroom |
Engine
Performance
Hydraulics
Dimensions & Weight
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
|
