Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this Pickup Broom | Paladin.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Paladin |
| Model: | Sweepster SB 215 Pickup Broom |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

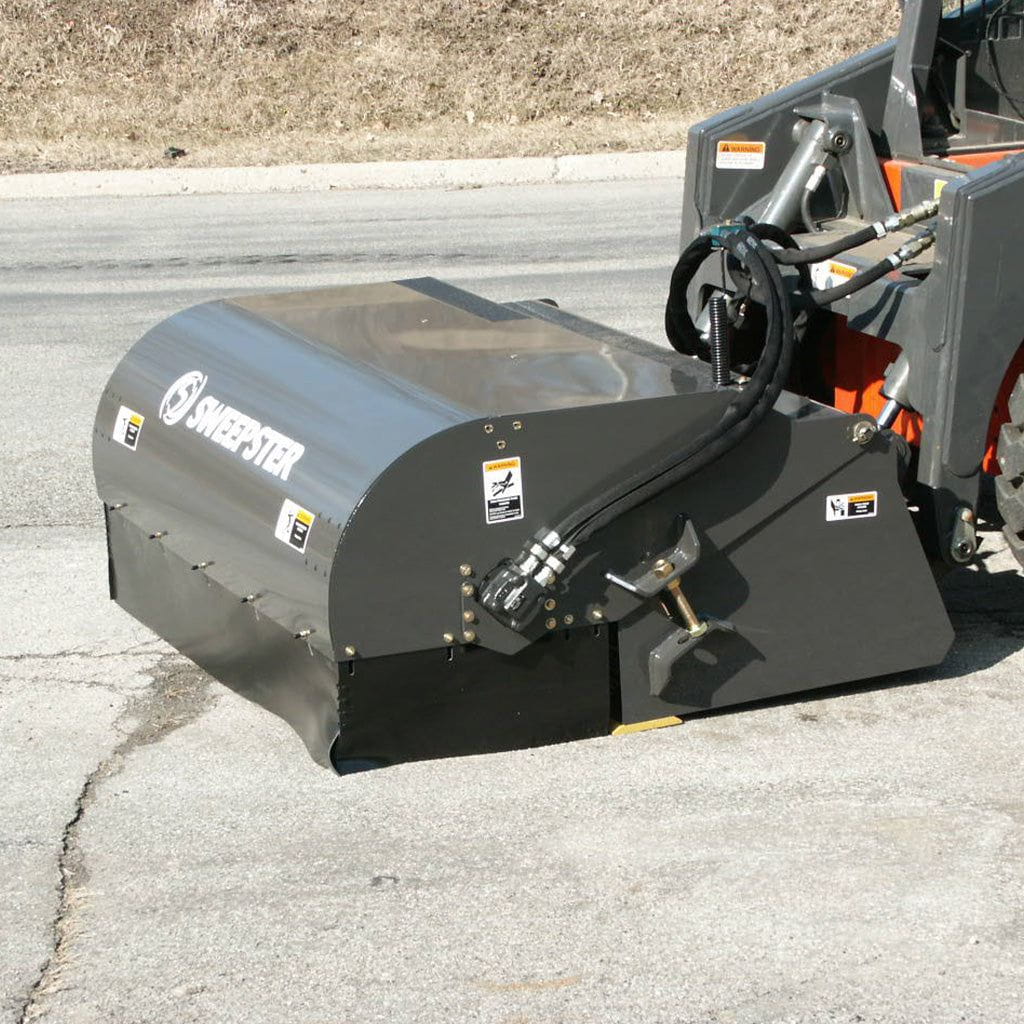

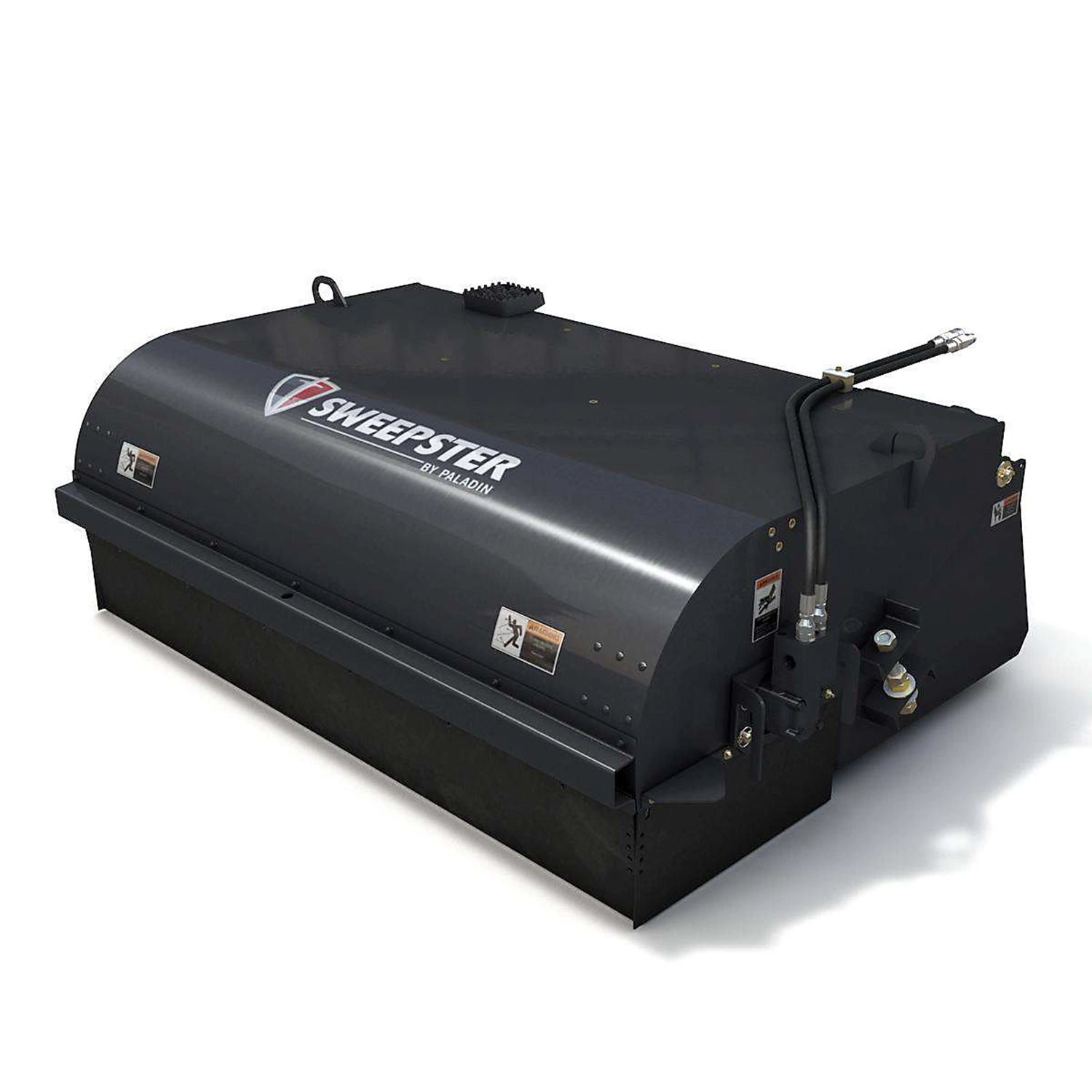

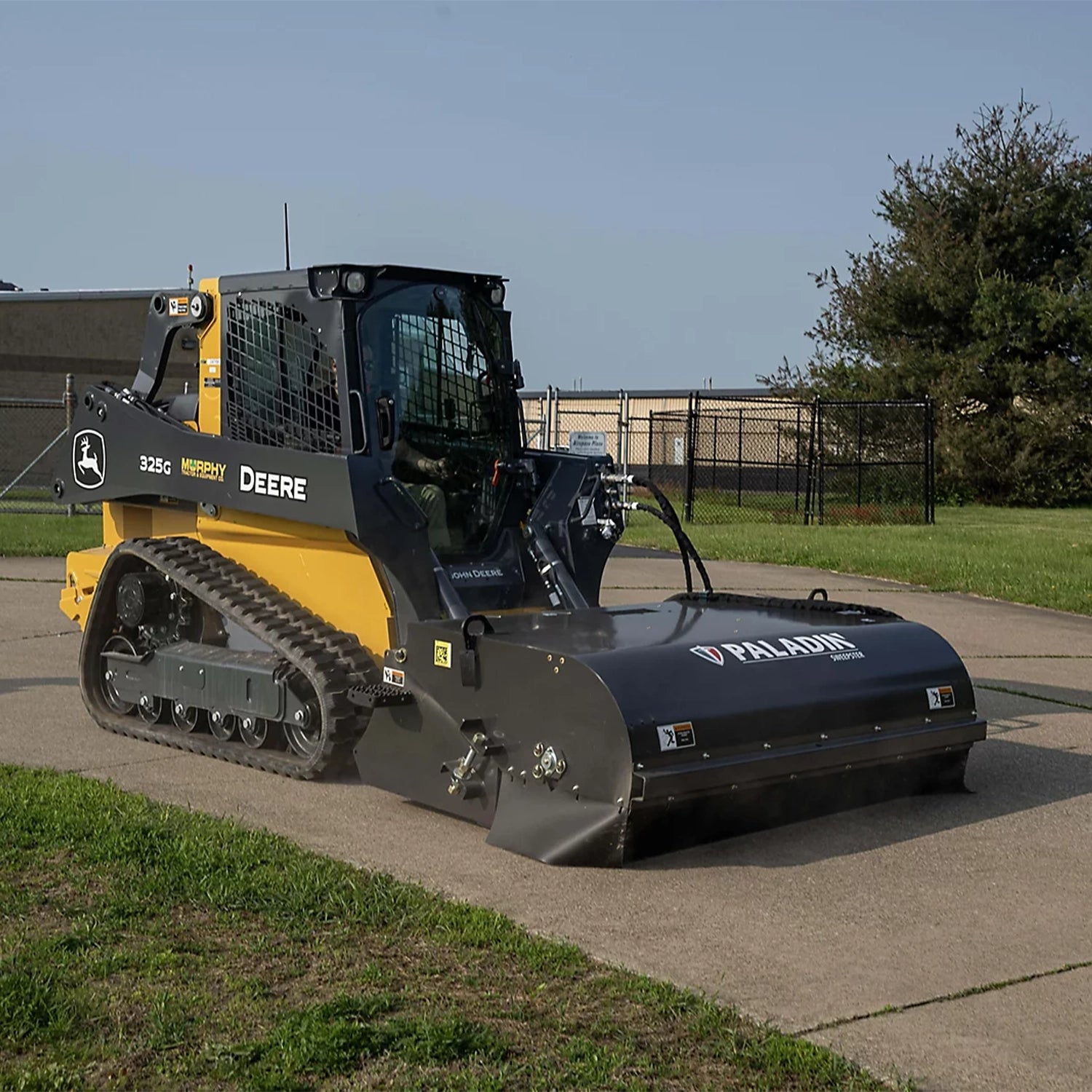

Sweepster SB 215 Pickup Broom
Sweepster’s Skid Steer Loader hydraulic drive collection sweeper by Paladin, handles light and heavy-duty clean-up in construction, municipal and industrial applications. Features include a heavy duty cutting edge standard in all models for durability. Enhanced front bumper guard for better protection during operation. Narrower overall attachment width for improved mobility and cleanup in confined areas.
Features:
- Direct-drive motor powered from loader hydraulics
- 10-25 GPM flow required (2,000-3,500 psi)

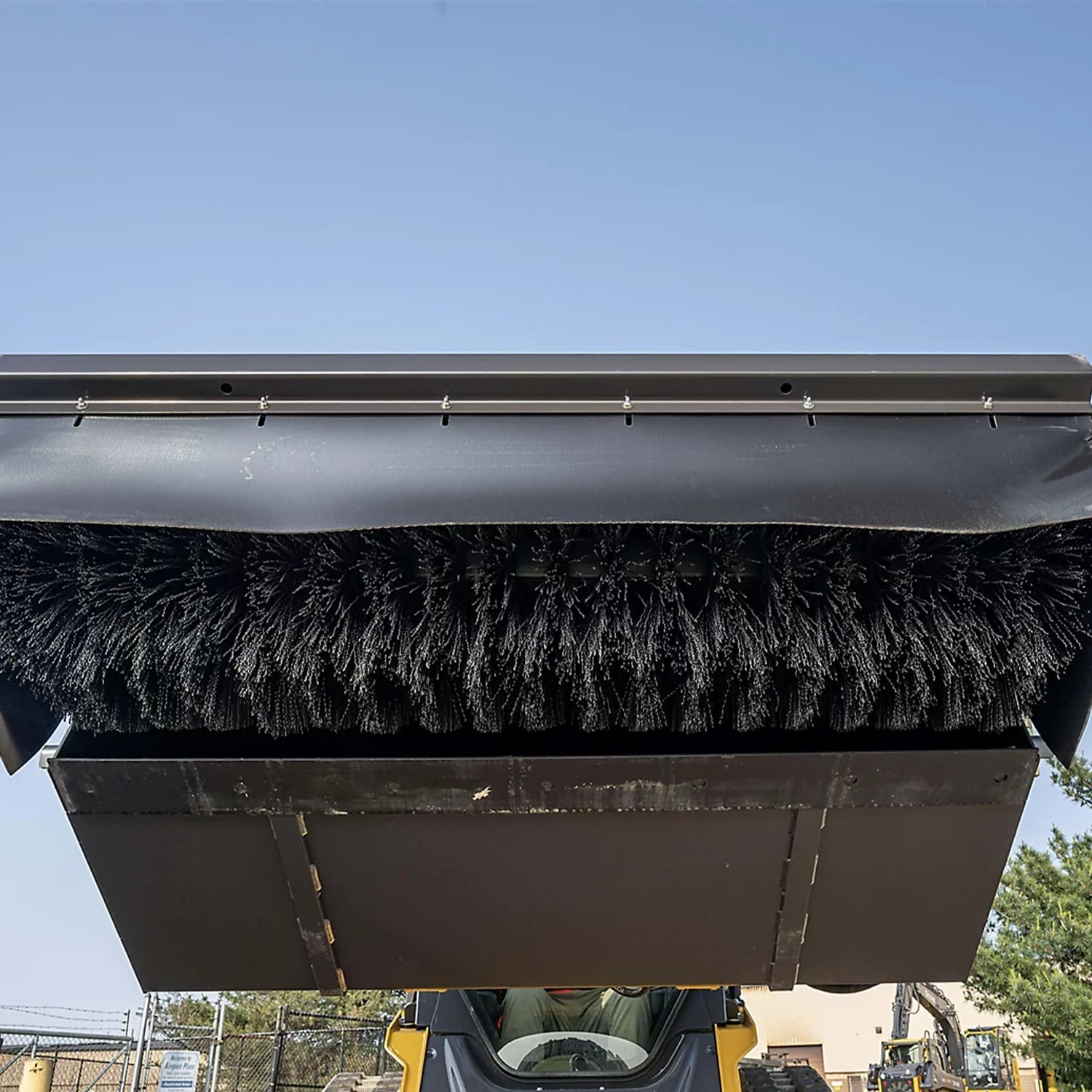

- 26” brush diameter
- 5’, 6’, 7’ brush widths available
- Brush head reversible for “dust panning” debris

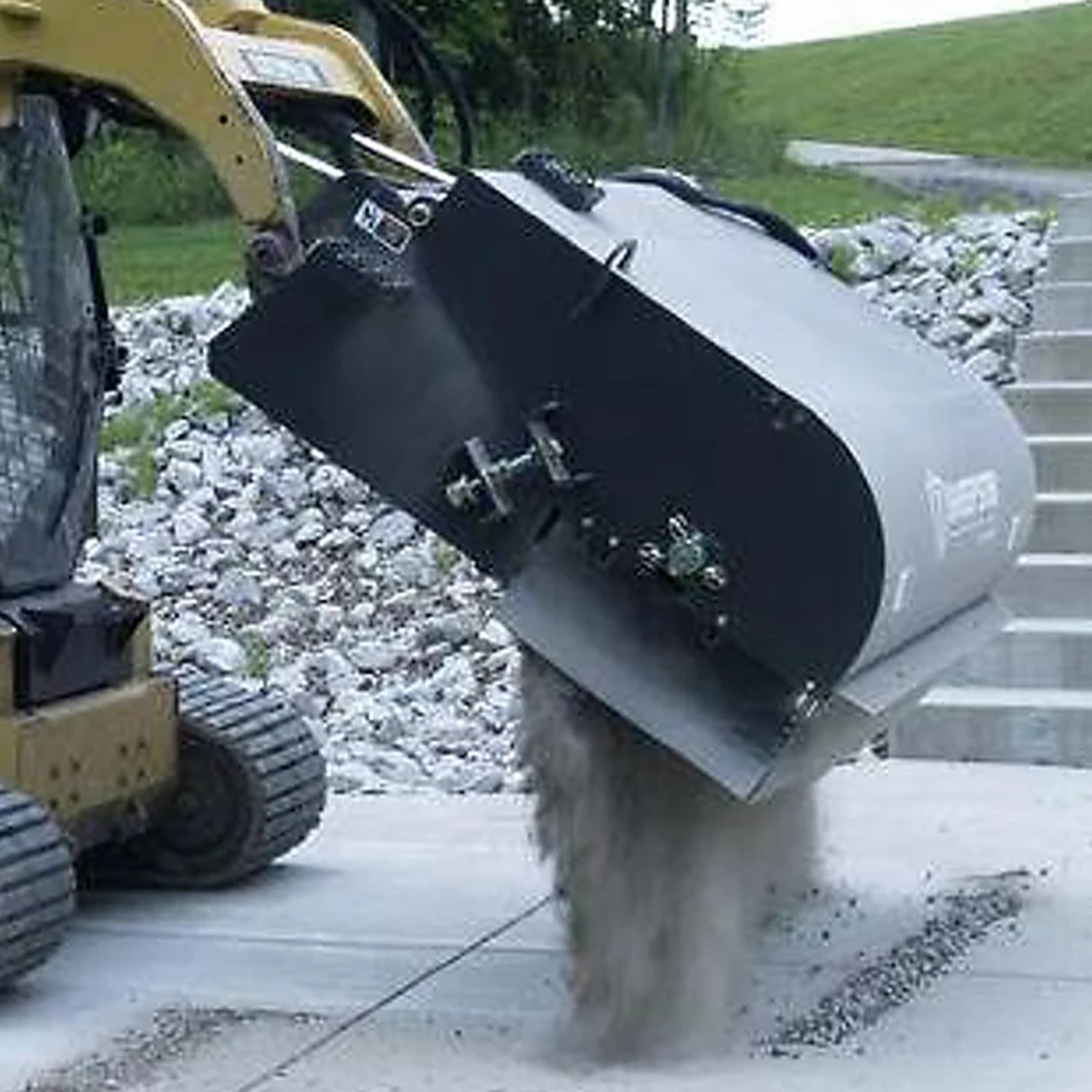

- Dump bucket by lifting arms
- Quick change core
| Specs | 21559 | 21560 | 21571 | 21572 | 21583 | 21584 |
|---|---|---|---|---|---|---|
| Overall Height: | 29.7" | 29.7" | 29.7" | 29.7" | 29.7" | 29.7" |
| Overall Width: | 72.3" | 72.3" | 84.3" | 84.3" | 96.3" | 96.3" |
| Overall Length: | 61" | 61" | 61" | 61" | 61" | 61" |
| Sweeping Width: | 60" | 60" | 72" | 72" | 84" | 84" |
| Weight: | 946 lbs. | 946 lbs. | 1068 lbs. | 1068 lbs. | 1190 lbs. | 1190 lbs. |
| Flow Range: | 10-18 GPM | 15-25 GPM | 10-18 GPM | 15-25 GPM | 10-18 GPM | 15-25 GPM |
Bobcat Skid-Steer Loaders
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| S70 | S450 | S590 | S64-2 | S66-2 | S650 | S76-2 | S770 | S86-2 | |
|---|---|---|---|---|---|---|---|---|---|
| Frame / Role | Ultra-compact classic | Compact classic | Mid-size classic | Mid-frame Pro | Mid-frame Pro | Large classic | Large-frame Pro | Largest classic | High-output large-frame |
| Horsepower | 23.5 hp | 49 hp | 68 hp | 68 hp | 74 hp | 74 hp | 74 hp | 92 hp | 115 hp |
| Rated Operating Capacity | 760 lbs | 1,370 lbs | 2,000 lbs | 2,300 lbs | 2,400 lbs | 2,690 lbs | 2,900 lbs | 3,350 lbs | 3,500 lbs |
| Tipping Load | 1,520 lbs | 2,740 lbs | 4,000 lbs | 4,600 lbs | 4,800 lbs | 5,380 lbs | 5,800 lbs | 6,700 lbs | 7,000 lbs |
| Operating Weight | 2,892 lbs | 5,370 lbs | 6,649 lbs | 6,974 lbs | 7,154 lbs | 7,901 lbs | 8,615 lbs | 9,154 lbs | 10,237 lbs |
| Travel Speed | 6.3 mph | 7.6 / 9.2 mph | 7.3 / 11.7 mph | 7.4 / 11 mph | 7.4 / 11 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph |
| Standard Aux Flow | 8.9 gpm | 16.7 gpm | 17.1 gpm | 23.3 gpm | 23.3 gpm | 23 gpm | 23.3 gpm | 23 gpm | 23 gpm |
| High / Super Flow | — | — | 26.7 gpm | 30.3 gpm | 30.3 gpm | 30.5 gpm | 30.3 gpm | 36.6 gpm | 36.6 / 42 gpm |
| Height to Hinge Pin | 94.5 in | 109.5 in | 119 in | 120 in | 120 in | 124 in | 128.3 in | 132 in | 144 in |
| Overall Width | 35.5 in | 58.6 in | 64.7 in | 67.8 in | 67.8 in | 72.1 in | 72.9 in | 72.1 in | 78 in |
Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
Full Specifications
General
| Condition | Showroom |
Engine
Performance
Capacities
Hydraulics
Dimensions & Weight
Serviceability
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
