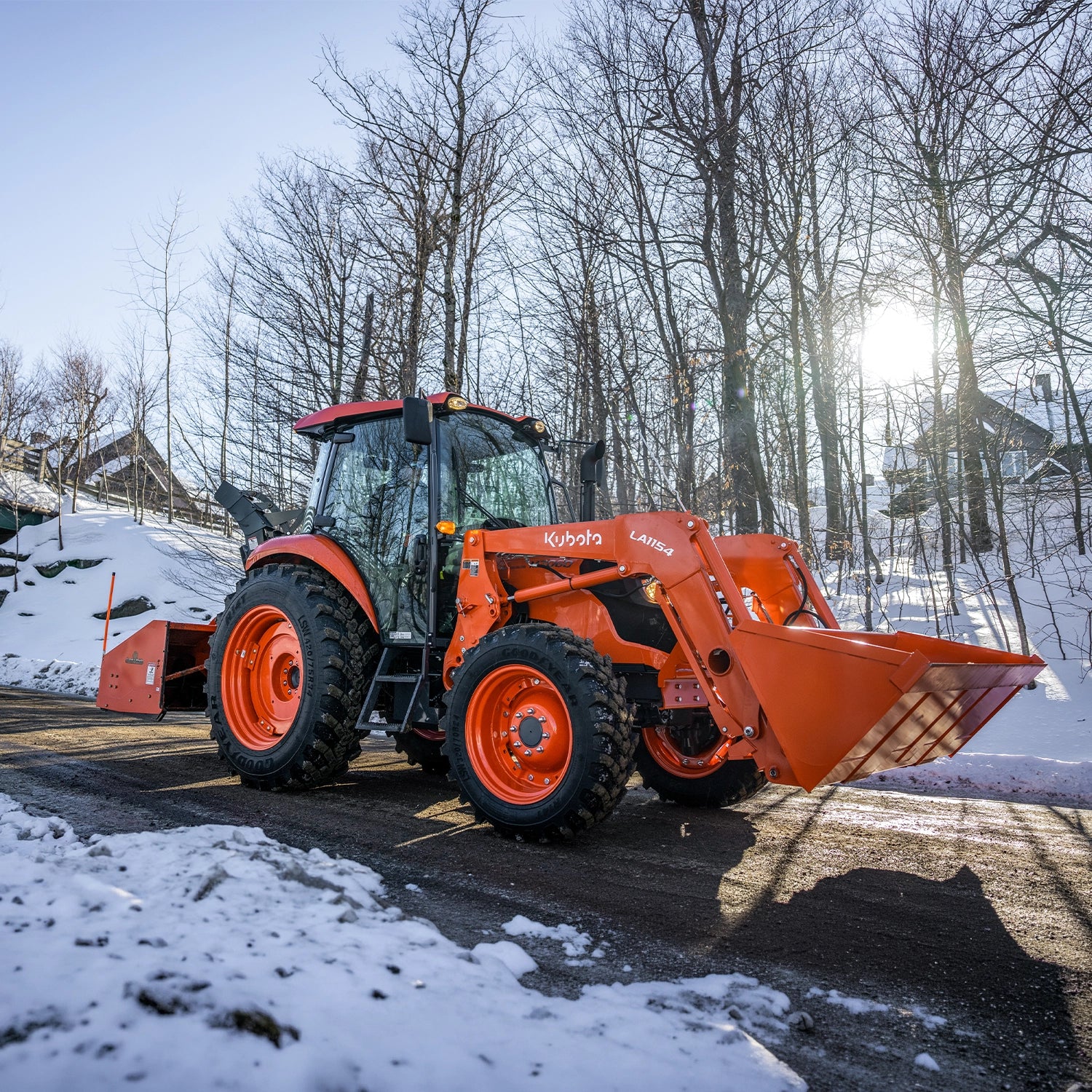

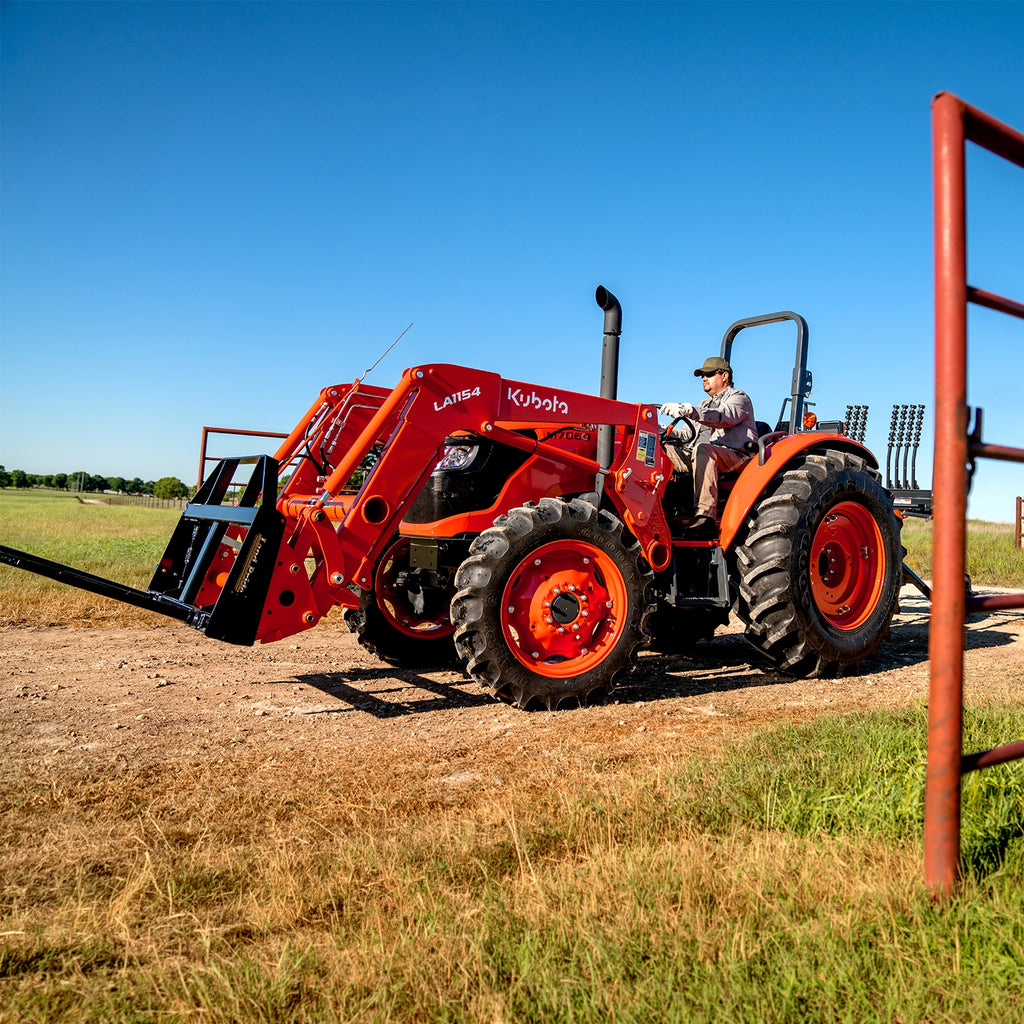

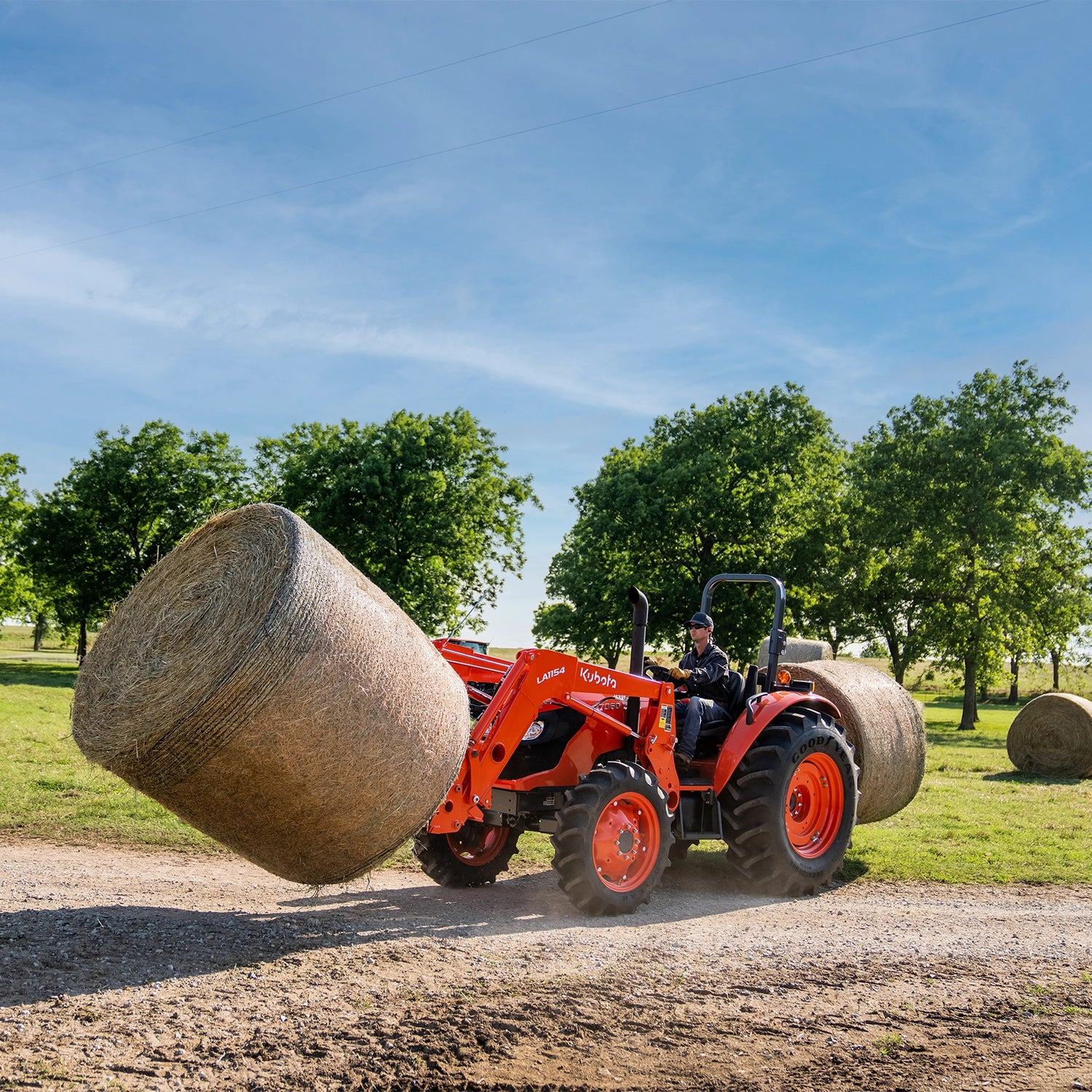

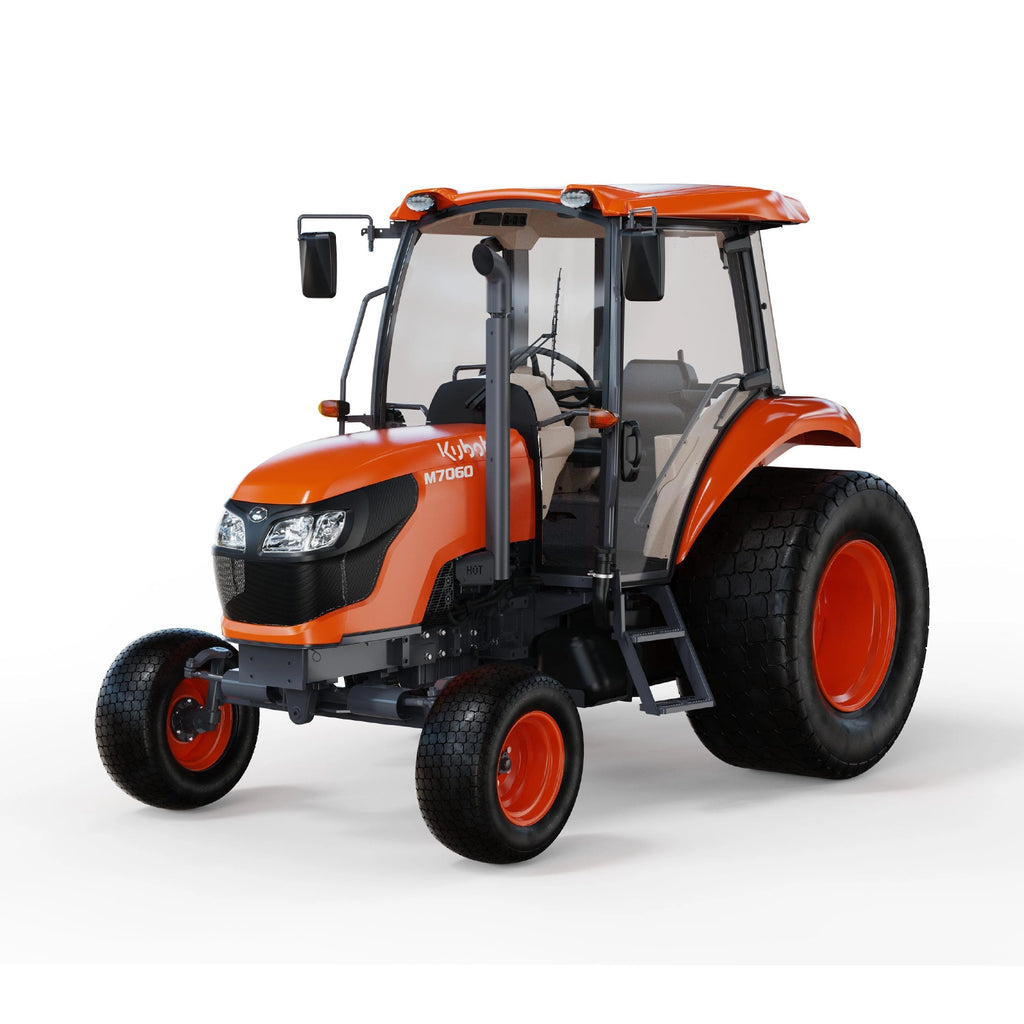

M7060 Utility Tractor By Kubota
The M60 Series tractors are designed for the farmer with 10-75 acres who require more comfort and better features than those found in your typical standard tractor. The M60 Series tractors offer optimal comfort with a deluxe seat, armrests, wide area floor mat and ergonomic controls built into a console for a more refined finish.
Features
PROVEN, POWERFUL, AND RELIABLE KUBOTA DIESEL ENGINE
The M60 Series are powered by the V3307 Series Kubota diesel engine, This 3.3 liter turbocharged 4 cylinder engine has been designed specifically to reduce noise and vibration. The M60 Series engines also feature an electronic governor that gives you electronic control of engine rpm. Activating the system keeps engine revolution constant, preventing drops in PTO speed and enabling stable operation. It makes working with PTO driven implements much more efficient.
Specs
Model
M7060 |
2WD |
4WD |
4WD |
ROPS / CAB |
HFC |
HD / HDC |
HD12 / HDC12 |
Engine
Type (Make: Kubota) |
4 Cylinder In-Line, Common Rail System, Direct Injection |
PTO Power |
64 HP |
Engine Net Power |
71 HP |
No. Of Cylinders/Aspiration |
4 / Turbocharged |
Total Displacement |
203 cu. in. |
Rated Engine RPM |
2400 |
Fuel tank Capacity ROPS / CAB |
18.5 / 23.8 GAL |
Alternator ROPS / CAB |
45 AMP / 60 AMP (100 Amp: OPT) |
Transmission
No. Of Speeds / R |
F8 / R8 |
F8 / R8 |
F12 / R12 |
Main Gear Shift (4 Speeds) |
Fully Synchronized (4 Speed) |
Fully Synchronized (4 Speed) |
Fully Synchronized (6 Speed) |
Shuttle Shift |
Hydraulic Shuttle |
Hydraulic Shuttle |
Hydraulic Shuttle |
Main Clutch |
Multiple Wet Disk |
Multiple Wet Disk |
Multiple Wet Disk |
Brake |
N/A |
Limited Slip Differential / Mechanical |
Limited Slip Differential / Mechanical |
Differential Lock (Front / Rear) |
- |
Mechanical on-the-go |
Electro-Hydraulic on-the-go |
PTO
PTO Type |
Live Independent PTO, Electro-Hydraulic Clutch with Brake |
Live Independent PTO, Electro-Hydraulic Clutch with Brake |
Live Independent PTO, Electro-Hydraulic Clutch with Brake |
Speed |
540 ( 540 / 540E:OPT) |
540 ( 540 / 540E:OPT) |
540 / 540E |
Hydraulic
Pump Capacity (3-Point Hitch) ROPS/CAB |
11 GPM |
11 GPM |
16.2 GPM |
3-Point Hitch |
Telescopic Lower Link Ends, Telescopic Stabilizers |
Telescopic Lower Link Ends, Telescopic Stabilizers |
Telescopic Lower Link Ends, Telescopic Stabilizers |
Category |
I / II |
I / II |
I / II |
Control System |
Position, Draft (Top Link Sensing) & Mixed Control |
Position, Draft (Top Link Sensing) & Mixed Control |
Position, Draft (Top Link Sensing) & Mixed Control |
Lift Capacity at 24 in Behind Lift Point |
3307 lbs |
3307 lbs |
3307 lbs |
Cylinder Type |
Two External Cylinders |
Two External Cylinders |
Two External Cylinders |
No. of Standard Remote Valves |
1 (2nd, 3rd & Flow Control Valve Optional) |
1 (2nd, 3rd & Flow Control Valve Optional) |
1 (2nd, 3rd & Flow Control Valve Optional) |
Other Features
4WD Drive System |
N/A |
Bevel Gear Type |
Bevel Gear Type |
Steering |
Hydrostatic Power Steering |
Hydrostatic Power Steering |
Hydrostatic Power Steering |
Tilt Steering |
Standard |
Standard |
Standard |
Hood Type / Pedal Type |
Full Open, Slanted, Steel / Hanging |
Full Open, Slanted, Steel / Hanging |
Full Open, Slanted, Steel / Hanging |
Deck Type (ISO-Mounted W/ Rubber Mat) |
Semi-Flat on ROPS Models, Full-Flat on CAB Models |
Semi-Flat on ROPS Models, Full-Flat on CAB Models |
Semi-Flat on ROPS Models, Full-Flat on CAB Models |
Panel Type |
Electronic |
Electronic |
Electronic |
Fender Shape |
Wide, Round |
Wide, Round |
Wide, Round |
Standard Tire Size
Front |
7.5-16 |
9.5-24 |
9.5-24 |
Rear |
16.9-30 |
16.9-30 |
16.9-30 |
Dimensions
Overall Length (ROPS / CAB) |
- / 142.7 in |
138 / 138 in |
138 / 138 in |
Overall Height (Top of ROPS / CAB) |
97 / 101 in |
97 / 101 in |
97 / 101 in |
Overall Width (Minimum) |
73 in |
73 in |
73 in |
Wheelbase (ROPS / CAB) |
- / 84.4 in |
83.1 / 83.1 in |
83.1 / 83.1 in |
Crop Clearance (Front Axle) |
18.1 in |
18.1 in |
18.1 in |
Tread Width
|
Inches
|
Inches
|
Inches
|
Turning Radius (W/O Brake) |
10.81 ft |
11.8 ft |
11.8 ft |
Tractor Weight (ROPS/CAB) |
- / 5248 lbs |
5027 / 5380 lbs |
5027 / 5380 lbs |
