Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this M7-134 | Kubota.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Kubota |
| Model: | M7-134 |
| Machine Type: | Tractor |
|
Engine
|
|
|---|---|
| Horsepower: | 128.0 |
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

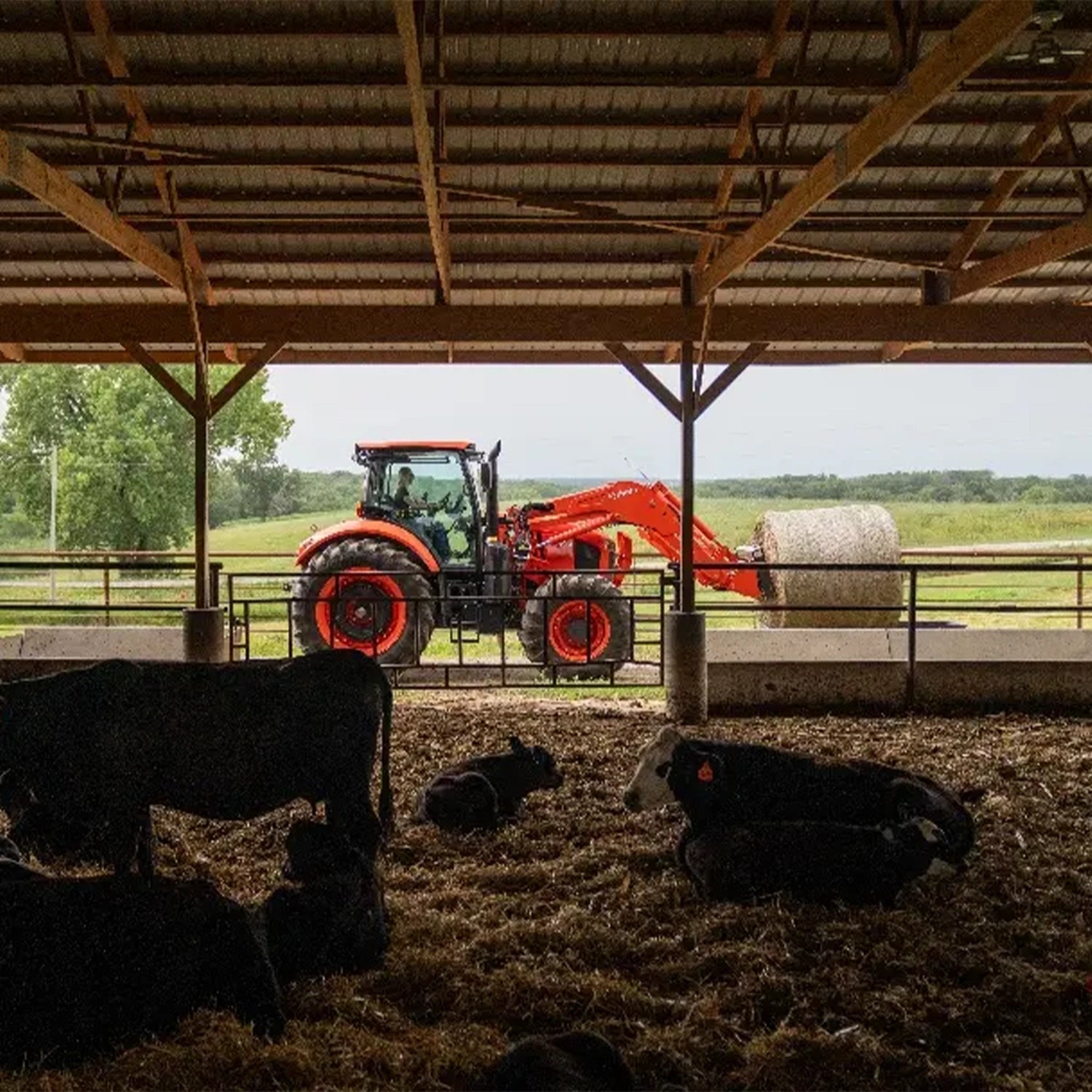

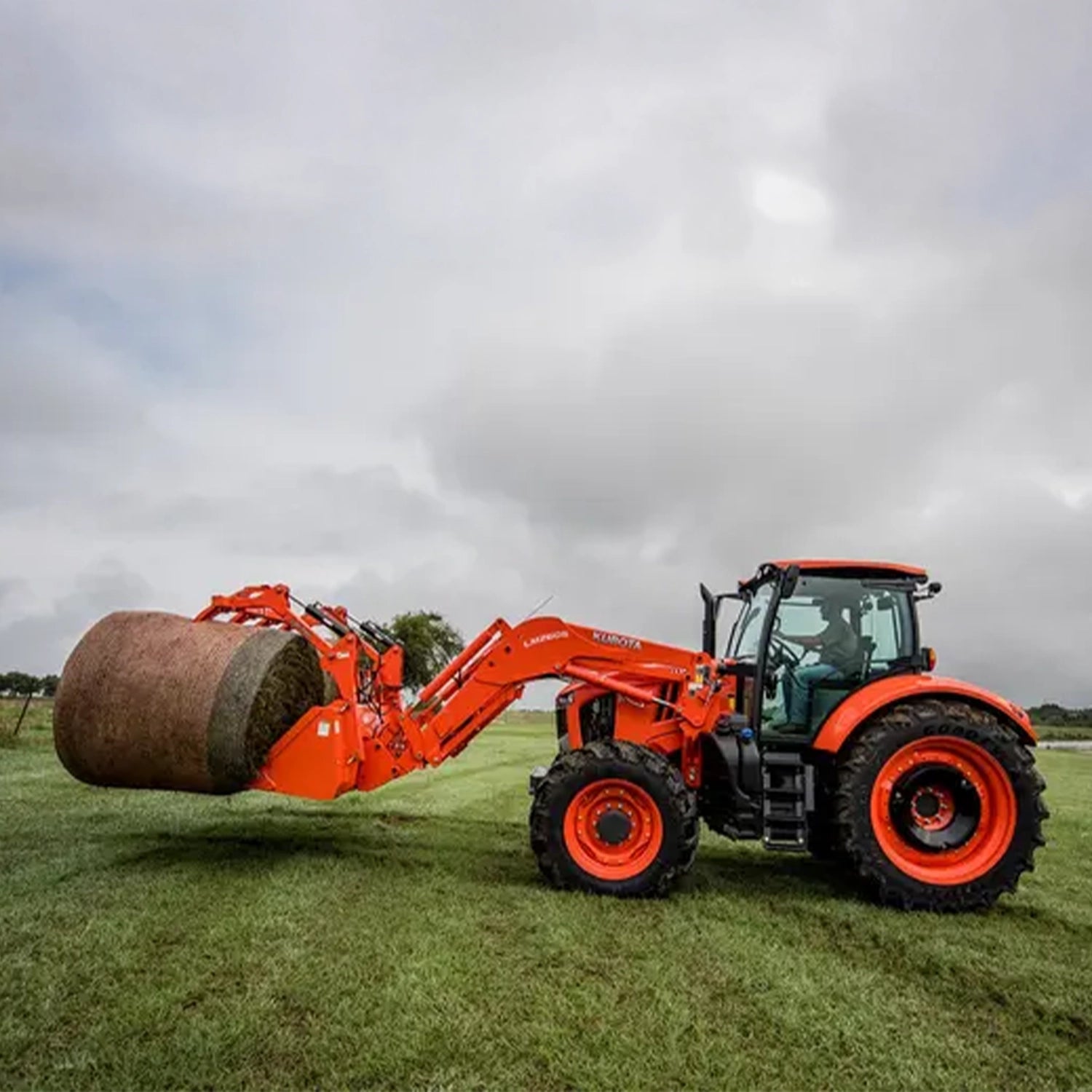

M7-134 | Kubota Agriculture Tractor
The Kubota M7-4 Series combines impressive power, durability, and advanced technology to deliver exceptional performance for demanding agricultural operations. Designed to elevate productivity, the M7-4 offers multiple horsepower options, a robust transmission lineup, and an impressive 87-gallon fuel capacity to keep you working longer with fewer interruptions.
Equipped with a Closed Center Load Sensing (CCLS) hydraulic system and a standard four-speed live independent PTO, the M7-4 provides the hydraulic performance, implement control, and efficiency needed to tackle a wide range of field and livestock applications. Available in Deluxe, Premium, and Premium KVT configurations, the M7-4 Series delivers the versatility, comfort, and capability operators need to achieve outstanding results every day.
Deluxe Features
The M7-4 Deluxe model is equipped with premium features designed to maximize productivity, comfort, and versatility across a wide range of agricultural applications.
- Three Mechanical Rear Remotes for convenient hydraulic implement operation
- 29 GPM Closed Center Load Sensing (CCLS) Hydraulics for responsive, high-capacity hydraulic performance
- 540 / 540E / 1000 / 1000E PTO for maximum implement compatibility and fuel-efficient operation
- Air Suspension Seat for enhanced operator comfort during long workdays
- High-Capacity 3-Point Hitch to handle larger and heavier implements with confidence
- Spacious High-Spec Cab with an integrated instructor seat for added comfort and training convenience
- 30F x 15R Semi-Power Shift Transmission for smooth, efficient operation across varying conditions
- Available 54F x 27R Semi-Power Shift Creeper Transmission for precision low-speed applications
- Optional 110-Inch Bar Axle to accommodate a variety of field and row-crop requirements
Compare the Tractor Family
From sub-compact chore tractors to utility-class acreage machines — see how Bobcat® tractors step up in power, lift and capability across five platforms.
← Swipe to see all specs →
| Platform & Models | Engine HP | PTO HP | Transmission | Loader Lift Capacity | Loader Lift Height | 3-Point Lift Capacity | Mid PTO | Travel Speed |
|---|---|---|---|---|---|---|---|---|
|
1000 Platform
Sub-Compact Tractor CT1021, CT1025
Open Station
|
21.0–24.5 hp | 16.3–18.8 hp | Hydrostatic | Up to 608 lb | 73.0 in | Up to 700 lb | 2,200 rpmStandard | Up to 11.1 mph |
|
2000 Platform
Compact Tractor CT2025, CT2035, CT2040, CT2535, CT2540
Open Station or Cab
|
24.5–39.6 hp | 21.8–31.9 hp22.2 hp (MST) | Manual Shift or Hydrostatic | Up to 1,389 lb | Up to 99.4 in | Up to 1,631 lb | 1,976–1,988 rpmOptional | Up to 14.0 mph |
|
4000 Platform
Compact Tractor CT4045, CT4050, CT4058, CT4545, CT4558
Open Station or Cab
|
44.9–57.7 hp | 32.8–45.1 hp45.6 hp (SST) | Manual Synchro Shuttle or Hydrostatic | Up to 1,795 lb | Up to 103.2 in | Up to 2,716 lb | 2,119 rpmOptional (HST only) | Up to 18.0 mph |
|
5000 Platform
Compact Tractor CT5545, CT5550, CT5555, CT5558
Cab
|
45.0–57.7 hp | 33.9–48.3 hp | Electronic Hydrostatic | Up to 2,346 lb | Up to 101.1 in | Up to 3,177 lb | 2,103 rpmOptional | Up to 17.5 mph |
|
6000 Platform
Utility Tractor UT6066, UT6566, UT6573
Open Station or Cab
|
66.4–73.1 hp | 57.4–62.1 hp | Powershuttle | Up to 2,813 lb | 129.3 in | Up to 3,898 lb | N/A | Up to 19.9 mph |
At a Glance
1000 Platform
Sub-Compact Tractor
- Excels at mowing and light-duty loader work.
- Compact size maneuvers easily inside barns, sheds and near houses.
- Versatile, user-friendly operation for small-scale jobs.
- Ideal for navigating tight spaces while delivering powerful performance.
2000 Platform
Compact Tractor
- Enhanced lift capacity, ground clearance and horsepower vs. the 1000 platform.
- Available with hydrostatic or manual 9×3 transmission for consistent speed over distance.
- Supports larger attachments and implements for bigger tasks.
- Cab models add heating and air conditioning for operator comfort.
4000 Platform
Compact Tractor
- Heavy-duty power for brush clearing, material hauling and landscaping.
- Hydrostatic or synchro shuttle transmission for a wide range of gear options.
- Faster speeds up to 18 mph for tasks farther from home.
- Compatible with larger implements and attachments.
5000 Platform
Compact Tractor
- Greater lift capacity and an ergonomic cab for groundskeeping, livestock and snow removal.
- Electronic hydrostatic transmission for smooth acceleration and easy direction changes.
- PTO cruise and standard cruise control maintain consistent rpm and travel speed.
- Telescopic lower links and up to three pairs of rear remote hydraulics.
6000 Platform
Utility Tractor
- Cab and open-station options designed for larger acreage tasks.
- Up to 73 hp with a Category 2 3-point hitch for bigger implements.
- Self-leveling front-end loader, electronic 4WD and powershuttle with electronic clutch.
- Increased lift capacity for farm chores like lifting and moving hay.
Certain specifications are based on engineering calculations and are not actual measurements. Specifications are provided for comparison purposes only and are subject to change without notice. Specifications for your individual Bobcat® tractor will vary based on normal variations in design, manufacturing, operating conditions and other factors.
Tractor Tires & Applications
Match the tire to your ground and your work. These ratings show how each Bobcat® tractor tire type performs across surfaces and conditions.
← Swipe to see all conditions →
| Dirt | Sand | Concrete | Turf / Grass | Ice | Snow | Mud | On-Road Ride Comfort | Puncture Resistance | Sidewall Strength | |
|---|---|---|---|---|---|---|---|---|---|---|
| MULTI-USE* | ||||||||||
| TURF** | ||||||||||
| INDUSTRIAL | ||||||||||
| AG | ||||||||||
| INDUSTRIAL / AG*** |
*Multi-use radial tires available on utility tractors only.
**Turf tires available on sub-compact and compact tractors only.
***Ind/Ag R1/R4 hybrid tires available on compact tractors only.
Attachments & Implements by Platform
Availability for the most popular Bobcat® tractor attachments and implements, by platform. Contact your Carleton Equipment dealer to confirm fit and sizing for your machine.
← Swipe to see all attachments →
| Model | Mid-Mount Mower | Rotary Cutter | Box Blade | Tiller | Disc Harrow | Brush Grapple | Land Grader | Angle Blade | Tine Rake | Pallet Forks | Front-Mount Snowblower | 3-Point Snowblower | Quick Hitch | Auger / Post Hole Digger | Finish Mower |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT10 | X | X | X | X | – | X | X | X | X | – | X | X | X | X | X |
| CT20 OS | Z | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| CT25 Cab | Y | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| CT4x | – | X | X | X | X | ∗ | X | X | X | X | X | X | X | X | X |
| CT55 | – | X | X | X | X | ∗ | X | X | X | X | X | X | X | X | X |
| UT6x | – | X | X | X | X | X | X | X | X | X | – | Y | X | X | – |
CT10 = 1000 platform · CT20 OS / CT25 Cab = 2000 platform · CT4x = 4000 platform · CT55 = 5000 platform · UT6x = 6000 platform.
Full Specifications
General
| Condition | Showroom |
| Machine Type | Tractor |
Engine
| Horsepower | 128.0 |
Performance
Hydraulics
Dimensions & Weight
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
