M6060 | Kubota

Kubota

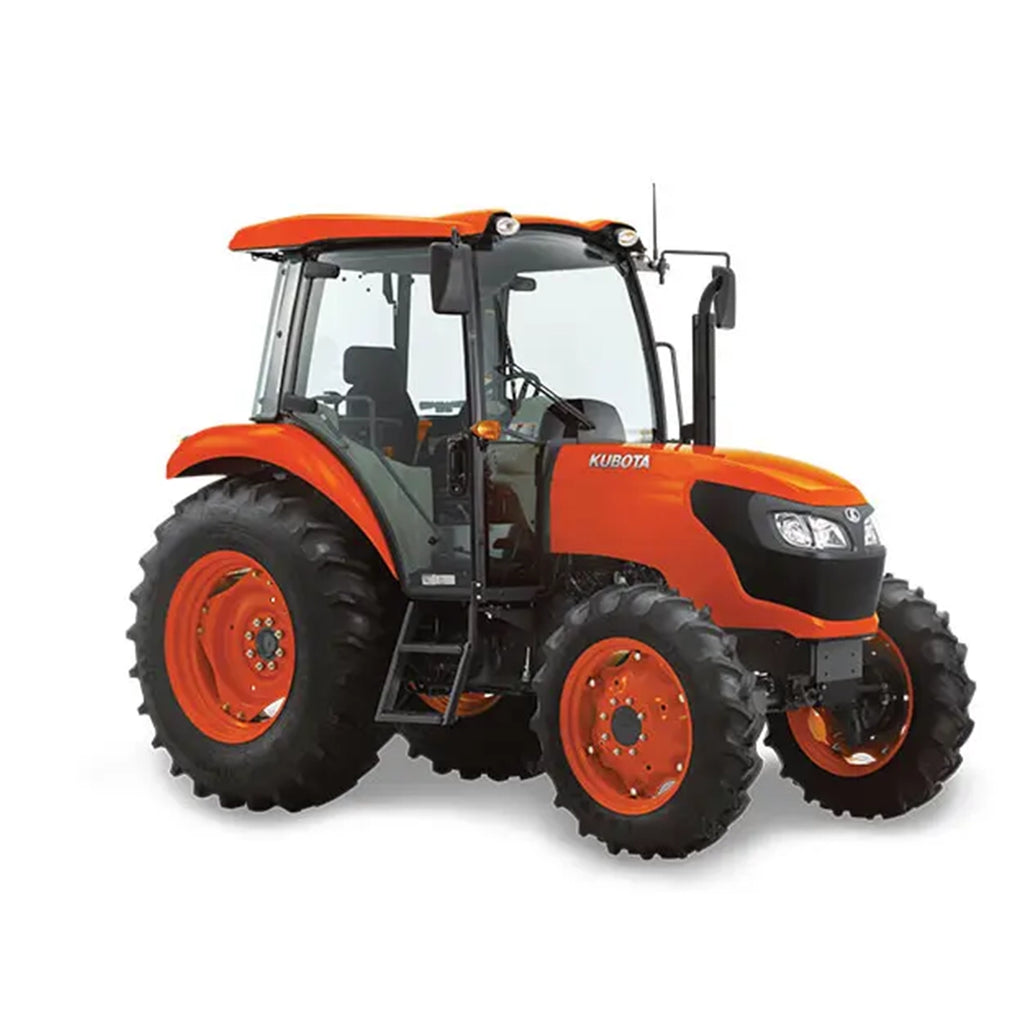

M6060 Utility Tractor By Kubota

The M60 Series tractors are designed for the farmer with 10-75 acres who require more comfort and better features than those found in your typical standard tractor. The M60 Series tractors offer optimal comfort with a deluxe seat, armrests, wide area floor mat and ergonomic controls built into a console for a more refined finish.

PROVEN, POWERFUL, AND RELIABLE KUBOTA DIESEL ENGINE

The M60 Series are powered by the V3307 Series Kubota diesel engine, This 3.3 liter turbocharged 4 cylinder engine has been designed specifically to reduce noise and vibration. The M60 Series engines also feature an electronic governor that gives you electronic control of engine rpm. Activating the system keeps engine revolution constant, preventing drops in PTO speed and enabling stable operation. It makes working with PTO driven implements much more efficient.

Model

M6060 2WD 4WD
ROPS / CAB HFC HD / HDC



Engine

Type (Make: Kubota) 4 Cylinder In-Line, Common Rail System, Direct Injection
PTO Power 56 HP
Engine Net Power 63.5 HP
No. Of Cylinders/Aspiration 4 / Turbocharged
Total Displacement 203 cu. in.
Rated Engine RPM 2400
Fuel tank Capacity ROPS / CAB 18.5 / 23.8 GAL
Alternator ROPS / CAB 45 AMP / 60 AMP (100 Amp: OPT)



Transmission

No. Of Speeds / R F8 / R8 F8 / R8
Main Gear Shift (4 Speeds) Fully Synchronized (4 Speed) Fully Synchronized (4 Speed)
Shuttle Shift Hydraulic Shuttle Hydraulic Shuttle
Main Clutch Multiple Wet Disk Multiple Wet Disk
Brake  Mechanical Wet Disc Mechanical Wet Disc
Differential Lock (Front / Rear) N/A N/A / Mechanical



PTO

PTO Type Live Independent PTO, Electro-Hydraulic Clutch with Brake
Speed 540 ( 540 / 540E:OPT)



Hydraulic

Pump Capacity (3-Point Hitch) ROPS/CAB 11 GPM
3-Point Hitch Telescopic Lower Link Ends, Telescopic Stabilizers
Category I / II
Control System Position, Draft (Top Link Sensing) & Mixed Control
Lift Capacity at 24 in Behind Lift Point 3307 lbs
Cylinder Type Two External Cylinders
No. of Standard Remote Valves 1 (2nd, 3rd & Flow Control Valve Optional)



Other Features

4WD Drive System N/A Bevel Gear Type
Steering Hydrostatic Power Steering Hydrostatic Power Steering
Tilt Steering Standard Standard
Hood Type / Pedal Type Full Open, Slanted, Steel / Hanging Full Open, Slanted, Steel / Hanging
Deck Type (ISO-Mounted W/ Rubber Mat) Semi-Flat on ROPS Models, Full-Flat on CAB Models Semi-Flat on ROPS Models, Full-Flat on CAB Models
Panel Type Electronic Electronic
Fender Shape Wide, Round Wide, Round



Standard Tire Size

Front 7.5-16 9.5-24
Rear 16.9-28 16.9-28

Dimensions

Overall Length (ROPS / CAB) - / 142.7 in 138 / 138 in
Overall Height (Top of ROPS / CAB) 96.9 / 100.6 in 96.9 / 100.6 in
Overall Width (Minimum) 73 in 73 in
Wheelbase (ROPS / CAB) - / 84.4 in 83.1 / 83.1 in
Crop Clearance (Front Axle) 18.1 in 18.1 in
Tread Width

Front

Rear

Inches
55.9-71.7
55.9-67.7
Inches
55.9, 59.8
55.9-67.7
Turning Radius (W/O Brake) 10.81 ft 11.8 ft
Tractor Weight (ROPS/CAB) - / 5226 lbs 5005 / 5358 lbs
