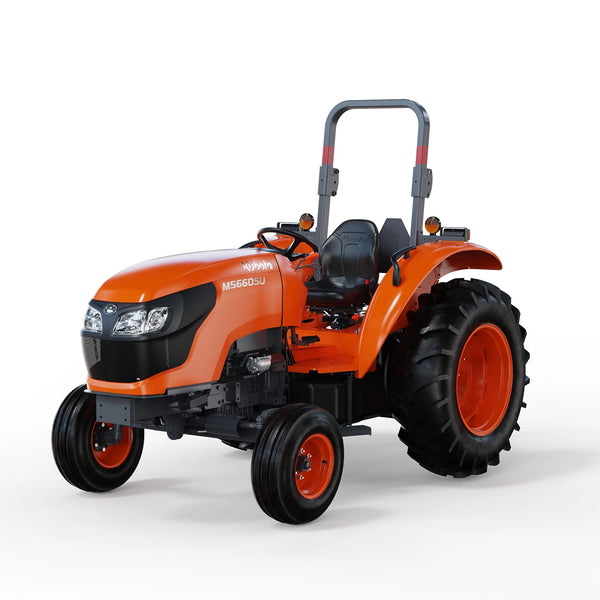

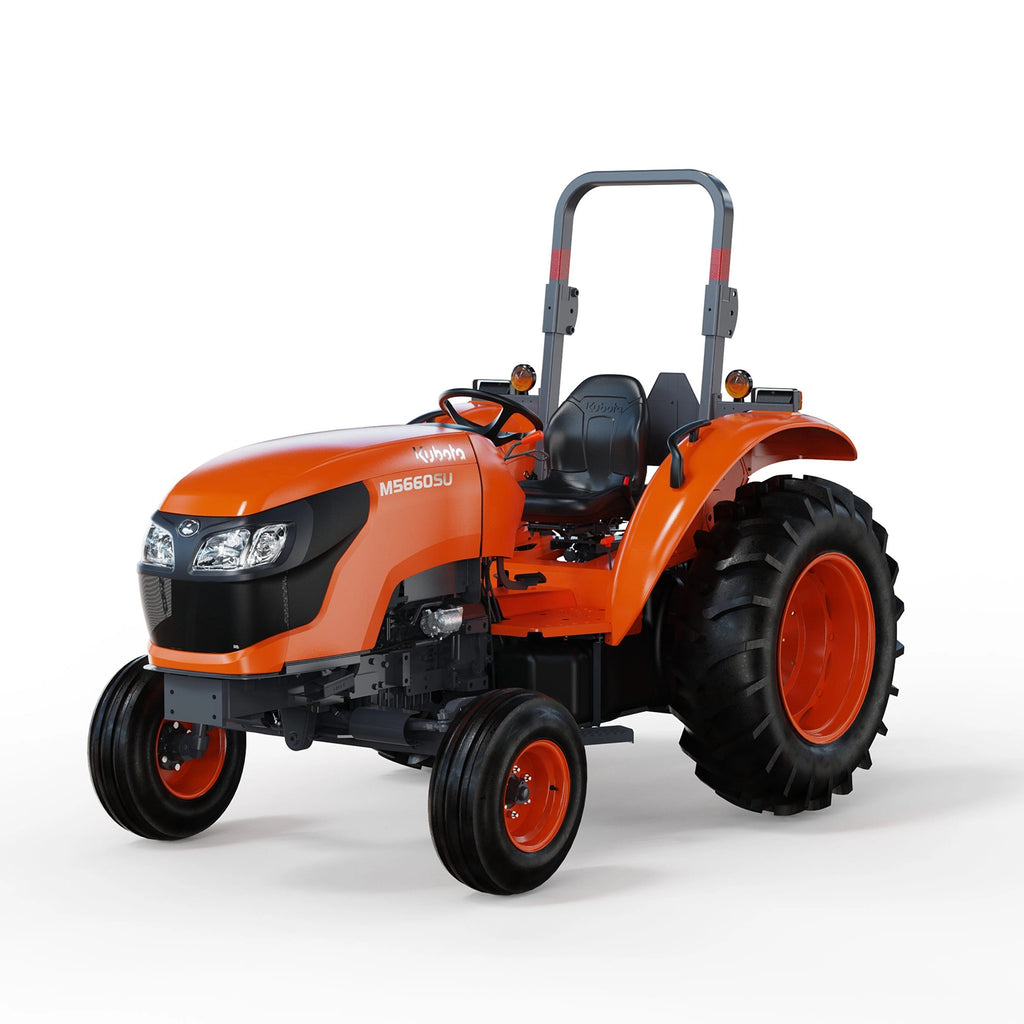

M5660SU Utility Tractor By Kubota

The M5660 Special Utility tractor is specifically designed for the farmer with 10-75 acres that requires a high performing tractor at an excellent value. The M5660SU redefines value by providing deluxe features such as hydraulic shuttle, standard rear remote valve and telescopic 3-point link ends.

HYDRAULIC SHUTTLE TRANSMISSION

The hydraulic shuttle allows for clutchless forward and reverse direction changes. With a fully synchronized main shift transmission, the M5660SU has easy on-the-go shifting to accomplish any task with ease.

Model

M5660SUH 2WD



Engine

Type (Make: Kubota) 4 Cylinder In-Line, Common Rail System, Direct Injection
Rated Engine HP (97/68/EC) 57.9 @ 2600 RPM HP
Engine Net Power 56 @ 2600 RPM HP
PTO Power (at Rated Engine RPM) 50 HP
No. Of Cylinders/Aspiration 4 / Turbocharged
Total Displacement 148.5 cu. in.
Fuel tank Capacity 17.7 US Gal
Air Cleaner Dry-Dual Element
Alternator 45 AMP



Transmission

No. Of Speeds 8F/8R
Main Gear Shift (4 Speeds) Fully Synchronized
Shuttle Hydraulic Shuttle
Main Clutch Multiple Wet Disk
Brake  Mechanical Wet Disc
Differential Lock Rear Standard (Mechanical)



PTO

PTO Type Live Independent, Hydraulic PTO with PTO Brake, Multi-Plate Wet Clutch
Speed @ 540 RPM



Hydraulic

Pump Capacity (Main) 10.6 GPM
3-Point Hitch Category I & II
Control System Position
Lift Capacity at 24 in. Behind Lift Point 3307 lbs
No. of Remote Valves 1 (2nd, 3rd & Flow Control Valve Optional)



Tires

Standard

2WD

4WD

Front / Rear
6.5-16 / 14.9-28
8.3-24 / 14.9-28



Traveling Speeds (W/ STD. Ag. Tires)

No. of Speeds (at Rated Engine Speed)

First

Second

Third

Fourth

Fifth

Sixth

Seventh

Eighth

Forward / Reverse



1.6 / 1.6 mph

2.2 / 2.3 mph

3.1 / 3.2 mph

4.8 / 4.9 mph

6.1 / 6.2 mph

8.5 / 8.7 mph

12 / 12.2 mph

18.2 / 18.6 mph



Other Features

4WD Drive System (4WD Model) Bevel Gear Type with 55 Degree Turning Angle
Steering Hydrostatic Power Steering
Hood Type / Pedal Type Full Open, Slanted, Steel / Hanging
Deck Type Semi-Flat



Dimensions

Overall Lenght 138.7 in
Overall Height (w/ Foldable ROPS) 95.3 in
Overall Width (Minimum) 73.2 in
Wheelbase 82 in
Min. Ground Clearance 16.3 in
Tread Width

Front

Rear

Inches
55.9, 71.7
52, 67.7
Turning Radius (W/ Brake) 10.8 ft
Weight (With ROPS) 4189 lbs
