Log Splitter 2203 | Split-Fire

Log Lifter & Table: Standard Shelves
PTO Kit: Bolt-on PTO kit (540 RPM)
Stock:
In stock
General Info
Condition: Showroom
Manufacturer: Split-Fire
Model: 2203
Engine
Performance
Operating Weight: 240 lb
Hydraulics
Aux. Standard Flow: 8 - 20 GPM
Dimensions

Description

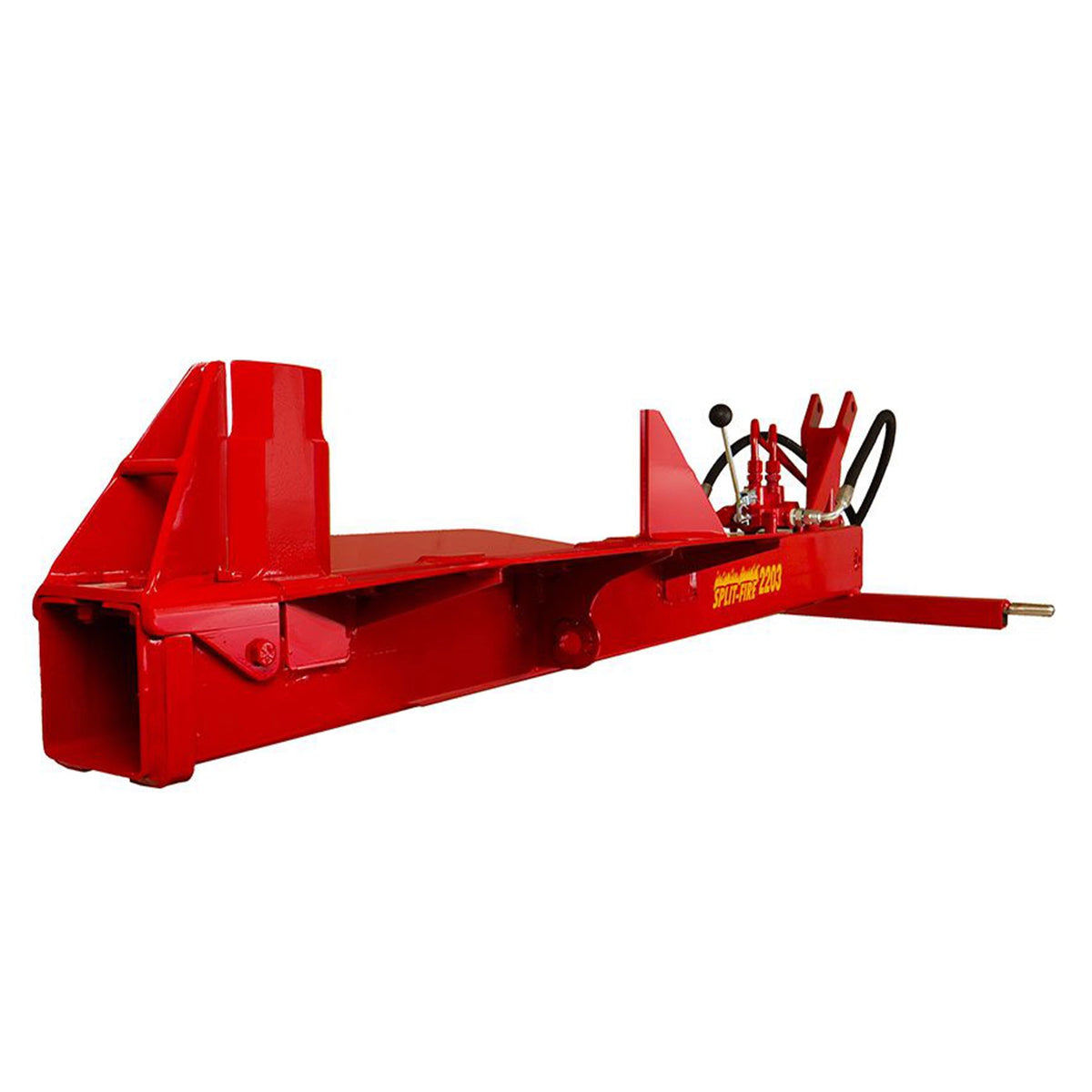

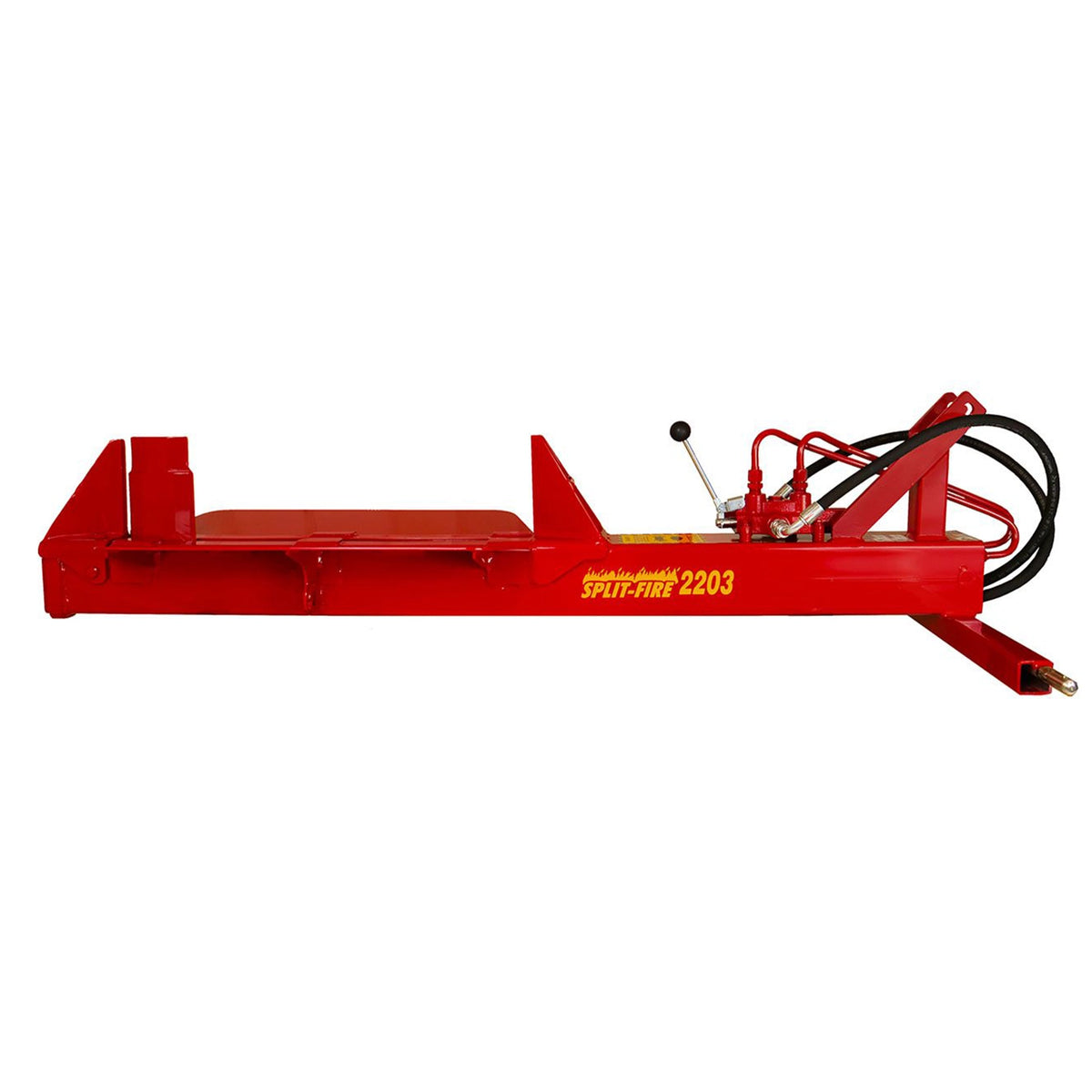

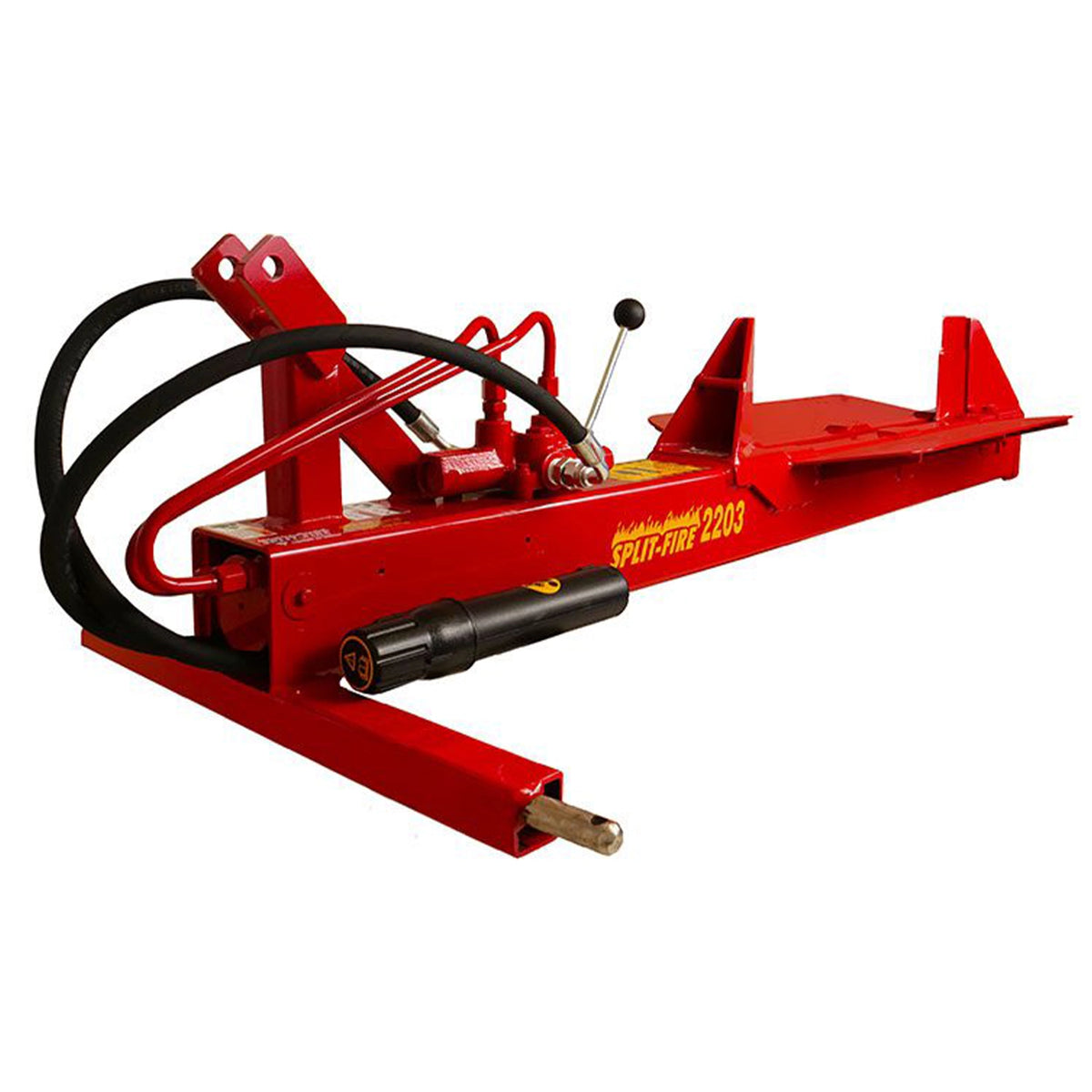

Split-Fire 18 Ton Log Splitter 2203

Model:

Built for compact and medium-frame tractors, the Split-Fire 2203 is the most compact model in the company’s 3-point hitch log splitter lineup. Designed for small to medium-sized rounds, it performs especially well with lower-flow tractor hydraulic systems while maintaining efficient cycle times. With up to 18 tons of splitting force at 3,000 PSI, the 2203 provides homeowners, farmers, and property owners with a dependable combination of productivity, safety, and durability.

Powered directly by the tractor’s hydraulic system, the 2203 eliminates the need for a separate engine and its associated maintenance. Available bolt-on options, including a hydraulic log lifter, make handling larger rounds easier, while an optional PTO kit provides an alternative for tractors that cannot supply the necessary hydraulic flow or pressure. Matching the splitter to your tractor’s hydraulic specifications helps ensure optimal performance and cycle times.

Full Specifications

General
ConditionShowroom
Engine
Performance
Capacities
Hydraulics
Auxiliary Std Flow8 - 20 GPM
Dimensions & Weight
Operating Weight240 lb
Serviceability

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
