CMP Attachments
Model: TRB35 6-10K
General Info
Condition: Showroom
Manufacturer: CMP Attachments
Model: Tilt/Rotate Bucket
Machine Type: Excavator
Engine
Performance
Hydraulics
Dimensions

Description

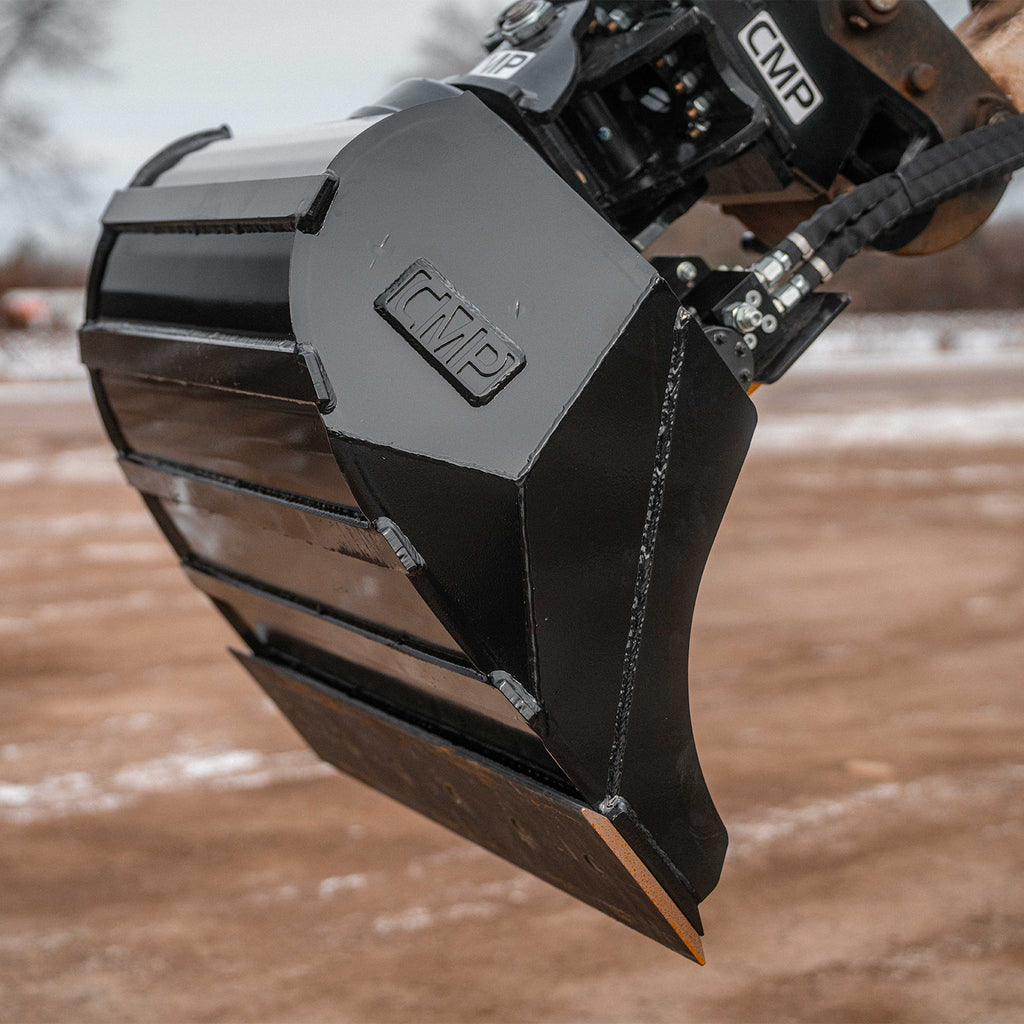

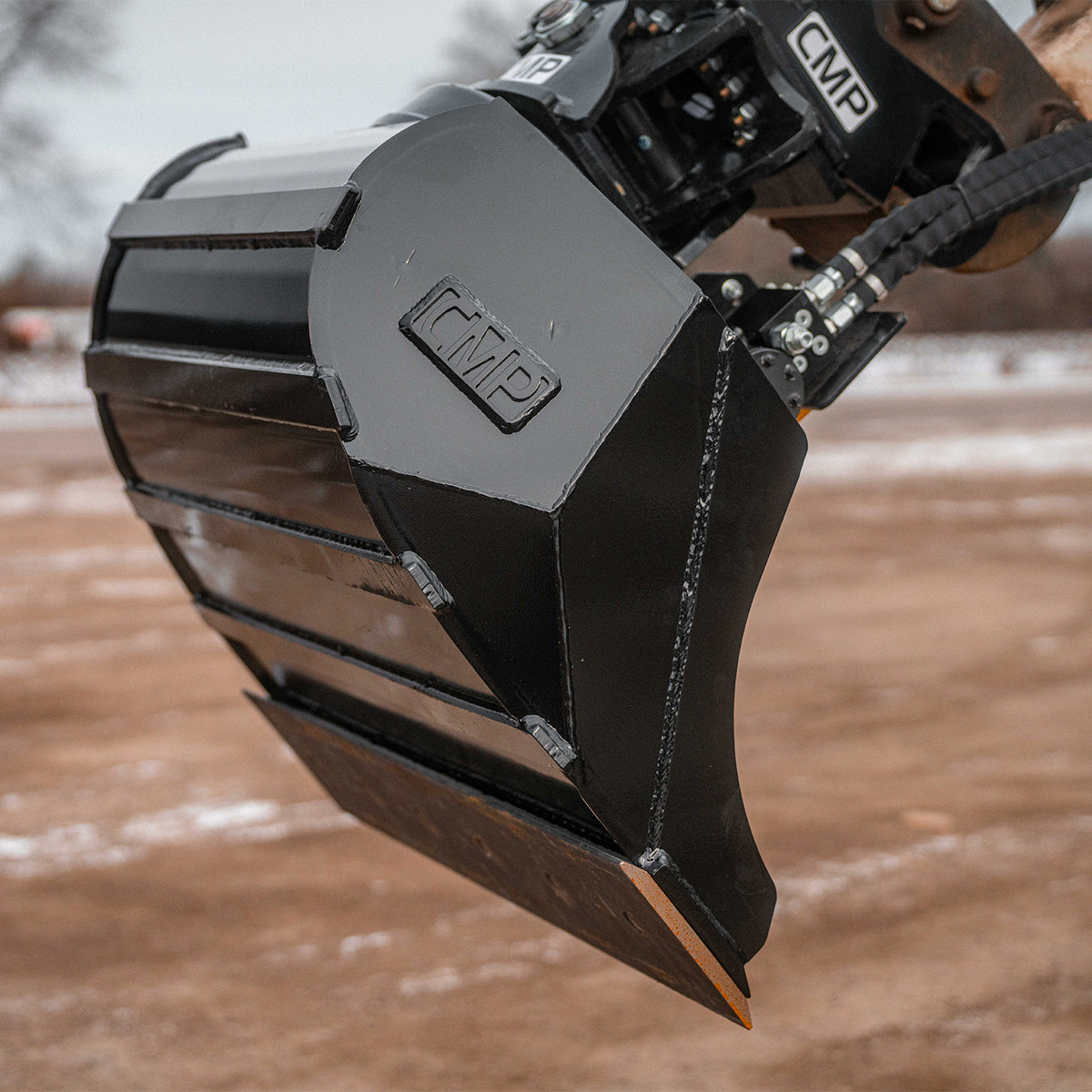

Tilt/Rotate Bucket by CMP Attachments



DESCRIPTION

The CMP Tilt/Rotate Bucket provides excavator operators with versatile tilt-and-rotate capability at a fraction of the investment required for a dedicated tiltrotator system. Designed and manufactured in the USA, its straightforward hydraulic design eliminates the need for custom joysticks, computers, or integrated quick couplers. Simply connect the hoses and couplers to the excavator’s boom hydraulics and operate it like other hydraulic attachments.

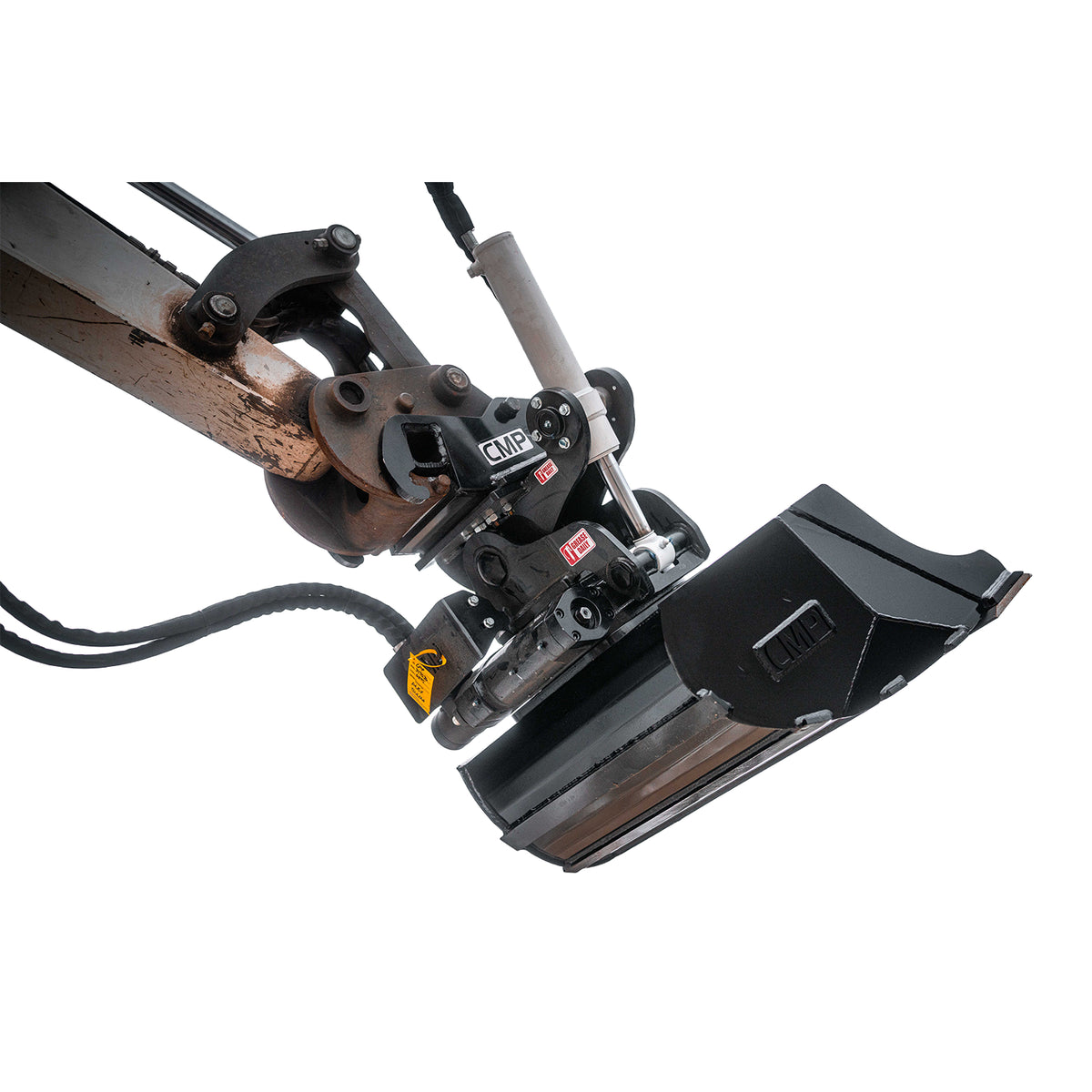

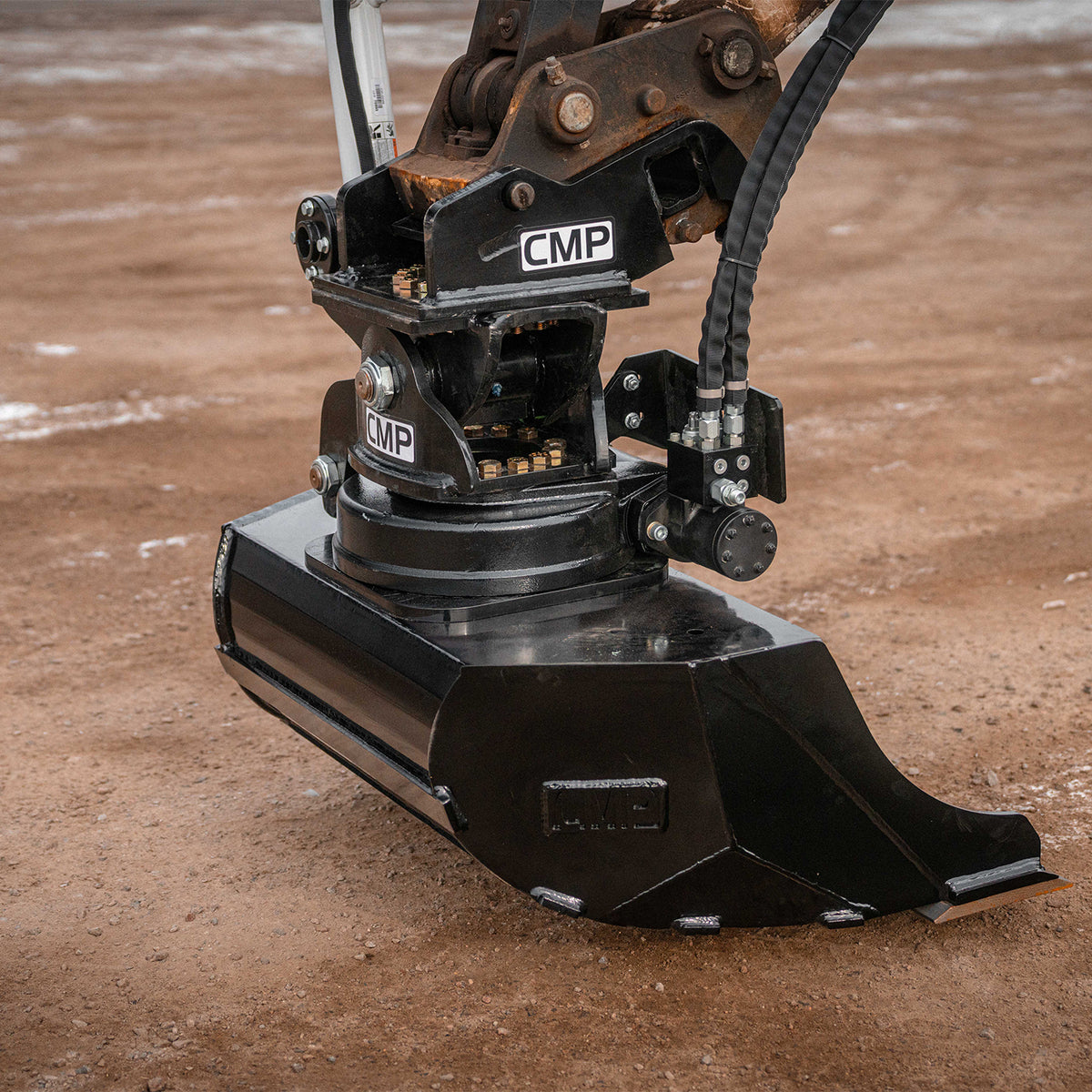

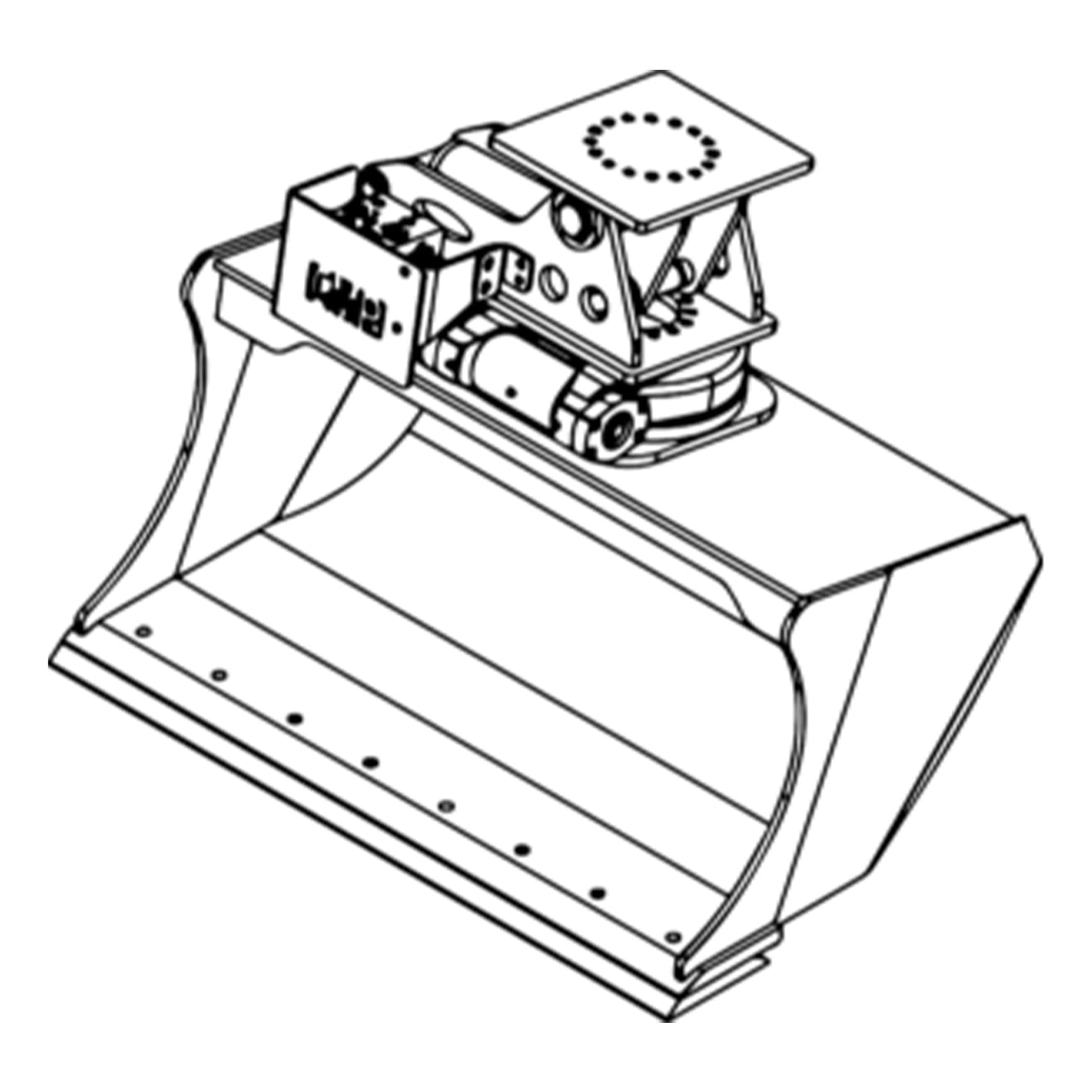

A modular design adds even more versatility. The bucket bolts directly to the rotational drive and trunnion tilt head, allowing operators to substitute other compatible attachments such as different bucket sizes, leveling bars, grading beams, or roller packers. The upper mount is also modular, providing the ability to change mounting configurations when moving the attachment to another compatible machine. The system uses an industry-standard worm gear rotational drive specifically suited for bucket applications.

Engineered with a low stick-pin-to-bucket-top height, the CMP Tilt/Rotate Bucket helps maintain maneuverability and breakout force while providing the flexibility to approach material from multiple angles. From ditching and shaping to finish grading, shoreline work, and trail building, it gives operators a practical, cost-effective way to expand excavator capability without investing in a complete tiltrotator system.

FEATURES

    • Overbuilt heavy duty construction utilizing high tensile material.
    • 360° high torque worm drive rotation.
    • 35° Dual Cylinder tilt each direction. Single cylinder only on smaller 35 Class models.
    • Replaceable AR cutting edge.
    • Tough black powder coat finish ensures long lasting durability and prevents rust.
    • Made Here. Made Better. In Minnesota.
    • Patent Pending.
