Utility Grapple | Bobcat
Sink into hard-to-handle light materials or farm materials with the bite of the utility grapple attachment.
The utility grapple offers the additional holding ability necessary to bite down on even the loosest materials. Designed with efficiency in mind, the compact design of the utility grapple gets the fork or bucket close to fences or the sides of stalls for maximum material moving.
Choose from a fork and grapple, or bucket and grapple to handle a wide variety of farm and ranch jobs. Whether home on the range or down on the farm, the utility grapple sinks in to get the job done.
What Makes the Grapple (Utility) Different
Add secure clamping force for loose farm material, posts, fencing and other awkward loads.
Grip Loose Material

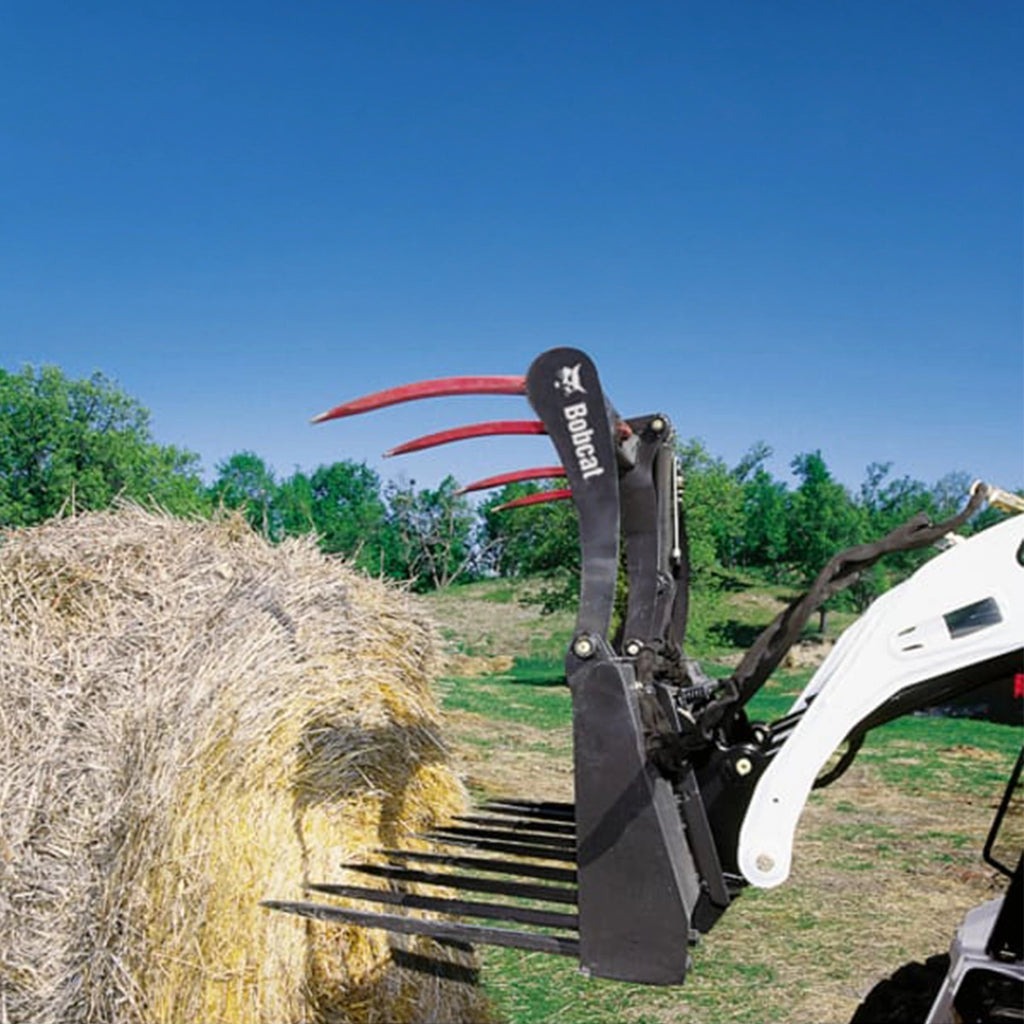

Additional holding ability bites down on manure, bedding, hay and other loose or stringy material.
Compact Working Profile
Get the fork or bucket close to fences, stall walls and other obstacles for efficient material handling.
Fork or Bucket Configurations
Choose a fork-and-grapple or bucket-and-grapple setup to match farm, ranch and property-maintenance tasks.
Strong, Lightweight Teeth
Forged teeth provide exceptional strength at low weight to preserve carrying capacity.

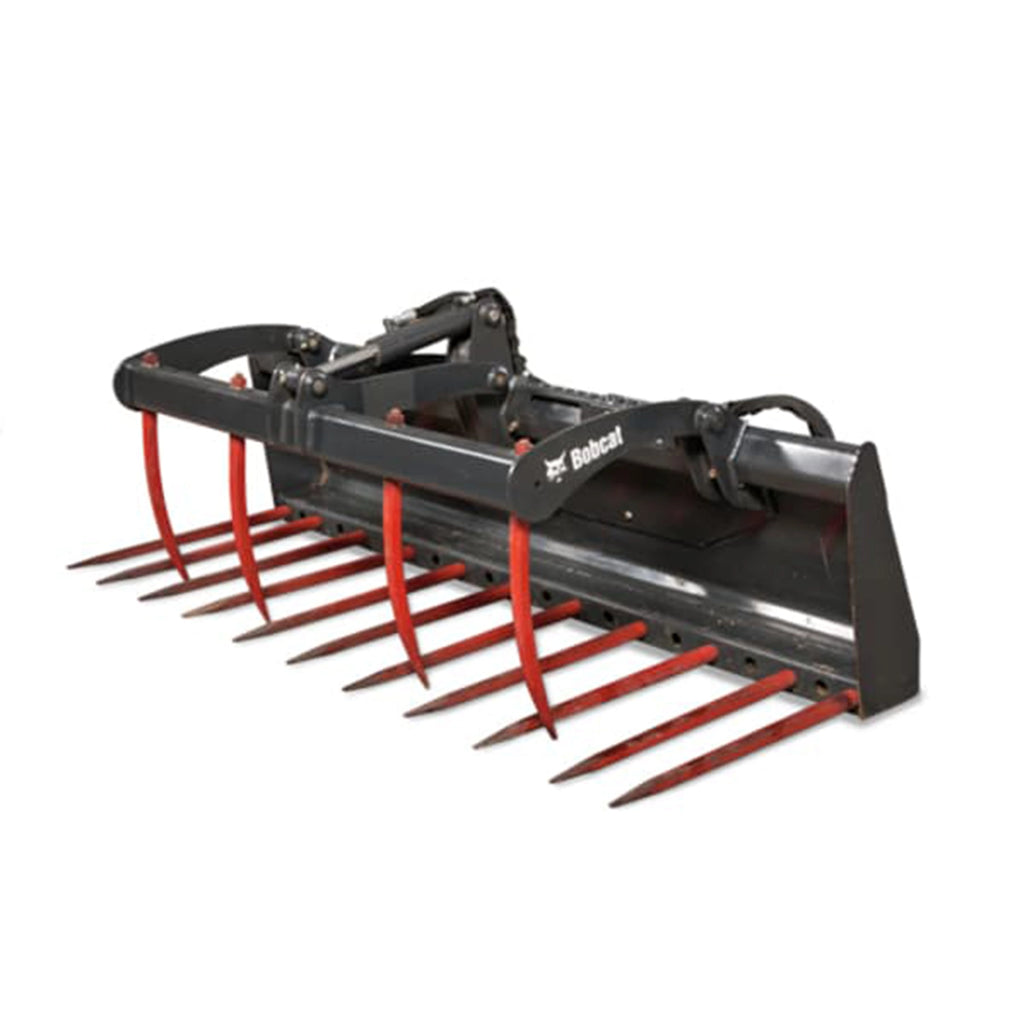

Bobcat Utility Grapple
Utility Grapple Features & Benefits
Material Handling 3
Curved Teeth
Curved teeth pull material into the grapple and scoop loose loads. The teeth are replaceable for added uptime protection.
Forged Teeth
Forged teeth combine exceptional strength with low weight, allowing more carrying capacity.
Provisions for Additional Teeth
Add teeth to narrow the spacing and improve control of smaller materials.
Bite Down on Loose and Awkward Farm Materials
Curved teeth pull loose material into the grapple
Forged teeth balance strength and carrying capacity
Compact design works close to fences and stalls
Fork and bucket options match different chores
Versatile Handling for Farms, Ranches and Properties
The Utility Grapple adds hydraulic clamping force to a compatible fork or bucket. Its compact design helps operators work close to fences and stall walls while securing loose or hard-to-manage loads.
Top Tasks
- Lift and move loose materials such as manure, bedding and hay
- Grip posts, fencing and other hard-to-manage materials
Required Component
- Port relief on loaders
- Required component is purchased separately
- Confirm carrier and hydraulic fit with Carleton Equipment
Compatible Equipment
- 6 compact track loader models
- 13 compact tractor models
- 2 mini track loader models
- 9 skid-steer loader models
- 2 small articulated loader models
- 2 Toolcat utility work machine models
Talk to a person about the Grapple (Utility)
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Utility Grapple Specifications
| Specification | GP 32 in | GP 55 in | Utility 32 in | Utility 55 in |
|---|---|---|---|---|
| Length | 31.6 in | 32.7 in | 31.7 in | 34.8 in |
| Width | 35.1 in | 58 in | 35.1 in | 58 in |
| Height | 28.8 in | 29.4 in | 29.5 in | 29.9 in |
| Operating Weight | 157 lbs | 180 lbs | 157 lbs | 243 lbs |
| Grapple Width | 32 in | 55 in | 32 in | 55 in |
| Grapple Tines | 3 | 4 | 3 | 4 |
| Fork Teeth: Factory / Possible | 3 / 5 | 4 / 8 | 3 / 5 | 4 / 8 |
| Open Height | 41.7 in | 41.9 in | 42.5 in | 42.3 in |
| Open Length | 35.6 in | 38.6 in | 35.7 in | 40.1 in |
| Closed Height | 28.8 in | 29.4 in | 29.5 in | 29.9 in |
| Closed Length | 31.6 in | 32.7 in | 31.7 in | 34.8 in |
The hose-kit listing is not a grapple configuration and is excluded from this comparison. Confirm fork or bucket pairing and carrier compatibility with Carleton Equipment.
