General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Watchdog |
| Model: | GBA Equipment Trailer |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

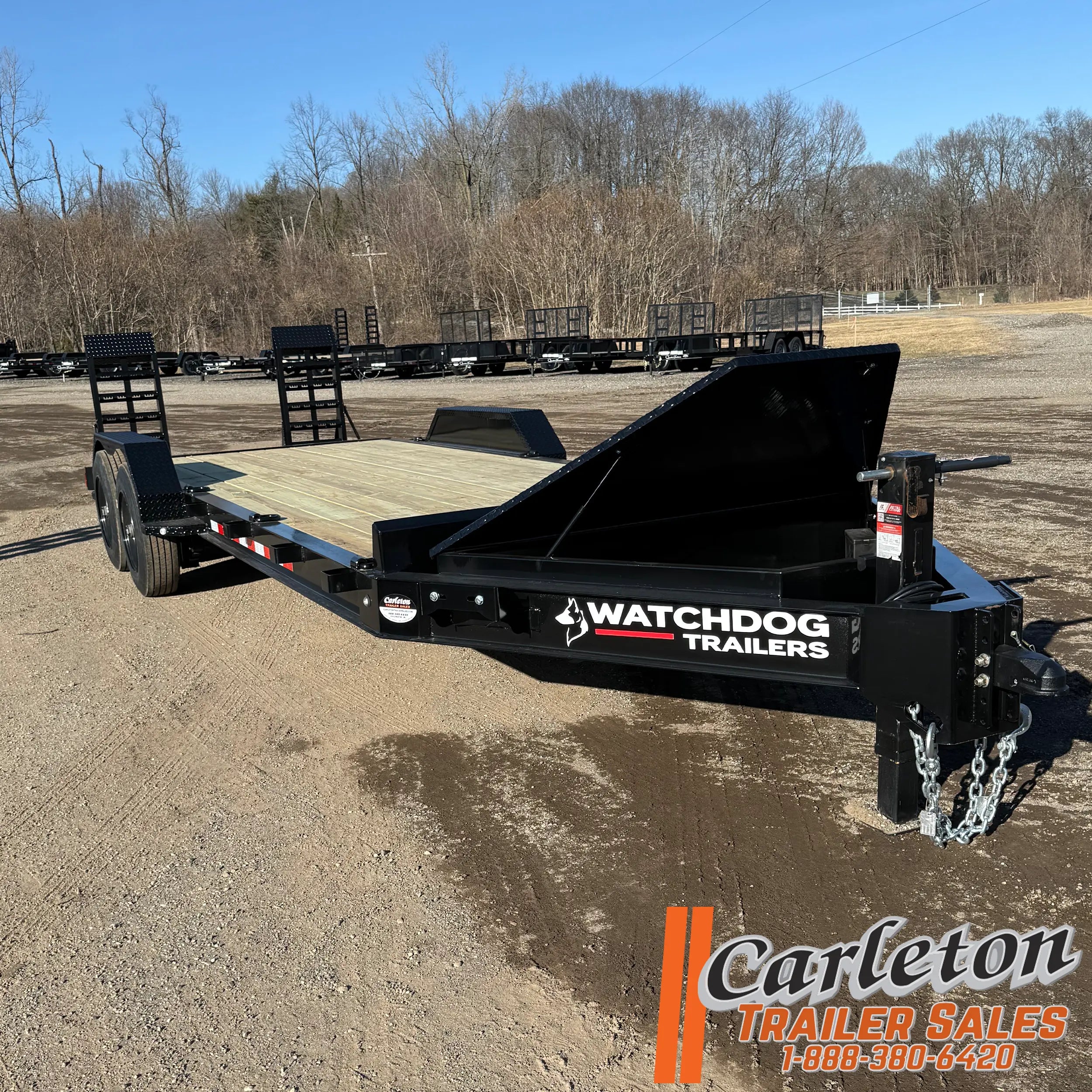

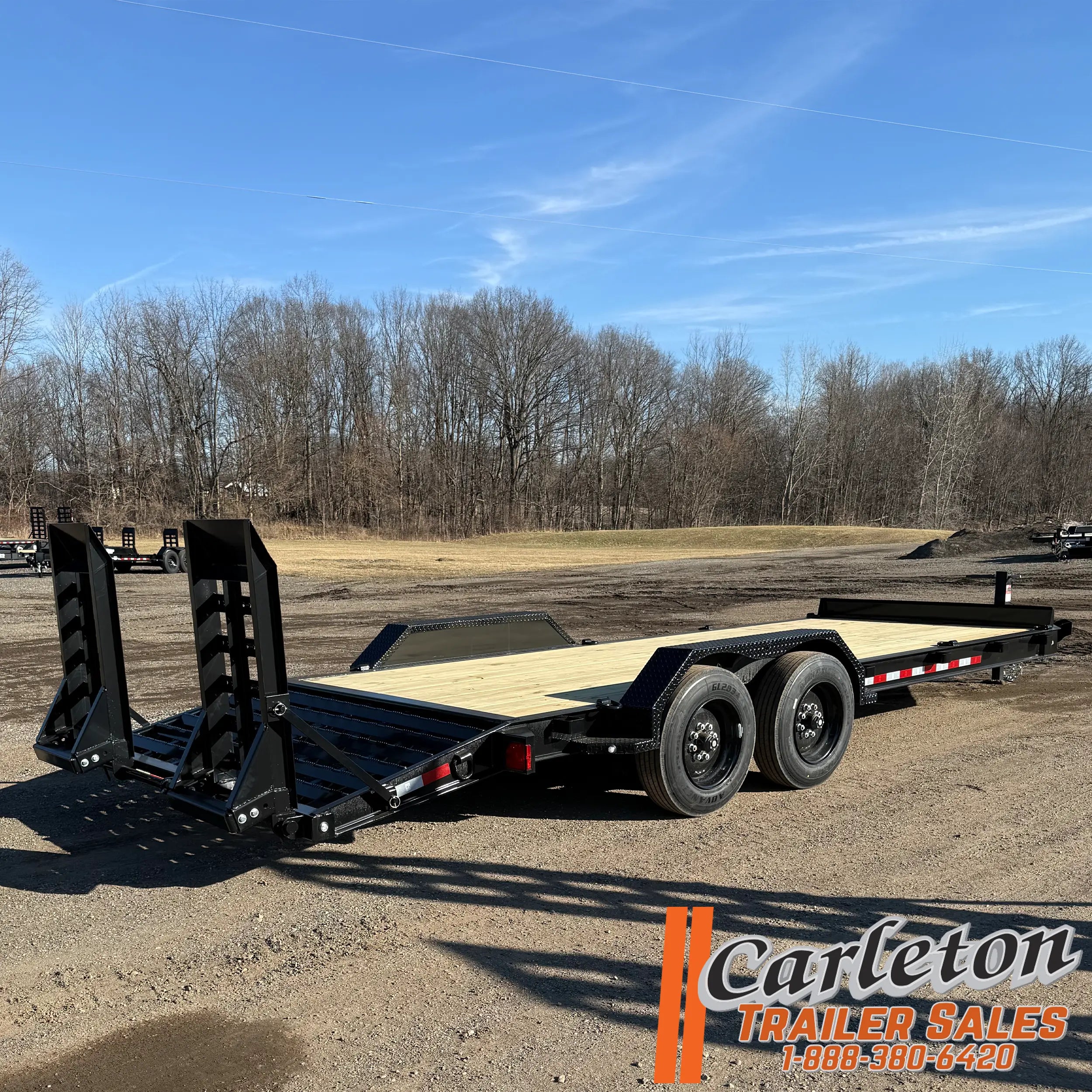

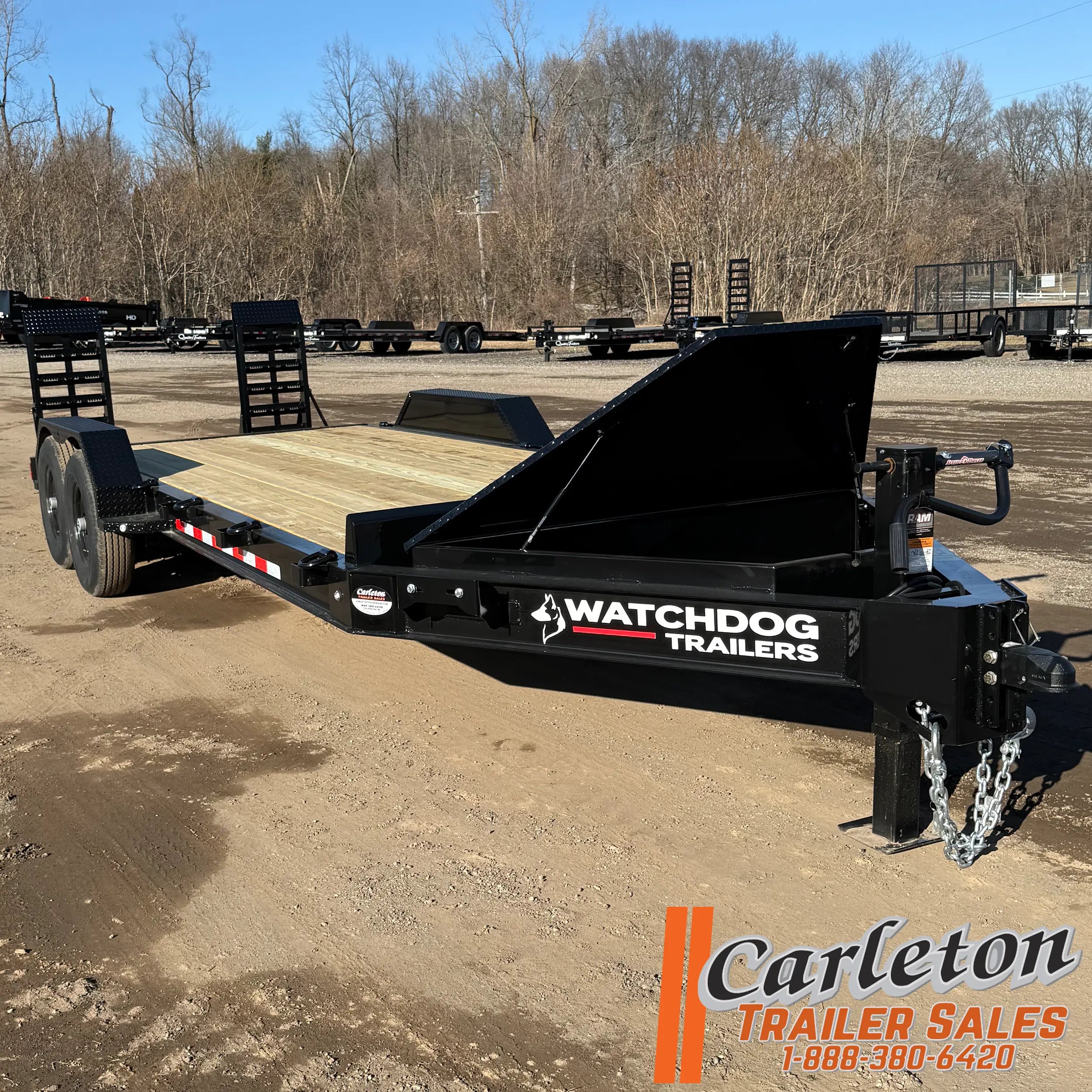

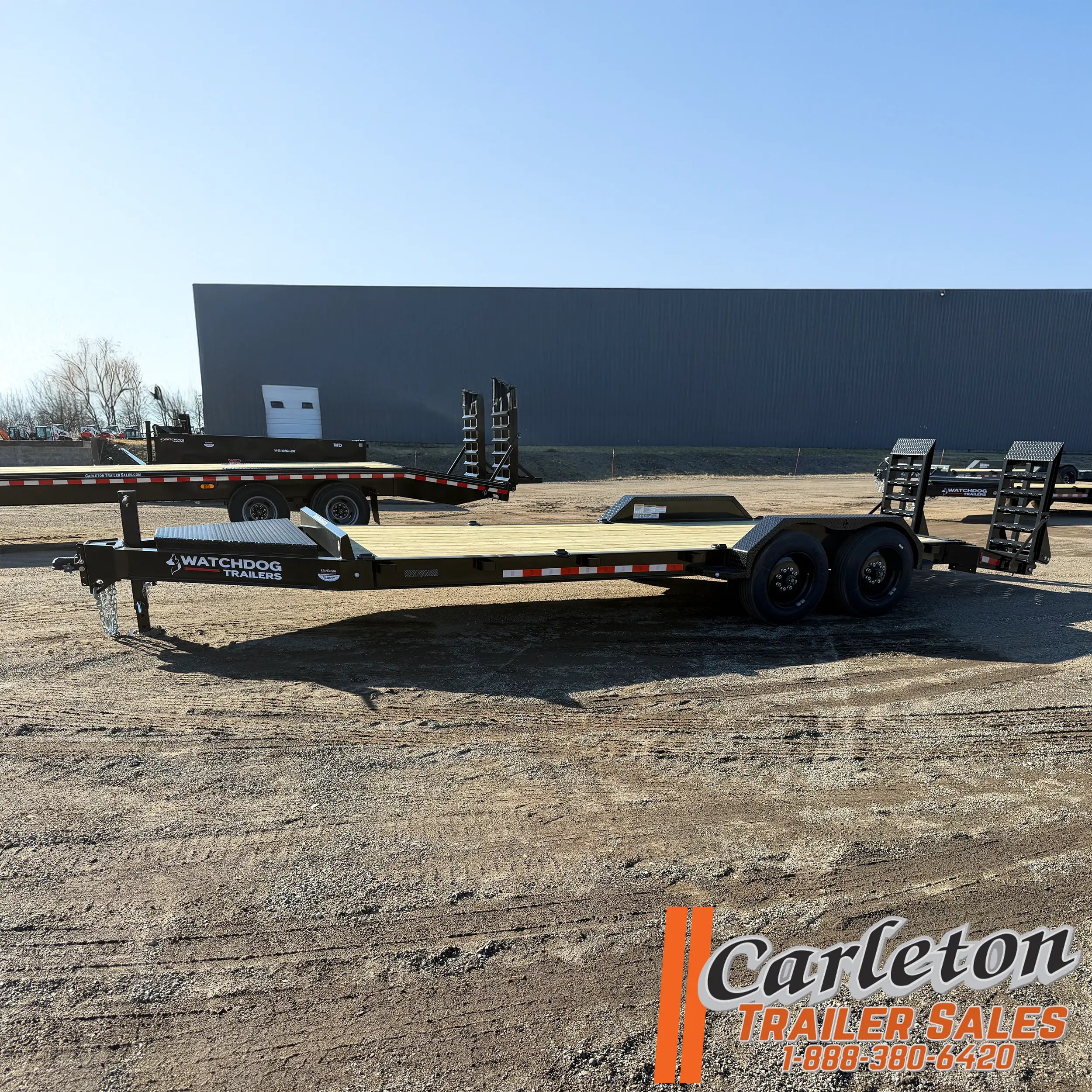

GBA Equipment Trailer
The GPA Equipment Trailer (God Bless America) is Watchdog's standard heavy equipment hauler. Designed to be the most functional equipment trailer on the market. Easy to use Tamps, lots of traction the loading angle, and more placed to tie down. The massive toolbox give plenty of room for storage & the trailer comes with the top of the line features such as gen-y parts & Watchdog's SpeedDriver.
Specs:
-
Bed Length Options:
- 20', 22', 24', or 36'
-
GVWR Options:
- 14,000 lbs or 16,000 lbs
Features:
- Pull Type: Bumper Pull
- Stake Pockets & D-Rings
- 8" I-Beam Frame
- Gen-Y Adjustable Admiral Coupler
- 10K Drop Leg Jack w/ Speed Driver
- Integrated Winch Mount
- Extra Large Toolbox
- Tandem Brake Axles: 7k or 8k
- 9/16" Axle Studs
- 3" Self-Cleaning Dovetail w/Traction Bars
- Standard 44" Spring Assist Ladder Ramps
Optional Upgrades:
- Hydraulic Jack
- 12" On Center Crossmembers
- HOSS Wedge Ramps, Spring Assisted
- 8,000 lb Axles w/ 16ply 17.5 Wheels
- 14ply or 16 ply Tires
| GBA Equipment Trailer | Standard Features | Available Options |
|---|---|---|
| Frame | 8", 13# I-beam Frame and Tongue | |
| Crossmembers | 2"x4"x1/4" C-Channel | 12" On Center |
| Storage | Extra Large Tongue Mounted Toolbox | |
| Tie-downs | Stake Pockets and D-Rings | |
| Coupler | 2-5/16" Gen-Y Admiral Adjustable Coupler | |
| Jack | 12k Support, 10k Lift, w/ Spring Loaded Drop Leg and Watchdog SpeedDriver | Hydraulic Jack |
| Deck | 2"x8" Treated Lumber w/ Winch Plate | |
| Wiring | Molded Wiring Harness | |
| Ramps | Spring Assisted, Adjustable Ladder Ramps | HOSS Wedge Ramps, Spring Assisted |
| Fenders | 11Ga Fenders | |
| Axles | Tandem 7000# Axles w/ Champhered Spindle for Better Tracking Tolerance | 8000# Axles w/ 16ply, 17.5" Wheels |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer and Wet Bolt | |
| Brakes | Self-Adjusting Electric Brakes | |
| Axle Studs | 9/16" Studs | |
| Tires | 235/80/R16 Load Range E, 10ply | 14ply, 235/80/R16 |
| Spare Tire | Optional | 10ply, 14ply, or 16ply |
| Convenience | Optional Gen-Y Step, Standard or 42" | |
| Powdercoat | WD Coatings, Standard Gloss Black, or Battleship Grey | Colors Available |
