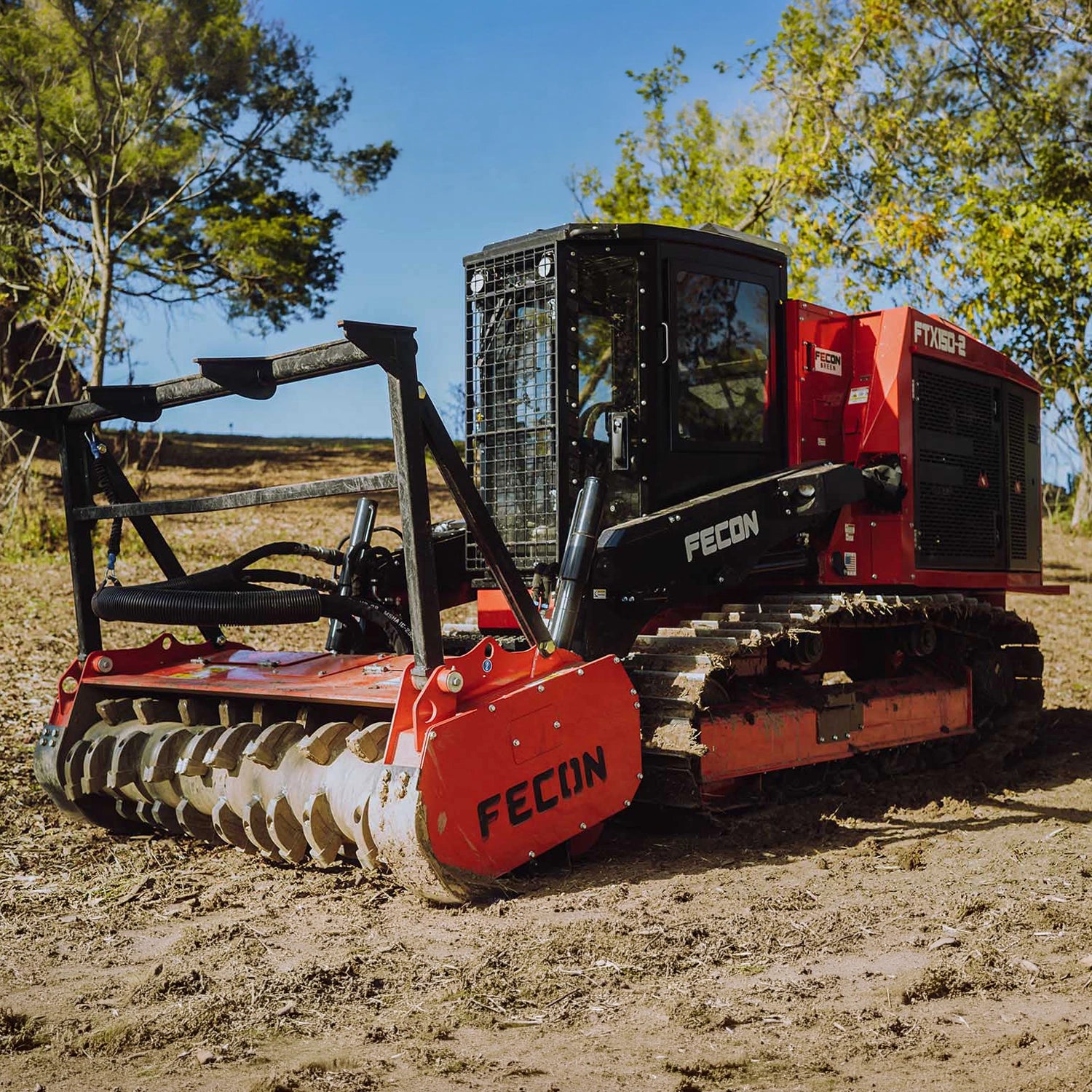

FTX150 Mulching Tractor by Fecon
This low-ground-pressure (3.8 PSI) tractor features a BH85SD Bull Hog Mulcher with either an FGT or a DCR style rotor. An aggressive 60 gpm, 5,000 psi high flow hydraulic system, with in-cab adjustability with presets, powers the mulcher or other optional attachments like a Tree Shear, Stumpex, Grapple Bucket, Root Rake, Rotary Deck Mower, Dirt Bucket, and attachments requiring high flow hydraulics or low flow auxiliary hydraulics. Fecon Power Management® ensures the intelligent distribution of power, yielding up to 20% more productivity in many environments. With 150 net HP the FTX150 is long on power yet is surprisingly stingy on fuel consumption at just 5.5 gallons per hour average fuel consumption. It is ideal for lot clearing, vegetation management, R.O.W. and maintenance of way clearing, landscaping and more.
Features
FTX150 TRACKED CARRIER OVERVIEW
- Cummins 4.5 Tier 4 Final Engine
- In Cab Adjustable Flow for Attachment Versatility with Presets
- Adjustable Hydraulic Pressure Available
- Fecon Power Management® System
- Large Engine Compartment Doors for Ease of Service
- Cab Equipped with New Adjustable Joystick Pods attached to the seat, suspension seat and 4 points of egress
- New Larger Touchscreen IQAN Display
- 20” Track Shoes – Single or Triple Grouser
FTX150 STANDARD FEATURES
The cab is equipped with adjustable joystick pods, a suspension seat and 4 points of egress for operator comfort, convenience and safety. An intuitive touch-screen monitor allows operator to quickly make quick adjusts as needed without leaving the cab.
Specs
FTX150 TRACKED CARRIER PRODUCT SPECIFICATIONS
FTX150
| Standard Bull Hog® | BH85SD |
| Overall Height | 96” | 2439mm |
| Length – Tractor w/ Bull Hog® | 206” | 5232mm |
| Weight – Tractor w/ Standard Bull Hog® | 17897 lb | 8118 kg |
| Width – Tractor w/ Standard Bull Hog® | 87” | 2210 mm |
| Air Cleaner | Dual with Pre-Cleaner |
| Cooling | Water Cooled |
| Fuel Consumption | 5.0- 6.0 gph | 18-22 lph |
| Fuel Tank | 45 gal. | 170 ltr |
| Horsepower | 140hp | 104 kw |
| Engine Make / Model | Cummins QSB4.5 |
| Maximum Rated Torque @ RPM | 453 Lbs-ft @ 1400 rpm |
| Maximum RPM | 2000 |
| Number of Cylinders | 4 |
| Hi-Flow Circuit PSI / GPM | 5000 psi / 60 gpm | 345 bar / 227lpm |
| Low Flow Circuit PSI / GPM | 3000 psi / 26 gpm | 207 bar / 98 lpm |
| Hydraulic Cooling Fan | Reversing Std |
| Hydraulic Reservoir | 55 US GAL | 208 ltr |
| Ground Pressure (per SAE J1309) | 3.7 psi | 26 kpa |
| Rollers Top / Bottom | 1 top / 8 bottom |
| Track Width | 20” | 500mm |
| Travel Speed | 4 MPH | 6.4 km/h |
| Ground Clearance | 16” | 410mm |
| Cab Pressurized | Yes |
| ROPS, FOPS & OPS | Yes |
| Heater / Defroster | Yes |
| Air Conditioning | Yes |
