Get detailed specifications, dimensions, and performance data for this SH-360 Excavator Stumper | Fecon.

General Info
Condition:	Showroom
Manufacturer:	Fecon
Model:	SCH-360
Machine Type:	Excavator

Engine

Performance
Operating Weight:	2600 lb

Hydraulics
Aux. Standard Flow:	30-45 GPM

Dimensions

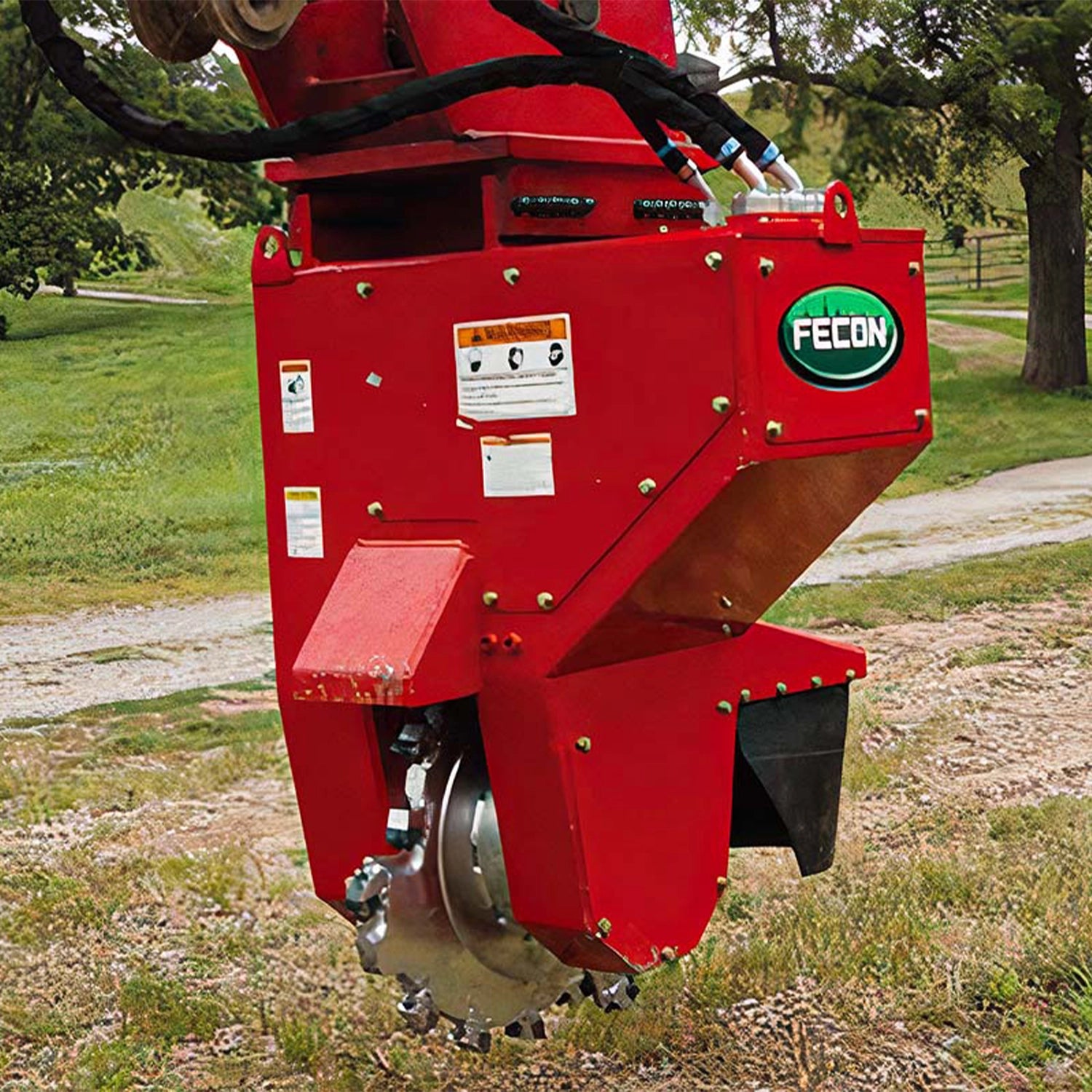

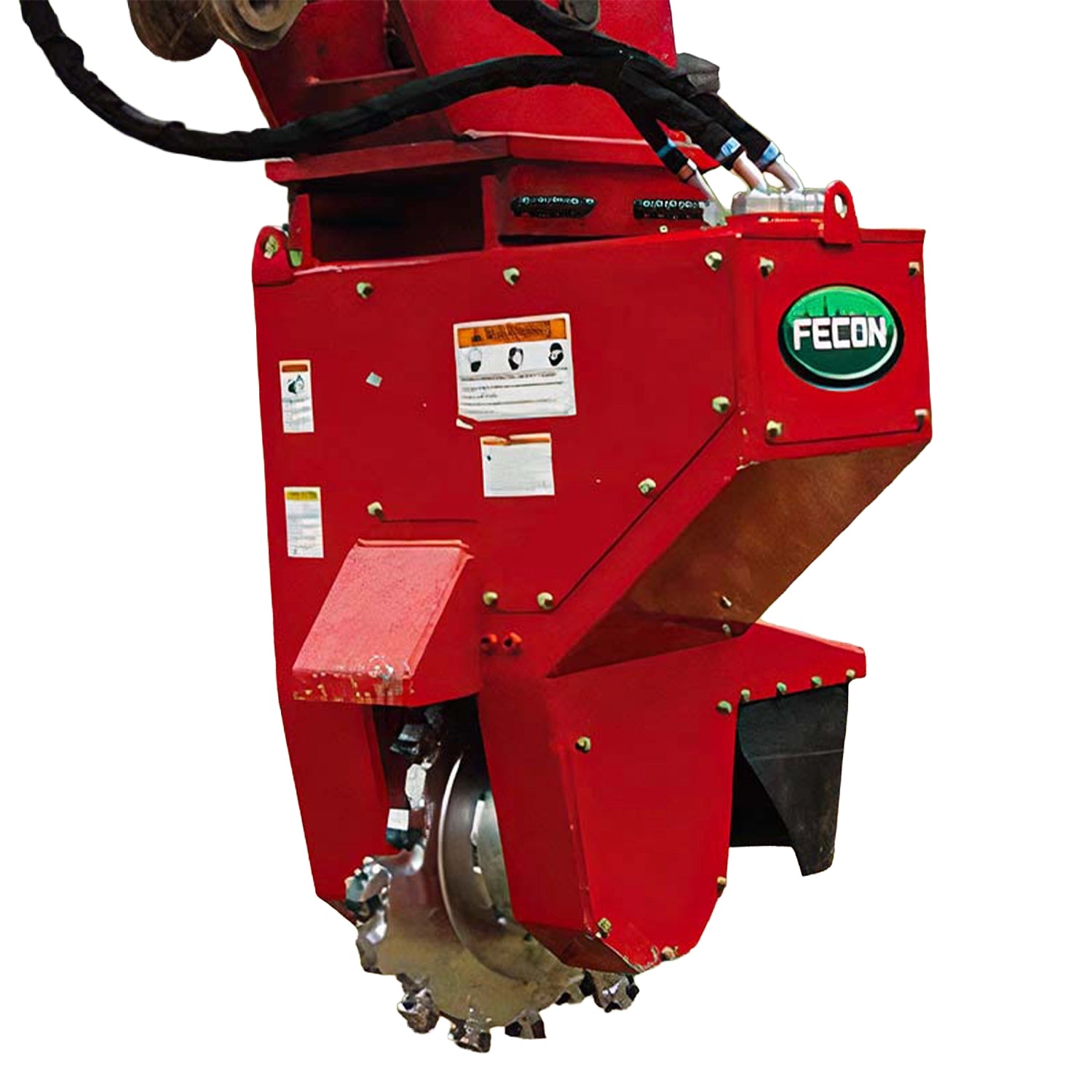

SH-360 Excavator Stumper | Stump Grinder by Fecon

Name: SH-360 Excavator Stumper | Fecon
Brand: Fecon
Availability: InStock

Description

Fecon offers four excavator-mounted stump grinder models—SH360-45, SH360-61, SH360-80, and SH360-100—designed to deliver powerful, precise stump removal across a wide range of excavator sizes and applications.

Using the excavator's natural curling motion, these stump grinders provide exceptional reach, mobility, and precise control, allowing operators to efficiently grind stumps in challenging or hard-to-access locations. The excavator-mounted design also gives operators a clear, unobstructed view of both the grinding wheel and the stump, improving accuracy, productivity, and overall jobsite safety.

SH360 Key Features

15 Replaceable Cutting Tools – Equipped with a single-bolt fastening system for quick tool changes, with three tool options available to match standard through severe-duty applications.
Heavy-Duty Bearing System – The cutting wheel is supported on both sides for exceptional strength, stability, and long service life.
Unlimited Swing, Reach & Depth – Excavator-mounted design provides unmatched access to hard-to-reach stumps that are difficult or unsafe to tackle with traditional stump grinders.
Custom Bolt-On Mount – Available with either pin-on or quick-attach mounting configurations to match your excavator.
Interchangeable with Fecon Excavator Mulchers – Compatible mounting system allows quick changeover between Fecon excavator mulcher and stump grinder attachments.
Removable Protective Guard – Helps contain debris while allowing operation in sensitive or confined work areas.
Synchronous Belt Drive – Delivers smooth, efficient power transfer with dependable performance and reduced maintenance requirements.

Specification	SH360-45	SH360-61	SH360-100
Carrier Type	Excavator	Excavator	Excavator
Weight	2,500 lbs	2,500 lbs	2,500 lbs
Wheel Diameter	36 in	36 in	36 in
Hydraulic Flow Required	40–55 GPM	60–80 GPM	100–120 GPM
Number of Cutting Tools	15	15	15
Drive System	Hydraulic	Hydraulic	Hydraulic
Mount Type	Bolt-On Excavator Mount	Bolt-On Excavator Mount	Bolt-On Excavator Mount
Compatible Carrier	Excavator	Excavator	Excavator
