DX340LL-7 | Develon
Roll over image to zoom in Click on image to zoom
DX340LL-7 | Develon
Call 1-888-380-6420

DX340LL-7 | Develon

Develon

Rebates & Special Offers

View Full Offer

Get as low as 0% for 36 months* or Up to $16,500 cash back* in lieu of financing.

Download Spec Sheet

Get detailed specifications, dimensions, and performance data for this DX340LL-7 | Develon.

Download Spec Sheet →
Horsepower
284.3 hp
Operating weight
95,548 lb
Ground reach
40 ft 5 in
Loading height
33 ft 0 in
See full specifications
More specifications
General Info
Condition: Showroom
Manufacturer: Develon
Model: DX340LL-7
Machine Type: Other
Engine
Horsepower: 284.3
Performance
Operating Weight: 95548 lb
Hydraulics
Dimensions

Description

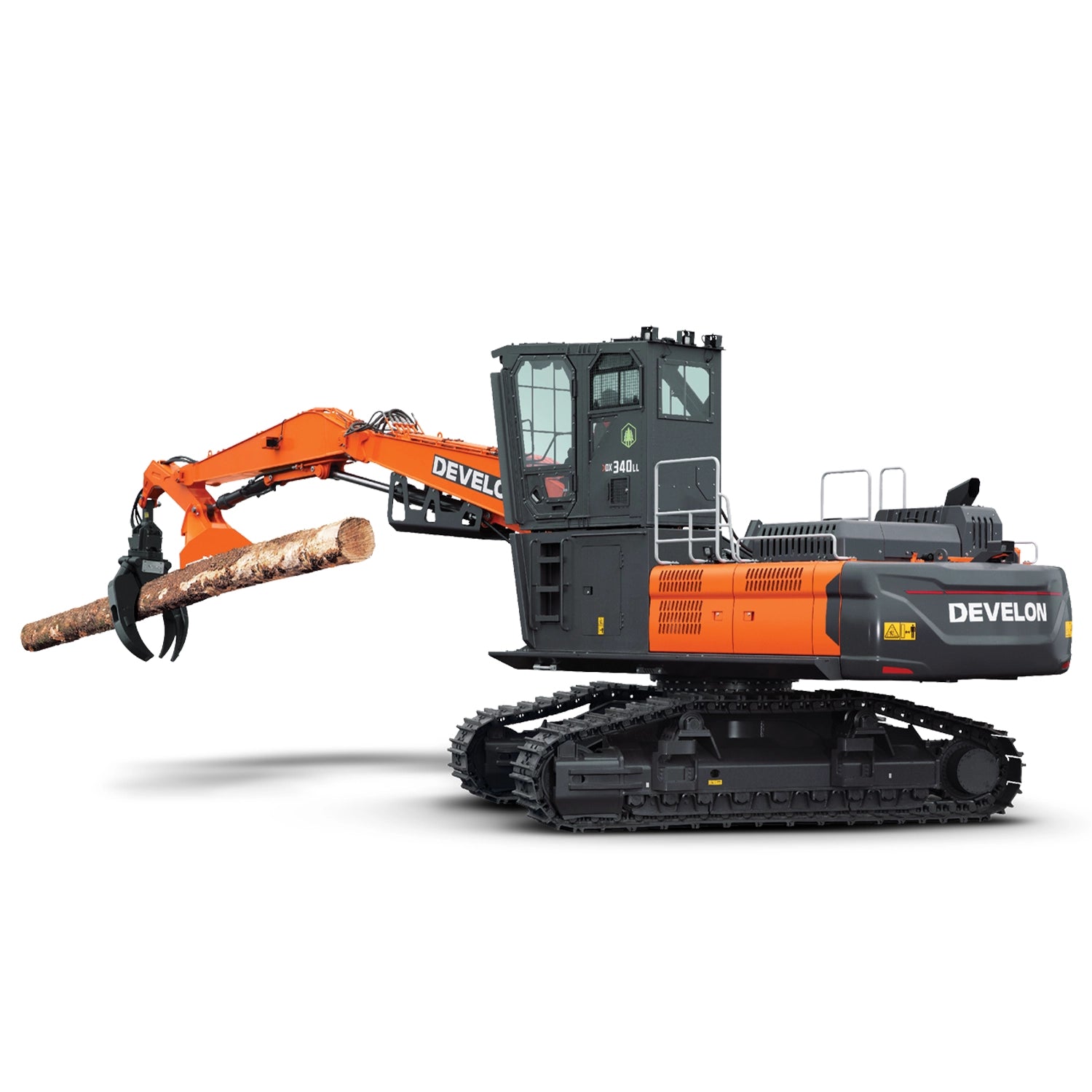

Develon DX340LL-7 Log Loader

Built for High-Performance Log Handling

The Develon DX340LL-7 log loader is purpose-built for demanding timber harvesting, log loading, and forestry operations. Its fuel-efficient Tier 4 diesel engine delivers dependable performance without requiring a diesel particulate filter (DPF), helping reduce maintenance requirements while maximizing uptime. Increased swing torque and tractive force provide the power needed to move heavy loads and navigate steep or uneven terrain with confidence. For added lifting performance when handling large logs, a one-touch power boost conveniently located on the right-hand joystick delivers an instant increase in hydraulic power.

Enhanced Visibility and Operator Safety

The DX340LL-7 is engineered to provide outstanding visibility and operator protection in challenging forestry environments. A standard 4-foot cab riser and narrow cab pillars create an elevated vantage point for improved awareness around the work area. Operators can choose from available side-entry or rear-entry forestry cabs that meet Oregon OSHA and British Columbia WCB certification standards, providing additional protection for demanding applications. Standard side- and rearview cameras, LED work lights, a travel alarm, and a straight travel pedal on side-entry cab models further improve visibility, maneuverability, and overall jobsite safety.

Premium Comfort for Long Workdays

Long hours in the woods are made more comfortable with a thoughtfully designed operator station. The DX340LL-7 features a premium heated and cooled air-suspension seat with multiple adjustments to help reduce fatigue throughout the day. An intuitive 8-inch multifunction LCD display provides quick access to machine information, diagnostics, and live camera views simultaneously, allowing operators to monitor machine performance while maintaining awareness of their surroundings.

Easy Maintenance and Maximum Uptime

Designed to keep forestry operations running efficiently, the DX340LL-7 features extended service intervals, centralized grease points, and convenient access to routine maintenance locations for faster daily servicing. Standard MY DEVELON fleet management enables owners and dealers to remotely monitor machine health, location, maintenance schedules, and productivity through a mobile device or web portal. Backed by a comprehensive 36-month/3,000-hour standard warranty, the DX340LL-7 delivers the reliability, support, and durability needed to maximize uptime in demanding logging applications.

Loan

0%
for up to 36 months*
Financing Available

Lease

Flexible
Aggressive lease payments available. Custom or seasonal payment structures also available.
Lease Options

Cash in Lieu

Up to $16,500
cash back in lieu of financing
Customer Rebate

Warranty

3 Year / 3,000-Hour Full Coverage
Full machine coverage
Standard Included

See participating dealers for details.

Claim This Offer

*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $16,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.

DX340LL-7 Key Features

What Makes the DX340LL-7 Different

40–45 Metric-Ton Forestry Solution

The DX340LL-7 delivers heavy-lift reach and stability without the transport demands of the largest log loaders.

284.3 hp Net Power

The Tier 4, DPF-free DEVELON engine delivers efficient power at 1,800 rpm.

95,548 lb Operating Weight

A high-wide forestry platform provides stability for demanding timber handling.

40 ft 5 in Ground Reach

Long reach combines with a published 33 ft loading height.

109,012 lbf-ft Swing Torque

High torque and 95,638 lbf tractive force support uphill logging and heavy-load maneuvering.

4-Foot Cab Riser

The raised forestry cab and narrow pillars provide exceptional worksite visibility.

Standard Camera Coverage

Side and rear cameras, LED work lights and a travel alarm improve awareness.

36-Month / 3,000-Hour Warranty

Leading standard coverage and MY DEVELON support long-term uptime.

DEVELON Log Loaders

Compare the Log Loader Family

DX225LL-7DX300LL-7DX340LL-7DX380LL-5
DX225LL-7DX300LL-7DX340LL-7 ViewingDX380LL-5
Rated Power (net)162.8 hp266.6 hp284.3 hp312.5 hp
Ground Reach35 ft 5 in37 ft 2 in40 ft 5 in43 ft 4 in
Loading Height29 ft 3 in30 ft 7 in33 ft 0 in38 ft 5 in
DX340LL-7

DX340LL-7 Features & Benefits

Performance & Efficiency 5
284.3 hp DL08 Engine

Net power at 1,800 rpm supports demanding timber work.

109,012 lbf-ft Swing Torque

High swing torque moves heavy loads efficiently uphill.

95,638 lbf Tractive Force

Strong drawbar pull improves mobility on difficult ground.

One-Touch Power Boost

Joystick activation provides an instant hydraulic surge for maximum loads.

DPF-Free Tier 4 Engine

The emissions system reduces maintenance requirements and supports uptime.

Visibility, Safety & Comfort 6
4-Foot Cab Riser

The elevated cab and narrow pillars improve direct sightlines.

Certified Forestry Cabs

Side- and rear-entry options meet Oregon OSHA and British Columbia WCB standards.

Side & Rear Cameras

Standard camera feeds display alongside machine diagnostics.

LED Work Lights & Travel Alarm

Standard visibility and warning equipment supports safer operation.

Heated & Cooled Seat

A premium adjustable air-suspension seat reduces fatigue.

8-Inch LCD Monitor

View diagnostics and camera feeds simultaneously.

Uptime & Support 4
Centralized Grease Points

Grouped lubrication points simplify routine maintenance.

Extended Service Intervals

Longer intervals reduce planned downtime.

MY DEVELON

Standard telematics remotely monitors health, location and productivity.

Leading Standard Warranty

Full coverage for 36 months or 3,000 hours.

Develon DX340LL-7 Log Loader

Why Buyers Choose the DX340LL-7

284.3 net hp and 95,548 lb operating weight

40 ft 5 in reach and 33 ft loading height

109,012 lbf-ft swing torque

95,638 lbf maximum tractive force

DPF-free Tier 4 engine

Raised certified forestry-cab options

Standard side and rear cameras

MY DEVELON and leading warranty

Customers & Applications

Who Uses the DX340LL-7 and What For

The DX340LL-7 gives forestry professionals the reach and stability of a larger loader in a transport-conscious size class.

Timber Harvesting

  • Shovel logging
  • Landing work
  • Log sorting
  • Deck management

Loading

  • Truck loading
  • High stacking
  • Mill yards
  • Heavy-load handling

Terrain

  • Uphill logging
  • Remote sites
  • Uneven ground
  • Soft terrain

Attachments

  • Log grapples
  • Live heels
  • Grapple saws
  • Processing heads
Develon DX340LL-7 Log Loader

By the Numbers

284.3 hpNet Power
95,548 lbsOperating Weight
40 ft 5 inGround Reach
33 ftLoading Height
76.1 gpmFlow Per Pump
109,012lbf-ft Swing Torque

Talk to a person about the DX340LL-7

Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.

  • Chesterfield
  • Coldwater
  • Grand Rapids
  • Howell
  • Kalamazoo
  • Livonia
  • Saginaw
Call any location, toll-free 1-888-380-6420
Request a Quote Find your nearest location

Full Specifications

Engine
EngineDEVELON DL08
Cylinders6
Net Power284.3 hp @ 1,800 rpm
Gross Power285.6 hp @ 1,800 rpm
Maximum Torque940.4 lbf-ft @ 1,300 rpm
Displacement466.2 in³ / 7.6 L
EmissionsTier 4, DPF-free
Hydraulics
Main Pumps2 × 76.1 gpm
Pilot Pump7.1 gpm
Normal Work Pressure4,978.2 psi
Power Boost Pressure5,262.6 psi
Travel Pressure5,262.6 psi
Swing Pressure4,267 psi
Performance
Operating Weight95,548 lb
Swing Speed0–9.1 rpm
Swing Torque109,012 lbf-ft
Travel Speed1.7–3.1 mph
Tractive Force95,638 lbf
Maximum Grade96% / 44°
Cab Sound Level68 dB(A)
Working Range
Ground Reach40 ft 5 in
Loading Height33 ft 0 in
Boom Length22 ft 3.7 in
Arm Length14 ft 3.3 in
Heel3 ft 3 in
Dimensions
Shipping Height12 ft 3.4 in side-entry / 12 ft 7.7 in rear-entry
Shipping Length51 ft 10.6 in
Shipping Width12 ft 1.8 in
Cab Riser3 ft 11.2 in
Overall Track Length16 ft 7.5 in
Undercarriage Width11 ft 9.7 in
Track Shoe Width27.6 in
Cab Tilt90°
Refill Capacities
Fuel Tank289.8 gal
DEF Tank16.4 gal
Cooling System14.2 gal
Engine Oil10.3 gal
Hydraulic System89.8 gal
Hydraulic Tank46.0 gal
Undercarriage & Cab
ConfigurationHigh and wide fixed
Upper / Lower Rollers2 / 9 per track
Track Links49 per side
Forestry CabSide- or rear-entry
SeatHeated and cooled air suspension
Monitor8-in multifunction LCD
CamerasSide and rear, standard
MY DEVELONStandard
