- Horsepower
- 171.2 hp
- Operating weight
- 61,950 lb
- Ground reach
- 31 ft 2 in
- Loading height
- 23 ft 4 in
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DX270WMH-7 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Horsepower: | 171.2 |
|
Performance
|
|
|---|---|
| Operating Weight: | 61950 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

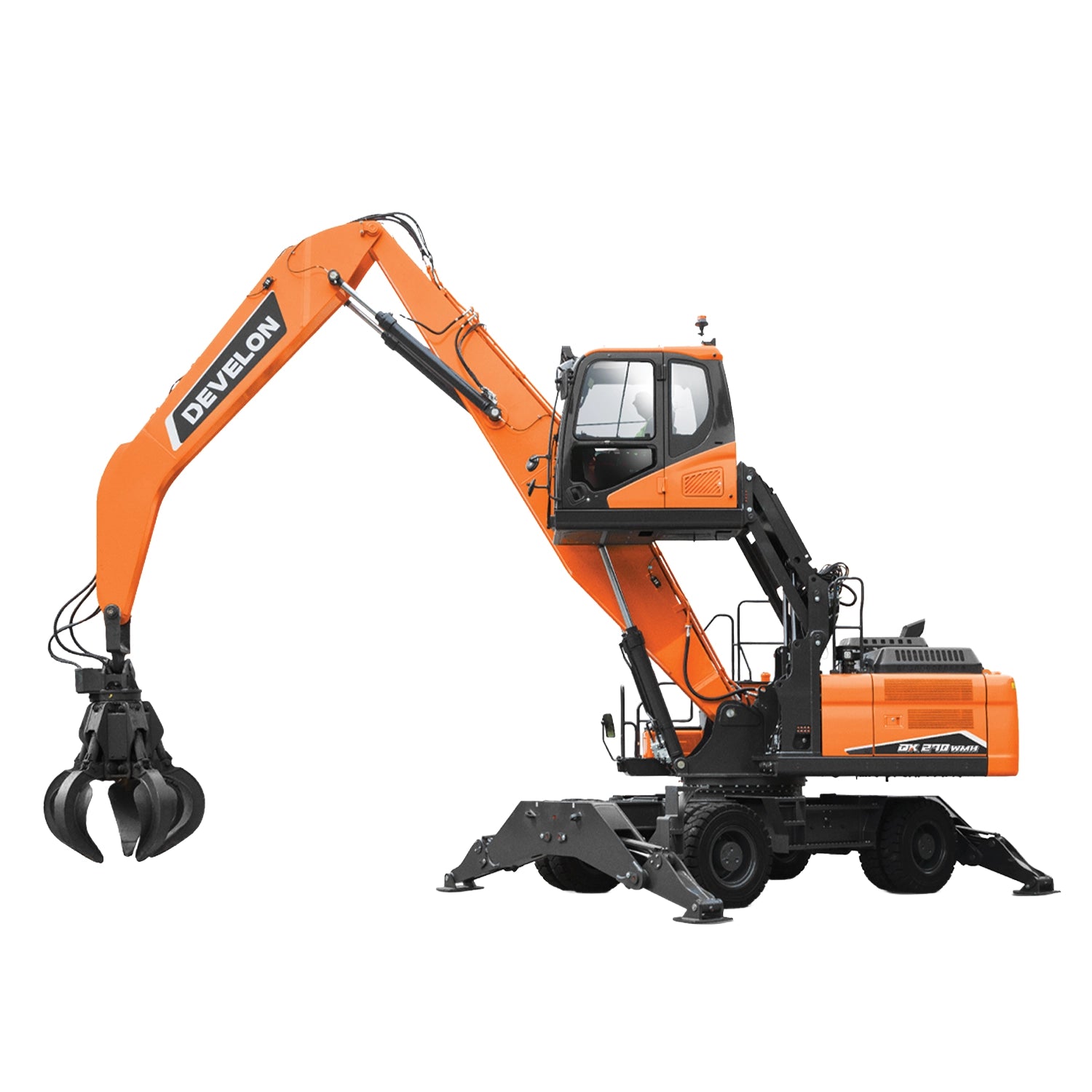

Develon DX270WMH-7 Material Handler
Built for High-Volume Material Handling
The Develon DX270WMH-7 wheel material handler is engineered for demanding scrap yards, recycling facilities, and solid waste operations where productivity and precision are essential. Its extended reach—up to five feet longer than previous models—allows operators to efficiently load trucks, railcars, and barges while handling car bodies, scrap metal, and other bulky materials. A standard virtual wall function helps prevent the boom and arm from contacting nearby structures, giving operators added confidence when working in confined spaces. Reinforced box-welded construction strengthens high-stress areas of the boom and frame for exceptional rigidity, while a wider undercarriage provides increased stability during heavy lifting.
Operator Comfort Designed for Productivity
The DX270WMH-7 is designed to keep operators comfortable and productive throughout long shifts. A standard heated and cooled air-suspension seat offers multiple adjustments for personalized comfort, while the intuitive 8-inch LCD display provides quick access to machine diagnostics, operating settings, and performance information. Bluetooth® hands-free connectivity and MP3 audio capability allow operators to stay connected and entertained without interrupting machine operation.
Simplified Maintenance and Reliable Performance
Routine maintenance is streamlined to maximize uptime and reduce ownership costs. A DPF-free after-treatment system simplifies emissions maintenance, while centralized boom and arm grease points make daily service faster and more convenient. A standard reversible cooling fan helps keep debris out of the radiator, and an integrated oil cooler supports reliable operation during demanding material-handling applications. Standard MY DEVELON fleet management enables owners to remotely monitor machine health, maintenance schedules, and operating performance to improve fleet efficiency and reduce downtime.
Safety and Stability You Can Count On
Designed with operator safety in mind, the DX270WMH-7 features a wider outrigger stance that provides exceptional stability when lifting heavy loads at extended reach. Collision prevention technology helps prevent contact between the grapple and cab during operation, protecting both the machine and operator. A hydraulically elevating cab provides safe and convenient entry when lowered while delivering outstanding visibility over the work area when raised. Standard front and rear LED work lights, along with the Around View Monitor (AVM) camera system, give operators excellent visibility around the machine for safer, more efficient operation.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $13,000 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX270WMH-7 Different
Purpose-Built Wheel Material Handler
The DX270WMH-7 is engineered for scrap, recycling and solid-waste facilities, with four outriggers, a straight boom, droop-nose arm and protective features for demanding sites.
171.2 hp DEVELON DL06P
The 5.9 L six-cylinder engine delivers 171.2 net hp at 1,900 rpm and uses a Tier 4 Final DOC/SCR system without a diesel particulate filter.
Up to 40 ft 9 in Reach
Choose the 37 ft 10 in standard-reach configuration or the available long-reach front with up to 40 ft 9 in maximum working reach.
Hydraulic Cab Riser
Raise the cab as much as 6 ft 5 in for visibility into trucks, containers, barges and material piles, then lower it for easier entry.
Virtual Wall & Collision Prevention
Virtual boundaries help stop the boom and arm before they contact surrounding objects, while collision prevention helps keep the grapple clear of the cab.
Four Wide Outriggers
The 11 ft 11.3 in deployed outrigger stance and wider undercarriage create a stable lifting platform on paved recycling and waste sites.
Standard Around View Monitor
An around view monitor, front and rear LED work lights and the elevated cab improve awareness around busy material-handling operations.
Built for Uptime
Box-welded high-stress areas, centralized grease points, a reversible radiator fan, oil cooler and standard MY DEVELON support durability and maintenance.
Compare DX270WMH-7 Reach Options
Compare the standard- and long-reach configurations by operating weight, reach and working height.
 | ||
| US10 Standard Reach Baseline | US20 Long Reach | |
|---|---|---|
| Operating Weight | 61,950 lb | 63,273 lb |
| Boom / Arm | 21 ft 7.8 in / 16 ft 4.9 in | 23 ft 3.5 in / 17 ft 8.6 in |
| Maximum Working Reach | 37 ft 9.7 in | 40 ft 8.6 in |
| Maximum Working Height | 42 ft 6.0 in | 45 ft 4.5 in |
| Counterweight | 10,582 lb | 11,464 lb |
Published North American specifications. Attachment and machine configuration affect capacities; confirm the selected build with Carleton Equipment.
DX270WMH-7 Features & Benefits
Material-Handling Performance 6
Straight Boom & Droop-Nose Arm
The purpose-built front provides reach, lift height and grapple clearance for loading trucks, containers, railcars and barges.
Standard or Long Reach
US10 reaches 37 ft 9.7 in, while US20 extends maximum working reach to 40 ft 8.6 in and working height to 45 ft 4.5 in.
Twin 62.3 gpm Main Pumps
Two variable axial-piston main pumps and EPOS provide responsive hydraulic output for boom, arm, swing and attachment functions.
Lifting Work Mode
The dedicated lifting mode increases pump torque at lower engine speed and applies automatic power boost for material placement.
Four Independent Outriggers
A wide, independently controlled stance creates a stable working base for lifting and handling on paved surfaces.
DXG4063 Grapple
The published grapple has 0.63 yd³ capacity, 3,064 lb weight and 12 rpm rotation at 4.3 gpm.
Protection & Durability 5
Box-Welded Structure
Box welding strengthens high-stress boom and frame areas to resist torsion and flexing in repetitive handling cycles.
Virtual Wall
Operator-set working boundaries help prevent the boom and arm from contacting nearby structures and obstacles.
Cab Collision Prevention
The control system helps prevent the grapple and elevated cab from colliding during operation.
Reversible Cooling Fan
A reversible radiator fan helps clear debris, while the oil cooler supports temperature control in demanding environments.
DPF-Free Aftertreatment
The Tier 4 Final engine uses DOC and SCR/DEF without a DPF, eliminating regeneration-related maintenance.
Operator Comfort & Visibility 5
Hydraulic Elevating Cab
The cab rises up to 6 ft 5 in for a better view into containers and lowers to simplify entry and exit.
Heated & Cooled Seat
A standard adjustable air-suspension seat provides heating and cooling for long shifts.
8-Inch LCD Monitor
The clear display provides machine diagnostics and operating controls in the cab.
Around View Monitor
The standard camera system supplements direct sightlines around the machine in crowded yards.
Bluetooth Audio
Bluetooth hands-free radio and MP3 audio provide communication and entertainment while operators remain at the controls.
Maintenance & Fleet Support 4
Centralized Grease Points
Standard arm and boom grease points simplify routine lubrication and help reduce maintenance time.
Ground-Level Service Access
Accessible filters, fluid points and machine diagnostics support efficient daily checks and scheduled service.
MY DEVELON
Standard telematics remotely tracks machine health, performance, location and maintenance schedules.
Auto Idle & Auto Shutdown
Automatic engine controls reduce unnecessary fuel use, noise and idle-hour accumulation.
Why Buyers Choose the DX270WMH-7
Purpose-built for scrap, recycling and solid-waste handling
171.2 net hp with twin 62.3 gpm main pumps
Standard or long-reach fronts with up to 40 ft 9 in reach
Hydraulic cab riser elevates as much as 6 ft 5 in
Virtual wall and grapple-to-cab collision prevention
Four wide independent outriggers for lifting stability
Standard AVM, LED lighting and heated/cooled seat
DPF-free aftertreatment and standard MY DEVELON
Who Uses the DX270WMH-7 and What For
The DX270WMH-7 is designed for high-volume facilities that need reach, visibility and controlled placement of bulky material on firm surfaces.
Scrap & Recycling
- Car-body handling
- Ferrous and nonferrous sorting
- Shredder and shear feeding
- Stockpile management
Solid Waste
- Transfer-station loading
- Bulk waste handling
- Paper and plastic processing
- Container loading
Loading Operations
- Truck and trailer loading
- Railcar loading
- Barge loading
- High-wall placement
Attachments
- Orange-peel grapples
- Sorting grapples
- Magnets
- Specialized lifting tools
By the Numbers
Talk to a person about the DX270WMH-7
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Download Spec SheetGeneral
| Machine Type | Wheel material handler |
| Baseline Configuration | US10 standard reach |
| Operating Weight, US10 | 61,950 lbs |
| Operating Weight, US20 | 63,273 lbs |
| Cab | Hydraulic riser, 0–6 ft 5 in |
| Outriggers | Four independent |
| Standard Tire | 8 × 10.00R20 |
Engine
| Engine | DEVELON DL06P |
| Displacement | 360.0 in³ / 5.9 L |
| Cylinders | 6 |
| Net Power | 171.2 hp @ 1,900 rpm |
| Gross Power | 189.1 hp @ 1,900 rpm |
| Maximum Net Torque | 593.0 lb-ft @ 1,400 rpm |
| Emissions | Tier 4 Final; DOC / SCR / DEF; no DPF |
Performance
| Maximum Travel Speed | 12.4 mph |
| Maximum Traction Force | 26,456 lbf |
| Maximum Grade | 42% / 23° |
| Swing Speed | 0–9.8 rpm |
| Maximum Swing Torque | 60,815.1 lbf-ft |
| Maximum Digging Reach, Ground | 31 ft 2 in |
| Maximum Loading Height | 23 ft 4 in |
| Maximum Working Reach, US10 | 37 ft 9.7 in |
| Maximum Working Reach, US20 | 40 ft 8.6 in |
| Maximum Working Height, US10 | 42 ft 6.0 in |
| Maximum Working Height, US20 | 45 ft 4.5 in |
Hydraulics
| Main Pumps | 2 × 62.3 gpm |
| Pilot Pump | 7.2 gpm |
| Implement Pressure, Normal | 4,978.2 psi |
| Power Boost Pressure | 5,262.6 psi |
| Travel Pressure | 5,262.6 psi |
| Swing Pressure | 3,840.3 psi |
| Control System | Electronic Power Optimizing System |
Capacities
| Fuel Tank | 91.1 gal |
| DEF Tank | 8.3 gal |
| Cooling System | 8.6 gal |
| Engine Oil | 7.1 gal |
| Hydraulic System | 76.6 gal |
| Hydraulic Tank | 32.8 gal |
Dimensions & Reach
| Boom / Arm, US10 | 21 ft 7.8 in / 16 ft 4.9 in |
| Boom / Arm, US20 | 23 ft 3.5 in / 17 ft 8.6 in |
| Shipping Length, US10 | 31 ft 10.5 in |
| Shipping Length, US20 | 33 ft 4.3 in |
| Shipping Width | 8 ft 11.9 in |
| Cab Height, Lowered | 10 ft 8.0 in |
| Cab Height, Raised | 19 ft 2.4 in |
| Tail Swing Radius | 9 ft 4.4 in |
| Wheelbase | 9 ft 4.2 in |
| Outrigger Width, Ground | 11 ft 11.3 in |
Grapple & Standard Features
| Published Grapple | DXG4063 |
| Grapple Capacity | 0.63 yd³ |
| Grapple Weight | 3,064 lbs |
| Grapple Rotation | 12 rpm @ 4.3 gpm |
| Virtual Wall | Standard |
| Collision Prevention | Standard |
| Around View Monitor | Standard |
| Heated/Cooled Seat | Standard |
| MY DEVELON | Standard |
Values are from the current North American DX270WMH-7 product page and official sales specifications. US10 standard reach is the baseline; US20 long-reach values are labeled separately. Current product-page values take precedence where the sources differ, and differently named reach/height measurements remain separate. Attachment and configuration affect operating weight and capacities. Contact Carleton Equipment to confirm the selected build.
