- Horsepower
- 159.2 hp
- Operating weight
- 46,187 lb
- Max dig depth
- 18 ft 9 in
- Standard bucket
- 1.05 yd³
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DX190W-7K |
| Machine Type: | Wheeled Excavator |
|
Engine
|
|
|---|---|
| Engine: | DLO6V |
| Horsepower: | 159.2 |
|
Performance
|
|
|---|---|
| Operating Weight: | 46187 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 77.9 gal |
Description

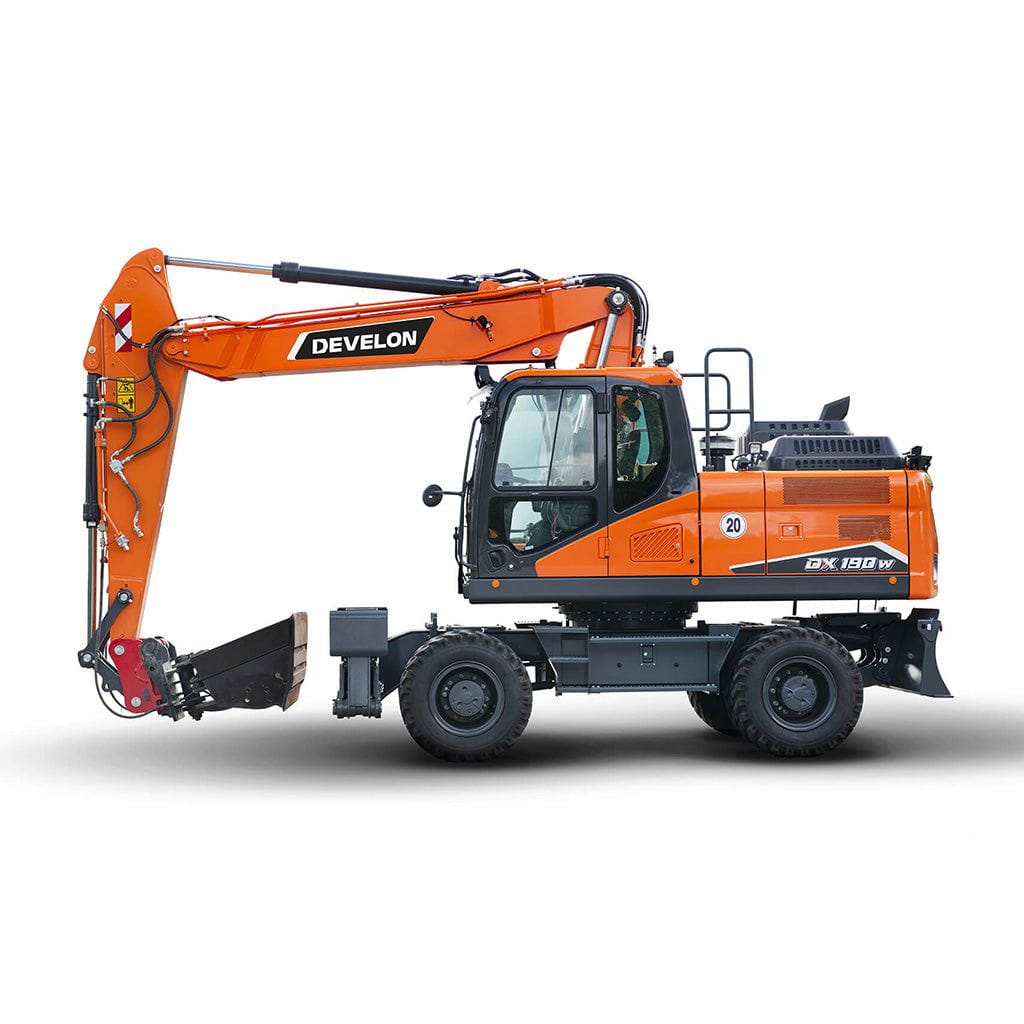

DX190W-7K Wheel Excavator
Powerful Digging with Exceptional Mobility
The Develon DX190W-7K combines powerful excavation performance with the mobility of a wheeled machine, making it an excellent choice for road construction, bridge work, utility projects, and urban jobsites. High-performance hydraulics deliver impressive digging force, while the standard one-touch power boost provides additional hydraulic power when breaking through hard material. A modular undercarriage configuration allows operators to choose between four independent outriggers or a front dozer blade with rear outriggers, providing the stability and flexibility needed for leveling, backfilling, and demanding excavation tasks.
Smart Technology for Greater Fuel Efficiency
The DX190W-7K is equipped with advanced technologies that improve productivity while reducing fuel consumption. Smart Power Control (SPC) and the Mechatronics system automatically optimize engine and hydraulic performance to match changing workload demands. Four selectable power modes, including an Economy mode, allow operators to balance performance and efficiency, while standard auto idle and engine auto shutdown reduce unnecessary fuel usage, lower operating costs, and minimize engine hours. A Tier 4-compliant diesel engine delivers reliable performance with reduced emissions, and standard MY DEVELON fleet management helps simplify maintenance scheduling and maximize machine uptime.
Built for Operator Comfort
Designed for long workdays, the DX190W-7K features a spacious cab with outstanding visibility and premium comfort features. Automotive-style heating and air conditioning, large windows, and excellent sightlines help operators stay comfortable and aware of their surroundings. A standard heated and cooled air-suspension seat reduces fatigue, while the multilingual 12-inch tablet-style display provides quick access to machine information and operating settings. Ergonomic joysticks and fingertip controls deliver smooth, intuitive operation for operators of all experience levels. Standard rearview cameras and an available 360-degree Smart Around View Monitor (AVM) with radar further enhance jobsite visibility and safety.
Advanced Features for Greater Productivity
The DX190W-7K includes several standard technologies that improve machine control and operating efficiency. The automatic load isolation system (ride control) engages during travel to reduce attachment bounce on rough surfaces, providing a smoother ride and improved material retention. Auto Hold automatically applies the digging brake when needed, reducing operator effort and increasing productivity. A fine swing function minimizes shock during swing starts and stops, allowing for smoother, more precise material placement.
Versatility for a Wide Range of Applications
Engineered for maximum versatility, the DX190W-7K is ready to handle a wide variety of specialized attachments and jobsite demands. A trailer-ready configuration with integrated hydraulic connections simplifies towing applications, while a dedicated tiltrotator operating mode improves attachment performance and precision. Combined with multiple undercarriage configurations and powerful hydraulics, the DX190W-7K delivers the flexibility needed for everything from utility installation and roadwork to municipal maintenance and heavy construction.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $13,000 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX190W-7K Different
159.2 hp Wheel Excavator
The six-cylinder DL06V engine and high-capacity hydraulics give the 46,187 lb DX190W-7K strong digging, lifting and loading performance.
Up to 21.75 mph
A two-speed powershift transmission with creep range supports precise positioning and efficient travel between road, bridge and urban work zones.
Four Machine Configurations
Choose a mono or articulated boom with either a front dozer and rear outriggers or four independent outriggers.
18 ft 9 in Dig Depth
The standard mono-boom configuration combines deep excavation capability with a 30 ft 4.4 in maximum digging reach.
Smart Power Control
SPC and Mechatronics Design coordinate engine speed and pump torque to maintain productivity while managing fuel use.
Ride Control & Auto Hold
Standard load isolation reduces bounce during travel, while Auto Hold automatically applies the digging brake when the machine stops.
Premium Operator Environment
A heated and cooled air-suspension seat, automatic climate control, rear camera and 12-inch Smart Touch display are standard.
Compare the Wheel Excavator Family
Compare DEVELON wheel excavators by power, operating weight and digging depth to find the right combination of mobility and performance.
 |  |  |  |
|
| DX100W-7 | DX140W-7K | DX190W-7K Viewing | DX210W-7K | |
|---|---|---|---|---|
| Rated Power (net) | 100.6 hp @ 2,000 rpm | 129.1 hp @ 2,000 rpm | 159.2 hp @ 1,900 rpm | 171.2 hp @ 1,900 rpm |
| Operating Weight | 25,221 lb | 34,670 lb | 46,187 lb | 50,706 lb |
| Maximum Dig Depth | 13 ft 11 in | 14 ft 9 in | 18 ft 9 in | 19 ft 4 in |
| Platform | Mini wheel excavator | Wheel excavator | Wheel excavator | Wheel excavator |
Published North American base specifications. Configurations vary; contact Carleton Equipment to confirm details.
DX190W-7K Features & Benefits
Power & Productivity 5
DEVELON DL06V Engine
The 5.9 L six-cylinder engine delivers 159.2 net hp at 1,900 rpm and 556.9 lb-ft of gross torque at 1,400 rpm.
One-Touch Power Boost
Momentarily increase hydraulic pressure from the joystick when tough material demands additional digging force.
Twin Main Pumps
Two 52.83 gpm variable axial-piston pumps provide responsive hydraulic performance for the workgroup and attachments.
Four Power Modes
Power+, Power, Standard and Economy modes tailor performance and fuel use to changing work demands.
Smart Engine Management
Smart Power Control, auto idle and adjustable auto shutdown reduce unnecessary engine speed and idle time.
Mobility & Versatility 5
Creep, Low & High Travel
Three travel ranges culminate in a 21.75 mph high speed for attachment work, site maneuvering and road travel.
Modular Stabilizer Layout
Use a front blade and rear outriggers for grading versatility or four independent outriggers for a stable digging platform.
Mono or Articulated Boom
Choose the standard mono boom for maximum digging depth or the two-piece boom for added positioning flexibility and loading height.
Load Isolation System
Standard ride control engages automatically at 3.1 mph to reduce machine and attachment bounce over uneven roads.
Tiltrotator & Trailer Ready
Tiltrotator work mode is standard, while an available trailer-ready package adds rear hydraulic lines and ports.
Comfort & Visibility 5
Spacious All-Weather Cab
Broad front, side, rear and overhead glass combines with automatic heating and air conditioning for year-round comfort.
Heated & Cooled Seat
The standard air-suspension seat offers heat, cooling and multiple adjustments for long shifts.
12-Inch Smart Touch Monitor
The multilingual tablet-style display centralizes settings, machine information, attachment presets, warnings and camera views.
Rear Camera & AVM Option
A rearview camera is standard; a 360-degree smart around-view camera and radar system are available.
Low-Effort Controls
Ergonomic joysticks and fingertip switches simplify workgroup, attachment, power-boost and steering functions.
Control, Durability & Support 4
Fine Swing
Fine swing reduces shock during swing starts and stops to improve placement accuracy.
Ten Attachment Presets
Adjustable auxiliary flow and pressure stores settings for up to ten compatible hydraulic attachments.
Service Access
Handrails, skid-resistant platforms and centralized boom and swing lubrication support routine maintenance.
MY DEVELON
Standard telematics remotely tracks location, health, productivity and scheduled maintenance information.
Why Buyers Choose the DX190W-7K
159.2 net hp and 46,187 lb standard operating weight
Travel speeds up to 21.75 mph between work areas
Mono-boom and articulated-boom configurations
Front blade/rear outriggers or four independent outriggers
Twin 52.83 gpm main pumps and one-touch power boost
Standard ride control, Auto Hold brake and fine swing
Heated/cooled seat and 12-inch Smart Touch display
Standard rear camera, Smart Key and MY DEVELON
Who Uses the DX190W-7K and What For
The DX190W-7K brings substantial excavator performance to crews that need to move efficiently across paved, congested or distributed work sites.
Road & Bridge Work
- Road reconstruction
- Bridge and shoulder work
- Drainage installation
- Movement between work zones
Utilities
- Water and sewer mains
- Stormwater systems
- Deep trenching
- Pipe and structure placement
Municipal & Site Work
- Street maintenance
- Urban construction
- Backfilling and grading
- Material loading
Attachments & Handling
- Hydraulic breakers
- Thumbs and quick couplers
- Tiltrotator applications
- Lifting and placement
Powerful Digging, Road-Ready Mobility
Talk to a person about the DX190W-7K
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Download Spec SheetGeneral
| Machine Type | Wheel excavator |
| Baseline Configuration | US20 mono boom; front dozer / rear outriggers |
| Operating Weight | 46,187 lbs |
| Bucket Capacity | 1.05 yd³ |
| Mono Boom / Arm | 17 ft 0.7 in / 8 ft 6.4 in |
| Articulated Boom / Arm | 17 ft 10.2 in / 7 ft 6.6 in |
| Counterweight | 7,100 lbs |
Engine
| Engine | DEVELON DL06V |
| Displacement | 360.0 in³ / 5.9 L |
| Cylinders | 6 |
| Net Power | 159.2 hp @ 1,900 rpm |
| Gross Power | 174.3 hp @ 1,900 rpm |
| Maximum Gross Torque | 556.9 lb-ft @ 1,400 rpm |
| Emissions | Tier 4 Final; DOC / SCR / DEF |
Performance
| Maximum Dig Depth, Mono | 18 ft 9 in |
| Maximum Dig Depth, Articulated | 18 ft 4.9 in |
| Maximum Reach, Mono | 30 ft 4.4 in |
| Maximum Reach, Articulated | 31 ft 0 in |
| Bucket Digging Force | 30,423.8 lbf |
| Arm Digging Force, Normal | 21,605.2 lbf |
| Arm Force, Articulated | 23,369.0 lbf |
| Swing Speed | 0–11.4 rpm |
| Maximum Swing Torque | 46,646 lbf-ft |
| Travel Speed, Creep / Low / High | 2.2 / 6.2 / 21.75 mph |
| Traction Force | 26,014.5 lbf |
| Maximum Grade | 70% / 35° |
Hydraulics
| Main Pumps | 2 × 52.83 gpm |
| Pilot Pump | 6.9 gpm |
| Implement Pressure, Normal | 4,978.2 psi |
| Power Boost Pressure | 5,262.6 psi |
| Travel Pressure | 5,134.6 psi |
| Swing Pressure | 3,911.4 psi |
| Auxiliary Hydraulics | One-way and tilt/rotate piping; 10 presets |
Capacities
| Fuel Tank | 77.9 gal |
| DEF Tank | 8.3 gal |
| Cooling System | 8.6 gal |
| Engine Oil | 7.1 gal |
| Hydraulic System | 76.6 gal |
| Hydraulic Tank | 32.8 gal |
Dimensions
| Shipping Length, Mono | 29 ft 1.0 in |
| Shipping Length, Articulated | 30 ft 4.6 in |
| Shipping Width | 8 ft 3.6 in |
| Cab Height | 10 ft 3.3 in |
| Overall Height to Guardrail | 10 ft 10.7 in |
| Tail Swing Radius | 8 ft 6.8 in |
| Ground Clearance | 1 ft 1.7 in |
| Wheelbase | 8 ft 8.3 in |
| Tire Size | 10.0–20–16 PR |
Configurations & Features
| US20 | Mono boom; front dozer / rear outriggers; 46,187 lbs |
| US30 | Mono boom; four outriggers; 47,104 lbs |
| US40 | Articulated boom; front dozer / rear outriggers; 46,264 lbs |
| US50 | Articulated boom; four outriggers; 47,181 lbs |
| Power Modes | Power+ / Power / Standard / Economy |
| Work Modes | Digging / Lifting / Breaker / Shear |
| Ride Control | Standard |
| Rearview Camera | Standard |
| 360° Camera / Radar | Optional |
| MY DEVELON | Standard, 3-year subscription |
Values are from the official North American DX190W-7K product page and sales specifications. Headline values use the US20 mono-boom configuration with front dozer and rear outriggers; other configurations are labeled separately. Current product-page values take precedence where the sources differ. Specifications vary by bucket and attachment. Contact Carleton Equipment to confirm details.
