- Horsepower
- 100.6 hp
- Operating weight
- 25,221 lb
- Max dig depth
- 13 ft 11 in
- Standard bucket
- 0.37 yd³
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DX100W-7 |
| Machine Type: | Wheeled Excavator |
|
Engine
|
|
|---|---|
| Horsepower: | 100.6 |
|
Performance
|
|
|---|---|
| Operating Weight: | 25221 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 38.3 gal. |
Description

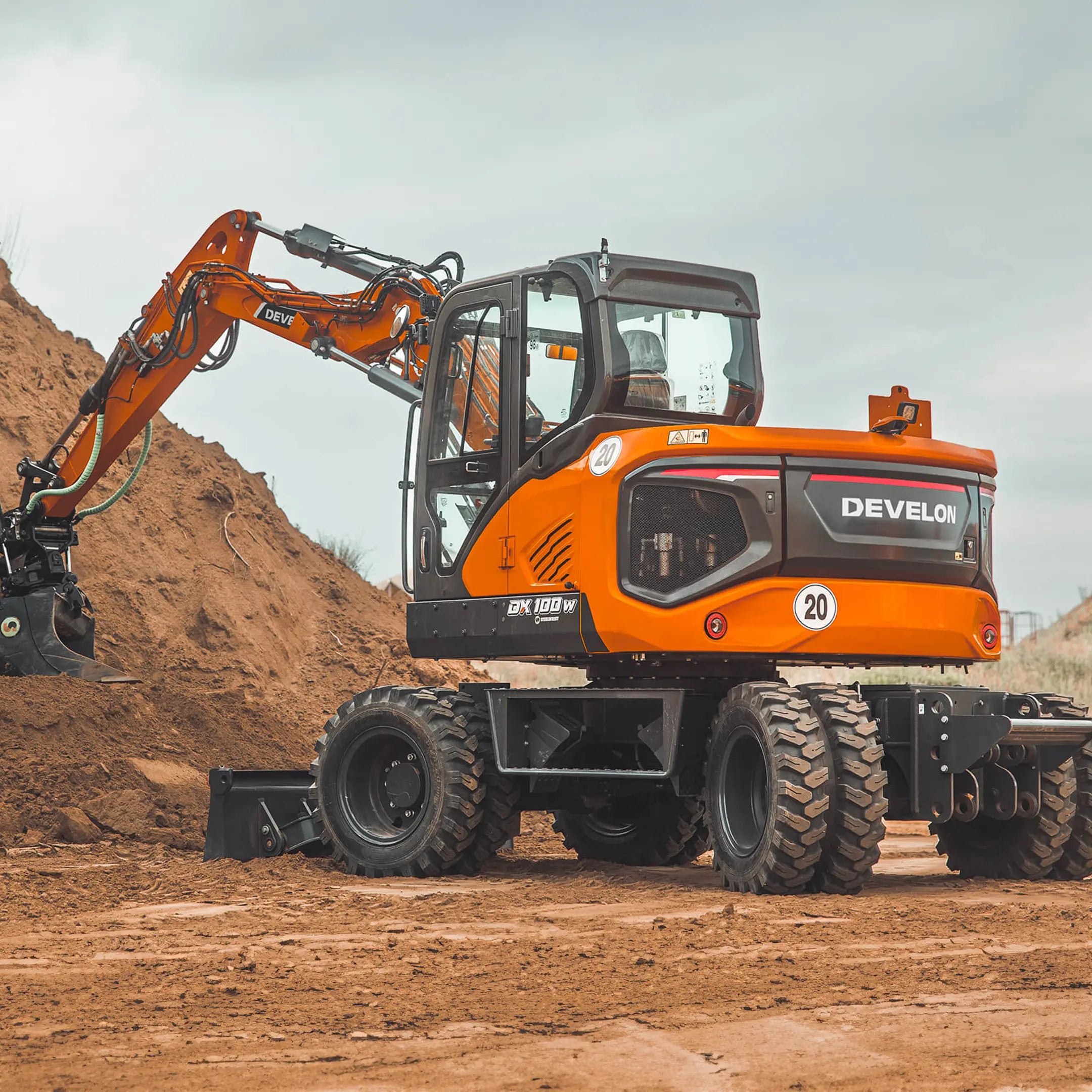

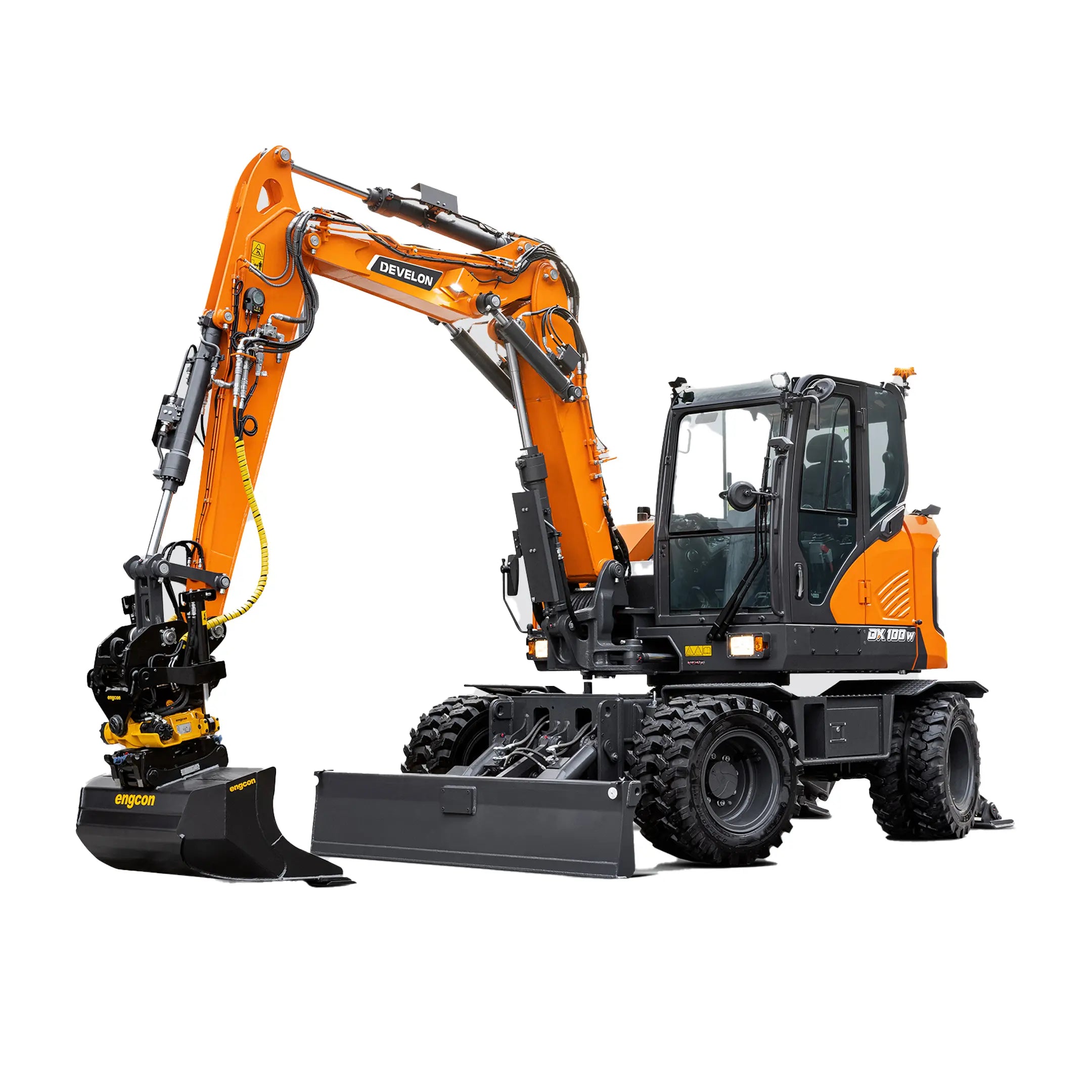

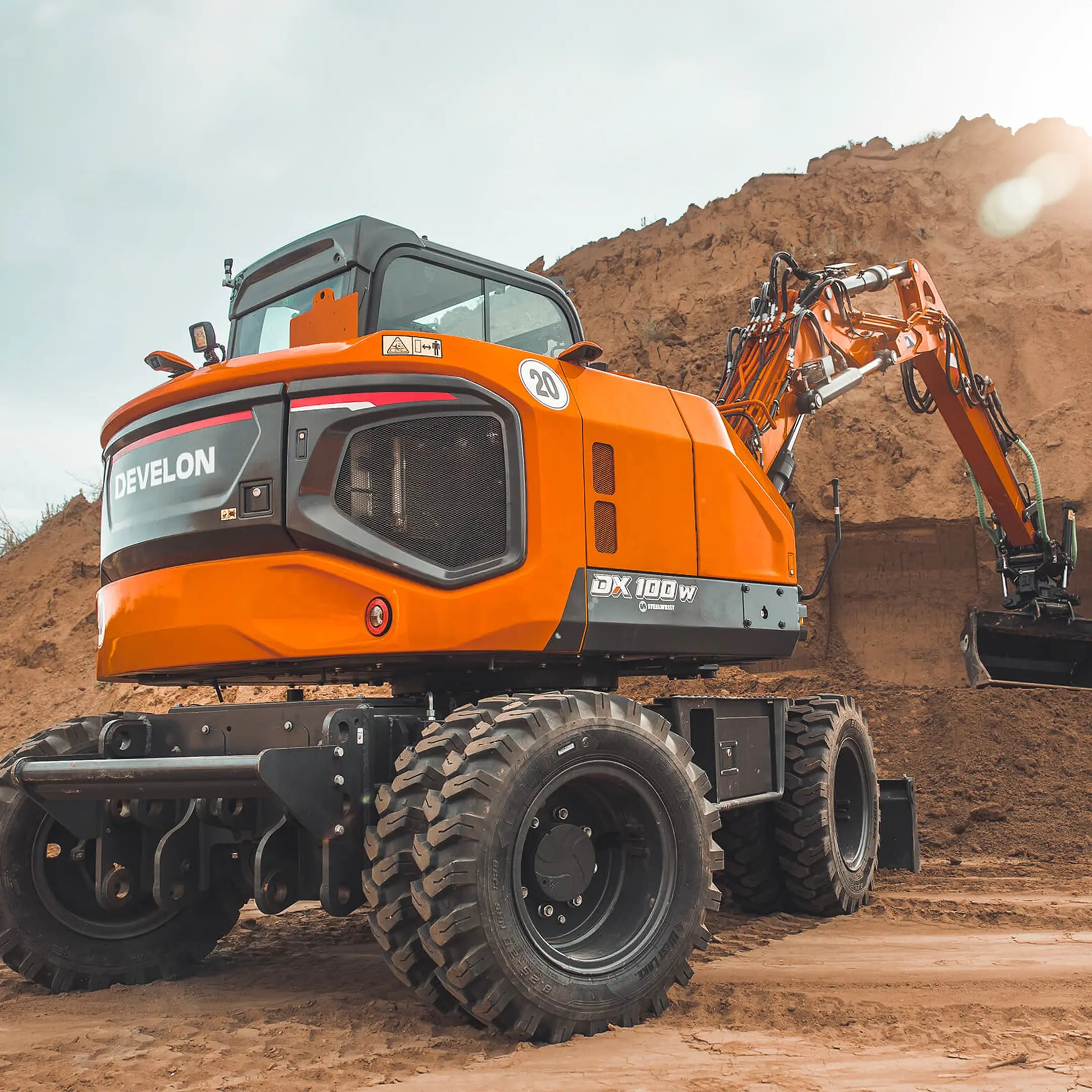

DX100W-7 Wheel Excavator
Digging Power & Mobility
With its compact size and ability to easily travel to jobsites, the DX140W-7 brings digging power to the most challenging jobs — on roadways and bridges and in urban areas. Superior hydraulics deliver the digging force you need to move tough material. Momentarily amplify hydraulic power using the one-touch power boost.
Easily configure the machine with a front dozer blade and independent rear outriggers or with 4 independent outriggers. Leveling, backfilling material with the dozer blade, or stabilizing the machine during digging applications is made easier. When outriggers are down, digging performance is comparable to an excavator with tracks.
Technologies Improve Fuel Efficiency
Several smart technologies help maximize performance and fuel efficiency — including the exclusive Smart Power Control (SPC) and Electronic Power Optimizing System (EPOS). The DX140W-7 also includes four selectable power modes, including an Economy mode that reduces fuel consumption for low-demand applications. An engine auto shutdown feature saves fuel and helps reduce warranty hours. The auto idle feature saves fuel while reducing noise and improving jobsite communication. The standard DEVELON Fleet Management system monitors the excavator’s health and maintenance schedule to help keep it running at peak performance.
A Focus on Operator Comfort
The -7 Series wheel excavator lineup is designed to help attract and keep top operators — and provides the controls and systems they need to become their best.
Long days are more productive thanks to automotive-style heating and air conditioning, improved floorspace and excellent visibility from the spacious cab. A rearview camera is standard, and an optional heated/cooled seat is available.
Also standard is the multilingual DEVELON Smart Touch display and an easy-to-use joystick that offers low-effort control to help reduce operator fatigue when working with hydraulic attachments.
Engineered for the Most Challenging Work
When driving on uneven road surfaces, the Optional Load Isolation System automatically engages at 3.1 mph (5 Km/h) to reduce the bouncing of the machine and its attachments.
The standard Auto Hold brake system automatically engages the digging brake to improve operator comfort and machine productivity.
Use the optional Trailer Ready feature to pull a 5- to 10-ton trailer to improve machine versatility.
The fine swing function helps with operator job accuracy by reducing the shock from swing starts and stops.
Machine versatility is improved with the new tilt-rotator working mode and a priority valve for using mulchers/grass cutters.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $9,000 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX100W-7 Different
Compact 25,221 lb Wheel Excavator
The DX100W-7 pairs a compact footprint with 360-degree upperstructure swing and road-ready mobility for congested urban and utility jobsites.
100.6 hp DEVELON Engine
The four-cylinder D34 produces 100.6 net hp at 2,000 rpm and meets Tier 4 emissions requirements.
Up to 23.2 mph
A hydrostatic drive system and two travel ranges let the machine move quickly between work areas without a crawler excavator's transport limitations.
Three Steering Modes
Choose two-wheel, four-wheel crab or four-wheel round steering to balance road travel, diagonal positioning and tight-turn maneuverability.
Articulated Boom & Boom Swing
A two-piece articulated boom, 60-degree left/right boom swing and 13 ft 11 in dig depth help the machine work close to obstacles.
Blade & Rear Outriggers
The standard parallel front dozer blade and independent rear outriggers support backfilling, leveling and stable digging on hard surfaces.
270-Degree Around View Monitor
The standard camera system and ultrasonic sensors expand visibility around the machine and alert the operator to nearby objects.
Compare the Wheel Excavator Family
Compare DEVELON wheel excavators by power, operating weight and digging depth to find the right combination of mobility and performance.
 |
 |
 |
 |
|
| DX100W-7 Viewing | DX140W-7K | DX190W-7K | DX210W-7K | |
|---|---|---|---|---|
| Rated Power (net) | 100.6 hp @ 2,000 rpm | 129.1 hp @ 2,000 rpm | 159.2 hp @ 1,900 rpm | 171.2 hp @ 1,900 rpm |
| Operating Weight | 25,221 lb | 34,670 lb | 46,187 lb | 50,706 lb |
| Maximum Dig Depth | 13 ft 11 in | 14 ft 9 in | 18 ft 9 in | 19 ft 4 in |
| Platform | Mini wheel excavator | Wheel excavator | Wheel excavator | Wheel excavator |
Published North American base specifications. Configurations vary; contact Carleton Equipment to confirm details.
DX100W-7 Features & Benefits
Performance & Mobility 5
DEVELON D34 Engine
The 3.4 L four-cylinder engine delivers 100.6 net hp and 316.8 lb-ft of torque for responsive digging, lifting and travel performance.
Hydrostatic Drive
The standard hydrostatic system transfers power smoothly to the wheels and maintains useful torque at low speeds for precise positioning.
Three Steering Modes
Two-wheel steering supports efficient travel, four-wheel crab steering provides diagonal movement, and four-wheel round steering tightens the turning radius.
Four Power Modes
Power+, Power, Standard and Economy settings let the operator prioritize cycle speed, balanced output or reduced fuel use.
Four Work Modes
One-way, two-way, digging and lifting modes tailor hydraulic response to buckets, breakers, thumbs, grapples and material handling.
Digging & Attachment Versatility 5
Two-Piece Articulated Boom
The additional boom pivot increases positioning flexibility and helps the machine reach around obstacles while preserving digging and lifting capability.
Boom Swing
Sixty degrees of boom swing in either direction supports offset trenching and excavation alongside walls, traffic lanes and structures.
52.84 gpm Main Pump
Load-sensing hydraulics and standard one-way/two-way auxiliary flow support a broad selection of productive attachments.
Blade & Outriggers
The parallel front blade works for grading and backfilling while independent rear outriggers provide a stable digging platform.
Selectable Control Pattern
An accessible pattern-change valve lets operators choose ISO or backhoe-style controls without special tools.
Comfort, Visibility & Technology 5
Spacious All-Weather Cab
An extra-large full-length glass door, skylight and generous glass area improve entry, sightlines and all-day comfort.
Heated Air-Suspension Seat
The standard adjustable heated air-suspension seat, automatic climate control and tilt/telescoping steering help reduce fatigue.
Around View Monitor
A standard 270-degree camera view with ultrasonic object detection helps the operator monitor crowded jobsites.
8-Inch Touch Screen
The in-cab display presents machine information, warnings, work settings and auxiliary-flow selections in one central interface.
MY DEVELON Fleet Management
Standard telematics remotely tracks machine location, health, utilization and maintenance information.
Durability, Safety & Service 4
Overload Warning
The standard warning device alerts the operator as the machine approaches its safe lifting limits.
Ground-Level Service Access
Filters and routine maintenance points are arranged for convenient access from ground level.
Heavy-Duty Wheel System
Standard double tires, four-wheel steering and selectable front-axle oscillation lock modes support traction and stability.
Tier 4 Engine Package
Electronic engine control, auto idle and overheat protection help manage fuel use and protect the powertrain.
Why Buyers Choose the DX100W-7
100.6 net hp in a compact 25,221 lb wheeled platform
Travel speeds up to 23.2 mph for fast movement between work areas
Two-wheel, four-wheel crab and four-wheel round steering modes
Two-piece articulated boom plus 60-degree left/right boom swing
Standard front dozer blade and independent rear outriggers
Four power modes and four work modes for task-specific response
Heated air-suspension seat and standard 270-degree around view monitor
Standard MY DEVELON telematics and ground-level service access
Who Uses the DX100W-7 and What For
The DX100W-7 combines excavator reach and attachment capability with wheeled mobility, making it a strong fit where crews need to work efficiently around pavement, traffic and space constraints.
Urban & Road Work
- Lane-side excavation and repair
- Street and sidewalk projects
- Confined commercial sites
- Fast movement between work zones
Utilities
- Water and sewer service
- Storm-drain installation
- Offset trenching near obstacles
- Manhole and pipe placement
Site & Property Work
- Backfilling and finish grading
- Landscape construction
- Parking-lot maintenance
- Material loading and placement
Attachments & Handling
- Hydraulic breakers
- Thumbs and grapples
- Quick-coupler bucket changes
- Lifting and placement work
Compact Mobility, Excavator Capability
Talk to a person about the DX100W-7
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
Download Spec SheetGeneral
| Machine Type | Mini wheel excavator |
| Operating Weight | 25,221 lbs |
| Bucket Capacity | 0.37 yd³ |
| Boom | Two-piece articulated; 6 ft 2.4 in lower / 6 ft 2 in upper |
| Standard Arm | 7 ft 4.6 in |
| Counterweight | 2,976 lbs |
Engine
| Engine | DEVELON D34 |
| Displacement | 208 in³ / 3.4 L |
| Cylinders | 4 |
| Net Power | 100.6 hp @ 2,000 rpm |
| Gross Power | 100.6 hp @ 2,000 rpm |
| Maximum Torque | 316.8 lb-ft @ 1,400 rpm |
| Emissions | Tier 4 |
Performance
| Maximum Dig Depth | 13 ft 11 in |
| Maximum Digging Reach | 25 ft 8 in |
| Maximum Reach at Ground | 24 ft 11.4 in |
| Maximum Dumping Height | 20 ft 6 in |
| Maximum Digging Height | 27 ft 1.4 in |
| Bucket Digging Force | 13,173 lbf |
| Arm Digging Force | 8,206 lbf |
| Swing Speed | 10.6 rpm |
| Travel Speed, 1st Gear | 3.35–10.5 mph |
| Travel Speed, 2nd Gear | 8.0–23.2 mph |
| Minimum Turning Radius | 12 ft 1.15 in |
| Maximum Grade | 39% / 12.2° |
Hydraulics
| Main Pump: Maximum Flow | 52.84 gpm |
| Pilot Pump | 6.1 gpm |
| Relief Pressure | 4,409 psi |
| Normal Implement Pressure | 4,068 psi |
| Swing Pressure | 3,115 psi |
| Rated Travel-Pump Flow | 29.6 gpm @ 2,000 rpm |
Capacities
| Fuel Tank | 38.3 gal |
| Hydraulic System | 24.8 gal |
| Hydraulic Tank | 5.3 gal |
| Cooling System | 4.2 gal |
| Engine Oil | 3.3 gal |
Dimensions
| Shipping Length | 23 ft 10.6 in |
| Overall Length | 19 ft 3 in |
| Overall Width | 8 ft 0 in |
| Overall Height | 12 ft 11.6 in |
| Cab Height | 9 ft 10.5 in |
| Tail Swing Radius | 5 ft 3 in |
| Ground Clearance | 1 ft 0 in |
| Wheelbase | 7 ft 4.2 in |
| Undercarriage Width | 8 ft 0 in |
Features
| Steering Modes | 2-wheel / 4-wheel crab / 4-wheel round |
| Power Modes | Power+ / Power / Standard / Economy |
| Work Modes | 1-way / 2-way / Digging / Lifting |
| Boom Swing | 60° left / 60° right |
| Front Dozer Blade | Standard |
| Rear Outriggers | Standard |
| Around View Monitor | Standard, 270° with ultrasonic sensors |
| Heated Air-Suspension Seat | Standard |
| MY DEVELON | Standard, 3-year subscription |
Values are from the official North American DX100W-7 product page and sales specifications for the US10 front-dozer and rear-outrigger configuration. The current product-page value is used where the sources differ. Specifications vary by bucket and attachment. Contact Carleton Equipment to confirm details.
