Doosan DX50-5
Description

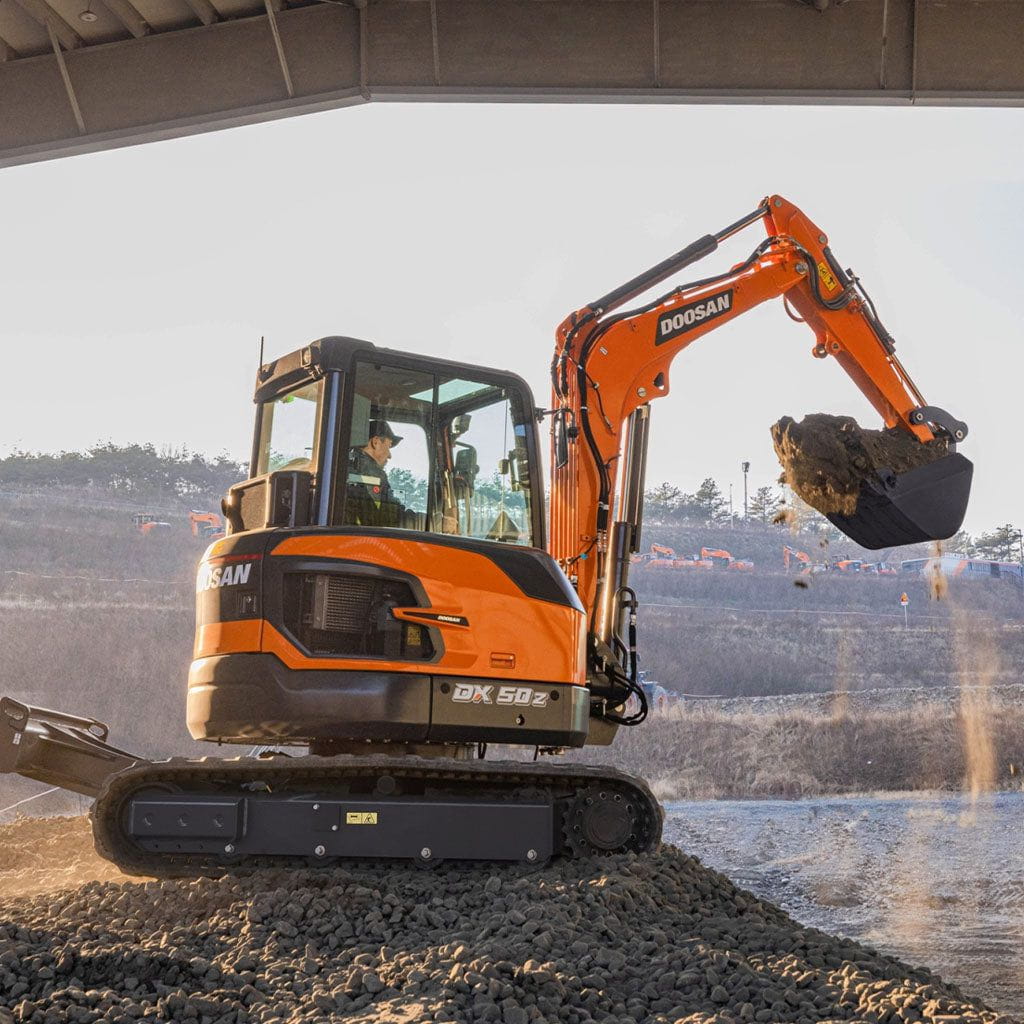

The new minimal tail swing Doosan® DX50-5 is a leading performer in the middle of the mini excavator range.
The 4- to 5-ton size class mode enables customers to operate in tight spaces with superior digging performance.
A roomy cab adds to operator comfort, and tall, wide windows provide the operator with excellent visibility for enhanced productivity and safety.
Specs
Engine
| Rated Flywheel Power (Gross) |
49.7 hp @ 2,200 rpm (SAE-J1995) |
| Rated Horse Power (Net) |
45.7 hp @ 2,200 rpm |
| Max. Torque (Net) |
151 lbf·ft @ 1,600 rpm |
| Engine Emissions Tier (EPA) |
Tier 4 |
Hydraulic System
| Main Pump: Max. Flow Rate (each) |
36.6 gal/min |
| Main Pump: Main Relief Pressure |
3,625 psi |
Undercarriage
| Lower Rollers: Quantity Per Side |
5 |
| Track Length |
8' 3" |
Swing Mechanism
| Swing Performance: Max Swing Speed (At Efficiency) |
9 rpm |
Travel System/Drive Mechanism
| Travel Performance: Traction Force (Highest Value) |
11767 lbf-ft |
| Travel Performance: Traveling Speed - Low (XXX) |
1.9 mph |
| Travel Performance: Traveling Speed - High (XXX) |
3.1 mph |
| Travel Performance: Gradeability |
30° |
Weights
| Operating Weight |
10,986 lb |
| Standard Boom Length |
9.1 ft |
| Standard Arm Length |
5.02 ft |
| Standard Bucket Size |
0.2 yd³ |
| Shoe Width |
1' 3" |
Dimensions
| Shipping Height - Hose (With Attachment) |
8' 3" |
| Shipping Length (Without Attachment) |
18' 2" |
| Shipping Width (Standard) |
6' 5" |
| Overall Height Over Cab |
8' 3" |
Working Range
| Max Digging Reach (Ground) |
19' 5" |
| Max Digging Depth |
11' 6" |
| Max Loading Height |
12' 10" |
Digging Force (ISO)
| Arm Digging Force - Pressure Up |
6,744 lb
|
| Bucket Digging Force - Pressure Up |
8,977 lb
|
Environment
| Noise Level: Guaranteed Sound Power Level |
96 dBA |
| Noise Level: Operator |
81 dBA |
Options
- Canopy
- Long Arm
- Angle Blade
