General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Develon |
| Model: | DX380LL-5 |
| Machine Type: | Other |
|
Engine
|
|
|---|---|
| Horsepower: | 312.5 |
|
Performance
|
|
|---|---|
| Operating Weight: | 113538 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

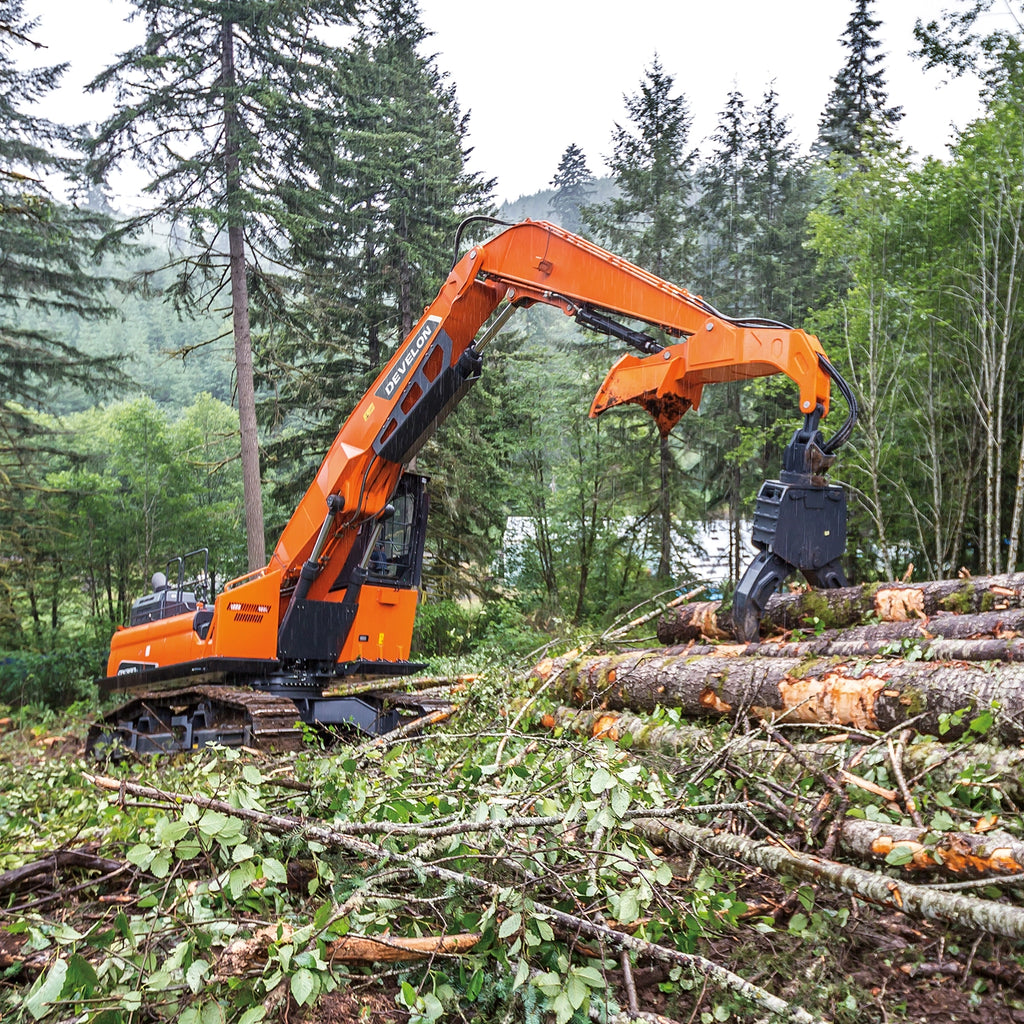

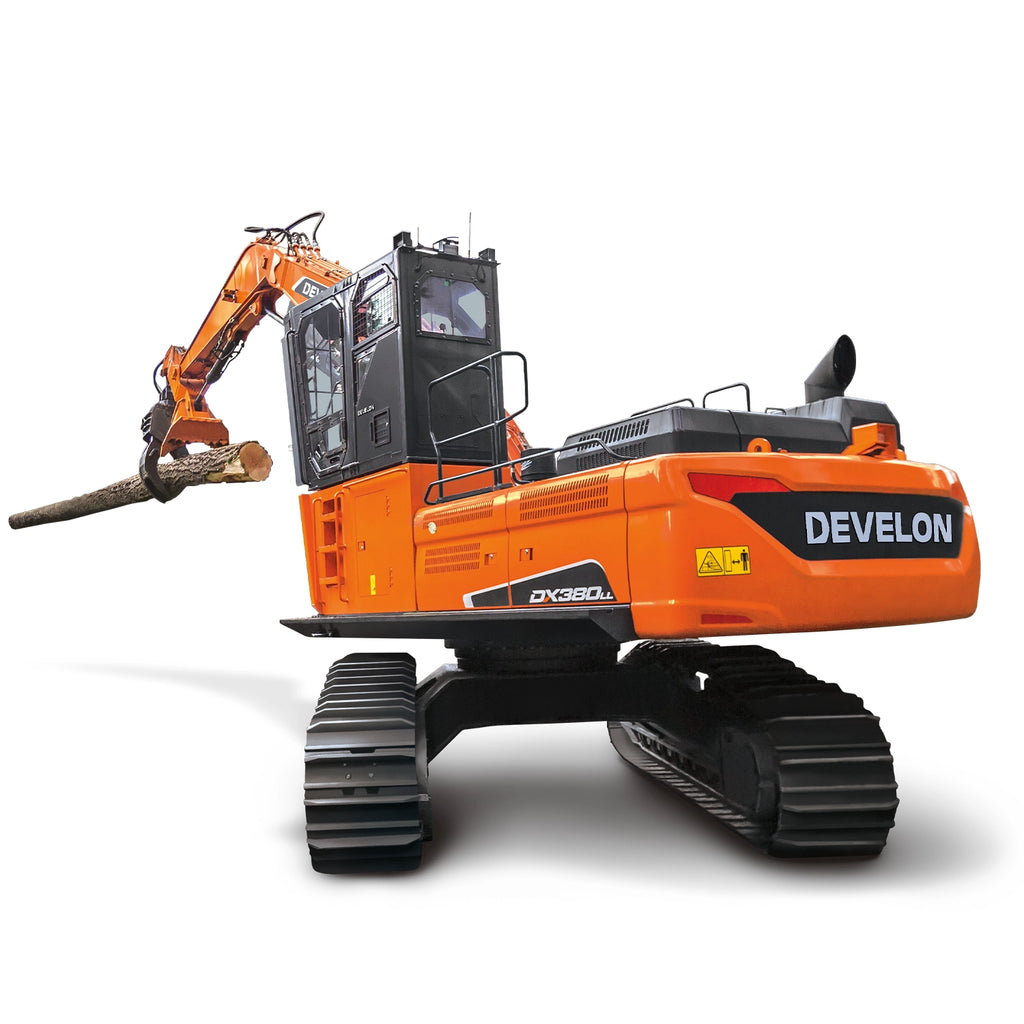

Develon DX380LL-5 Log Loader
Created for Difficult Terrain
With roots in performance and strength, the DEVELON DX380LL-5 log loader takes on the forestry industry’s challenging work environment with its rugged design.
Created to take on difficult terrain, the DX380LL-5 features a high and wide undercarriage design. The undercarriage allows the DX380LL-5 to clear stumps, branches and traverse small inclines while maximizing stability. The tracks feature durable links with double grouser shoes and full-length rock guards. The undercarriage also has heavy-duty top rollers with special clean-out brackets to reduce the risk of downtime while traveling on challenging terrain.
Durability
The upper structure offers superior protection against some of the toughest work environments. It features durable guards along the front, side, the arm cylinder and the boom cylinder. LED lighting helps operators spot obstacles when there is little sunlight. The cab features a 4 ft.riser with guarding and for transport, a hydraulic lift.
The DX380LL-5 offers high swing torque and long reach for quick picking, moving and placing of heavy loads. Contributing to operator productivity, the pattern change valve allows operators to toggle between control patterns without hassling with hydraulic hoses.
Work Comfortably
The optional side-entry forestry cab is certified for Oregon OSHA and British Columbia WCB standards. It features a guarded polycarbonate front window, polycarbonate side and rear windows and a rear secondary exit.
An intelligently designed cab makes it easy to focus on your work. You're surrounded by more foot space, better visibility, and automatic air conditioning with adjustable airflow. Work comfortably with the standard air suspension seat and simple controls.
Reduce Fuel Consumption
Auto-shutdown turns off the engine after reaching a preset idle time, which reduces fuel consumption. Operators can adjust this idle time from 3 to 60 minutes. The Electronic Power Optimizing System (EPOS) links the hydraulic system and engine control for productivity while minimizing fuel consumption.
Choose from Standard Mode for optimized fuel consumption and general working conditions, Power Mode for faster cycle times and heavy-duty work requirements or Economy Mode for reduced fuel consumption in reduced demand applications. Save fuel with auto-idle, and be more productive with precisely controlled hydraulic flow rates.
Road Builder Features
The rugged DX380LL-5 road builder is built to clear paths through the most challenging environments. Designed with a standard excavator cab for lower, smoother transport and a high, wide undercarriage, this heavy-duty road builder cuts through large tracts of land with enhanced efficiency and productivity. Heavy-duty track links and full-length guiding guards give the DX380LL-5 added stability to maneuver while working. Plus, each new road builder can be easily reconfigured with a hydraulic quick coupler and various buckets and thumbs to adjust to various applications or working conditions.
Loan
Lease
Cash in Lieu
Warranty
See participating dealers for details.
*Program disclosure: 0% A.P.R. financing for up to 36 months and the cash-in-lieu rebate are mutually exclusive — select one or the other. Select models also carry an additional rebate that can be combined with either financing or cash in lieu; the up to $16,500 amount shown includes it. Lease options are available separately; contact dealer for terms and custom payment structures. Financing subject to credit approval through an authorized Develon financing provider. Rebate applied at time of purchase. 3 Year / 3,000-Hour Full Coverage standard warranty included with qualifying new Develon equipment purchases. Offers valid on qualifying new Develon models through participating dealers only. See dealer for complete details, eligibility requirements, and program end dates. Offers subject to change without notice.
What Makes the DX380LL-5 Different
53-Metric-Ton Forestry Powerhouse
The DX380LL-5 combines long reach, high swing torque and rugged protection for demanding timber operations.
312.5 hp Net Power
Net power at 1,800 rpm supports heavy lifting and fast forestry cycles.
113,538 lb Operating Weight
The heavy forestry platform provides stability on difficult terrain.
43 ft 4 in Ground Reach
Extended reach combines with a published 38 ft 5 in loading height.
129,876 lbf-ft Swing Torque
High swing torque supports quick placement of heavy timber.
High & Wide Undercarriage
Double-grouser tracks, full-length rock guards and clean-out brackets tackle stumps and uneven ground.
4-Foot Raised Cab
The guarded cab improves visibility and hydraulically lowers for transport.
Log Loader or Road Builder
Purpose-built configurations support timber handling or pioneering and land clearing.
Compare the Log Loader Family
 |  |  |  | |
| DX225LL-7 | DX300LL-7 | DX340LL-7 | DX380LL-5 Viewing | |
|---|---|---|---|---|
| Rated Power (net) | 162.8 hp | 266.6 hp | 284.3 hp | 312.5 hp |
| Ground Reach | 35 ft 5 in | 37 ft 2 in | 40 ft 5 in | 43 ft 4 in |
| Loading Height | 29 ft 3 in | 30 ft 7 in | 33 ft 0 in | 38 ft 5 in |
DX380LL-5 Features & Benefits
Heavy Forestry Performance 5
312.5 hp Engine
Net power at 1,800 rpm handles high-demand forestry work.
129,876 lbf-ft Swing Torque
High torque moves heavy loads quickly and confidently.
95.1 gpm Per Main Pump
Twin main pumps provide strong hydraulic output.
EPOS
Electronic Power Optimizing System links engine and hydraulic controls for productivity and efficiency.
Three Power Modes
Standard, Power and Economy settings match performance to the application.
Durability & Mobility 5
High-Wide Undercarriage
High clearance and a wide stance improve mobility and stability.
Double-Grouser Shoes
Durable links and shoes provide a forestry-ready track system.
Full-Length Rock Guards
Guards protect the undercarriage in debris-filled terrain.
Clean-Out Brackets
Special top-roller brackets reduce material buildup and downtime.
Upper-Structure Guarding
Front, side, arm-cylinder and boom-cylinder guards protect critical areas.
Cab, Efficiency & Versatility 6
Certified Forestry Cab Option
The optional side-entry cab meets Oregon OSHA and British Columbia WCB requirements.
Protected Glazing
Polycarbonate front, side and rear windows and a secondary exit enhance protection.
Air-Suspension Seat
Automatic climate control and simple controls support long shifts.
Auto Idle & Shutdown
Automatic controls reduce fuel use with shutdown adjustable from 3 to 60 minutes.
Pattern Change Valve
Operators can switch control patterns without changing hydraulic hoses.
Road Builder Configuration
A lower standard cab, quick coupler, buckets and thumbs support pioneering work.
Why Buyers Choose the DX380LL-5
312.5 net hp and 113,538 lb operating weight
43 ft 4 in reach and 38 ft 5 in loading height
129,876 lbf-ft maximum swing torque
High-wide undercarriage for difficult terrain
Heavy forestry guarding and LED lighting
Raised cab with hydraulic transport lift
Fuel-saving EPOS, auto idle and shutdown
Log-loader and road-builder configurations
Who Uses the DX380LL-5 and What For
The DX380LL-5 gives large forestry operations the power, reach and protected platform needed for heavy timber handling and demanding pioneering work.
Log Handling
- Truck loading
- High stacking
- Log sorting
- Mill yards
Forestry Terrain
- Remote landings
- Stump clearance
- Small inclines
- Uneven ground
Road Building
- Pioneering
- Land clearing
- Rough grading
- Drainage
Attachments
- Log grapples
- Quick couplers
- Buckets
- Thumbs
By the Numbers
Talk to a person about the DX380LL-5
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
General & Engine
| Operating Weight | 113,538 lb |
| Engine | Scania DC09 089A |
| Cylinders | 5 |
| Rated Power, Net | 312.5 hp @ 1,800 rpm |
| Rated Power, Gross | 318 hp @ 1,800 rpm |
| Maximum Torque, Gross | 976 lbf-ft @ 1,300 rpm |
| Displacement | 568 in³ / 9.3 L |
| Bore × Stroke | 5.1 × 5.5 in |
| Air Cleaner | Three-stage filtering |
| Emissions | EPA Tier 4 |
Hydraulics
| Main Pump Flow | 2 × 95.1 gpm |
| Pilot Pump Flow | 6.3 gpm |
| Work Pressure, Normal | 4,980 psi |
| Work Pressure, Power Boost | 5,263 psi |
| Travel Pressure | 4,980 psi |
| Swing Pressure | 4,552 psi |
| Auxiliary Hydraulics | Two-way and rotate piping |
| Hydraulic Cooling Fan | Variable speed |
Performance
| Swing Speed | 0–7.7 rpm |
| Maximum Swing Torque | 129,876 lbf-ft |
| Travel Speed, Low–High | 1.7–3.0 mph |
| Traction Force / Drawbar Pull | 115,081 lbf |
| Maximum Grade | 70% / 35° |
| Exterior Sound Level | 104 dB(A) |
| Cab Sound Level | 69 dB(A) |
Working Range — US20
| Boom Length | 23 ft 4 in |
| Arm Length | 15 ft 7 in |
| Heel | 8 ft 8 in |
| Maximum Working Reach | 44 ft 2 in |
| Maximum Ground Reach | 43 ft 4 in |
| Maximum Working Depth | 12 ft 5 in |
| Maximum Working Height | 49 ft 2 in |
| Maximum Loading Height | 38 ft 5 in |
| Minimum Swing Radius | 15 ft 7 in |
| Ground Pressure | 13.0 psi |
Dimensions — Forestry Cab
| Tail Swing Radius | 13 ft 0 in |
| Shipping Height | 12 ft 2 in |
| Shipping Length | 56 ft 3 in |
| Shipping Width | 11 ft 11 in |
| Cabin Height | 16 ft 2 in |
| Cab Riser | 3 ft 11 in |
| Upper Structure Width | 11 ft 10 in |
| Tumbler Distance | 14 ft 8 in |
| Overall Track Length | 18 ft 0 in |
| Undercarriage Width | 11 ft 11 in |
| Track Shoe Width | 2 ft 4 in |
| Car Body Clearance | 2 ft 6 in |
| Cab Tilting Angle | 90° |
Refill Capacities
| Fuel Tank | 158.5 gal |
| DEF Tank | 18.5 gal |
| Cooling System | 14.3 gal |
| Engine Oil | 9.5 gal |
| Swing Reduction Units | 2 × 1.1 gal |
| Final Drive, Each Side | 2.4 gal |
| Hydraulic System | 125.5 gal |
| Hydraulic Tank | 100 gal |
Undercarriage & Structure
| Configuration | High-walker, high and wide fixed width |
| Upper Rollers, Each Track | 2 |
| Lower Rollers, Each Track | 9 |
| Track Links, Each Side | 53 |
| Track Shoes | 700 mm double grouser |
| Track Guides | Heavy-duty, full length |
| Mainframe | Heavy-duty reinforced |
| Underbody & Drive Guarding | Standard |
| Integrated Catwalks | Standard |
| Centralized Lubrication | Boom, arm and swing |
Cab & Electrical
| Forestry Cab | Side- or rear-entry |
| ROPS / FOPS | Certified |
| Seat | Heated air suspension |
| Climate Control | Fully automatic HVAC |
| Display | 7-in multi-function LCD |
| Rearview Camera | Standard |
| Side-View Camera | Standard |
| Work Lights | 10 halogen; LED optional |
| System Voltage | 24 V |
| Alternator | 100 A |
| Batteries | 2 × 12 V, 200 Ah |
| Travel Alarm | Standard |
| Telematics | Standard 3-year subscription |
Current North American web values are used for headline specifications. Detailed configuration values are from the official DX380LL-5 US20 forestry-cab sales specification sheet 23900_001_D030823.
