DX225LL-7 | Develon

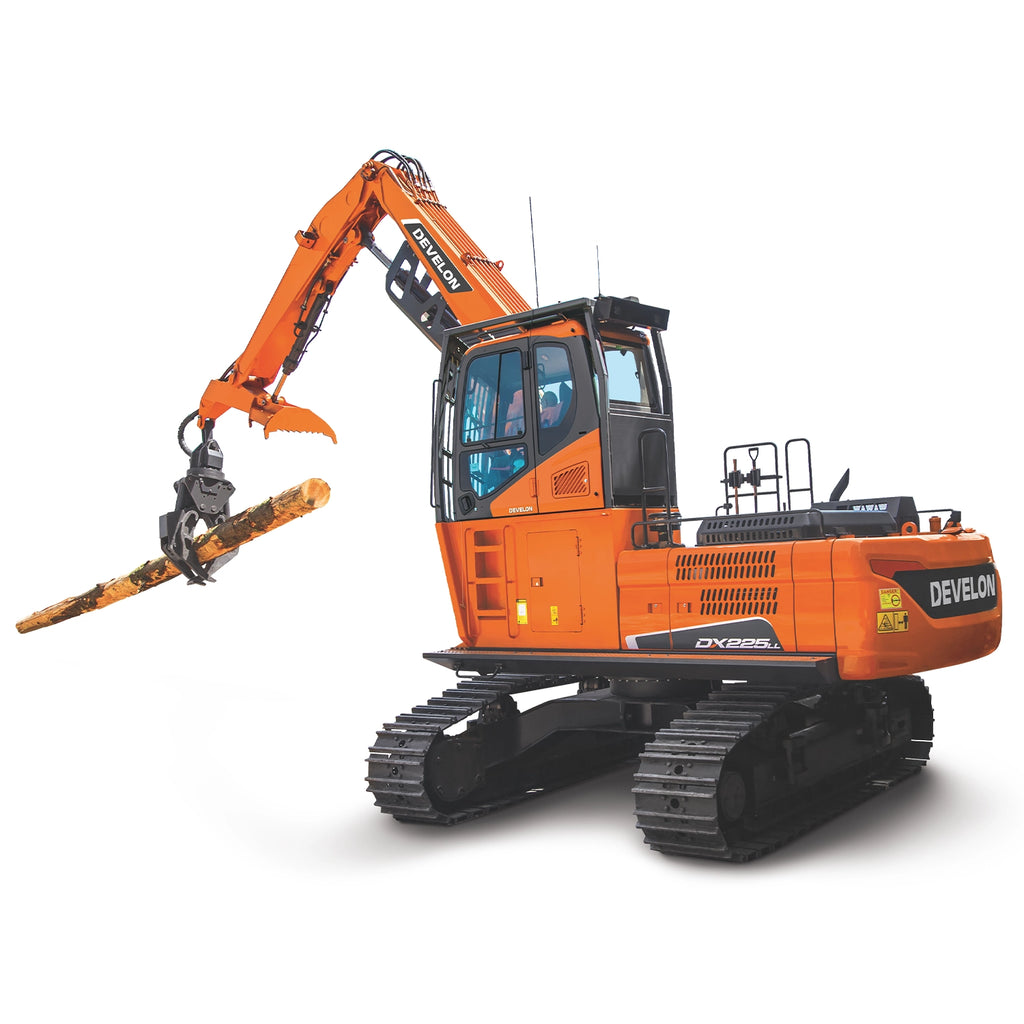

Develon DX225LL-7 Log Loader

Purpose-Built for All-Day Forestry Work

The Develon DX225LL-7 log loader is engineered specifically for demanding forestry applications, combining proven excavator performance with specialized logging features. Increased lifting capacity and higher swing torque allow operators to move heavy logs efficiently, even on uphill terrain. A fine swing function minimizes unwanted machine movement for greater precision and safer load handling, while the conveniently located one-touch power boost provides additional hydraulic lifting force whenever maximum performance is required. A fully guarded high-walker undercarriage, reinforced upper structure, heavy-duty track links, double grouser shoes, and full-length track guards are built to withstand the toughest forestry environments.

Heavy-Duty Protection for Forestry Applications

The DX225LL-7 is equipped with comprehensive machine guarding designed to protect critical components in harsh logging conditions. Reinforced mainframe construction, full under-house guarding, an updated boom cylinder guard, heavy-duty side doors, integral catwalks, and undercarriage protection provide exceptional durability throughout long workdays. The elevated 4-foot cab riser features reinforced front and overhead guarding while maintaining excellent visibility, and the hydraulic 90-degree cab tilt simplifies transportation between jobsites.

Operator Comfort for Long Shifts

An intelligently designed operator station helps reduce fatigue and improve productivity throughout the day. The spacious cab provides increased foot room, excellent visibility, automotive-style heating and air conditioning, and adjustable airflow for year-round comfort. A standard heated air-suspension seat offers multiple adjustments to support operators during long shifts. For maximum protection in demanding forestry environments, an optional side-entry forestry cab is available with Oregon OSHA and British Columbia WCB certification, featuring polycarbonate side and rear windows and an available 32 mm guarded polycarbonate front window.

Excellent Visibility and Operator Awareness

The DX225LL-7 is designed to maximize visibility for safer operation in challenging forestry conditions. Narrow cab pillars create clear sightlines around the machine, while standard LED front and rear work lights improve visibility in low-light environments. Standard rearview and side-view cameras provide a comprehensive view of the surrounding work area, helping operators confidently maneuver and position heavy loads with greater accuracy.

Intelligent Power and Machine Control

The advanced Mechatronics system delivers responsive performance through four selectable work modes, automatic idle, onboard diagnostics, and simplified machine management. Standard auto shutdown helps reduce unnecessary fuel consumption by automatically shutting off the engine after a preset idle period. Inside the cab, a multifunction color LCD display provides maintenance information, attachment presets, fuel consumption data, and live camera views, allowing operators to monitor machine performance while maintaining excellent visibility around the loader.

Built for Maximum Uptime

Extended service intervals and convenient maintenance access help keep the DX225LL-7 working longer with less downtime. Centralized grease points, wide access doors for cooling system maintenance, extended-life boom pivot bushings, and a high-capacity engine air precleaner that removes more than 99 percent of airborne contaminants all contribute to lower maintenance requirements and longer component life. Standard MY DEVELON fleet management enables remote monitoring of machine health, maintenance schedules, and operating performance to reduce ownership costs and maximize productivity.

Efficient Tier 4 Performance

The DX225LL-7 meets current Tier 4 emissions standards using a high-pressure common-rail fuel system combined with cooled exhaust gas recirculation (EGR), a diesel oxidation catalyst (DOC), and selective catalytic reduction (SCR). This advanced emissions technology delivers dependable power, improved fuel efficiency, and environmentally compliant performance for demanding forestry applications.
