Rebates & Special Offers
Get as low as 0% for 60 months* or Free Front-End Loader* in lieu of financing.
Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this CT4058 | Bobcat.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | CT4058 |
| Machine Type: | Compact Tractor |
|
Engine
|
|
|---|---|
| Engine: | 3FT-TL4-U |
| Horsepower: | 57.7 |
|
Performance
|
|
|---|---|
| Operating Weight: | 3745 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 11.9 gal. |
Description

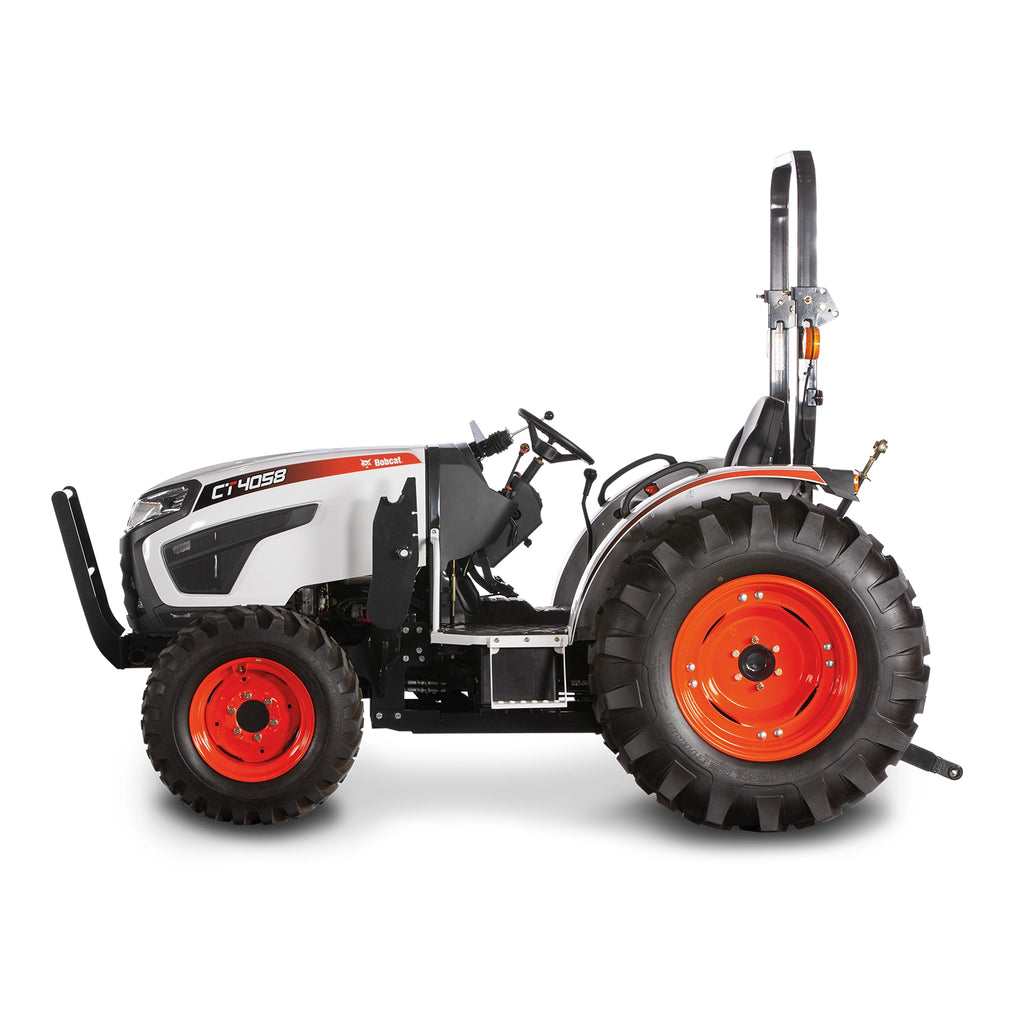

CT 4058 Compact Tractor in Michigan
The powerful CT4058 58-hp compact tractor offers an impressive 2,716-lb. 3-point hitch lift capacity.
- Open workstation with Roll-Over Protective Structure
- Category 1 three-point hitch for using implements
- Hydrostatic transmission
- Standard rear PTO/optional mid-PTO
- Standard four-wheel drive
Overview
- With the highest horsepower in the Bobcat 4000 platform lineup, the CT4058 58-hp compact tractor offers maximum power and work efficiency and features a hydrostatic transmission.
- The convenient open workstation with Roll-Over Protective Structure saves time getting on and off the tractor.
- Accomplish more using a variety of implements with the Category 1 three-point hitch.
- Experience intuitive front-end loader control and enhanced ease of use with the linked pedal lever option that increases rpm as you engage the travel pedal, making operation feel similar to driving a car.
- Enjoy standard four-wheel drive and rear PTO, with the option for mid-PTO.
- The fast and powerful CT4058 small farm tractor provides the versatility you need for tasks like mowing your property, cleaning out stalls, hauling feed, grading riding areas or planting a food plot. Whatever the project, this tractor is up to the challenge.
| Specification | CT4058 HST |
|---|---|
| Horsepower | 57.7 hp |
| Lift Capacity @ 24" Behind Lift Point | 2716 lbs |
| Front End Loader Lift Capacity (Max Height) | 1795 lbs |
| PTO Power | 33.7 kW |
| Width | 69.8 in |
| Turning Radius | 8.6 ft |
| Wheelbase | 71.2 in |
| Transmission Type | 3-Range Hydrostatic (HST) |
What Makes the CT4058 Different
The Highest-Horsepower Tractor in the CT Line
The CT4058 HST is the most powerful CT Bobcat builds — 57.7 horsepower from a turbocharged engine on the largest 4000-platform frame, with clutch-free hydrostatic drive. It pairs the biggest engine in the line with the easiest operation for the heaviest property and acreage work.
57.7 HP Turbocharged Daedong Diesel
A turbocharged 3-cylinder Daedong 3FT-THL4-U produces 57.7 gross horsepower at 2,750 rpm and meets Tier 4 emissions standards — the highest output in the CT line. It puts 45.1 horsepower to the independent PTO for the largest rotary cutters, tillers, graders and snowblowers, with turbo torque that holds at altitude.
Three-Range Hydrostatic Drive — 18 mph
An infinite 3-range hydrostatic transmission pairs clutch-free twin pedals with cruise control and the linked-pedal option for car-like loader control. Creep low for tillage and grading, mid-range for loader cycles, and up to 18 mph in high — the fastest in the line — with standard 4x4 and wet multi-disc brakes.
2,716 lb Three-Point Lift
The Category 1 hitch hoists 2,716 lbs measured 24 inches behind the lift point — far beyond the compacts. That carries the heaviest box blades, 96-inch land graders, large rotary cutters and bale equipment, with a Hydraulic Position Control System holding a repeatable working depth.
16.5 GPM Hydraulics & Independent PTO
A total flow of 16.5 gpm — 9.6 to the implement circuit plus 6.9 for steering — feeds the FL9 loader, BH86 backhoe and hydraulic attachments with serious volume. An independent rear PTO at 540 rpm and a 2,119-rpm mid PTO switch on and off with the flip of a switch, no clutching.

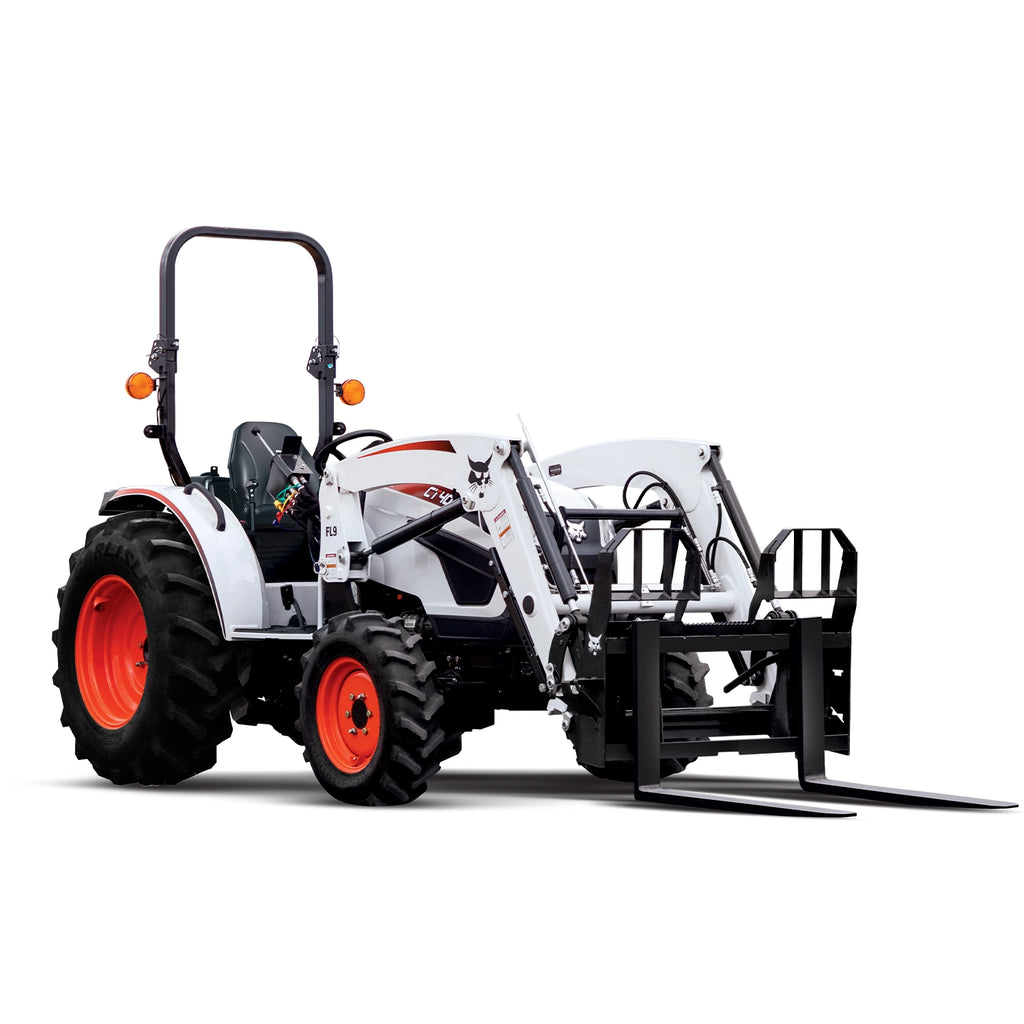

FL9 Loader — 1,795 lb Lift to 103 in
The matched FL9 front loader raises 1,795 lbs to a 103-inch bucket pivot-pin height — more lift and reach than the compact-class loaders, for clearing tall trailers, stacking and bulk material. Add the BH86 backhoe for digging footings, trenching and stump work on serious projects.
Full Cat 1 Implement Range
The CT4058 swings the heaviest end of the Category 1 catalog: box blades to 84 inches, land graders to 96 inches, large rotary cutters, tillers, disc harrows, snowblowers, bale unrollers, pallet forks to 4,000 lb, grapples and rock buckets. It's a true work platform for large acreage and livestock operations.
Big, Stable, High-Clearance Frame
At 3,745 lbs and 70.3 inches wide on a 71.2-inch wheelbase, the CT4058 shares the largest, most planted CT frame. A full 15.3 inches of ground clearance clears rough terrain and tall stubble, an 8.6-foot turning radius keeps it nimble, and a foldable ROPS, suspension seat, tilt steering and full lighting keep long days comfortable.
Compare the Tractor Family
From sub-compact chore tractors to utility-class acreage machines — see how Bobcat® tractors step up in power, lift and capability across five platforms.
← Swipe to see all specs →
| Platform & Models | Engine HP | PTO HP | Transmission | Loader Lift Capacity | Loader Lift Height | 3-Point Lift Capacity | Mid PTO | Travel Speed |
|---|---|---|---|---|---|---|---|---|
|
1000 Platform
Sub-Compact Tractor CT1021, CT1025
Open Station
|
21.0–24.5 hp | 16.3–18.8 hp | Hydrostatic | Up to 608 lb | 73.0 in | Up to 700 lb | 2,200 rpmStandard | Up to 11.1 mph |
|
2000 Platform
Compact Tractor CT2025, CT2035, CT2040, CT2535, CT2540
Open Station or Cab
|
24.5–39.6 hp | 21.8–31.9 hp22.2 hp (MST) | Manual Shift or Hydrostatic | Up to 1,389 lb | Up to 99.4 in | Up to 1,631 lb | 1,976–1,988 rpmOptional | Up to 14.0 mph |
|
4000 PlatformYou're viewing
Compact Tractor CT4045, CT4050, CT4058, CT4545, CT4558
Open Station or Cab
|
44.9–57.7 hp | 32.8–45.1 hp45.6 hp (SST) | Manual Synchro Shuttle or Hydrostatic | Up to 1,795 lb | Up to 103.2 in | Up to 2,716 lb | 2,119 rpmOptional (HST only) | Up to 18.0 mph |
|
5000 Platform
Compact Tractor CT5545, CT5550, CT5555, CT5558
Cab
|
45.0–57.7 hp | 33.9–48.3 hp | Electronic Hydrostatic | Up to 2,346 lb | Up to 101.1 in | Up to 3,177 lb | 2,103 rpmOptional | Up to 17.5 mph |
|
6000 Platform
Utility Tractor UT6066, UT6566, UT6573
Open Station or Cab
|
66.4–73.1 hp | 57.4–62.1 hp | Powershuttle | Up to 2,813 lb | 129.3 in | Up to 3,898 lb | N/A | Up to 19.9 mph |
At a Glance
Sub-Compact Tractor
- Excels at mowing and light-duty loader work.
- Compact size maneuvers easily inside barns, sheds and near houses.
- Versatile, user-friendly operation for small-scale jobs.
- Ideal for navigating tight spaces while delivering powerful performance.
Compact Tractor
- Enhanced lift capacity, ground clearance and horsepower vs. the 1000 platform.
- Available with hydrostatic or manual 9×3 transmission for consistent speed over distance.
- Supports larger attachments and implements for bigger tasks.
- Cab models add heating and air conditioning for operator comfort.
4000 Platform
Compact Tractor
- Heavy-duty power for brush clearing, material hauling and landscaping.
- Hydrostatic or synchro shuttle transmission for a wide range of gear options.
- Faster speeds up to 18 mph for tasks farther from home.
- Compatible with larger implements and attachments.
Compact Tractor
- Greater lift capacity and an ergonomic cab for groundskeeping, livestock and snow removal.
- Electronic hydrostatic transmission for smooth acceleration and easy direction changes.
- PTO cruise and standard cruise control maintain consistent rpm and travel speed.
- Telescopic lower links and up to three pairs of rear remote hydraulics.
Utility Tractor
- Cab and open-station options designed for larger acreage tasks.
- Up to 73 hp with a Category 2 3-point hitch for bigger implements.
- Self-leveling front-end loader, electronic 4WD and powershuttle with electronic clutch.
- Increased lift capacity for farm chores like lifting and moving hay.
Certain specifications are based on engineering calculations and are not actual measurements. Specifications are provided for comparison purposes only and are subject to change without notice. Specifications for your individual Bobcat® tractor will vary based on normal variations in design, manufacturing, operating conditions and other factors.
Tractor Tires & Applications
Match the tire to your ground and your work. These ratings show how each Bobcat® tractor tire type performs across surfaces and conditions.
← Swipe to see all conditions →
| Dirt | Sand | Concrete | Turf / Grass | Ice | Snow | Mud | On-Road Ride Comfort | Puncture Resistance | Sidewall Strength | |
|---|---|---|---|---|---|---|---|---|---|---|
| MULTI-USE* | ||||||||||
| TURF** | ||||||||||
| INDUSTRIAL | ||||||||||
| AG | ||||||||||
| INDUSTRIAL / AG*** |
*Multi-use radial tires available on utility tractors only.
**Turf tires available on sub-compact and compact tractors only.
***Ind/Ag R1/R4 hybrid tires available on compact tractors only.
Attachments & Implements by Platform
Availability for the most popular Bobcat® tractor attachments and implements, by platform. Contact your Carleton Equipment dealer to confirm fit and sizing for your machine.
← Swipe to see all attachments →
| Model | Mid-Mount Mower | Rotary Cutter | Box Blade | Tiller | Disc Harrow | Brush Grapple | Land Grader | Angle Blade | Tine Rake | Pallet Forks | Front-Mount Snowblower | 3-Point Snowblower | Quick Hitch | Auger / Post Hole Digger | Finish Mower |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT10 | X | X | X | X | – | X | X | X | X | – | X | X | X | X | X |
| CT20 OS | Z | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| CT25 Cab | Y | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| CT4x | – | X | X | X | X | ∗ | X | X | X | X | X | X | X | X | X |
| CT55 | – | X | X | X | X | ∗ | X | X | X | X | X | X | X | X | X |
| UT6x | – | X | X | X | X | X | X | X | X | X | – | Y | X | X | – |
CT10 = 1000 platform · CT20 OS / CT25 Cab = 2000 platform · CT4x = 4000 platform · CT55 = 5000 platform · UT6x = 6000 platform.
CT4058 Features & Benefits
Performance 10
Independent PTO
The CT4058's independent PTO lets you engage or disengage the PTO with the flip of a switch — no stopping the tractor, no clutch. That's a real time-saver on stop-and-go jobs like augering a row of post holes, where you restart the implement again and again as you move from one to the next.
Power Take-Off (PTO)
Power take-off is the heart of a tractor's versatility — till the garden, put in a food plot, clear weeds along ditches and pastures, bore fence-post holes in tough soil, or mow the whole acreage in an afternoon. The CT4058 carries a standard rear PTO plus a mid PTO, and paired with the three-point hitch it drives implement after implement with ease.
Three-Point Hitch
The three-point hitch turns the CT4058 into a true do-anything machine — mowing, tilling, driveway grading, raking, snow moving and more. It accepts the full range of Category 1 implements and is designed to make hooking them up quick and easy.
Three Tire Options
The right tire gets the most out of your tractor, so the CT4058 can be fitted with one of three types to match your ground:
- Agricultural: deep, self-cleaning lugs grip in soft soil and mud and add pull behind heavy loads and implements.
- Turf: a gentler tread that protects lush lawns and finished landscaping from scuffing.
- Industrial: wear- and puncture-resistant, with a wide tread for solid traction across nearly any surface.
Maximum Maneuverability
Big-property work throws a new challenge at you every day, and the CT4058 is built to take it. A well-balanced design and a tight turning radius keep it responsive and easy to place, while high ground clearance lets you keep working over uneven, wet or muddy terrain. A stable wheelbase spreads weight evenly for sure footing on slopes and steadier towing — and depending on transmission, steering brakes can help pivot the tractor tightly on the inside wheel.
Four-Wheel Drive
A working tractor lives and dies by traction. The CT4058 comes with four-wheel drive you can put to work the instant a hill, a wet patch or a heavy load calls for it.
Roll Over Protective Structure (ROPS)
A ROPS is standard on non-cab models and protects the operator in a rollover, as long as it's locked upright with the seatbelt buckled. When clearance is tight, the foldable ROPS drops down to clear branches, doorways and trailer decks, then raises right back up.
Leading Lift Capacity
Strong lift expands what your implements can do, and Bobcat compact tractors are known for class-leading three-point-hitch lift capacity — so the CT4058 can raise and carry heavier implements with confidence and get more out of every attachment.
Turbo-Charged Performance
Equipped with a turbocharger, the CT4058 delivers consistently strong performance and impressive low-end torque that doesn't let up — even at higher altitudes where naturally aspirated engines lose power.
Hydrostatic Transmission (3-Range HST)
The CT4058 HST uses a 3-range hydrostatic transmission that changes speed through hydraulic pressure, much like driving a car — you only pause to switch ranges. A simple twin-pedal layout (one pedal forward, one reverse) makes direction changes quick, which is ideal for loader work, stall cleaning, mowing and tight-quarters maneuvering, and especially easy for newer operators.
Comfort 5
Operator-Friendly Controls
The CT4058 is built to be easy to run, with controls that help you get more done with less effort. The levers fall naturally to hand, and conveniences like power steering and cruise control let you manage the tractor and its implements with confidence.
Work Lights
When the light goes, the CT4058 keeps working. Bright headlights light the job in front of you in low light, and a long-life LED tail lamp keeps you visible from behind on trails, lanes and back roads.
Premium Comfort
The operator area is laid out for comfortable hours in the seat, with controls and gauges arranged for easy use and an illuminated dash you can read in any light. Fender grips on each side (on select machines) make getting on and off easy, the quiet low-vibration engine eases the day, and extras like an optional rubber floor mat, adjustable seatbelt and cup holder round out a station that's easy to use and easy to enjoy.
Linked Pedal Lever Option
Available on the 2000 platform and up with hydrostatic drive, the linked-pedal option raises engine rpm as you press the travel pedal — so the CT4058 responds much like a car. It makes front-loader control especially intuitive and smooths out a wide range of everyday jobs.
Deluxe Suspension Seat
A comfortable seat keeps you working longer without feeling beat up at day's end. The deluxe suspension seat (on select models) soaks up the vibration and bumps of the job, fully adjusts to fit any operator, and adds a fold-down right-hand armrest for extra support — so you can finish the mowing, clean out the barn or clear one more pasture in comfort.
Uptime-Protection 3
The Bobcat Dealer Network
Great machines need great support behind them. Bobcat's dealer network delivers local authorized service, warranty work and parts availability that's hard to beat — and a dealer like Carleton Equipment, Michigan's authorized Bobcat dealer with 7 locations, keeps your CT4058 running for the long haul.
24-Month, 1,500-Hour Warranty
Your CT4058 is backed by a strong factory warranty: 24 months against defects in materials and workmanship, or 1,500 hours of use — whichever comes first.
Machine Protection
Thoughtful details help the CT4058 shrug off everyday wear:
- A heavy-duty polymer fuel tank keeps fuel clean and won't rust or contaminate.
- A brush guard — included with the front loader, or available separately — shields the front end as you push through brush, branches and debris.
- The streamlined metal hood improves sightlines from the seat and protects the engine and components from dirt and debris.
Serviceability 3
One-Side Maintenance
Maintenance is easy when everything's in reach. The CT4058 keeps its daily checks, fluid fills and filters on one side of the engine, so routine upkeep takes only minutes and helps keep the tractor at peak performance.
One-Piece Engine Hood
There are no side panels to wrestle off — the one-piece hood lifts on an air-cylinder assist to open the entire engine bay at once, putting virtually every major service point right in front of you.
All-In-One Fuse and Relay Box
Fuses and relays sit together in one central box, so replacing a fuse or tracking down an electrical issue is quick and painless.
Versatility 1
Attachment Versatility
For the money, few machines stretch as far as a compact tractor, and Bobcat backs the CT4058 with a deep catalog of implements to maximize your return. Mow a clean, professional cut around the house, auger holes for new trees, clean out the barn or move hay, grade the gravel drive, or clear snow from the house and outbuildings — between the available attachments and 3-point implements, the job list it'll tackle is a long one.
Why Buyers Choose the CT4058
The highest-horsepower tractor in the CT line — 57.7 HP turbocharged diesel
Clutch-free 3-range hydrostatic drive with cruise and the linked-pedal option — the easiest way to run a big tractor
2,716 lb Category 1 three-point lift plus 45.1 PTO HP — runs 96" graders and the heaviest implements
Matched FL9 loader lifts 1,795 lbs to a 103" pivot-pin height for tall trailers and bulk material
16.5 gpm hydraulic flow plus an independent PTO — confident attachment power and fast loader cycles
15.3" ground clearance on the largest CT frame, up to 18 mph travel — capable and fast across big property
Bobcat dealer parts, service and warranty stand behind every machine
Who Uses the CT4058 and What For
The Bobcat CT4058 is the highest-horsepower CT — 57.7 hp on the largest 4000-platform frame with clutch-free hydrostatic drive — for owners of large acreage and working farms who want maximum power with the easiest operation for the heaviest ground-engaging implements.

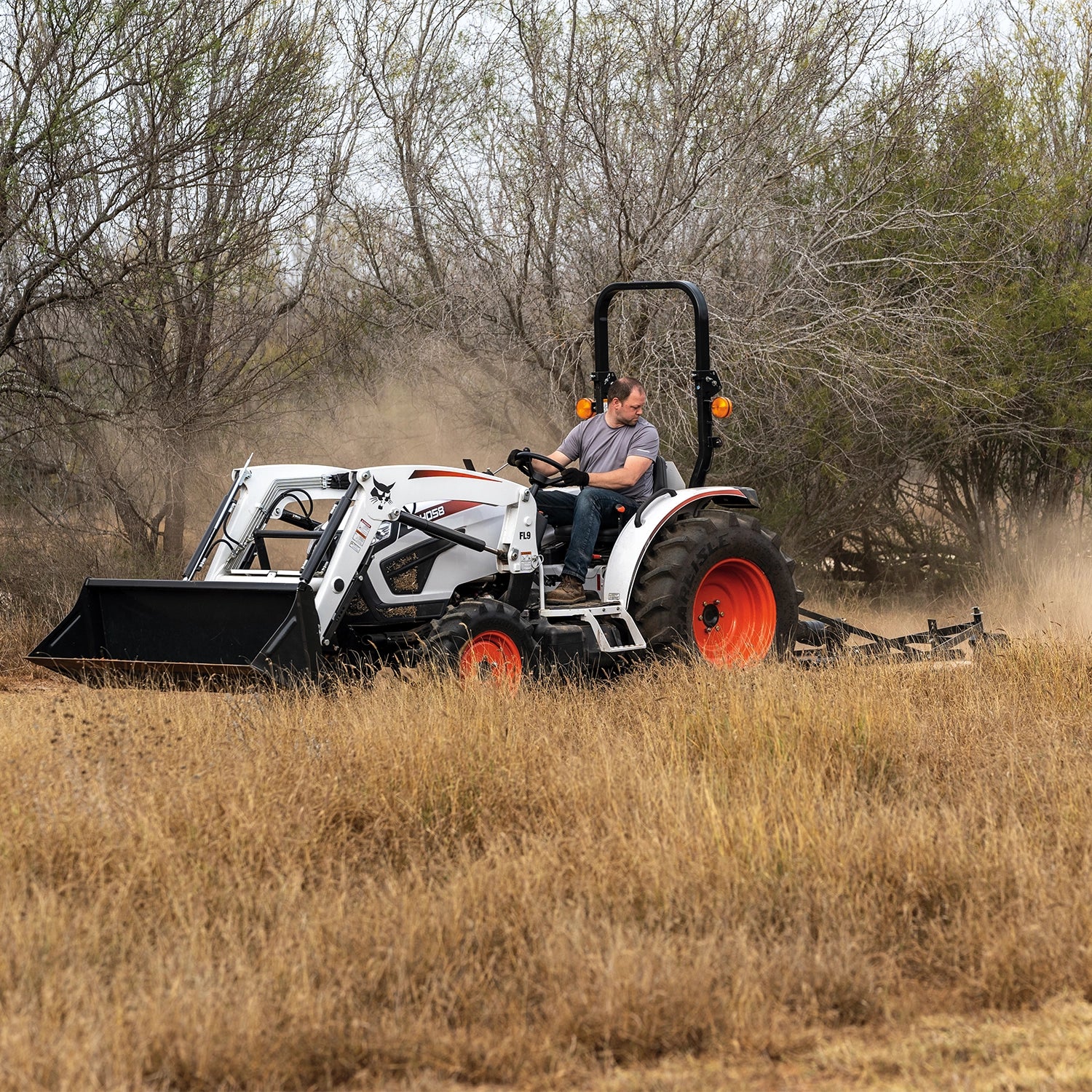

- Brush hogging and rotary cutting large fields
- Grading and reshaping with 84–96" land graders and box blades
- Tilling and seedbed prep with 84" tillers and disc harrows
- Heavy PTO work backed by the line's biggest engine
- Round and square bale handling with spears and unrollers
- Cleaning pens and stalls with the FL9 loader
- Loading and stacking feed and bedding at scale
- Filling tanks and spreading with broadcast spreaders
- Lifting and stacking with the FL9 front loader (1,795 lb)
- Setting pallets with forks up to 4,000 lb capacity
- Digging and loading rock with 68–74" rock buckets
- Adding the BH86 backhoe for deeper digging projects
- Clearing with a 72" front-mount or 74" 3-point snowblower
- Pushing and angling snow with an 84–96" blade
- Easy hydrostatic control for repeatable snow passes
- Covering large lots fast at up to 18 mph
Full Specifications
General
| Condition | Showroom |
| Machine Type | Compact Tractor |
Engine
| Engine Make | Daedong |
| Engine Model | 3FT-TL4-U |
| Displacement | 111.4 cu in |
| Fuel | Diesel |
| Horsepower | 57.7 |
| Emissions | Tier 4 |
| Rated Speed | 2,750 rpm |
| Cylinders | 3 |
Performance
| Bucket Hinge Pin Height | 103.2 in (w/ FL9 loader) |
| 3-Point Lift Capacity | 2,716 lbs (24 in. behind lift point) |
| FEL Lift Capacity (Max Height) | 1,795 lbs (at max height) |
| Travel Speed | 18 mph (fwd) / 12.6 mph (rev) |
Hydraulics
| Total Hydraulic Flow | 16.5 gpm (9.6 implement / 6.9 steering) |
PTO & 3-Point Hitch
| 3-Point Hitch | Category 1 |
| 3-pt Lift Control | Hydraulic Position Control System |
| Rear PTO System | Independent |
| Rear PTO Horsepower | 45.1 hp |
| Rear PTO Speed | 540 rpm (rear) / 2,119 rpm (mid) |
Drive System
| Transmission Type | Infinite, 3-Range Hydrostatic |
| Forward Ranges | 3 |
| Traction (Drive) | 4x4 |
| Brake Type | Wet Multi-Disc |
Dimensions & Weight
| Height | 97.4 in (ROPS) |
| Length | 125.5 in |
| Width | 70.3 in |
| Operating Weight | 3745 lb |
| Wheelbase | 71.2 in |
| Turning Radius | 8.6 ft (103.5 in) |
| Ground Clearance | 15.3 in |
| Fuel Tank | 11.9 gal. |
Features
| ROPS (Approved, Fold-Down) | ■ Standard |
| Adjustable Seat | ■ Standard |
| Safety Seat Switch | ■ Standard |
| Tilt Steering Wheel | ■ Standard |
| Rear Hydraulics (1 pair; 2nd pair optional) | ■ Standard |
| Glow Plug Engine Pre-Heat | ■ Standard |
| Spark Arrestor Muffler | ■ Standard |
| Cup Holder | ■ Standard |
| Toolbox | ■ Standard |
| Head Lights | ■ Standard |
| Tail Lights | ■ Standard |
| Brake Lights | ■ Standard |
| Turn Signals & Hazard Flashers | ■ Standard |
| Horn | ■ Standard |
| Mid PTO | ○ Optional |
| Cruise Control | ○ Optional |
| Rear Work Lights | ○ Optional |
| Side Mirror | ○ Optional |
| Cab Enclosure | — Not Available (open-station HST variant) |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
Rebates & Special Offers
Get as low as 0% for 60 months* or Free Front-End Loader* in lieu of financing.
Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this CT4058 | Bobcat.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | CT4058 |
| Machine Type: | Compact Tractor |
|
Engine
|
|
|---|---|
| Engine: | 3FT-TL4-U |
| Horsepower: | 57.7 |
|
Performance
|
|
|---|---|
| Operating Weight: | 3745 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 11.9 gal. |
