General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | CT4055 |
| Machine Type: | Compact Tractor |
|
Engine
|
|
|---|---|
| Engine: | 3FT-TL4 |
| Horsepower: | 50.3 |
|
Performance
|
|
|---|---|
| Operating Weight: | 3745 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 11.9 gal. |
Description

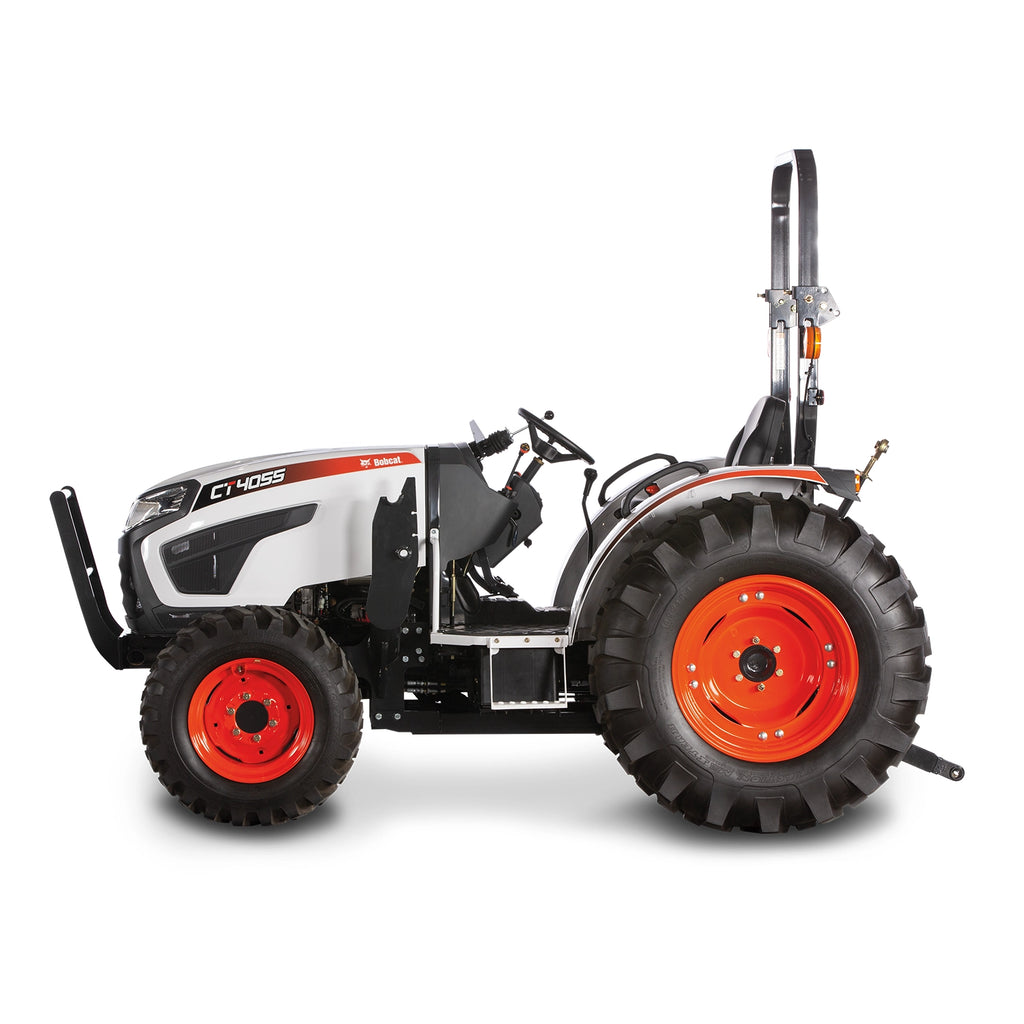

CT 4055 Compact Tractor in Michigan
This turbo-charged, open-cab 55-hp tractor features shift-on-the-fly manual synchro transmission.
- Open workstation with Roll-Over Protective Structure
- Category 1 three-point hitch for using implements
- Standard rear PTO
- Standard four-wheel drive
Overview
- The CT4055 compact tractor features a manual synchro shuttle transmission for shift-on-the-fly functionality and an open workstation with a Roll-Over Protective Structure, for quickly getting on and off the tractor throughout the day.
- With more horsepower to run heavy-duty attachments and implements, you can mow large properties, grade driveways, haul heavy materials or do serious digging with the 55-hp, turbo-charged CT4055.
- This heavy-duty work companion comes standard with rear PTO and four-wheel drive, along with a Category 1 three-point hitch for using an array of implements to get more done on your land.
| Specification | CT4055 SST |
|---|---|
| Horsepower | 50.3 hp |
| Lift Capacity @ 24" Behind Lift Point | 2716 lbs |
| PTO Power | 49.6 hp |
| Width | 69.8 in |
| Turning Radius | 8.6 ft |
| Wheelbase | 71.2 in |
| Transmission Type | Manual 8x8 Synchro Shuttle |
What Makes the CT4055 Different
The Most Powerful Tractor in the CT Line
The CT4055 SST tops the entire CT lineup — 50.3 horsepower and a class-leading 49.6 horsepower at the PTO from a turbocharged engine, on Bobcat's largest 4000-platform frame. It's the choice when raw implement power on big acreage matters most.
50.3 HP Turbo Diesel — 49.6 PTO HP
A turbocharged 3-cylinder Daedong 3FT-TL4-U produces 50.3 gross horsepower at 2,750 rpm and meets Tier 4 emissions standards. Paired with the geared synchro transmission, it puts a remarkable 49.6 horsepower to the PTO — the most in the CT line — for the largest rotary cutters, tillers, graders and snowblowers.
8×8 Synchro Shuttle Transmission
The SST runs a manual 8×8 synchro shuttle with shift-on-the-fly gear changes — the closest feel to a stick-shift automobile. Eight matched forward and reverse gears (17.5 mph forward, 17 mph reverse) make it ideal for loader cycles and ground-engaging work where you want direct gear control and full engine power to the implement.
2,716 lb Three-Point Lift
The Category 1 hitch hoists 2,716 lbs measured 24 inches behind the lift point — far beyond the compacts. That carries the heaviest box blades, 96-inch land graders, large rotary cutters and bale equipment, with a Hydraulic Position Control System holding a repeatable working depth.
14.1 GPM Hydraulics & Independent PTO
A total flow of 14.1 gpm — 9.6 to the implement circuit plus 4.5 for steering — feeds the front loader and hydraulic attachments with the volume big jobs demand. An independent rear PTO at 540 rpm engages and disengages with the flip of a switch, no clutching. (Rear remote hydraulics are available as an option.)
Full Cat 1 Implement Range
The CT4055 swings the heaviest end of the Category 1 catalog: box blades to 84 inches, land graders to 96 inches, large rotary cutters, tillers, disc harrows, snowblowers, bale unrollers, pallet forks, grapples and rock buckets — paired with the 4000-platform FL9 front loader and BH86 backhoe. It's a true work platform for large acreage and livestock operations.
Big, Stable, High-Clearance Frame
At 3,745 lbs and 69.8 inches wide on a 71.2-inch wheelbase, the CT4055 shares the largest, most planted CT frame. A full 15.3 inches of ground clearance clears rough terrain and tall stubble, an 8.6-foot turning radius keeps it nimble, and a foldable ROPS, tilt steering and full lighting keep long days comfortable.
Compare the Tractor Family
From sub-compact chore tractors to utility-class acreage machines — see how Bobcat® tractors step up in power, lift and capability across five platforms.
← Swipe to see all specs →
| Platform & Models | Engine HP | PTO HP | Transmission | Loader Lift Capacity | Loader Lift Height | 3-Point Lift Capacity | Mid PTO | Travel Speed |
|---|---|---|---|---|---|---|---|---|
|
1000 Platform
Sub-Compact Tractor CT1021, CT1025
Open Station
|
21.0–24.5 hp | 16.3–18.8 hp | Hydrostatic | Up to 608 lb | 73.0 in | Up to 700 lb | 2,200 rpmStandard | Up to 11.1 mph |
|
2000 Platform
Compact Tractor CT2025, CT2035, CT2040, CT2535, CT2540
Open Station or Cab
|
24.5–39.6 hp | 21.8–31.9 hp22.2 hp (MST) | Manual Shift or Hydrostatic | Up to 1,389 lb | Up to 99.4 in | Up to 1,631 lb | 1,976–1,988 rpmOptional | Up to 14.0 mph |
|
4000 PlatformYou're viewing
Compact Tractor CT4045, CT4050, CT4058, CT4545, CT4558
Open Station or Cab
|
44.9–57.7 hp | 32.8–45.1 hp45.6 hp (SST) | Manual Synchro Shuttle or Hydrostatic | Up to 1,795 lb | Up to 103.2 in | Up to 2,716 lb | 2,119 rpmOptional (HST only) | Up to 18.0 mph |
|
5000 Platform
Compact Tractor CT5545, CT5550, CT5555, CT5558
Cab
|
45.0–57.7 hp | 33.9–48.3 hp | Electronic Hydrostatic | Up to 2,346 lb | Up to 101.1 in | Up to 3,177 lb | 2,103 rpmOptional | Up to 17.5 mph |
|
6000 Platform
Utility Tractor UT6066, UT6566, UT6573
Open Station or Cab
|
66.4–73.1 hp | 57.4–62.1 hp | Powershuttle | Up to 2,813 lb | 129.3 in | Up to 3,898 lb | N/A | Up to 19.9 mph |
At a Glance
Sub-Compact Tractor
- Excels at mowing and light-duty loader work.
- Compact size maneuvers easily inside barns, sheds and near houses.
- Versatile, user-friendly operation for small-scale jobs.
- Ideal for navigating tight spaces while delivering powerful performance.
Compact Tractor
- Enhanced lift capacity, ground clearance and horsepower vs. the 1000 platform.
- Available with hydrostatic or manual 9×3 transmission for consistent speed over distance.
- Supports larger attachments and implements for bigger tasks.
- Cab models add heating and air conditioning for operator comfort.
4000 Platform
Compact Tractor
- Heavy-duty power for brush clearing, material hauling and landscaping.
- Hydrostatic or synchro shuttle transmission for a wide range of gear options.
- Faster speeds up to 18 mph for tasks farther from home.
- Compatible with larger implements and attachments.
Compact Tractor
- Greater lift capacity and an ergonomic cab for groundskeeping, livestock and snow removal.
- Electronic hydrostatic transmission for smooth acceleration and easy direction changes.
- PTO cruise and standard cruise control maintain consistent rpm and travel speed.
- Telescopic lower links and up to three pairs of rear remote hydraulics.
Utility Tractor
- Cab and open-station options designed for larger acreage tasks.
- Up to 73 hp with a Category 2 3-point hitch for bigger implements.
- Self-leveling front-end loader, electronic 4WD and powershuttle with electronic clutch.
- Increased lift capacity for farm chores like lifting and moving hay.
Certain specifications are based on engineering calculations and are not actual measurements. Specifications are provided for comparison purposes only and are subject to change without notice. Specifications for your individual Bobcat® tractor will vary based on normal variations in design, manufacturing, operating conditions and other factors.
Tractor Tires & Applications
Match the tire to your ground and your work. These ratings show how each Bobcat® tractor tire type performs across surfaces and conditions.
← Swipe to see all conditions →
| Dirt | Sand | Concrete | Turf / Grass | Ice | Snow | Mud | On-Road Ride Comfort | Puncture Resistance | Sidewall Strength | |
|---|---|---|---|---|---|---|---|---|---|---|
| MULTI-USE* | ||||||||||
| TURF** | ||||||||||
| INDUSTRIAL | ||||||||||
| AG | ||||||||||
| INDUSTRIAL / AG*** |
*Multi-use radial tires available on utility tractors only.
**Turf tires available on sub-compact and compact tractors only.
***Ind/Ag R1/R4 hybrid tires available on compact tractors only.
Attachments & Implements by Platform
Availability for the most popular Bobcat® tractor attachments and implements, by platform. Contact your Carleton Equipment dealer to confirm fit and sizing for your machine.
← Swipe to see all attachments →
| Model | Mid-Mount Mower | Rotary Cutter | Box Blade | Tiller | Disc Harrow | Brush Grapple | Land Grader | Angle Blade | Tine Rake | Pallet Forks | Front-Mount Snowblower | 3-Point Snowblower | Quick Hitch | Auger / Post Hole Digger | Finish Mower |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT10 | X | X | X | X | – | X | X | X | X | – | X | X | X | X | X |
| CT20 OS | Z | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| CT25 Cab | Y | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| CT4x | – | X | X | X | X | ∗ | X | X | X | X | X | X | X | X | X |
| CT55 | – | X | X | X | X | ∗ | X | X | X | X | X | X | X | X | X |
| UT6x | – | X | X | X | X | X | X | X | X | X | – | Y | X | X | – |
CT10 = 1000 platform · CT20 OS / CT25 Cab = 2000 platform · CT4x = 4000 platform · CT55 = 5000 platform · UT6x = 6000 platform.
CT4055 Features & Benefits
Performance 10
Independent PTO
The CT4055's independent PTO lets you engage or disengage the PTO with the flip of a switch — no stopping the tractor, no clutch. That's a real time-saver on stop-and-go jobs like augering a row of post holes, where you restart the implement again and again as you move from one to the next.
Power Take-Off (PTO)
Power take-off is the heart of a tractor's versatility — till the garden, put in a food plot, clear weeds along ditches and pastures, bore fence-post holes in tough soil, or mow the whole acreage in an afternoon. The CT4055 carries a standard rear PTO plus a mid PTO, and paired with the three-point hitch it drives implement after implement with ease.
Three-Point Hitch
The three-point hitch turns the CT4055 into a true do-anything machine — mowing, tilling, driveway grading, raking, snow moving and more. It accepts the full range of Category 1 implements and is designed to make hooking them up quick and easy.
Three Tire Options
The right tire gets the most out of your tractor, so the CT4055 can be fitted with one of three types to match your ground:
- Agricultural: deep, self-cleaning lugs grip in soft soil and mud and add pull behind heavy loads and implements.
- Turf: a gentler tread that protects lush lawns and finished landscaping from scuffing.
- Industrial: wear- and puncture-resistant, with a wide tread for solid traction across nearly any surface.
Maximum Maneuverability
Big-property work throws a new challenge at you every day, and the CT4055 is built to take it. A well-balanced design and a tight turning radius keep it responsive and easy to place, while high ground clearance lets you keep working over uneven, wet or muddy terrain. A stable wheelbase spreads weight evenly for sure footing on slopes and steadier towing — and depending on transmission, steering brakes can help pivot the tractor tightly on the inside wheel.
Four-Wheel Drive
A working tractor lives and dies by traction. The CT4055 comes with four-wheel drive you can put to work the instant a hill, a wet patch or a heavy load calls for it.
Roll Over Protective Structure (ROPS)
A ROPS is standard on non-cab models and protects the operator in a rollover, as long as it's locked upright with the seatbelt buckled. When clearance is tight, the foldable ROPS drops down to clear branches, doorways and trailer decks, then raises right back up.
Leading Lift Capacity
Strong lift expands what your implements can do, and Bobcat compact tractors are known for class-leading three-point-hitch lift capacity — so the CT4055 can raise and carry heavier implements with confidence and get more out of every attachment.
Turbo-Charged Performance
Equipped with a turbocharger, the CT4055 delivers consistently strong performance and impressive low-end torque that doesn't let up — even at higher altitudes where naturally aspirated engines lose power.
Manual Synchro Shuttle Transmission
The CT4055 runs a manual synchro shuttle transmission with shift-on-the-fly functionality — the closest feel to a stick-shift automobile, letting you change gears and shuttle between forward and reverse without coming to a full stop. It's a natural fit for loader cycles and ground-engaging work where you want direct gear control and full engine power to the implement.
Comfort 4
Operator-Friendly Controls
The CT4055 is built to be easy to run, with controls that help you get more done with less effort. The levers fall naturally to hand, and conveniences like power steering and cruise control let you manage the tractor and its implements with confidence.
Work Lights
When the light goes, the CT4055 keeps working. Bright headlights light the job in front of you in low light, and a long-life LED tail lamp keeps you visible from behind on trails, lanes and back roads.
Premium Comfort
The operator area is laid out for comfortable hours in the seat, with controls and gauges arranged for easy use and an illuminated dash you can read in any light. Fender grips on each side (on select machines) make getting on and off easy, the quiet low-vibration engine eases the day, and extras like an optional rubber floor mat, adjustable seatbelt and cup holder round out a station that's easy to use and easy to enjoy.
Deluxe Suspension Seat
A comfortable seat keeps you working longer without feeling beat up at day's end. The deluxe suspension seat (on select models) soaks up the vibration and bumps of the job, fully adjusts to fit any operator, and adds a fold-down right-hand armrest for extra support — so you can finish the mowing, clean out the barn or clear one more pasture in comfort.
Uptime-Protection 3
The Bobcat Dealer Network
Great machines need great support behind them. Bobcat's dealer network delivers local authorized service, warranty work and parts availability that's hard to beat — and a dealer like Carleton Equipment, Michigan's authorized Bobcat dealer with 7 locations, keeps your CT4055 running for the long haul.
24-Month, 1,500-Hour Warranty
Your CT4055 is backed by a strong factory warranty: 24 months against defects in materials and workmanship, or 1,500 hours of use — whichever comes first.
Machine Protection
Thoughtful details help the CT4055 shrug off everyday wear:
- A heavy-duty polymer fuel tank keeps fuel clean and won't rust or contaminate.
- A brush guard — included with the front loader, or available separately — shields the front end as you push through brush, branches and debris.
- The streamlined metal hood improves sightlines from the seat and protects the engine and components from dirt and debris.
Serviceability 3
One-Side Maintenance
Maintenance is easy when everything's in reach. The CT4055 keeps its daily checks, fluid fills and filters on one side of the engine, so routine upkeep takes only minutes and helps keep the tractor at peak performance.
One-Piece Engine Hood
There are no side panels to wrestle off — the one-piece hood lifts on an air-cylinder assist to open the entire engine bay at once, putting virtually every major service point right in front of you.
All-In-One Fuse and Relay Box
Fuses and relays sit together in one central box, so replacing a fuse or tracking down an electrical issue is quick and painless.
Versatility 1
Attachment Versatility
For the money, few machines stretch as far as a compact tractor, and Bobcat backs the CT4055 with a deep catalog of implements to maximize your return. Mow a clean, professional cut around the house, auger holes for new trees, clean out the barn or move hay, grade the gravel drive, or clear snow from the house and outbuildings — between the available attachments and 3-point implements, the job list it'll tackle is a long one.
Why Buyers Choose the CT4055
The most powerful tractor in the CT line — 50.3 HP turbo diesel delivering a class-leading 49.6 PTO HP
Manual 8×8 synchro shuttle — shift-on-the-fly gear control with full engine power to the implement
2,716 lb Category 1 three-point lift — runs 96" graders and the heaviest implements with ease
14.1 gpm hydraulic flow plus an independent PTO — confident attachment power and fast loader cycles
15.3" ground clearance on the largest, most planted CT frame — confident over rough, hilly terrain
Top travel speed of 17.5 mph to cover large property fast between jobs
Bobcat dealer parts, service and warranty stand behind every machine
Who Uses the CT4055 and What For
The Bobcat CT4055 is the flagship of the CT line — the most horsepower and PTO power, on the largest 4000-platform frame with a geared synchro-shuttle transmission — for owners of large acreage and working farms who run the heaviest ground-engaging implements and want direct gear control.
- Brush hogging and rotary cutting large fields
- Grading and reshaping with 84–96" land graders and box blades
- Tilling and seedbed prep with 84" tillers and disc harrows
- Heavy PTO work where 49.6 PTO HP earns its keep
- Round and square bale handling with spears and unrollers
- Cleaning pens and stalls with the front loader
- Loading and stacking feed and bedding at scale
- Filling tanks and spreading with broadcast spreaders
- Lifting and stacking with the 4000-platform FL9 front loader
- Setting pallets and bundled material with forks
- Digging and loading rock with large rock buckets
- Adding the BH86 backhoe for deeper digging projects
- Clearing with a 74" 3-point or front-mount snowblower
- Pushing and angling snow with an 84–96" blade
- Direct gear control for steady, repeatable snow passes
- Year-round productivity through Michigan seasons
Full Specifications
General
| Condition | Showroom |
| Machine Type | Compact Tractor |
Engine
| Engine Make | Daedong |
| Engine Model | 3FT-TL4 |
| Displacement | 111 cu in |
| Fuel | Diesel |
| Horsepower | 50.3 |
| Emissions | Tier 4 |
| Rated Speed | 2,750 rpm |
| Cylinders | 3 |
Performance
| 3-Point Lift Capacity | 2,716 lbs (24 in. behind lift point) |
| Travel Speed | 17.5 mph (fwd) / 17 mph (rev) |
Hydraulics
| Total Hydraulic Flow | 14.1 gpm (9.6 implement / 4.5 steering) |
PTO & 3-Point Hitch
| 3-Point Hitch | Category 1 |
| 3-pt Lift Control | Hydraulic Position Control System |
| Rear PTO System | Independent |
| Rear PTO Horsepower | 49.6 hp |
| Rear PTO Speed | 540 rpm (rear) |
Drive System
| Transmission Type | Manual 8x8 Synchro Shuttle |
| Forward Ranges | 8 |
| Traction (Drive) | 4x4 |
| Brake Type | Wet Multi-Disc |
Dimensions & Weight
| Width | 69.8 in |
| Operating Weight | 3745 lb |
| Wheelbase | 71.2 in |
| Turning Radius | 8.6 ft |
| Ground Clearance | 15.3 in |
| Fuel Tank | 11.9 gal. |
Features
| ROPS (Approved) | ■ Standard |
| Safety Seat Switch | ■ Standard |
| Cruise Control | ■ Standard |
| Mid PTO | ■ Standard |
| Cup Holder | ■ Standard |
| Toolbox | ■ Standard |
| Head Lights | ■ Standard |
| Tail Lights | ■ Standard |
| Brake Lights | ■ Standard |
| Turn Signals & Hazard Flashers | ■ Standard |
| Rear Work Lights | ○ Optional |
| Rear Hydraulics | ○ Optional |
| Cab Enclosure | — Not Applicable |
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
Rebates & Special Offers
Get as low as 0% for 60 months* or Free Front-End Loader* in lieu of financing.
Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this CT4055 | Bobcat.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | CT4055 |
| Machine Type: | Compact Tractor |
|
Engine
|
|
|---|---|
| Engine: | 3FT-TL4 |
| Horsepower: | 50.3 |
|
Performance
|
|
|---|---|
| Operating Weight: | 3745 lb |
|
Hydraulics
|
|---|
|
Dimensions
|
|
|---|---|
| Fuel Tank: | 11.9 gal. |
