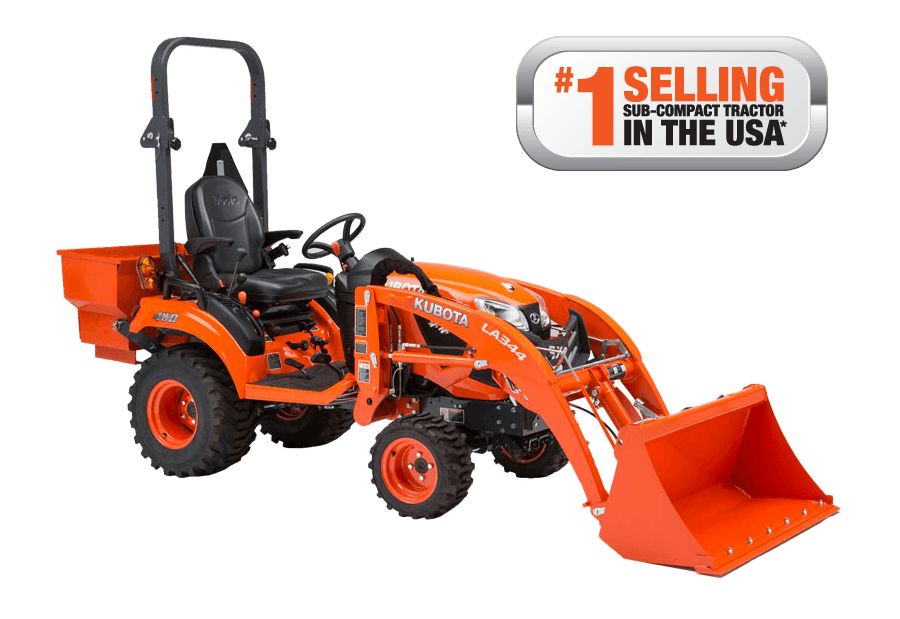

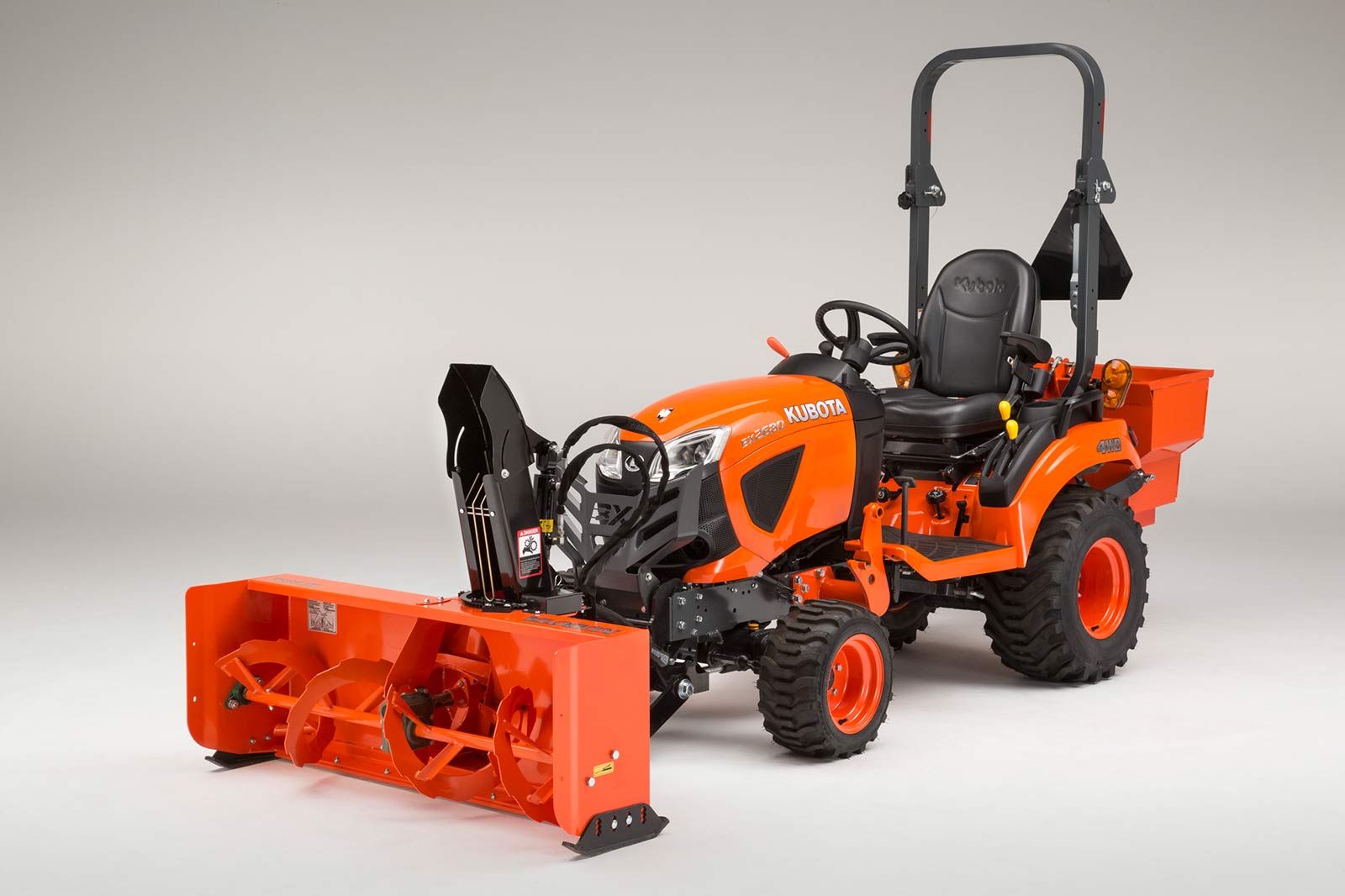

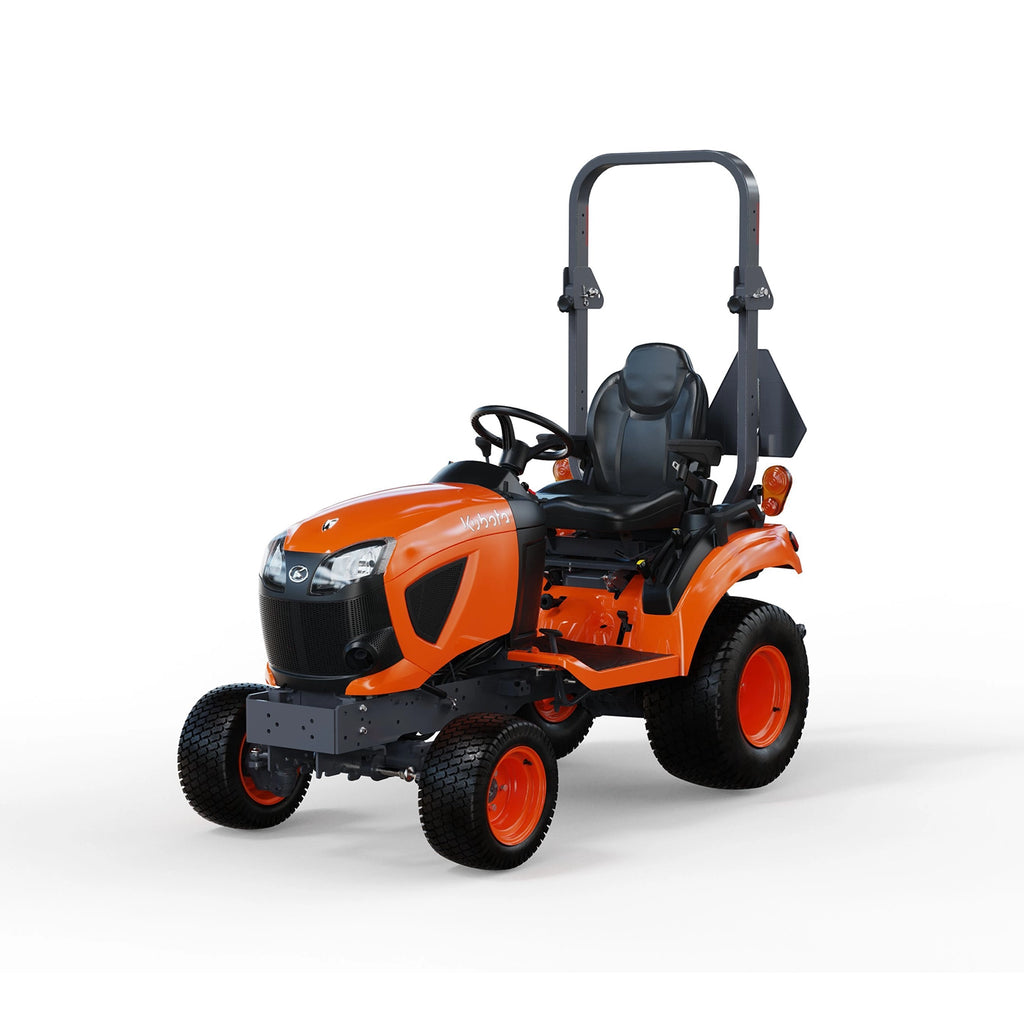

BX2680 Sub-Compact Tractor by Kubota
Meticulous engineering leads to legendary reliability and excellent value – hallmarks of a Kubota tractor. At Kubota, we listen to our customers to make improvements for real world applications. Quality, innovation and easy-to-use design – that’s a Kubota. Scroll down to see some of the top BX80 features, designed with you in mind. To see it in action, visit your local Kubota dealer.
Features

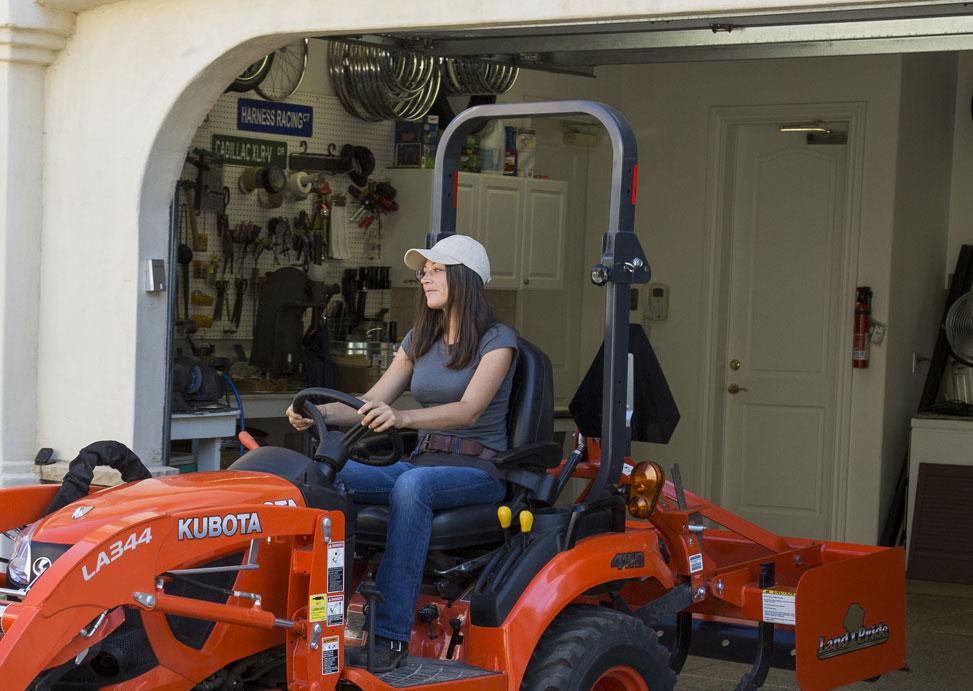

Low Clearance ROPS for Easy Storage
Easily fit through a standard garage door without having to fold the ROPS. The BX80 Series’ Rollover Protective Structure (ROPS) quickly folds without tools, letting the BX80 easily pass under low obstructions. The BX1880, BX2380, and the BX2680 all have a ROPS height of less than 84”, which makes storage in a garage or shed a snap. (Note: Kubota recommends that the ROPS be in the up position during most operations).
Kubota Reputation for Quality
Kubota is known for its quality, reliability and longevity – you can’t fake a good reputation, it can only be awarded to you by your satisfied customers.

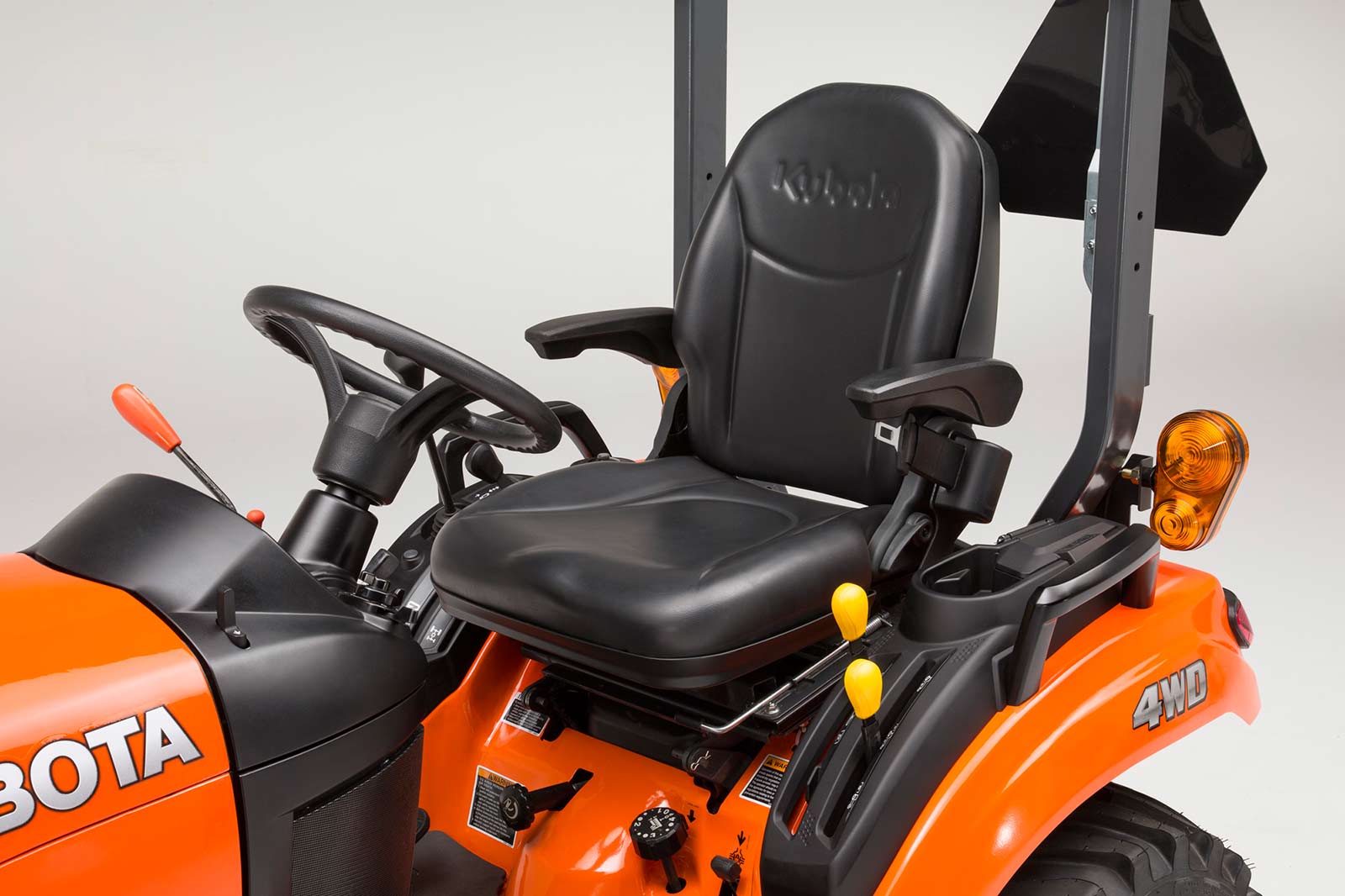

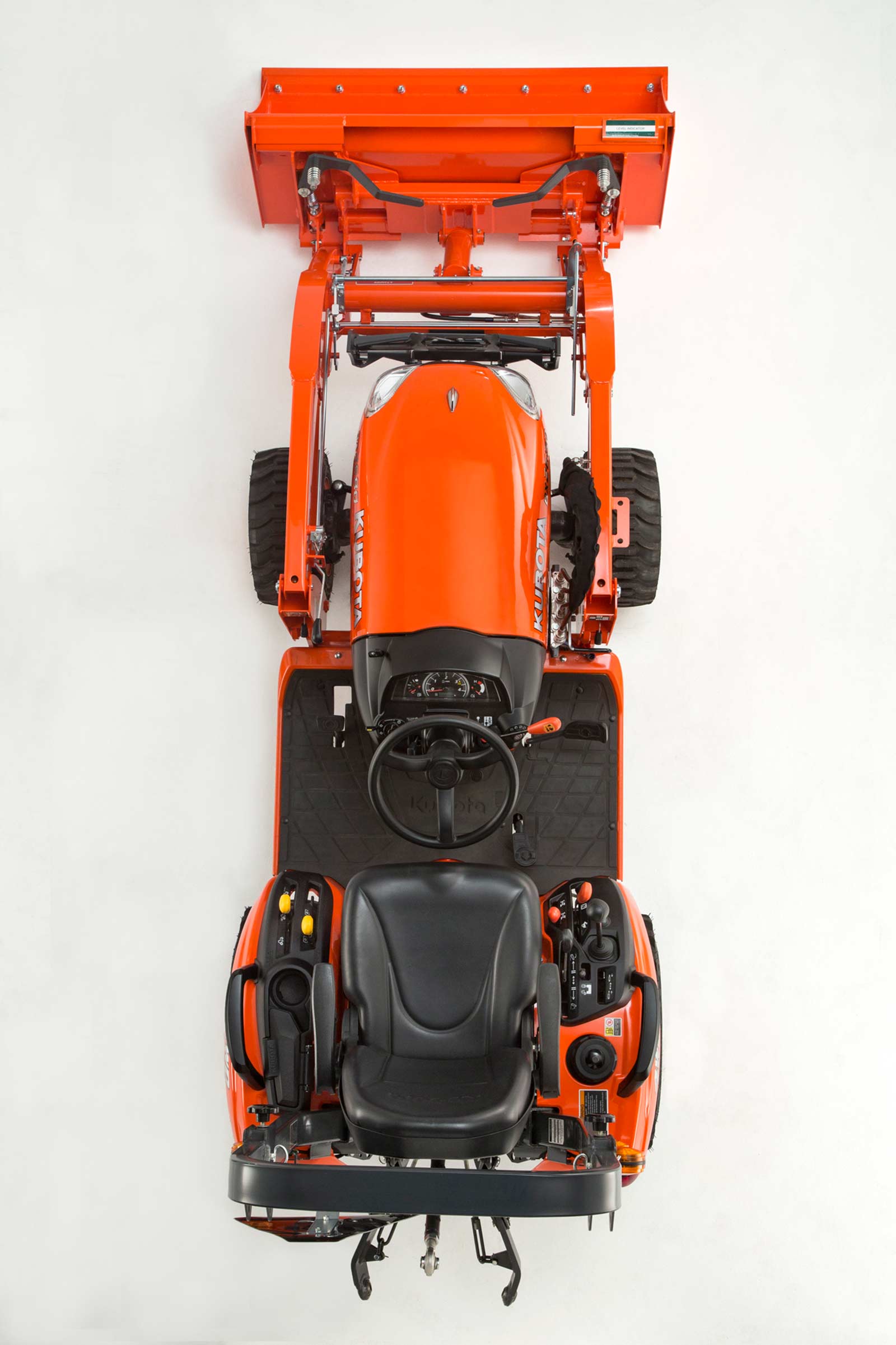

Big Comfort on a Small Tractor
With a flat operating station, tilt steering and a deluxe seat with armrest, the BX2380 and BX2680 offer comfort that is second to none in this class of tractor. Add to that the ergonomic placement of levers and the modern instrument panel and you have one of the finest operators stations ever offered on a sub-compact tractor.

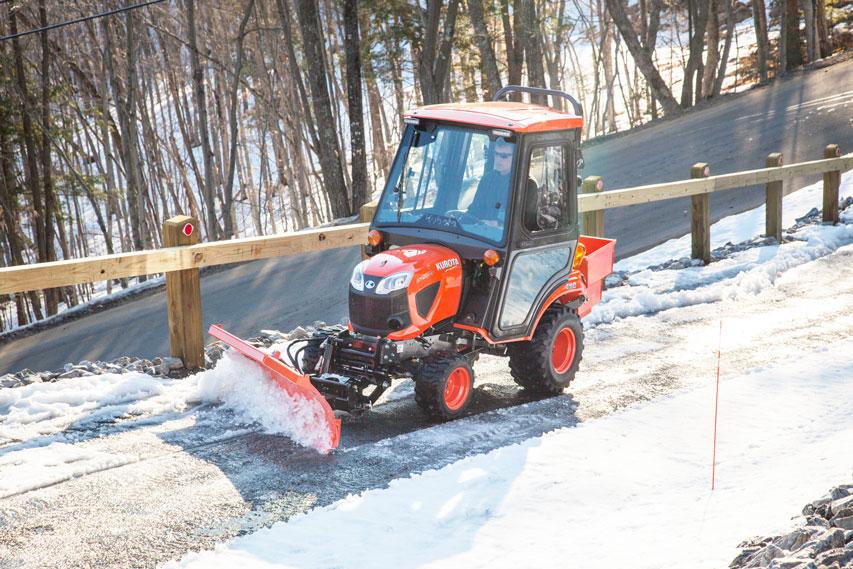

Now Available with a Heated Cab
Specs

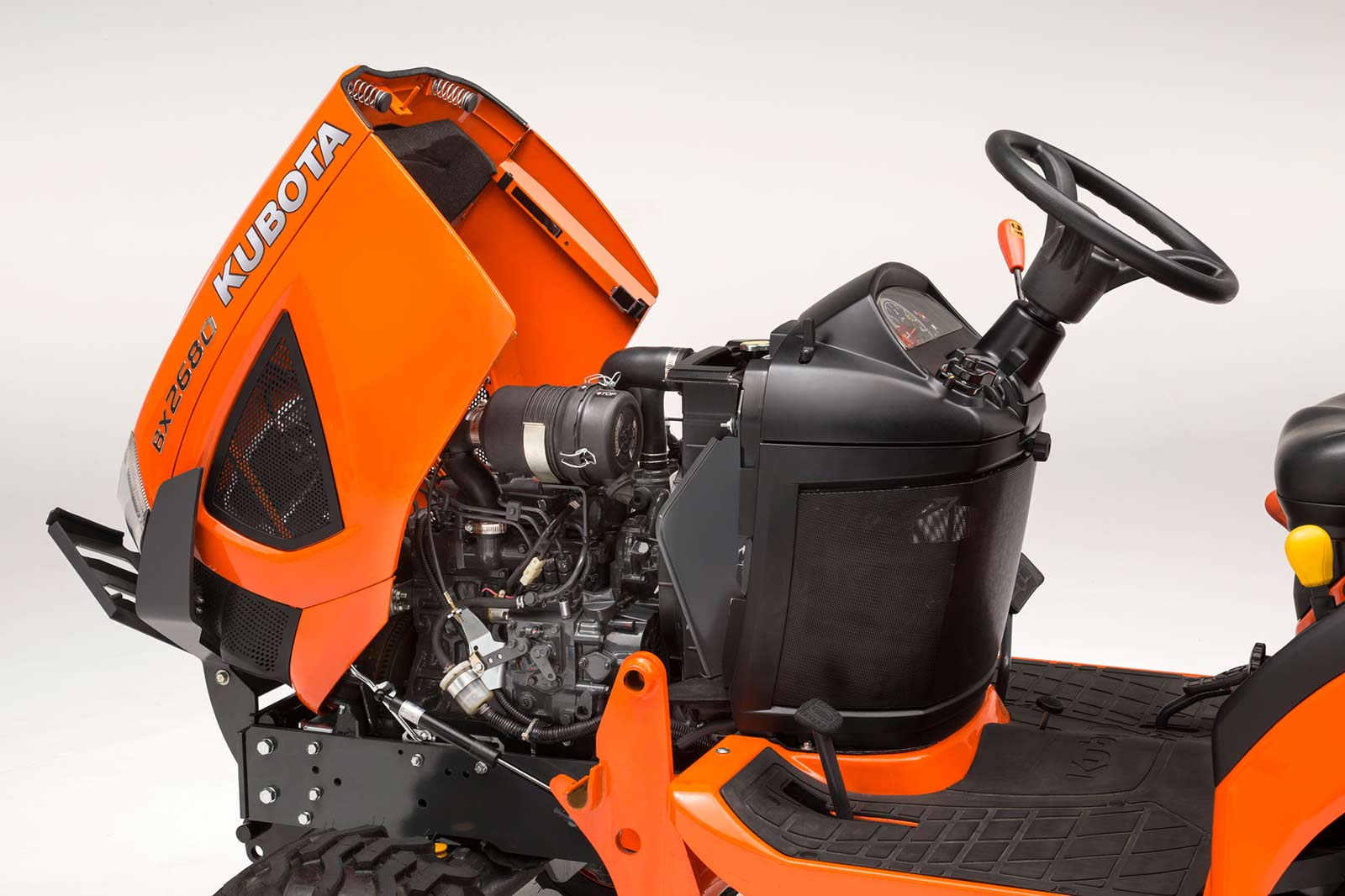

Engine
Type |
Liquid-cooled, 3-Cylinder Diesel |
Model |
Kubota D1005 |
Engine Gross HP at 3200 rpm*1 |
24.8 HP |
PTO Horsepower at 3200 rpm |
19.5 HP |
Displacement |
61.1 cu.in. |
Fuel Tank Capacity |
6.6 Gal |
Drive Train
Transmission |
HST, High-Low Gear Shift (2 Forward / Reverse) |
Drive Method |
4WD |
Brakes |
Wet Disc |
PTO |
Live Independent PTO (with Hydraulic Clutch) |
Rear |
STD (540 rpm) |

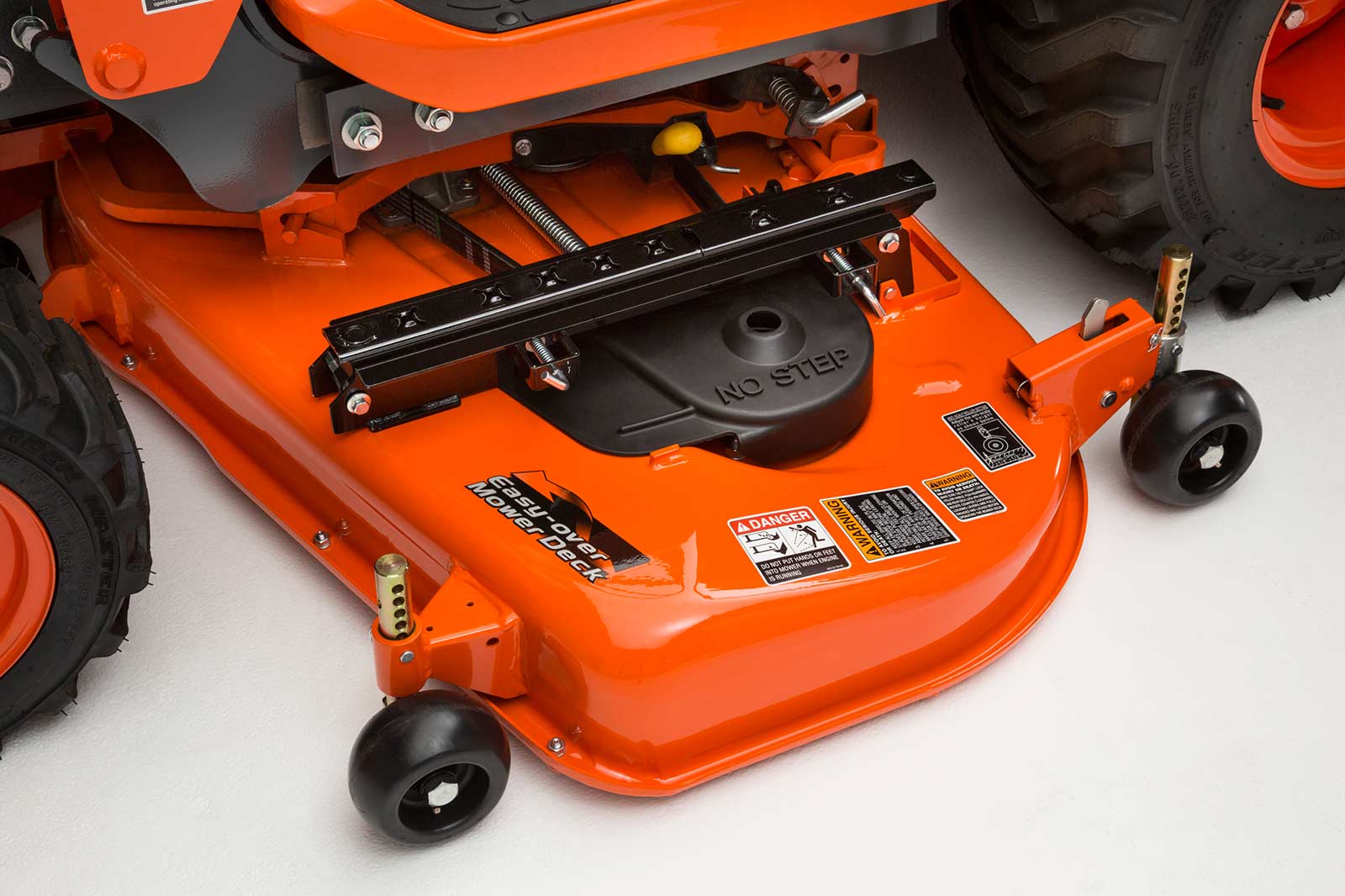

Mid |
STD (2500 rpm) |
Hydraulics
Pump Output |
6.2 gpm |
3-Point Hitch |
SAE Category I |
Lift Capacity @ 24" Behind Pin lbs |
680 lbs |
Steering |
Hydrostatic Power Steering |
Tire Size
Front Turf/Bar/Industrial |
18 x 8.5-10 / 18 x 8.5-10 / 18 x 8.5-10 |
Rear Turf/Bar/Industrial |
26 x 12-12 / 26 x 12-12 / 26 x 12-12 |
Traveling Speeds at Rated Engine rpm (Turf)
Forward |
0-8.4 mph |
Reverse |
0-6.5 mph |
Dimensions
Length with 3-point Hitch |
95.5 in |
Width |
45.1 in |
Height with ROPS |
83.1 in |
Wheelbase |
55.1 in |
Ground Clearence |
8.4 in |
Tread Front / Rear |
36.6 / 32.2 in |
Turning Radius (w/o Brake) |
7.5 ft |
Tractor Weight (w/ ROPS) |
1521 lbs |
