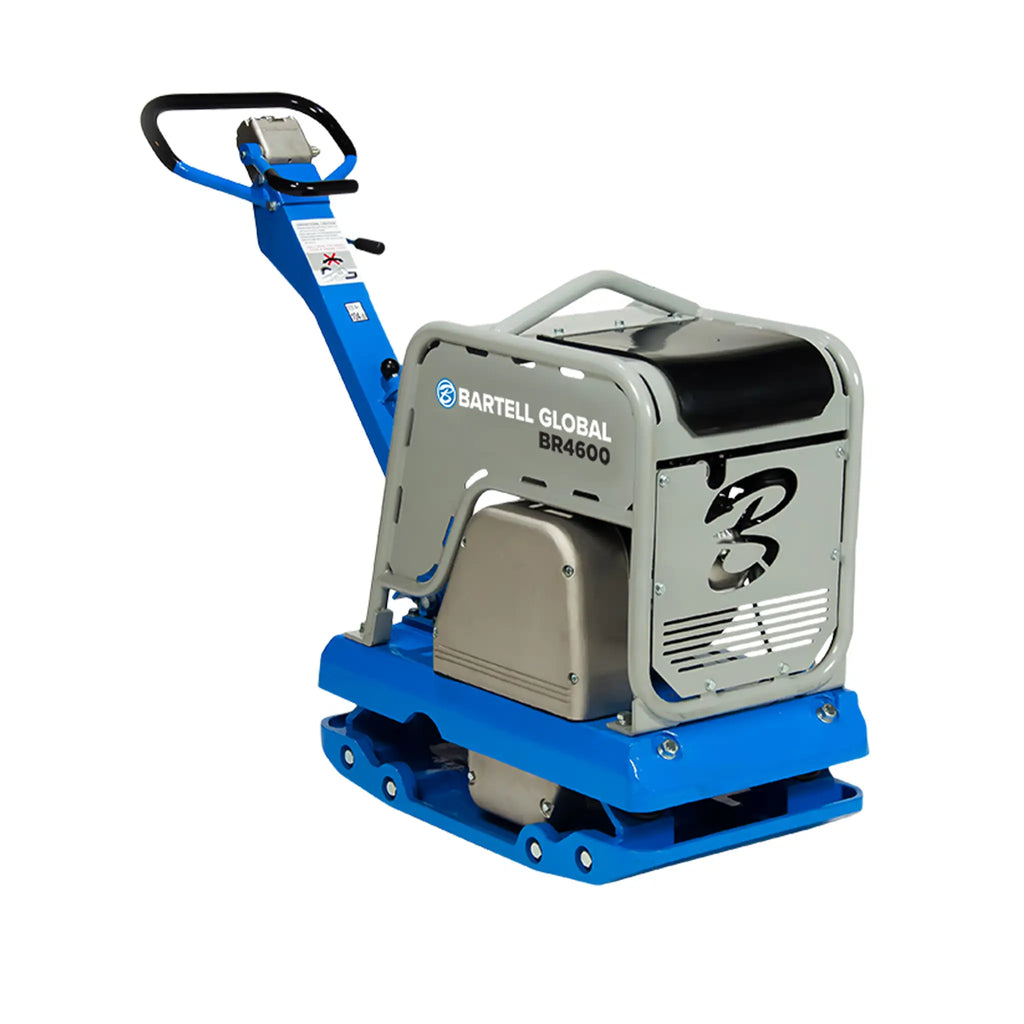

BR4600 Plate Compactor
- Cast aluminum throttle lever for professional and durable control
- Integrated lifting bale for safe loading and unloading
- Full roll cage and cast aluminum belt cover for clutch and engine protection
The BR4600 Reversible Compactor is built for medium to large applications. Equipped with either a Honda GX390 or Yanmar Diesel engine, it has the power and force to effectively compact deep base material. The fully hydraulic reversing mechanism sets the Bartell line of reversible compactors apart from the competition, providing more flexible maneuverability for forward, backward, and spot-on compaction.
- Cast aluminum throttle lever for professional and durable control
- Integrated lifting bale for safe loading and unloading
- Full roll cage and cast aluminum belt cover for clutch and engine protection
- Ductile iron bases for increased strength
- Optional extension plates further increase production rates
- Full speed in both forwards and reverse
- Specialized for compacting sand, trench, and patching
- Diesel model offers key start or recoil start
| Bartell BR4600 Plate Compactor | ||
|---|---|---|
| Model | BR4600 | |
| Engine | Honda GX270 | Yanmar L100W |
| Horsepower | 11.7 hp | 9.3 hp |
| Compaction Force | 10,141 lbf. | |
| Max Travel Speed | 72'/min | |
| Length | 62" | |
| Width | 19" | |
| Height | 37" | |
| Weight | 672 lbs. | 719 lbs. |
| Plate Size | 19"x34" | |
Full Specifications
General
| Condition | Showroom |
Engine
Performance
Hydraulics
Dimensions & Weight
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
