Description

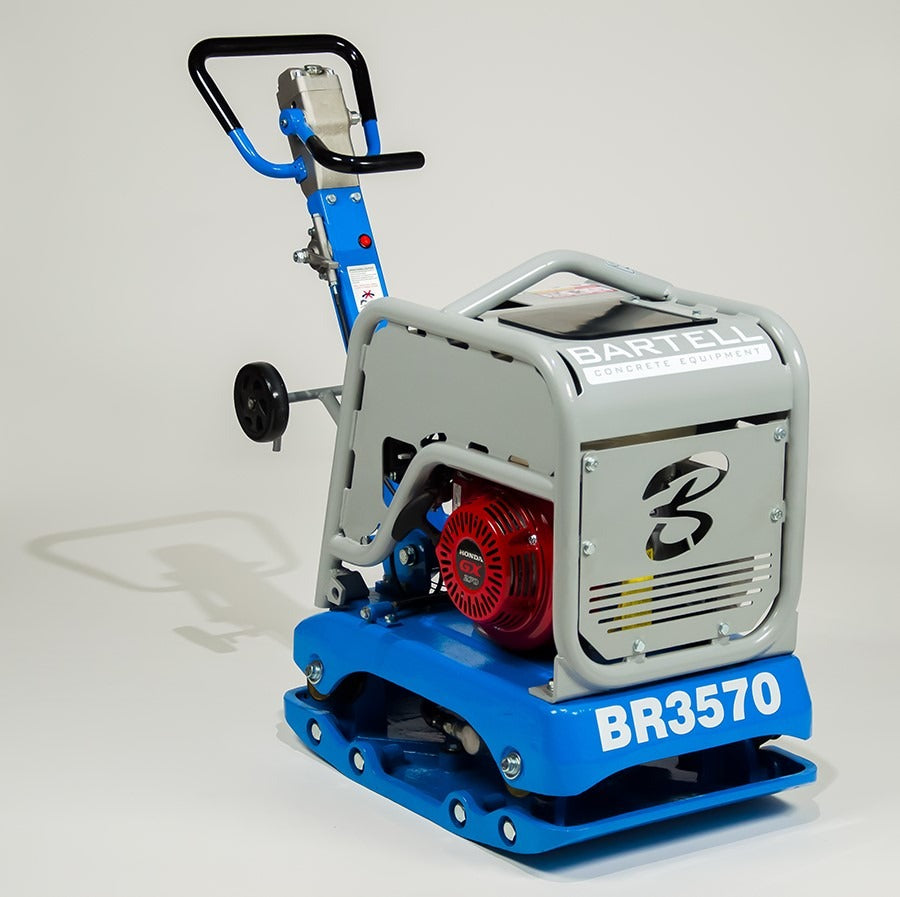

BR3570 Plate Compactor
- Cast aluminum throttle lever for professional and durable control
- Integrated lifting bale for safe loading and unloading
- Full roll cage and cast aluminum belt cover for clutch and engine protection
The Bartell BR3570 is versatile, affordable, and packs a punch! Perfect for many general compaction needs, pounding larger footprints quickly and effectively.
The fully hydraulic reversing mechanism sets the Bartell line of reversible compactors apart from the competition, providing more flexible maneuverability for forward, backward, and spot-on compaction.
- Cast aluminum throttle lever for professional and durable control
- Integrated lifting bale for safe loading and unloading
- Full roll cage and cast aluminum belt cover for clutch and engine protection
- Ductile iron bases for increased strength
- Retractable wheels flip down for built-in mobility
- Optional extension plates further increase production rates
- Full speed in both forwards and reverse
- Specialized for compacting sand, trench, and patching
| Bartell BR3570 Plate Compactor | |
|---|---|
| Model | BR3570 |
| Engine | Honda GX270 |
| Horsepower | 8.5 hp |
| Compaction Force | 7,871 lbf. |
| Max Travel Speed | 52'/min |
| Length | 53" |
| Width | 18" |
| Height | 38" |
| Weight | 449 lbs. |
| Plate Size | 18"x28" |
Full Specifications
General
| Condition | Showroom |
Engine
Performance
Hydraulics
Dimensions & Weight
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
