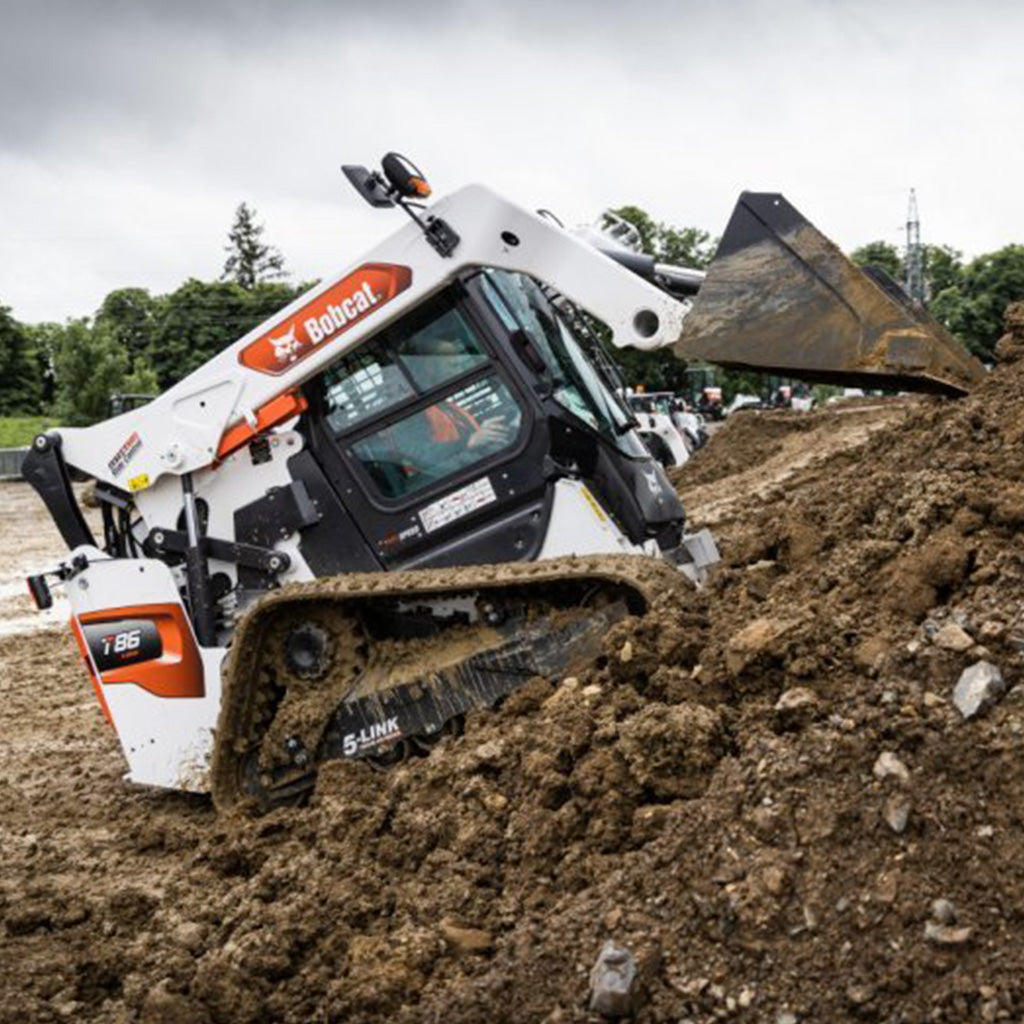

Bobcat T86 Series - Rental
Bobcat T86 Series - Rental
Bobcat T86 Series - Rental
Bobcat T86 Series - Rental
Bobcat T86 Series - Rental

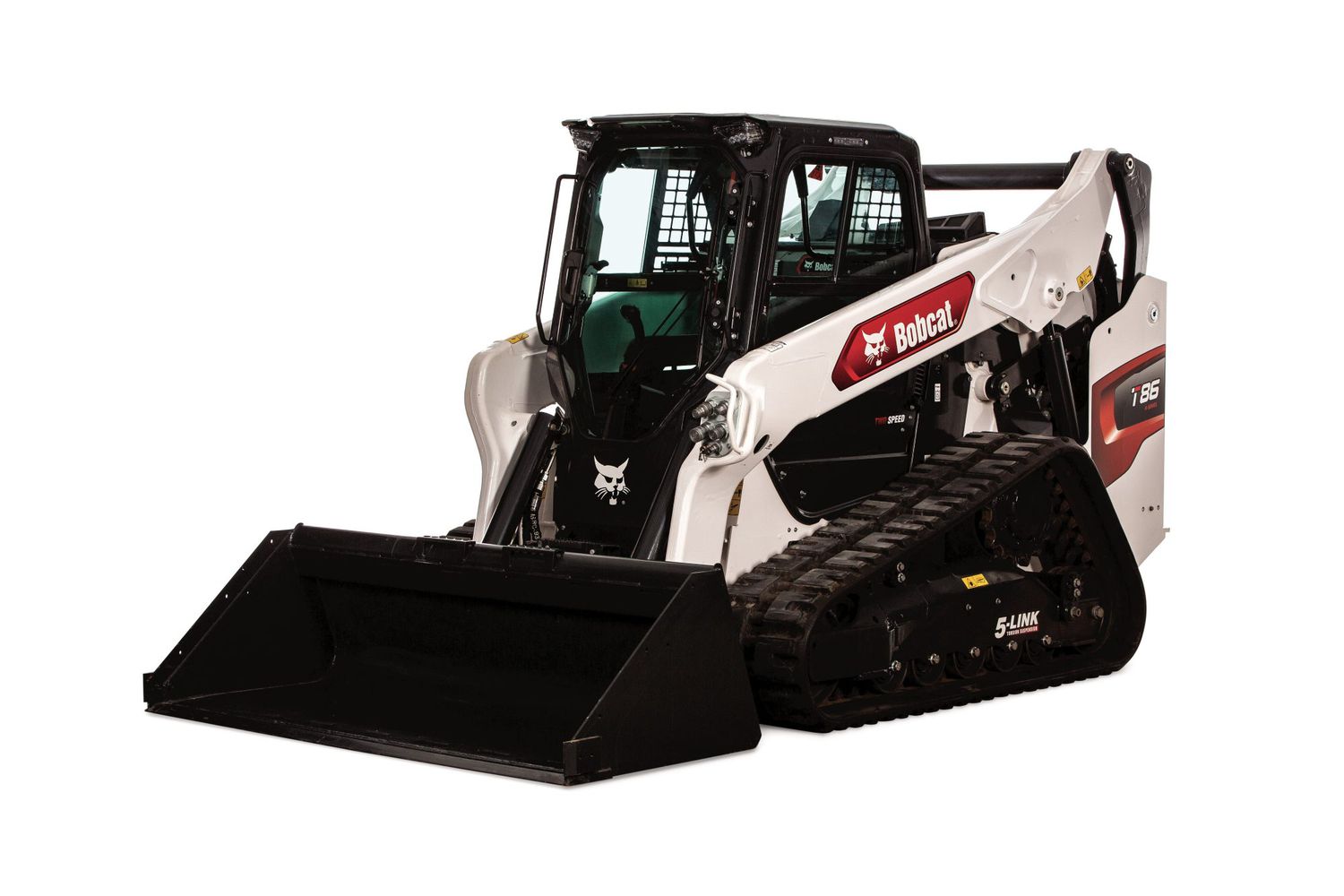

Bobcat T86 Series - Rental - Image 7

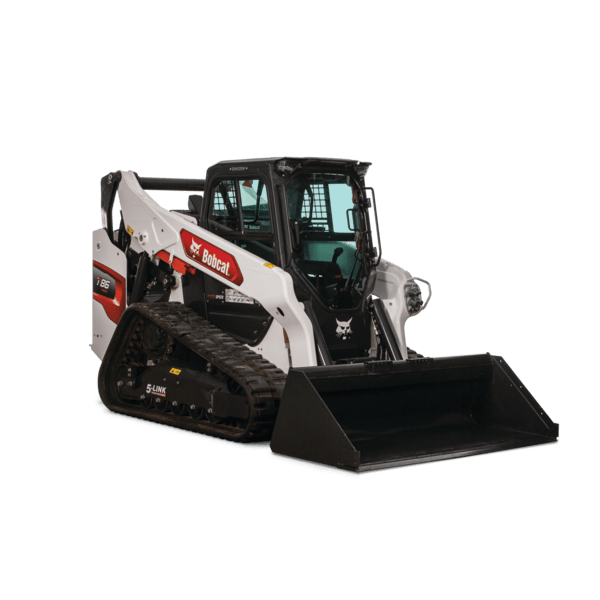

Bobcat T86 Series - Rental - Image 8
Roll over image to zoom in Click on image to zoom
Bobcat T86 Series - RentalBobcat T86 Series - RentalBobcat T86 Series - RentalBobcat T86 Series - RentalBobcat T86 Series - RentalBobcat T86 Series - Rental - Image 7Bobcat T86 Series - Rental - Image 8

Bobcat T86 Series - Rental

Bobcat
Based on 7 day Rental - As low as*- Daily - $514
Online Estimate:
$514.00 /Daily*
Stock:
In stock
General Info
Condition: Rental
Manufacturer: Bobcat
Model: T86
Machine Type: Compact Track Loader
Engine
Horsepower: 105.0
Emissions: Tier 4
Performance
Rated Operating Capacity (ISO): 3,800 lb
Tipping Load: 10,857 lb
Operating Weight: 12393 lb
Travel Speed: 5.5-10.7 mph
Height to Bucket Hinge Pin: 132 in
Hydraulics
Aux. Standard Flow: 23.6 GPM
Aux. High Flow: 36.6 GPM
Aux. Super High Flow: 42 GPM
Dimensions
Height: 83.1 in
Length: 120.4 in
Width: 80 in
Fuel Tank: 31.6 gal

Description

Bobcat T86 Series - Rental

The Bobcat® T86 Series is built for those demanding tasks that call for a robust and highly efficient compact track loader. With 105 horsepower and a Tier 4 diesel engine, this machine offers outstanding lift capacity and lifting height, making it ideal for construction, landscaping, or any application requiring superior performance. Its vertical lift arm path and wide bucket ensure you can load, dig, and maneuver with precision. The T86’s enhanced auxiliary hydraulics deliver up to 42 gal/min, giving you the flexibility to power a range of attachments. Whether you’re moving heavy loads weighing up to 3,800 lb or traveling at speeds up to 10.7 mph, the T86 offers reliability in every job. Compact, strong, and versatile, this proven track loader helps you get more done with ease.

Specs

Engine

Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 105
Turbocharged Engine Yes

Performance

Rated Operating Capacity (ISO) 3,800 lb
Rated Operating Capacity - 200 lb. Counterweight 3,950 lb
Rated Operating Capacity - 300 lb. Counterweight 4,025 lb
Rated Operating Capacity - 400 lb. Counterweight 4,100 lb
Operating Capacity (50% of Tip) 5,429 lb
Tipping Load 10,857 lb
Operating Weight 12,393 lb
Travel Speed 5.5 mph
Travel Speed (2 - Speed Option) 10.7 mph
Ground Pressure (Rubber) 4.8 psi

Capacities

Fuel Tank 31.6 gal

Hydraulic System

Hydraulic System Pressure - Standard & High Flow 3,500 psi
Hydraulic System Pressure - Super Flow 4,061 psi
Auxiliary Std Flow 23.6 gal/min
Auxiliary High Flow 36.6 gal/min
Auxiliary Super Flow 42 gal/min

Dimension

Length Without Attachment 120.4 in
Width 78 in
Width (With Bucket) 80 in
Height 83.1 in
Height With Operator Cab 83.1 in
Height to Bucket Hinge Pin 132 in
Reach @ Maximum Height 38.4 in
Length of Track on Ground 66.3 in
Track Width 17.7 in
Compare the Family

Bobcat Compact Track Loaders

Bobcat T450 compact track loader
T550
 Bobcat T595 compact track loader
T62
 Bobcat T64-2 compact track loader Bobcat T66-2 compact track loader Bobcat T7X all-electric compact track loader Bobcat T650 compact track loader Bobcat T770 compact track loader Bobcat T76-2 compact track loader Bobcat T86-2 compact track loader
T450 T550 T595 T62 T64-2 T66-2 T7X T650 T770 T76-2 T86-2Viewing
Frame / RoleCompact classicMid-size classicCurrent classicNon-current mid-frameMid-frameMid-frameAll-electricLarger classicLargest classicLarge-frameHigh-output large-frame
Horsepower55 hp68 hp70 hp68 hp68 hp74 hp100 hp74 hp92 hp74 hp115 hp
Rated Operating Capacity1,490 lbs1,995 lbs2,100 lbs2,150 lbs2,300 lbs2,400 lbs3,056 lbs2,500 lbs3,475 lbs2,900 lbs3,925 lbs
Tipping Load4,257 lbs5,700 lbs6,000 lbs6,143 lbs6,571 lbs6,857 lbs8,743 lbs7,143 lbs9,929 lbs8,285 lbs11,214 lbs
Operating Weight6,424 lbs7,557 lbs7,906 lbs8,612 lbs8,440 lbs8,560 lbs12,590 lbs8,980 lbs10,515 lbs9,592 lbs12,104 lbs
Travel Speed7 / 11 mph7.1 / 10.4 mph7.1 / 10.4 mph7.2 mph6.4 / 9.3 mph5.5 / 9.3 mph5.7 / 8.7 mph6 / 8.7 mph6.6 / 10.7 mph6.8 / 9.2 mph5.5 / 10.7 mph
Standard Aux Flow16.7 gpm17.1 gpm17.1 gpm17.6 gpm17.6 gpm17.6 gpmNo hydraulics23 gpm23 gpm23.3 gpm23 gpm
High / Super Flow—26.7 gpm26.7 gpm26.9 gpm26.9 gpm26.9 gpm—30.5 gpm36.6 gpm30.3 gpm36.6 / 42 gpm
Height to Hinge Pin109.5 in114.5 in119 in114.5 in120 in120 in128.4 in124 in132 in128.3 in144 in
Overall Width55 in67 in66.6 in67 in67.8 in67.8 in78 in72.9 in78 in73.5 in78 in

Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.

Compact Track Loaders

Two Paths: Classic or Pro

Not sure which tier fits your application? Compare the full CTL lineup side by side.

Explore the Lineup
Pro Loader Packages

Find the Right Package for the Way You Work

Package options make it easier to choose the right mix of advanced comfort, control and technology for the way you work. Compare package levels below to find the Pro Bobcat loader setup that matches your jobsites, applications and operator preferences.

Request a Quote Download Full Package Guide

WORK, CORE, PLUS and ADVANCED packages are available across Pro Bobcat loaders.

Work Core Plus Advanced
Overview
Summary Pro control and operation at a competitive price. Pro control and operation with upgraded comfort and performance options. Pro control and operation with premium comfort and performance standard. Plus package with Jobsite Companion.
Standard Features
Power Bob-Tach® ✔ ✔ ✔ ✔
Keyless Ignition ✔ ✔ ✔ ✔
7-Pin Attachment Control ✔ ✔ ✔ ✔
2-Speed ✔ ✔ ✔ ✔
Auto-Throttle ✔ ✔ ✔ ✔
Dual-Direction Bucket Positioning ✔ ✔ ✔ ✔
Bluetooth Radio ✔ ✔ ✔ ✔
Main Package Differences
Suspension Seat Vinyl High-Back Heated Cloth Air-RideWith Enclosed Cab High-Back Heated Cloth Air-Ride High-Back Heated Cloth Air-Ride
Display 8" 8" w/ InfotainmentWith Enclosed Cab 8" w/ Infotainment 8" w/ Infotainment
Lights LED Premium LED Premium LED w/ Side Lights Premium LED w/ Side Lights
Machine IQ Telematics 2YR Basics 2YR Basics 1YR H&S + 1YR Basics 1YR H&S + 1YR Basics
Automatic Ride Control — ✔ ✔ ✔
Sound Reduction — ✔With Enclosed Cab ✔ ✔
Jobsite Companion — — — ✔
Package Options
Cab Open or Enclosed HVAC Open or Enclosed HVAC Enclosed HVAC W/ Clear-Side Enclosure Enclosed HVAC W/ Clear-Side Enclosure
Controls SJC STD
Hand & Foot OPT		 SJC STD
Hand & Foot OPT		 SJC STD
Hand & Foot OPT		 SJC
Camera(s) Rear View Rear View Rear View STD
Broad Area OPT		 Rear View STD
Broad Area OPT
Undercarriage Solid Mount Solid Mount Solid Mount Solid Mount
Auxiliary Flow Standard Flow Standard Flow STD
Standard+High OPT		 Standard+High STD Standard+High STD
Reversing Fan — Included w/ High Flow ✔ ✔
Bobcat Sense Rear Object Detection and Avoidance OPT Rear Object Detection and Avoidance OPT Rear Object Detection and Avoidance OPT 360 People Detection OPT
Tracks C-Pattern 12.6" STD
C-Pattern 15.7" OPT
MBL 15.7" OPT		 C-Pattern 12.6" STD
C-Pattern 15.7" OPT
MBL 15.7" OPT		 C-Pattern 12.6" STD
C-Pattern 15.7" OPT
MBL 15.7" OPT		 C-Pattern 12.6" STD
C-Pattern 15.7" OPT
MBL 15.7" OPT
STD Included standard OPT Available as an add-on "With Enclosed Cab" — feature level varies based on cab selection

Full Specifications

General
ConditionRental
Machine TypeCompact Track Loader
Engine
Engine MakeBobcat
Horsepower105.0
EmissionsTier 4
Performance
ROC Solid Undercarriage3,800 lb
Bucket Hinge Pin Height132 in
Tipping Load10,857 lb
Travel Speed5.5-10.7 mph
Capacities
Fuel Tank31.6 gal
Hydraulics
Auxiliary Std Flow23.6 GPM
Auxiliary High Flow36.6 GPM
Aux. Super High Flow42 GPM
Dimensions & Weight
Height83.1 in
Length120.4 in
Width80 in
Operating Weight12393 lb
Serviceability

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
