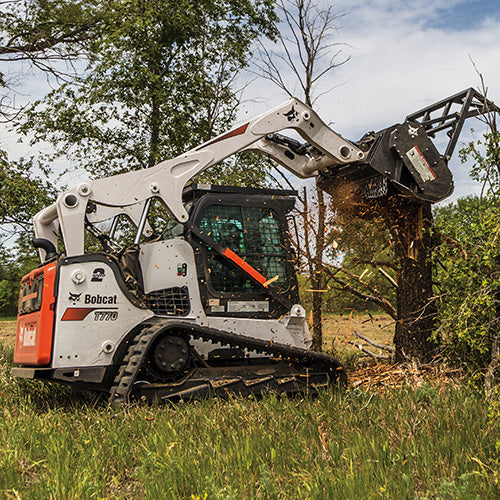

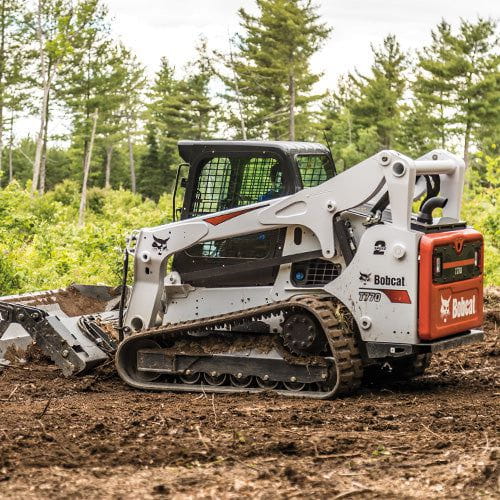

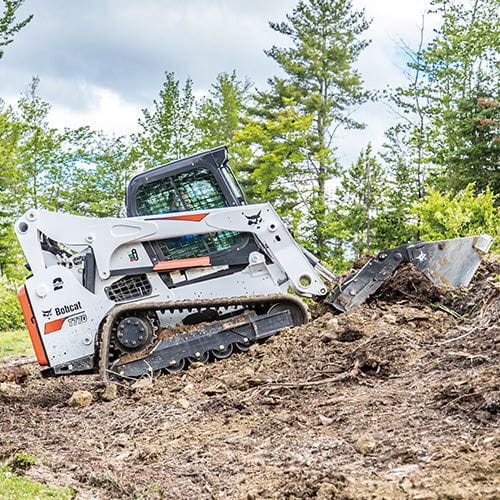

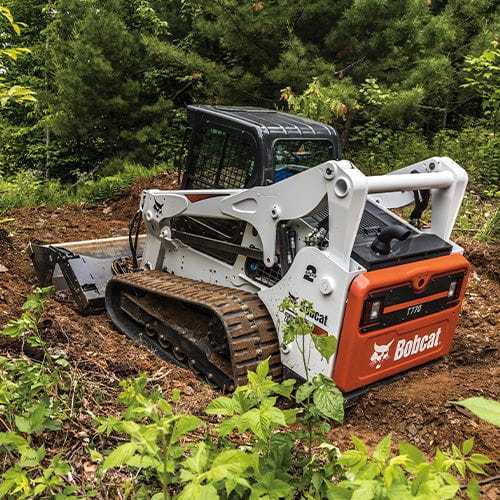

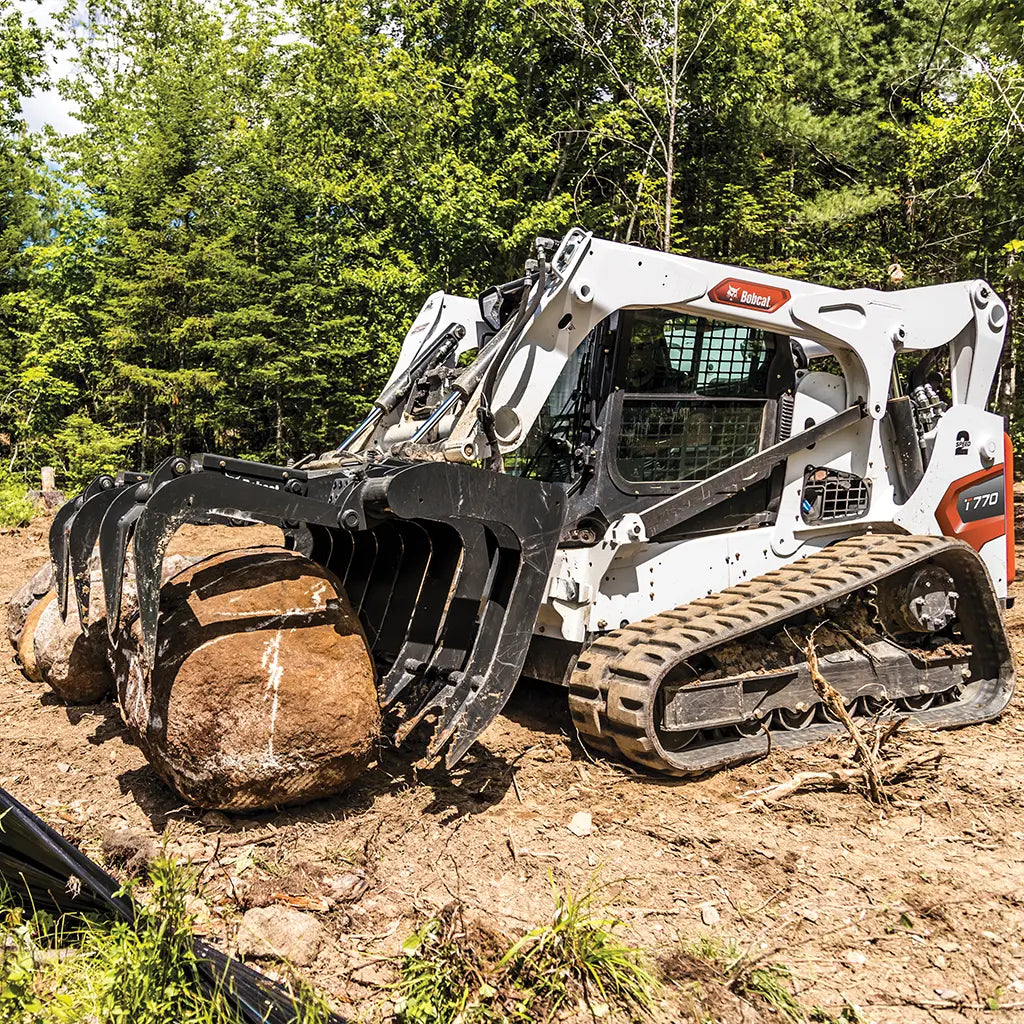

Bobcat T770 Series - Rental
Bobcat T770 Series - Rental
Bobcat T770 Series - Rental
Bobcat T770 Series - Rental
Bobcat T770 Series - Rental
Bobcat T770 Series - Rental
Bobcat T770 Series - Rental
Roll over image to zoom in Click on image to zoom
Bobcat T770 Series - RentalBobcat T770 Series - RentalBobcat T770 Series - RentalBobcat T770 Series - RentalBobcat T770 Series - RentalBobcat T770 Series - RentalBobcat T770 Series - Rental

Bobcat T770 Series - Rental

Bobcat
Based on 7 day Rental - As low as*- Daily - $214
Online Estimate:
$214.00 /Daily*
Stock:
In stock
General Info
Condition: Rental
Manufacturer: Bobcat
Model: T770
Machine Type: Compact Track Loader
Engine
Horsepower: 92.0
Emissions: Tier 4
Performance
Rated Operating Capacity (ISO): 3,475 lb.
Tipping Load: 9,929 lb
Operating Weight: 10515 lb
Travel Speed: 6.6-10.7 mph
Height to Bucket Hinge Pin: 131.4 in.
Hydraulics
Aux. Standard Flow: 23 GPM
Aux. High Flow: 36.6 GPM
Dimensions
Height: 81.3 in.
Length: 141.6 in.
Width: 78 in.
Turning Radius: 88 in.
Fuel Tank: 43.8 gal.

Description

Bobcat T770 Series - Rental

Take on challenging projects with the mighty Bobcat T770 Series, a compact track loader designed to deliver maximum performance in tight spaces. Powered by a 92-horsepower diesel engine, this machine provides exceptional maneuverability and boasts an impressive 11-foot vertical lift for swiftly loading trucks, stacks, and hoppers. Its robust rated operating capacity of 3,475 lb. makes it ideal for a wide range of material-handling tasks, while the vertical lift path helps you maintain superior reach at full height. Whether you’re working on construction, landscaping, or agricultural tasks, the Bobcat T770 delivers the efficiency, stability, and power you need to finish the job right.

Description

With 11 feet of vertical lift, the Bobcat® T770 compact track loader is primed for loading trucks, grinders and hoppers as well as many other jobs.

Specs

Engine

Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 92
Turbocharged Engine

Yes

Performance

Rated Operating Capacity (ISO) 3,475 lb
Operating Capacity (50% of Tip) 4,960 lb
Tipping Load 9,929 lb
Operating Weight 10,515 lb
Travel Speed 6.6 mph
Travel Speed (2 - Speed Option) 10.7 mph
Ground Pressure (Rubber) 4.2 psi

Capacities

Fuel Tank 43.8 gal

Hydraulic System

System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 23 gal/min
Auxiliary High Flow 36.6 gal/min

Dimension

Length 141.6 in
Length Without Attachment 114.3 in
Length With Standard Bucket 141.6 in
Width 78 in
Width (With Bucket)  80 in
Height 81.3 in
Height With Operator Cab 81.3 in
Height to Bucket Hinge Pin 131.4 in
Reach @ Maximum Height 35.2 in
Turning Radius 88 in
Length of Track on Ground

63.7 in
Track Width

17.7 in
T770 Key Features

What Makes the T770 Different

The T770 is equipped with features built for demanding work – from strong breakout performance and two-speed travel to standard joystick controls, a non-DPF engine, roller suspension and enhanced rear visibility.

High Flow Hydraulics

High-flow option delivers more hydraulic output for expanded attachment versatility, including trenchers, stump grinders, drum mulchers and more. A reversing fan is included when equipped with a package that includes high-flow hydraulics.

Powerful Breakout Forces

Built for demanding work, the T770 delivers strong breakout performance to dig into dense material, break through tough ground and keep loading cycles moving efficiently.

Two-Speed Travel

Spend less time traveling across the jobsite or between jobs with this option. Move faster—and get the job done sooner.

Non-DPF Engine

Engines meet emissions requirements without a diesel particulate filter (DPF), eliminating the need for time-consuming regeneration.

Standard or Selectable Joystick Control

Choose between classic hand and foot controls or selectable joystick controls (SJC), depending on your preferences and work needs.

Roller Suspension Undercarriage

Optional roller suspension gives the T770 an added advantage on rough ground, helping improve ride quality and operator comfort through long hours of demanding work. It’s a standout T770 feature for crews who want heavy-duty performance with a smoother operating experience.

Deluxe Display With Rearview Camera Integration

The standard Deluxe Display gives operators a clear, easy-to-use view of key machine information, while rearview camera integration adds jobsite awareness when backing up and maneuvering on the jobsite.

Compare the Family

Bobcat Compact Track Loaders

Bobcat T450 compact track loader
T550
 Bobcat T595 compact track loader
T62
 Bobcat T64-2 compact track loader Bobcat T66-2 compact track loader Bobcat T7X all-electric compact track loader Bobcat T650 compact track loader Bobcat T770 compact track loader Bobcat T76-2 compact track loader Bobcat T86-2 compact track loader
T450 T550 T595 T62 T64-2 T66-2 T7X T650 T770Viewing T76-2 T86-2
Frame / RoleCompact classicMid-size classicCurrent classicNon-current mid-frameMid-frameMid-frameAll-electricLarger classicLargest classicLarge-frameHigh-output large-frame
Horsepower55 hp68 hp70 hp68 hp68 hp74 hp100 hp74 hp92 hp74 hp115 hp
Rated Operating Capacity1,490 lbs1,995 lbs2,100 lbs2,150 lbs2,300 lbs2,400 lbs3,056 lbs2,500 lbs3,475 lbs2,900 lbs3,925 lbs
Tipping Load4,257 lbs5,700 lbs6,000 lbs6,143 lbs6,571 lbs6,857 lbs8,743 lbs7,143 lbs9,929 lbs8,285 lbs11,214 lbs
Operating Weight6,424 lbs7,557 lbs7,906 lbs8,612 lbs8,440 lbs8,560 lbs12,590 lbs8,980 lbs10,515 lbs9,592 lbs12,104 lbs
Travel Speed7 / 11 mph7.1 / 10.4 mph7.1 / 10.4 mph7.2 mph6.4 / 9.3 mph5.5 / 9.3 mph5.7 / 8.7 mph6 / 8.7 mph6.6 / 10.7 mph6.8 / 9.2 mph5.5 / 10.7 mph
Standard Aux Flow16.7 gpm17.1 gpm17.1 gpm17.6 gpm17.6 gpm17.6 gpmNo hydraulics23 gpm23 gpm23.3 gpm23 gpm
High / Super Flow—26.7 gpm26.7 gpm26.9 gpm26.9 gpm26.9 gpm—30.5 gpm36.6 gpm30.3 gpm36.6 / 42 gpm
Height to Hinge Pin109.5 in114.5 in119 in114.5 in120 in120 in128.4 in124 in132 in128.3 in144 in
Overall Width55 in67 in66.6 in67 in67.8 in67.8 in78 in72.9 in78 in73.5 in78 in

Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.

T770

T770 Features & Benefits

Performance
Largest Classic CTL

The Bobcat T770 delivers 92 hp with a 3,475 lb ROC, 9,929 lb tipping load and 10,515 lb operating weight for demanding construction, demolition, land management and material-handling work.

High-Flow Hydraulics

Standard auxiliary flow is 23 gpm, with optional high flow up to 36.6 gpm for higher-demand attachments such as trenchers, stump grinders and drum mulchers.

Two-Speed Travel

Optional two-speed travel reaches up to 10.7 mph, helping operators move faster across the jobsite or between work areas.

Vertical-Lift Reach

A 132 in hinge-pin height and 34.9 in reach at maximum height support truck loading, material placement and elevated attachment work.

Comfort & Control
Standard or Selectable Joystick Control

Choose between classic hand and foot controls or selectable joystick controls, depending on operator preference and work needs.

Roller Suspension Undercarriage

Optional roller suspension gives the T770 an added advantage on rough ground, helping improve ride quality and operator comfort through long hours of demanding work.

Deluxe Display With Camera Integration

The standard Deluxe Display gives operators a clear view of key machine information, while rearview camera integration adds awareness when backing up and maneuvering.

Serviceability
Non-DPF Engine

The T770 engine meets emissions requirements without a diesel particulate filter, eliminating the need for time-consuming regeneration.

Grease Track Tension

Standard grease track tensioning and an 8-hour grease interval support routine undercarriage maintenance.

Bobcat Dealer Support

Carleton Equipment supports the T770 with Bobcat parts, service, attachments and local product knowledge across Michigan.

Versatility
Bob-Tach Attachment System

The standard Bob-Tach attachment system connects the T770 to a wide range of Bobcat loader attachments.

Power Bob-Tach Option

Optional Power Bob-Tach lets operators change many non-hydraulic attachments quickly from the cab.

Classic Loader Simplicity

The T770 pairs heavy-duty lift capacity with a straightforward Classic loader platform for crews that want strength without unnecessary complexity.

Bobcat T770 Compact Track Loader

Why Buyers Choose the T770

92 hp and 3,475 lb ROC make the T770 the largest and most powerful machine in the Bobcat Classic loader lineup

9,929 lb tipping load and strong breakout performance support demanding digging, loading and material handling

Optional high-flow hydraulics up to 36.6 gpm expand capability for higher-demand attachments

132 in hinge-pin height and 34.9 in reach help with truck loading and elevated placement work

Optional roller suspension undercarriage helps improve ride quality on rough ground

Non-DPF engine, Deluxe Display and rearview camera integration support uptime and jobsite awareness

Customers & Applications

Who Uses the T770 and What For

The T770 is a heavy-duty Classic compact track loader for crews that want maximum lift strength, rugged durability and broad attachment capability without unnecessary complexity.

Construction & Demolition

  • Digging, loading, grading, backfilling and site cleanup
  • Moving pallets, aggregate, spoil, concrete and demolition debris
  • Running trenchers, breakers, buckets, forks and grapples
  • Working where lift strength and track traction both matter

Land Management & Landscaping

  • Clearing brush, preparing sites and moving heavy material
  • Using high-flow attachments such as mulchers and stump grinders
  • Handling hardscape base prep, grading and snow removal
  • Operating on rough or uneven terrain with available roller suspension

Rental & Fleet Owners

  • High-capacity Classic loader platform with broad customer appeal
  • Optional high flow expands attachment rental opportunities
  • Straightforward package choices help control configuration complexity
  • Supported by Carleton Equipment parts, service and attachment expertise
Compact Track Loaders

Two Paths: Classic or Pro

Not sure which tier fits your application? Compare the full CTL lineup side by side.

Explore the Lineup

Full Specifications

General
ConditionRental
Machine TypeCompact Track Loader
Engine
Engine MakeBobcat
Alternator90A
Battery Size1000A
Engine-High Idle2400 RPM
Engine-Low Idle1050 RPM
Air Cleaner ElementsReplacable dry paper cartridge with seperate safety element
Horsepower92.0
Hydraulic Horsepower - Standard Flow47 hp
Hydraulic Horsepower - High Flow74.7 hp
EmissionsTier 4
Performance
ROC Solid Undercarriage3,475 lb.
Rated Operating Capacity 200 lb. Counterweight3,575 lbs
Rated Operating Capacity 400 lb. Counterweight3,725 lbs
Rated Operating Capacity 300 lb. Counterweight3,650 lbs
Loader Lift Height132 in
Bucket Hinge Pin Height131.4 in.
Reach @ Max Height34.9 in
Tipping Load9,929 lb
Travel Speed6.6-10.7 mph
Ground Pressure (Rubber)4.2 psi
Capacities
Fuel Tank43.8 gal.
Hydraulics
System Relief @ Quick Couplers3,450 psi
Auxiliary Std Flow23 GPM
Auxiliary High Flow36.6 GPM
Aux System Pressure3,500 psi
Dimensions & Weight
Ground Pressure (Standard Tracks)4.2 psi
Height81.3 in.
Length141.6 in.
Width78 in.
Operating Weight10515 lb
Turning Radius88 in.
Length of track on ground81.7 in
Track Width17.7 in
Length with Standard Bucket141.6 in
Serviceability
Grease Interval (hrs)8 hr
Features
Joystick Control○ Optional
Air Conditioning○ Optional
Backup Alarm■ Standard
BICS System (Interlock)■ Standard
Cab Enclosure○ Optional
ROPS/FOPS Approved■ Standard
ROPS-Step— Not Applicable
Sound Option○ Optional
Cab Heater○ Optional
Heater Air Conditioning○ Optional
Operating Lights■ Standard
Work Lights■ Standard
Turbocharged Engine■ Standard
Rear Window■ Standard
Top Window■ Standard
Grab Handles— Not Applicable
Seat Belt■ Standard
Suspension Seat■ Standard
Two Speed Travel○ Optional
Deluxe Instrumentation○ Optional
Lockable Ignition— Not Applicable
Engine Shutdown■ Standard
Hydraulic Bucket Positioning○ Optional
High Flow Option○ Optional
Auxiliary Hydraulics■ Standard
3-Spool Valve— Not Applicable
Grease Track Tension■ Standard
Spark Arrestor Muffler■ Standard
Bob-Tach Attachment System■ Standard
Power Bob-Tach○ Optional
ACS (Switchable Controls)○ Optional
Ride Control○ Optional
Horn■ Standard

Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
