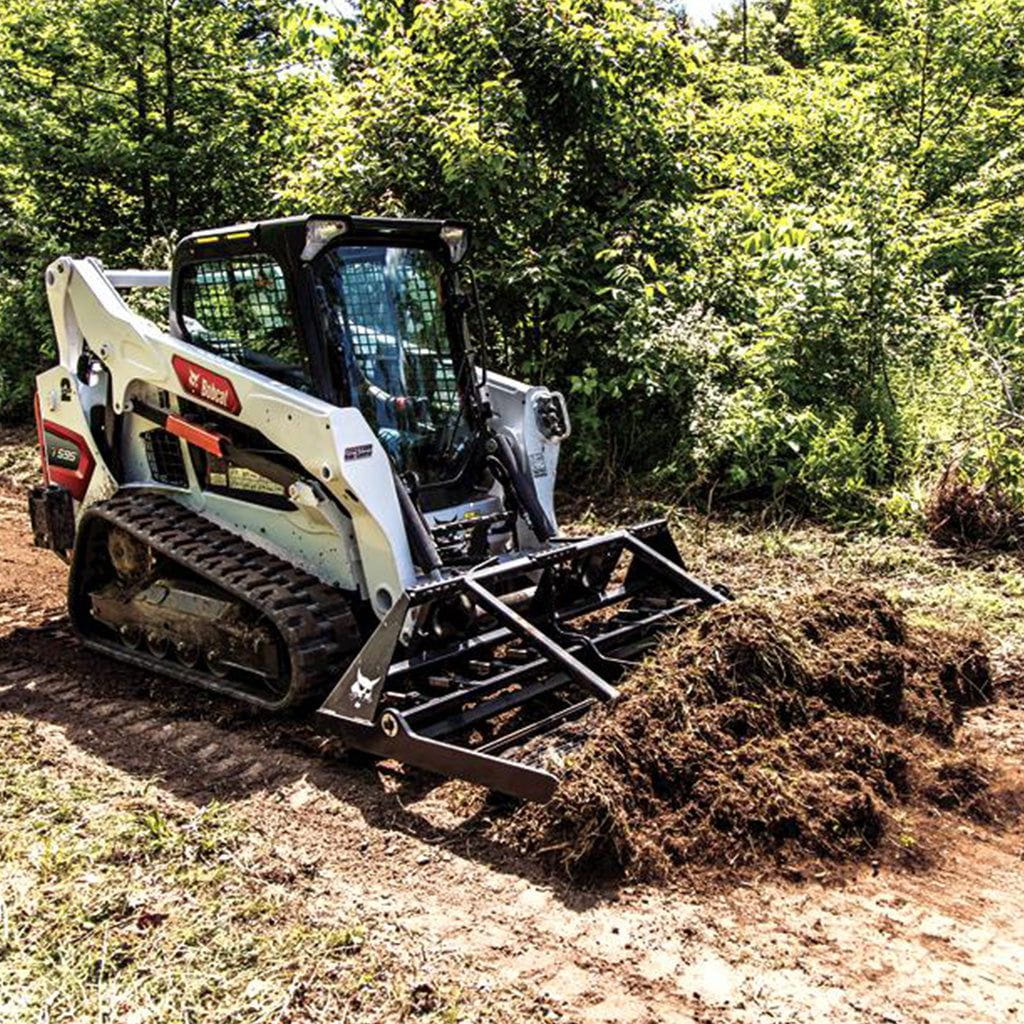

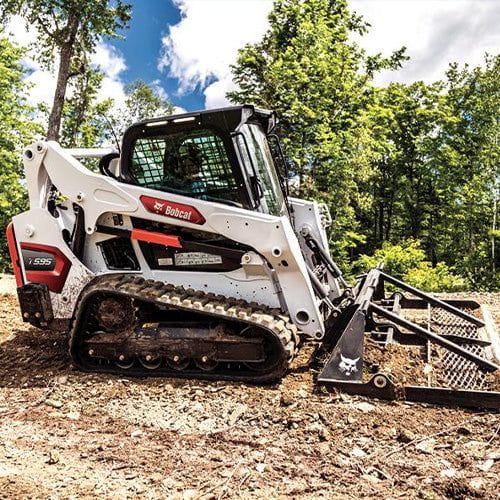

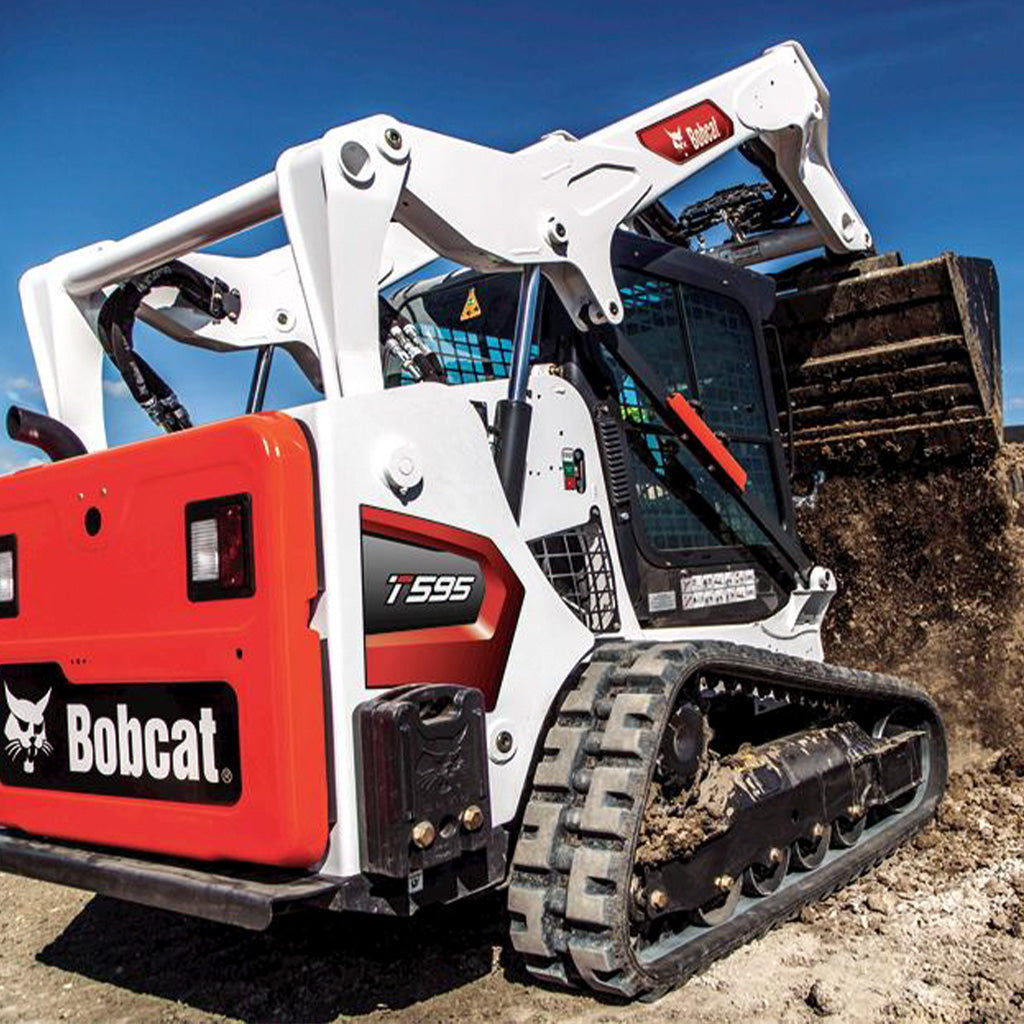

The Bobcat® T595 compact track loader has the highest horsepower and Rated Operating Capacity (ROC) in the popular 500 frame size. This vertical path loader provides recognizable power in digging and pushing applications
Specs
Configuration
Standard
Roller Suspension Option
Engine
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Fuel
Diesel
Horsepower
74 hp
Turbocharged Engine
Optional
Performance
Rated Operating Capacity (ISO)
2,200 lb
2,200 lb
Operating Capacity (50% of Tip)
3,142 lb
3,142 lb
Tipping Load
6,285 lb
6,285 lb
Operating Weight
8,055 lb
8,005 lb
Travel Speed
7.1 mph
7.1 mph
Travel Speed (2 - Speed Option)
10.4 mph
10.4 mph
Ground Pressure (Rubber)
5.1 psi
5.2 psi
Capacities
Fuel Tank
36.5
Hydraulic System
System Relief @ Quick Couplers
3,500 psi
Auxiliary Std Flow
17.1 gal/min
Auxiliary High Flow
26.7 gal.min
Dimension
Length
133 in
133 in
Length Without Attachment
104.6 in
104.6 in
Length With Standard Bucket
133 in
133 in
Width
67.1 in
67.1 in
Width (With Bucket)
68 in
68 in
Height
77.8 in
77.8 in
Height With Operator Cab
77.8 in
77.8 in
Height to Bucket Hinge Pin
119in
119 in
Reach @ Maximum Height
34.9 in
34.9 in
Turning Radius
80 in
80 in
Length of Track on Ground
54.1 in
54.1 in
Track Width
12.6 in
12.6 in
Track Width - Optional
15.8 in
15.8 in
Attachments
