General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | Stump Grinder |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description
Bobcat Stump Grinder
- Grind tree stumps into mulch
- Front-mount attachment for easy maneuverability and visibility
- Ideal for landscaping contractors, homeowners with acreage, campus facilities, municipalities, and rental contractors
- Access to backyards, through gates and other tight spaces
Description

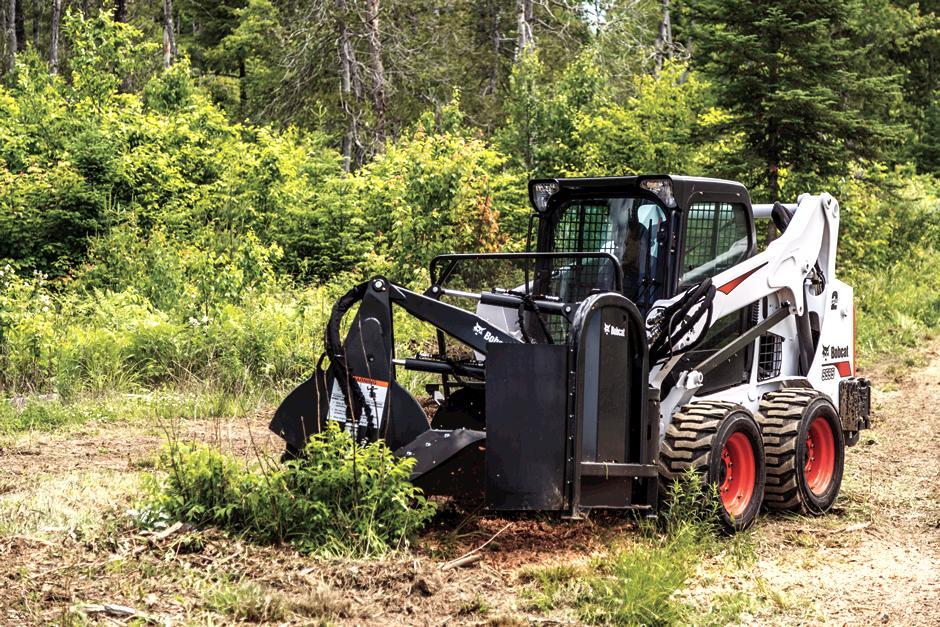

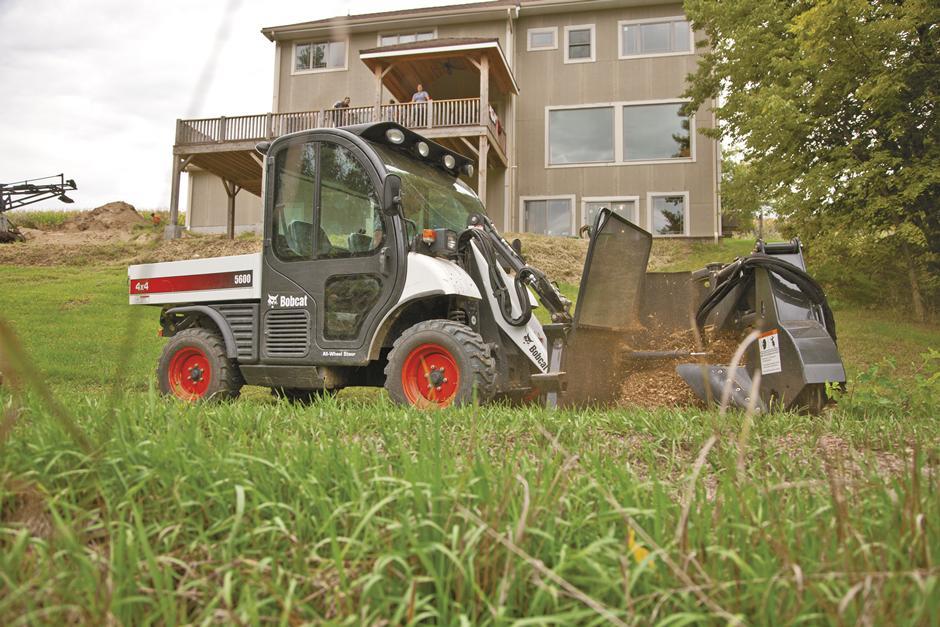

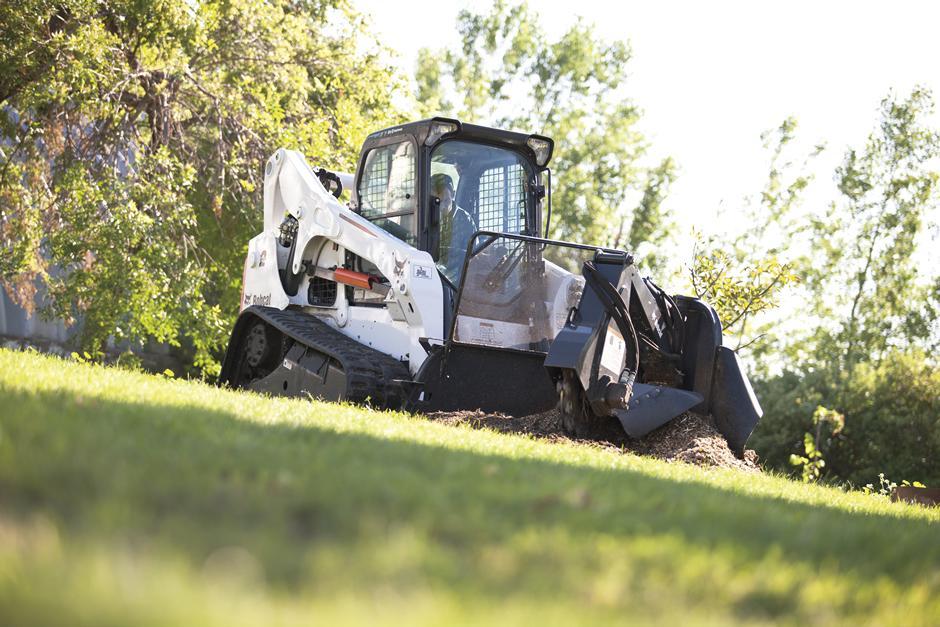

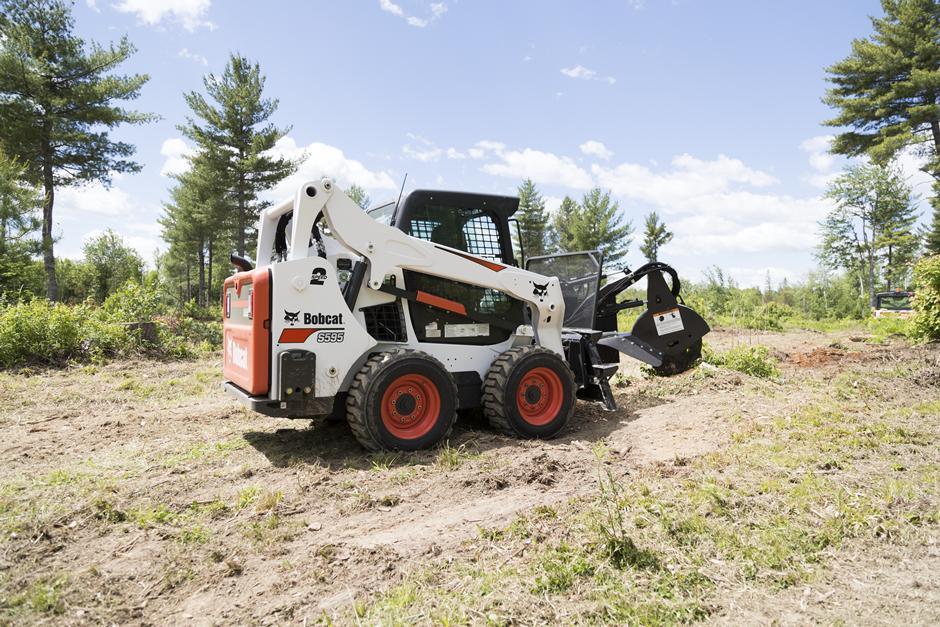

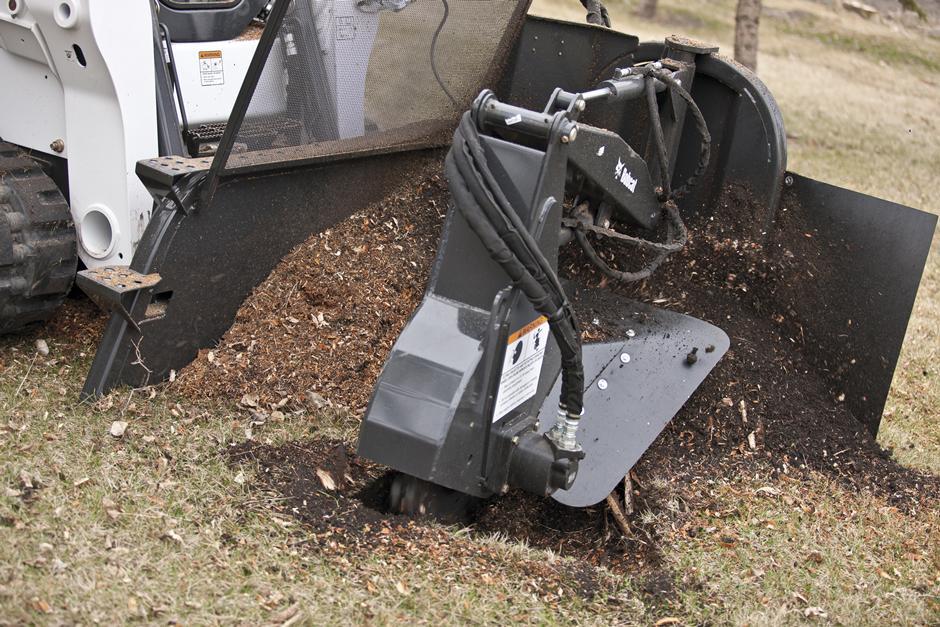

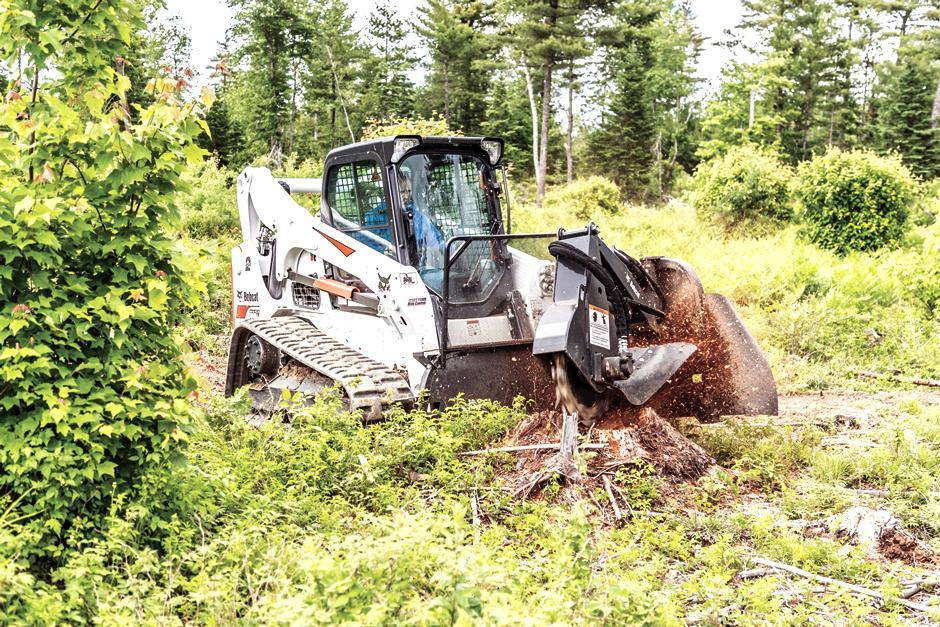

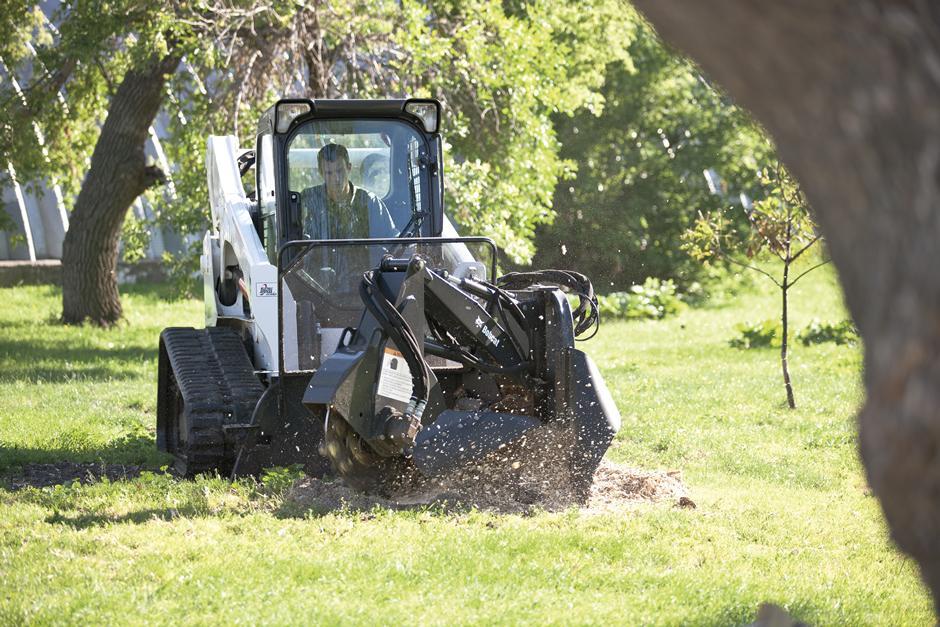

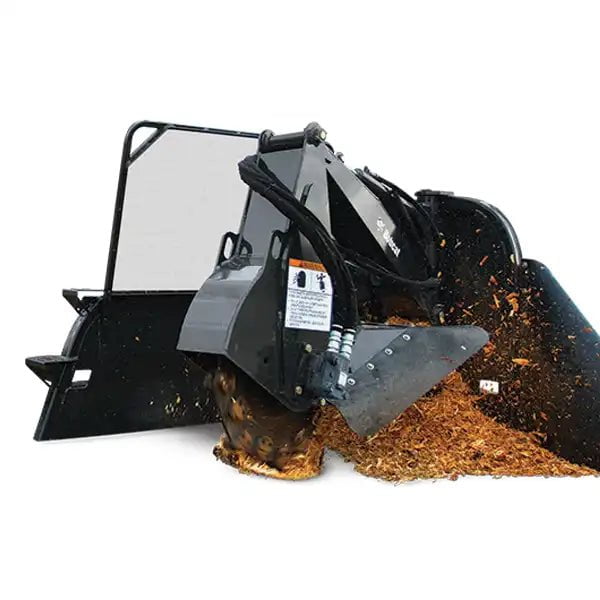

Grind tree stumps into mulch with the powerful action of the stump grinder attachment.
Designed for maximum operating capability, the stump grinder mounts directly to the front of a carrier for easy maneuvering in tight areas and positioning exactly where grinding action is needed. Mounted at a 90-degree angle to the operator, the stump grinder offers increased visibility to the cutting area, giving the operator the same wide view as with any pull-behind grinder.
The stump grinder is the ideal attachment for landscaping contractors, homeowners with acreage, campus facilities, municipalities, and rental contractors.
Stumps are eliminated even more quickly when used with machines equipped with high flow hydraulics.
Features
- 90-Degree Angle Mount: With a front mount attachment system, the stump grinder is mounted at a 90-degree angle to the operator for increased visibility to the cutting area.
- Auxiliary Hydraulics Operation: Stump grinder operates off the carrier’s auxiliary hydraulics, eliminating an engine to maintain while operating.
- Carbide-Tipped Teeth: Efficiently rip through hard wood, providing long life and uptime protection for the attachment.
- Front Mount System: Easier to maneuver into tight areas and to position stump grinder over the stump, delivering accurate grinding action and operation.
- Unique Valve Design: Minimizes the cutting wheel from stalling while in the cut.
- Rubber Deflecting Shields: Provide additional operator comfort and protection from wood chips.
Requirements
- Must be equipped with Bobcat 14-Pin Attachment Control Kit
- SG60 can be used with High Flow Loaders up to 33 GPM
- Approved for use on S630HF, S650HF, T630HF, T650HF, S750HF, S770HF, A770HF, T750HF, T770HF S850HF, and S870HF. Approved for use on S175H, S185H, S205H, T180H, T190H and High Flow Loaders equipped with 40 GPM high flow
Bobcat Skid-Steer Loaders
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
| S70 | S450 | S590 | S64-2 | S66-2 | S650 | S76-2 | S770 | S86-2 | |
|---|---|---|---|---|---|---|---|---|---|
| Frame / Role | Ultra-compact classic | Compact classic | Mid-size classic | Mid-frame Pro | Mid-frame Pro | Large classic | Large-frame Pro | Largest classic | High-output large-frame |
| Horsepower | 23.5 hp | 49 hp | 68 hp | 68 hp | 74 hp | 74 hp | 74 hp | 92 hp | 115 hp |
| Rated Operating Capacity | 760 lbs | 1,370 lbs | 2,000 lbs | 2,300 lbs | 2,400 lbs | 2,690 lbs | 2,900 lbs | 3,350 lbs | 3,500 lbs |
| Tipping Load | 1,520 lbs | 2,740 lbs | 4,000 lbs | 4,600 lbs | 4,800 lbs | 5,380 lbs | 5,800 lbs | 6,700 lbs | 7,000 lbs |
| Operating Weight | 2,892 lbs | 5,370 lbs | 6,649 lbs | 6,974 lbs | 7,154 lbs | 7,901 lbs | 8,615 lbs | 9,154 lbs | 10,237 lbs |
| Travel Speed | 6.3 mph | 7.6 / 9.2 mph | 7.3 / 11.7 mph | 7.4 / 11 mph | 7.4 / 11 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph |
| Standard Aux Flow | 8.9 gpm | 16.7 gpm | 17.1 gpm | 23.3 gpm | 23.3 gpm | 23 gpm | 23.3 gpm | 23 gpm | 23 gpm |
| High / Super Flow | — | — | 26.7 gpm | 30.3 gpm | 30.3 gpm | 30.5 gpm | 30.3 gpm | 36.6 gpm | 36.6 / 42 gpm |
| Height to Hinge Pin | 94.5 in | 109.5 in | 119 in | 120 in | 120 in | 124 in | 128.3 in | 132 in | 144 in |
| Overall Width | 35.5 in | 58.6 in | 64.7 in | 67.8 in | 67.8 in | 72.1 in | 72.9 in | 72.1 in | 78 in |
Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
Full Specifications
General
| Condition | Showroom |
Engine
Performance
Capacities
Hydraulics
Dimensions & Weight
Serviceability
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
