- Horsepower
- 105 hp
- Rated operating capacity
- 3,400 lb
- Operating weight
- 9,728 lb
- Hinge pin height
- 132 in
More specifications
|
General Info
|
|
|---|---|
| Condition: | Rental |
| Manufacturer: | Bobcat |
| Model: | S86 |
| Machine Type: | Skid Steer Loader |
|
Engine
|
|
|---|---|
| Horsepower: | 105.0 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Rated Operating Capacity (ISO): | 3,400 lb. |
| Tipping Load: | 6,800 lb |
| Operating Weight: | 9728 lb |
| Travel Speed: | 6.7-12 mph |
| Height to Bucket Hinge Pin: | 132 IN. |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 23.6 GPM |
| Aux. High Flow: | 36.6 GPM |
| Aux. Super High Flow: | 42 GPM |
|
Dimensions
|
|
|---|---|
| Height: | 83.1 IN. |
| Width: | 74 IN. |
| Wheelbase: | 51.3 in |
| Turning Radius: | 90.5 in |
Description

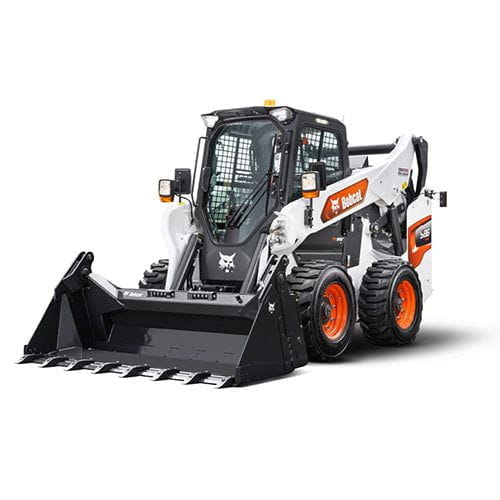

Rent a Bobcat S86 - Bobcat Rental in Michigan
Description
The Bobcat® S86 is the most powerful skid-steer loader we’ve ever built, delivering more usable engine and hydraulic horsepower than ever before.
Specs
Engine
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 105 |
| Turbocharged Engine |
Yes |
Performance
| Rated Operating Capacity (ISO) | 3,400 lb |
| Rated Operating Capacity - 200 lb. Counterweight | 3,550 lb |
| Rated Operating Capacity - 300 lb. Counterweight | 3,625 lb |
| Rated Operating Capacity - 400 lb. Counterweight | 3,700 lb |
| Tipping Load | 6,800 lb |
| Operating Weight | 9,728 lb |
| Travel Speed | 6.7 mph |
| Travel Speed (2 - Speed Option) | 12 mph |
Capacities
| Fuel Tank | 31.6 gal |
Hydraulic System
| Auxiliary Std Flow | 23.6 gal/min |
| Auxiliary High Flow | 36.6 gal/min |
| Auxiliary Super Flow | 42 gal/min |
Dimension
| Length | 153.5 in |
| Length Without Attachment | 120.4 in |
| Length With Standard Bucket | 153.5 in |
| Width | 72 in |
| Width (With Bucket) | 74 in |
| Height | 83.1 in |
| Height With Operator Cab | 83.1 in |
| Height to Bucket Hinge Pin | 132 in |
| Reach @ Maximum Height | 38 in |
| Turning Radius | 90.5 in |
| Wheelbase | 51.3 in |
What Makes the S86 Different
Three Hydraulic Flow Options
The S86 skid-steer loader and T86 compact track loader are the only compact loaders that deliver three hydraulic flow options in one machine: 23.6 gpm standard flow, optional 36.6 gpm high flow and optional 42 gpm super flow at 4,061 psi for attachments designed specifically for super-flow hydraulics.
Premium Power Performance
One of the most powerful skid-steer loaders Bobcat has ever built, the 105 hp S86 delivers more usable engine and hydraulic horsepower, with an intelligent power management system when equipped with high- or super-flow hydraulics.
Greater Lifting Capabilities
Cast-steel lift arms and optimized linkage on the vertical-lift-path S86 provide greater lifting capability, impressive breakout forces and leading maneuverability for fast cycle times.
Non-DPF Bobcat Engine
The Bobcat engine meets Tier 4 regulations without a diesel particulate filter, eliminating DPF regeneration downtime and long-term DPF maintenance costs so operators can focus on working.
High-Performance Cooling System
The R-Series cooling system is completely redesigned for optimal operation and maximum uptime when the machine runs longer and takes on bigger, more difficult jobs.
Selectable Joystick Controls
Bobcat Selectable Joystick Control (SJC) delivers a level of customization no other joystick matches, includes horsepower management, and allows the loader to be run by a portable remote-control system.
Bobcat Skid-Steer Loaders
 |
 |
S510 |
 |
S62 |
 |
 |
 |
 |
 |
 |
|
| S70 | S450 | S510 | S590 | S62 | S64-2 | S66-2 | S650 | S76-2 | S770 | S86Viewing | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame / Role | Ultra-compact classic | Compact classic | Mid-size classic, radius lift | Mid-size classic | Mid-frame radius lift | Mid-frame Pro | Mid-frame Pro | Large classic | Large-frame Pro | Largest classic | High-output large-frame |
| Horsepower | 23.5 hp | 49 hp | 55 hp | 68 hp | 68 hp | 68 hp | 74 hp | 74 hp | 74 hp | 92 hp | 105 hp |
| Rated Operating Capacity | 760 lbs | 1,370 lbs | 1,876 lbs | 2,000 lbs | 2,100 lbs | 2,300 lbs | 2,400 lbs | 2,690 lbs | 2,900 lbs | 3,350 lbs | 3,400 lbs |
| Tipping Load | 1,520 lbs | 2,740 lbs | 3,560 lbs | 4,000 lbs | 4,200 lbs | 4,600 lbs | 4,800 lbs | 5,380 lbs | 5,800 lbs | 6,700 lbs | 6,800 lbs |
| Operating Weight | 2,892 lbs | 5,370 lbs | 6,208 lbs | 6,649 lbs | 6,884 lbs | 6,855 lbs | 7,046 lbs | 7,901 lbs | 8,014 lbs | 9,154 lbs | 9,728 lbs |
| Travel Speed | 6.3 mph | 7.6 / 9.2 mph | 7.6 mph | 7.3 / 11.7 mph | 7.4 / 11 mph | 7.4 / 11 mph | 7.4 / 11 mph | 7.1 / 12.3 mph | 6.8 / 11.8 mph | 7.1 / 12.3 mph | 6.7 / 12 mph |
| Standard Aux Flow | 8.9 gpm | 16.7 gpm | 17.1 gpm | 17.1 gpm | 17.6 gpm | 17.6 gpm | 17.6 gpm | 23 gpm | 23.3 gpm | 23 gpm | 23.6 gpm |
| High / Super Flow | — | — | — | 26.7 gpm | 26.9 gpm | 26.9 gpm | 26.9 gpm | 30.5 gpm | 30.3 gpm | 36.6 gpm | 36.6 / 42 gpm |
| Height to Hinge Pin | 94.5 in | 109.5 in | 114.5 in | 119 in | 114.5 in | 120 in | 120 in | 124 in | 128.3 in | 132 in | 132 in |
| Overall Width | 35.5 in | 58.6 in | 68 in (with bucket) | 64.7 in | 68 in (with bucket) | 64.6 in | 67 in | 72.1 in | 72 in | 72.1 in | 72 in |
| Versatility | Ultra-compact access | Compact jobsite fit | Radius-lift digging and pushing | Vertical-lift material handling | Radius-lift reach, high-flow option | Pro packages, high-flow option | Pro packages, stronger attachment flow | Large-frame lift and attachments | Large-frame Pro packages | Large classic lift capacity | High-output Pro hydraulics |
| Serviceability | Simple daily access | Non-DPF engine | Full-access serviceability | Service-friendly loader layout | Non-DPF engine, simplified maintenance | Engine shutdown, lift-arm support | Engine shutdown, lift-arm support | Dealer-supported classic platform | Pro platform service access | Dealer-supported classic platform | Pro platform service access |
Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
S86 Features & Benefits
Performance 3
High-Output Large-Frame Power
The S86 delivers 105 hp, a 3,400 lb rated operating capacity and a 6,800 lb tipping load, with available counterweights raising ROC to 3,550 lb or 3,700 lb.
Three Hydraulic Flow Options
Standard 23.6 gpm, optional 36.6 gpm high-flow and optional 42 gpm super-flow hydraulics power standard, high-flow and super-flow attachments from one machine.
Lift Height and Reach
A 132 in height to hinge pin and 38 in reach at maximum height help the S86 load trucks and handle heavy material efficiently.
Comfort & Control 3
Selectable Joystick Controls
Selectable Joystick Controls (SJC) with horsepower management and Bobcat-exclusive customization let operators tailor the machine to the work, with remote operation available.
Premium Cab Experience
A one-piece sealed and pressurized cab, sound dampening, automatic heat and air conditioning, optional clear-side enclosure and optional heated cloth air-ride seat support long workdays.
In-Cab Display Options
The standard display provides full-featured machine monitoring, and the optional touch display adds detailed machine information and device connectivity on a waterproof, scratch-hardened screen.
Versatility 3
Super-Flow Attachment Capability
Optional super flow lets the S86 power attachments specifically designed for super-flow hydraulics, setting a new benchmark in attachment versatility.
Power Bob-Tach Option
Upgrade from the standard Bob-Tach mounting system to Power Bob-Tach, available on select models, to swap non-hydraulic attachments without leaving the seat.
Production-Minded Options
Two-speed travel, automatic ride control, dual-direction bucket positioning, the attachment control kit and Features on Demand help configure the S86 for high-output applications.
Serviceability 3
High-Performance Cooling
The redesigned R-Series cooling system supports consistent performance when the machine is working hard for long stretches.
Tip-Up Cab and Protected Battery
The entire cab tips up for maintenance, the battery sits under the cab with a remote jumpstart terminal, and the welded-axle chaincase never needs chain adjustment.
Dealer Parts & Service Support
Carleton Equipment support helps keep filters, fluids, wear parts, attachments and planned maintenance available for the S86.
Why Buyers Choose the S86
105 hp and 3,400 lb ROC for high-production skid-steer loader work
6,800 lb tipping load and 132 in hinge-pin height support heavy loading applications
Super-flow hydraulics up to 42 gpm help run demanding high-output attachments
Two-speed travel reaches up to 12 mph for faster movement across large jobsites
Non-DPF Bobcat engine and high-performance cooling support uptime on long days
SJC with horsepower management and a sealed pressurized cab keep operators productive
Who Uses the S86 and What For
The S86 is a high-output R-Series skid-steer loader for crews that need greater lifting capability, three hydraulic flow options and a high-performance cooling system on firm or compacted surfaces.
Commercial Construction & Roadwork
- Loading trucks, moving aggregate and clearing heavy jobsite debris
- Running planers, breakers, wheel saws, trenchers and grading tools
- Supporting road, utility, demolition and site-prep crews
- Working where lift height, speed and hydraulic output matter
Snow, Forestry & Land Work
- Running snowblowers, brooms, brush cutters and land-clearing attachments
- Handling commercial snow removal on paved or compacted surfaces
- Moving quickly between repeated production tasks
- Using super-flow capability for approved high-demand tools
Rental & Fleet Owners
- Proven high-output R-Series platform with dealer parts and service support
- Standard or SJC controls and Features on Demand simplify fleet configuration
- Super-flow capability supports a broader high-value attachment mix
- Supported by Carleton Equipment parts, service and attachment expertise
Pro Loader Packages
Find the Right Package for the Way You Work
Find the Right Package for the Way You Work
Package options make it easier to choose the right mix of advanced comfort, control and technology for the way you work. Compare package levels below to find the Pro Bobcat loader setup that matches your jobsites, applications and operator preferences.
WORK, CORE, PLUS and ADVANCED packages are available across Pro Bobcat loaders.
| Work | Core | Plus | Advanced | |
|---|---|---|---|---|
| Overview | ||||
| Summary | Pro control and operation at a competitive price. | Pro control and operation with upgraded comfort and performance options. | Pro control and operation with premium comfort and performance standard. | Plus package with Jobsite Companion. |
| Standard Features | ||||
| Power Bob-Tach® | ✔ | ✔ | ✔ | ✔ |
| Keyless Ignition | ✔ | ✔ | ✔ | ✔ |
| 7-Pin Attachment Control | ✔ | ✔ | ✔ | ✔ |
| 2-Speed | ✔ | ✔ | ✔ | ✔ |
| Auto-Throttle | ✔ | ✔ | ✔ | ✔ |
| Dual-Direction Bucket Positioning | ✔ | ✔ | ✔ | ✔ |
| Bluetooth Radio | ✔ | ✔ | ✔ | ✔ |
| Main Package Differences | ||||
| Suspension Seat | Vinyl | High-Back Heated Cloth Air-RideWith Enclosed Cab | High-Back Heated Cloth Air-Ride | High-Back Heated Cloth Air-Ride |
| Display | 8" | 8" w/ InfotainmentWith Enclosed Cab | 8" w/ Infotainment | 8" w/ Infotainment |
| Lights | LED | Premium LED | Premium LED w/ Side Lights | Premium LED w/ Side Lights |
| Machine IQ Telematics | 2YR Basics | 2YR Basics | 1YR H&S + 1YR Basics | 1YR H&S + 1YR Basics |
| Automatic Ride Control | — | ✔ | ✔ | ✔ |
| Sound Reduction | — | ✔With Enclosed Cab | ✔ | ✔ |
| Jobsite Companion | — | — | — | ✔ |
| Package Options | ||||
| Cab | Open or Enclosed HVAC | Open or Enclosed HVAC | Enclosed HVAC W/ Clear-Side Enclosure | Enclosed HVAC W/ Clear-Side Enclosure |
| Controls | SJC STD Hand & Foot OPT |
SJC STD Hand & Foot OPT |
SJC STD Hand & Foot OPT |
SJC |
| Camera(s) | Rear View | Rear View | Rear View STD Broad Area OPT |
Rear View STD Broad Area OPT |
| Undercarriage | Solid Mount | Solid Mount | Solid Mount | Solid Mount |
| Auxiliary Flow | Standard Flow | Standard Flow STD Standard+High OPT |
Standard+High STD | Standard+High STD |
| Reversing Fan | — | Included w/ High Flow | ✔ | ✔ |
| Bobcat Sense | Rear Object Detection and Avoidance OPT | Rear Object Detection and Avoidance OPT | Rear Object Detection and Avoidance OPT | 360 People Detection OPT |
| Tracks | C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
C-Pattern 12.6" STD C-Pattern 15.7" OPT MBL 15.7" OPT |
Talk to a person about the S86
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
General
| Condition | Rental |
| Machine Type | Skid Steer Loader |
Engine
| Engine Make | Bobcat |
| Horsepower | 105.0 |
| Emissions | Tier 4 |
Performance
| Rated Operating Capacity | 3,400 lb. |
| Bucket Hinge Pin Height | 132 IN. |
| Tipping Load | 6,800 lb |
| Travel Speed | 6.7-12 mph |
Capacities
Hydraulics
| Auxiliary Std Flow | 23.6 GPM |
| Auxiliary High Flow | 36.6 GPM |
| Aux. Super High Flow | 42 GPM |
Dimensions & Weight
| Height | 83.1 IN. |
| Width | 74 IN. |
| Operating Weight | 9728 lb |
| Wheelbase | 51.3 in |
| Turning Radius | 90.5 in |
Serviceability
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
|
