- Horsepower
- 55 hp
- Rated operating capacity
- 1,876 lb
- Operating weight
- 6,208 lb
- Hinge pin height
- 114.5 in
More specifications
|
General Info
|
|
|---|---|
| Condition: | Rental |
| Manufacturer: | Bobcat |
| Model: | S510 |
| Machine Type: | Skid/Track Loader |
|
Engine
|
|
|---|---|
| Horsepower: | 55.0 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Rated Operating Capacity (ISO): | 1,876 lb. |
| Tipping Load: | 3,560 lb. |
| Operating Weight: | 6208 lb |
| Travel Speed: | 7.6-11 mph |
| Height to Bucket Hinge Pin: | 114.5 in |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 17.1 GPM |
|
Dimensions
|
|
|---|---|
| Height: | 77.8 in. |
| Length: | 133 in. |
| Width: | 64.7 in. |
| Wheelbase: | 42.6 in. |
| Turning Radius: | 80 in. |
| Fuel Tank: | 24.8 gal. |
Description

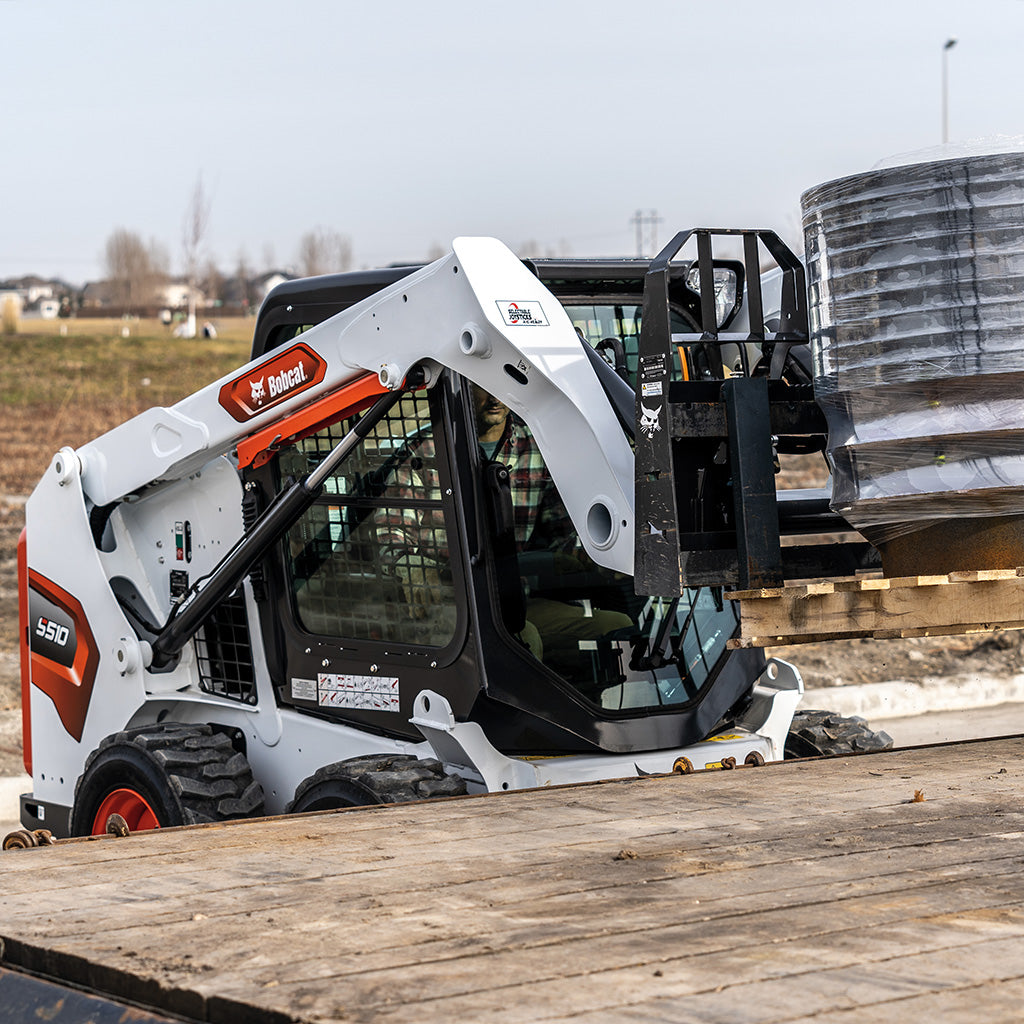

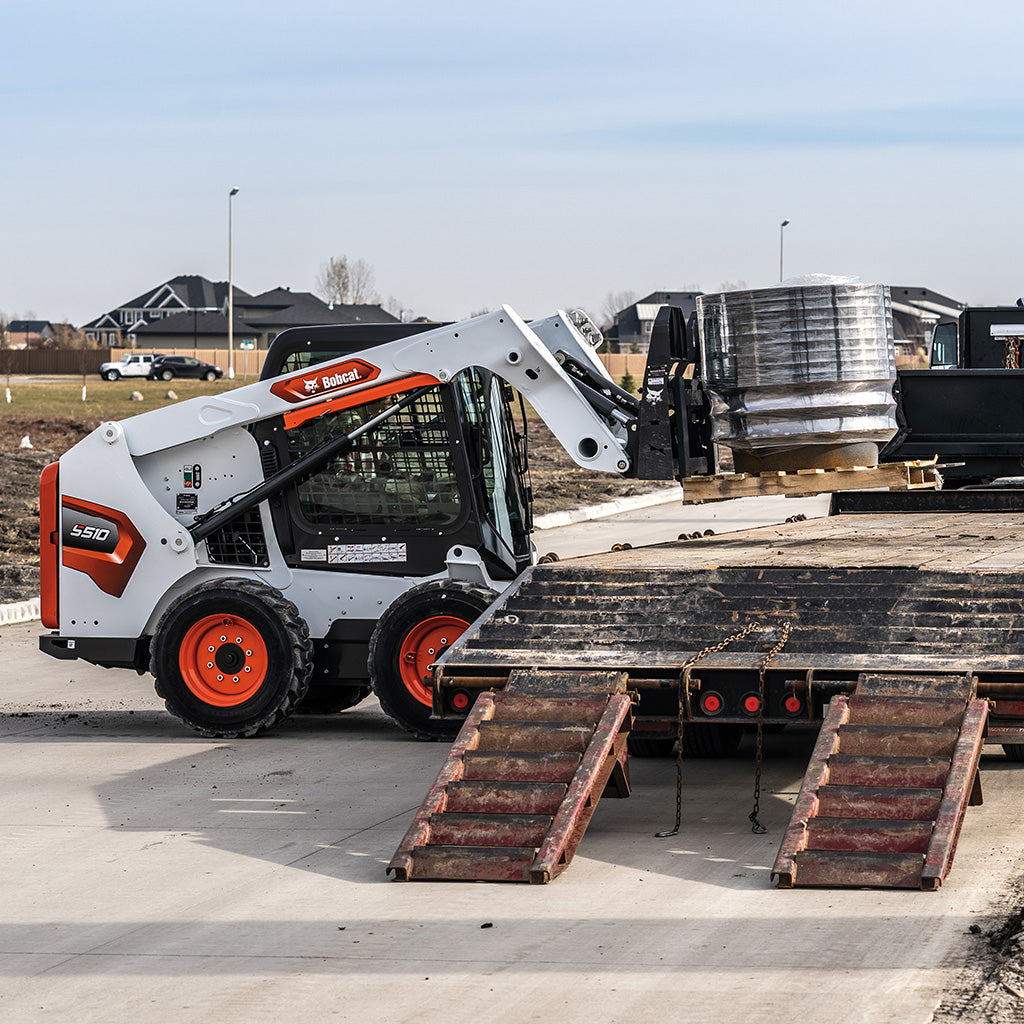

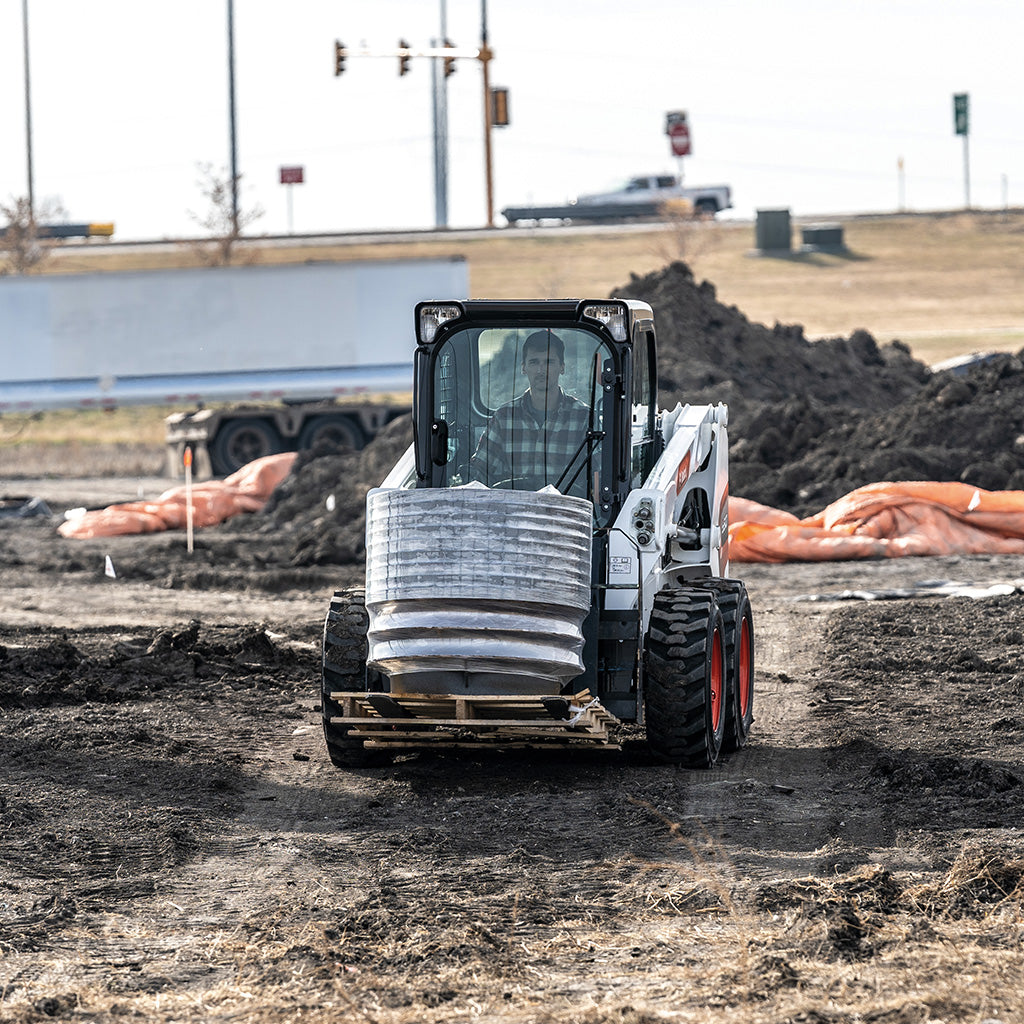

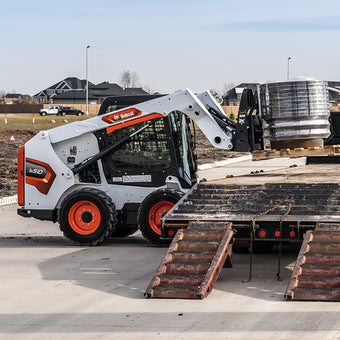

Bobcat S510 Series - Rental
Take on tough jobs with confidence by renting the reliable and agile Bobcat S510. This skid-steer loader is powered by a 55-horsepower diesel engine, making it suitable for landscaping, construction, and many other projects where you need extra muscle. Thanks to its compact frame, the S510 provides excellent maneuverability in tight spaces, while its advanced hydraulic system ensures efficient performance for loading, digging, and hauling tasks. With a 1,876-pound rated operating capacity (ROC) and a tipping load of 3,560 pounds, you can tackle demanding loads safely. Whether you’re clearing debris or moving materials around a job site, the S510 will help you work faster and smarter.
Rental Rates![]()
![]()
![]()
![]()
![]()
| Daily | Weekly | Monthly |
| $350 | $1,100 | Call for Pricing Plans |
Description
The agile Bobcat® S510 skid-steer loader delivers powerful hydraulics for unmatched efficiency on the job.
Specs
Engine
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 55 |
| Turbocharged Engine |
Yes |
Performance
| Rated Operating Capacity (ISO) | 1,876 lb |
| Tipping Load | 3,560 lb |
| Operating Weight | 6,208 lb |
| Travel Speed | 7.6 mph |
| Travel Speed (2 - Speed Option) | 11 mph |
Capacities
| Fuel Tank | 24.8 gal |
Hydraulic System
| Auxiliary Std Flow | 17.1 gal/min |
| Auxiliary High Flow | n/a |
Dimension
| Length | 133 in |
| Length Without Attachment | 104.6 in |
| Length With Standard Bucket | 133 in |
| Width | 64.7 in |
| Width (With Bucket) | 68 in |
| Height | 77.8 in |
| Height With Operator Cab | 77.8 in |
| Height to Bucket Hinge Pin | 114.5 in |
| Reach @ Maximum Height | 17 in |
| Turning Radius | 80 in |
| Wheelbase | 42.6 in |
What Makes the S510 Different
Radius Lift Path
The radius-lift-path S510 offers maximum reach at truck bed height, making it a natural fit for dumping over walls, backfilling and loading trucks.
Powerful Hydraulic Performance
The engine, pumps and hydraulic system are engineered together to deliver maximum hydraulic performance. For you, that means powerful breakout forces, faster cycle times and better jobsite productivity.
Standard or Selectable Joystick Control
Choose Bobcat Standard Controls, with dual steering levers and dual foot pedals, or Selectable Joystick Controls (SJC) with Bobcat-exclusive customization and fingertip attachment control.
Innovative Fuel System
A self-priming fuel pump continuously forces air out of the low-pressure fuel system, eliminating the primer bulb, while a fuel pressure sensor warns the operator of a plugged fuel filter. Running the tank empty or changing the filter is easier.
Full-Access Serviceability
A large swing-open tailgate gives convenient access to routine maintenance points. No radiators to move, no lift arms to raise and no lift-arm support devices to install before servicing the machine.
MaxControl Remote Operation
Loaders equipped with SJC can be run from outside the cab with the MaxControl iOS app or a portable remote-control system, so a single operator can handle two-person jobs and skip repeated trips in and out of the cab.
Bobcat Skid-Steer Loaders
 |
 |
 |
 |
S62 |
 |
 |
 |
 |
 |
 |
|
| S70 | S450 | S510Viewing | S590 | S62 | S64-2 | S66-2 | S650 | S76-2 | S770 | S86-2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame / Role | Ultra-compact classic | Compact classic | Mid-size classic, radius lift | Mid-size classic | Mid-frame radius lift | Mid-frame Pro | Mid-frame Pro | Large classic | Large-frame Pro | Largest classic | High-output large-frame |
| Horsepower | 23.5 hp | 49 hp | 55 hp | 68 hp | 68 hp | 68 hp | 74 hp | 74 hp | 74 hp | 92 hp | 115 hp |
| Rated Operating Capacity | 760 lbs | 1,370 lbs | 1,876 lbs | 2,000 lbs | 2,100 lbs | 2,300 lbs | 2,400 lbs | 2,690 lbs | 2,900 lbs | 3,350 lbs | 3,500 lbs |
| Tipping Load | 1,520 lbs | 2,740 lbs | 3,560 lbs | 4,000 lbs | 4,200 lbs | 4,600 lbs | 4,800 lbs | 5,380 lbs | 5,800 lbs | 6,700 lbs | 7,000 lbs |
| Operating Weight | 2,892 lbs | 5,370 lbs | 6,208 lbs | 6,649 lbs | 6,884 lbs | 6,855 lbs | 7,046 lbs | 7,901 lbs | 8,014 lbs | 9,154 lbs | 10,098 lbs |
| Travel Speed | 6.3 mph | 7.6 / 9.2 mph | 7.6 mph | 7.3 / 11.7 mph | 7.4 / 11 mph | 7.4 / 11 mph | 7.4 / 11 mph | 7.1 / 12.3 mph | 6.8 / 11.8 mph | 7.1 / 12.3 mph | 7.1 / 12.3 mph |
| Standard Aux Flow | 8.9 gpm | 16.7 gpm | 17.1 gpm | 17.1 gpm | 17.6 gpm | 17.6 gpm | 17.6 gpm | 23 gpm | 23.3 gpm | 23 gpm | 23 gpm |
| High / Super Flow | — | — | — | 26.7 gpm | 26.9 gpm | 26.9 gpm | 26.9 gpm | 30.5 gpm | 30.3 gpm | 36.6 gpm | 36.6 / 42 gpm |
| Height to Hinge Pin | 94.5 in | 109.5 in | 114.5 in | 119 in | 114.5 in | 120 in | 120 in | 124 in | 128.3 in | 132 in | 144 in |
| Overall Width | 35.5 in | 58.6 in | 68 in (with bucket) | 64.7 in | 68 in (with bucket) | 64.6 in | 67 in | 72.1 in | 72 in | 72.1 in | 72 in |
| Versatility | Ultra-compact access | Compact jobsite fit | Radius-lift digging and pushing | Vertical-lift material handling | Radius-lift reach, high-flow option | Pro packages, high-flow option | Pro packages, stronger attachment flow | Large-frame lift and attachments | Large-frame Pro packages | Large classic lift capacity | High-output Pro hydraulics |
| Serviceability | Simple daily access | Non-DPF engine | Full-access serviceability | Service-friendly loader layout | Non-DPF engine, simplified maintenance | Engine shutdown, lift-arm support | Engine shutdown, lift-arm support | Dealer-supported classic platform | Pro platform service access | Dealer-supported classic platform | Pro platform service access |
Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
S510 Features & Benefits
Performance 3
Professional-Grade Skid-Steer Power
The Bobcat S510 delivers 55 hp, a 1,876 lb rated operating capacity and a 3,560 lb tipping load in a solid yet agile 6,208 lb skid-steer loader built for digging, pushing and lifting in tight spaces.
Powerful Hydraulics
Standard 17.1 gpm auxiliary flow and 3,550 psi at the quick couplers, matched to the engine and pumps, deliver powerful breakout forces, rapid cycle times and high torque.
Radius Lift Path
A 114.5 in height to bucket hinge pin and the radius lift path provide maximum reach at truck bed height for loading, backfilling and placing material.
Comfort & Control 3
Adaptable Controls
Standard Controls or Selectable Joystick Controls match the operator and the task. With SJC, engine speed can be controlled with the foot while fingertip controls run soil conditioners, sweepers, tillers, buckets and other attachments. Foot pedals adjust to preference.
Pressurized Enclosed Cab
Enclosed-cab models use a pressurizing front door seal that repels dust and keeps clean, heated or air-conditioned air inside. A large entry, roomy interior and multi-point adjustable seat add to operator comfort.
Leading Visibility
The cab is designed for all-around sight lines: see the bucket corners and cutting edge from the seat, view the tires without raising the arms, and use the large top window when dumping into a high-sided truck.
Versatility 3
Bob-Tach Attachment System
The time-tested standard Bob-Tach mounting system connects the S510 to the Bobcat attachment lineup. Power Bob-Tach, available on select models, swaps non-hydraulic attachments without leaving the seat.
Remote Control and MaxControl
With SJC, the S510 can be operated by a portable remote-control system or the MaxControl iOS app, acting as an extra set of hands when help is limited.
Attachment Versatility
Bobcat attachments help the S510 do much more than dig, backed by attachment support from Carleton Equipment and the Bobcat dealer network.
Uptime & Serviceability 3
Innovative Fuel System
The self-priming fuel pump eliminates the primer bulb, and a fuel pressure sensor monitors the low-pressure circuit and notifies the operator of a plugged fuel filter.
Maintenance-Free Chaincase
Axle tubes are welded to the chaincase with tight-tolerance chain placement, so drive chains never need periodic adjustment. Cold weather engine protection and protected loader components add further uptime insurance.
One-Sided, Full-Access Service
A transverse engine with Kevlar belt drive, swing-open tailgate, easy-access grease points, tip-up cab and hydraulic oil sight gauge make routine checks quick. Carleton Equipment backs the S510 with Bobcat parts and service across Michigan.
Why Buyers Choose the S510
55 hp and 1,876 lb rated operating capacity in a solid yet agile skid-steer package
3,560 lb tipping load and powerful breakout forces for digging, pushing and lifting
Radius lift path gives maximum reach at truck bed height for walls, trucks and backfilling
Standard 17.1 gpm auxiliary hydraulics with rapid cycle times for everyday Bobcat attachments
Innovative fuel system, maintenance-free chaincase and full-access serviceability maximize uptime
Standard or Selectable Joystick Controls, with remote and MaxControl operation on SJC machines
Who Uses the S510 and What For
The S510 is a no-nonsense, professional-grade radius-lift skid-steer loader for buyers who want strong hydraulics and lift capacity in a machine that still works comfortably in tight spaces on construction sites and landscaping projects.
Construction
- Digging, pushing and lifting on jobsites where space is limited
- Loading trucks and backfilling with radius-lift reach at truck bed height
- Grading next to buildings with clear sight lines to the cutting edge
- Running buckets, forks and other Bob-Tach attachments between tasks
Landscaping
- Moving soil, mulch and hardscape material with powerful hydraulics
- Running soil conditioners, sweepers and tillers with fingertip controls
- Working close to walls and obstacles with a fine-touch control setup
- Balanced, easy turning that reduces tire wear on finished surfaces
Contractors & Rental Fleets
- Proven platform with dealer parts and service support
- Standard or joystick controls to suit different operators and crews
- Maintenance-free chaincase and one-sided service keep machines in the field
- Supported by Carleton Equipment parts, service and attachment expertise across Michigan
Talk to a person about the S510
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
General
| Condition | Rental |
| Machine Type | Skid/Track Loader |
Engine
| Engine Make | Bobcat |
| Horsepower | 55.0 |
| Emissions | Tier 4 |
Performance
| Rated Operating Capacity | 1,876 lb. |
| Bucket Hinge Pin Height | 114.5 in |
| Tipping Load | 3,560 lb. |
| Travel Speed | 7.6-11 mph |
Capacities
| Fuel Tank | 24.8 gal. |
Hydraulics
| Auxiliary Std Flow | 17.1 GPM |
Dimensions & Weight
| Height | 77.8 in. |
| Length | 133 in. |
| Width | 64.7 in. |
| Operating Weight | 6208 lb |
| Wheelbase | 42.6 in. |
| Turning Radius | 80 in. |
Serviceability
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
|
