- Horsepower
- 24.8 hp
- Rated operating capacity
- 550 lb
- Operating weight
- 2,610 lb
More specifications
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | MT55 |
| Machine Type: | Mini Track Loader |
| Coupler: | Mini Bob-Tach |
|
Engine
|
|
|---|---|
| Horsepower: | 24.8 |
|
Performance
|
|
|---|---|
| Rated Operating Capacity (ISO): | 550 LB. |
| Operating Weight: | 2610 lb |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 12 GPM |
|
Dimensions
|
|
|---|---|
| Width: | 35.6 IN. |
| Fuel Tank: | 7 gal. |
Description

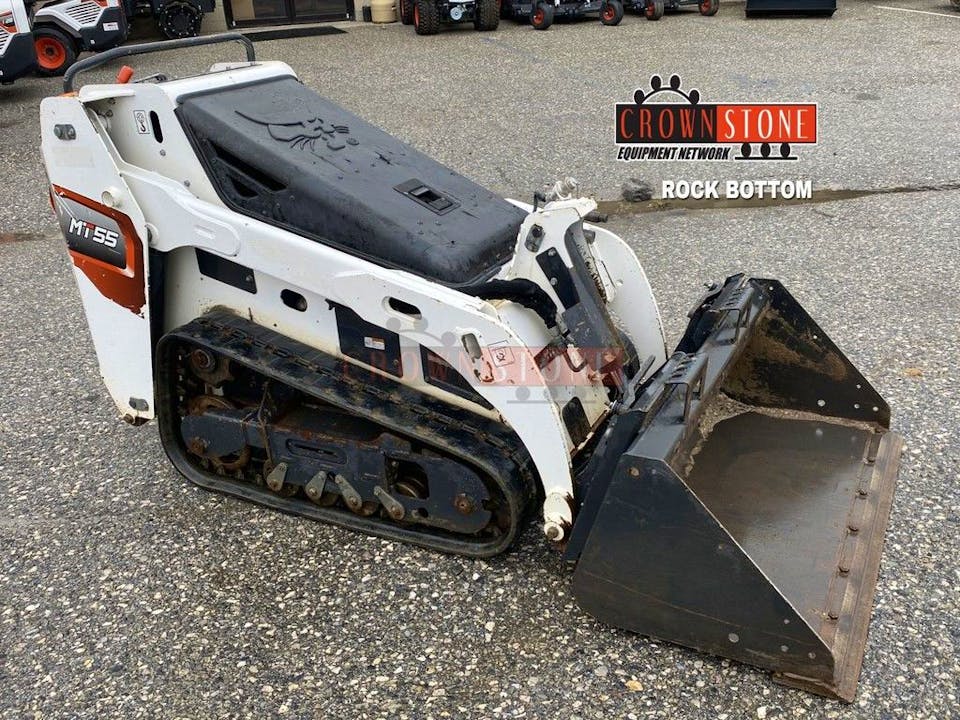

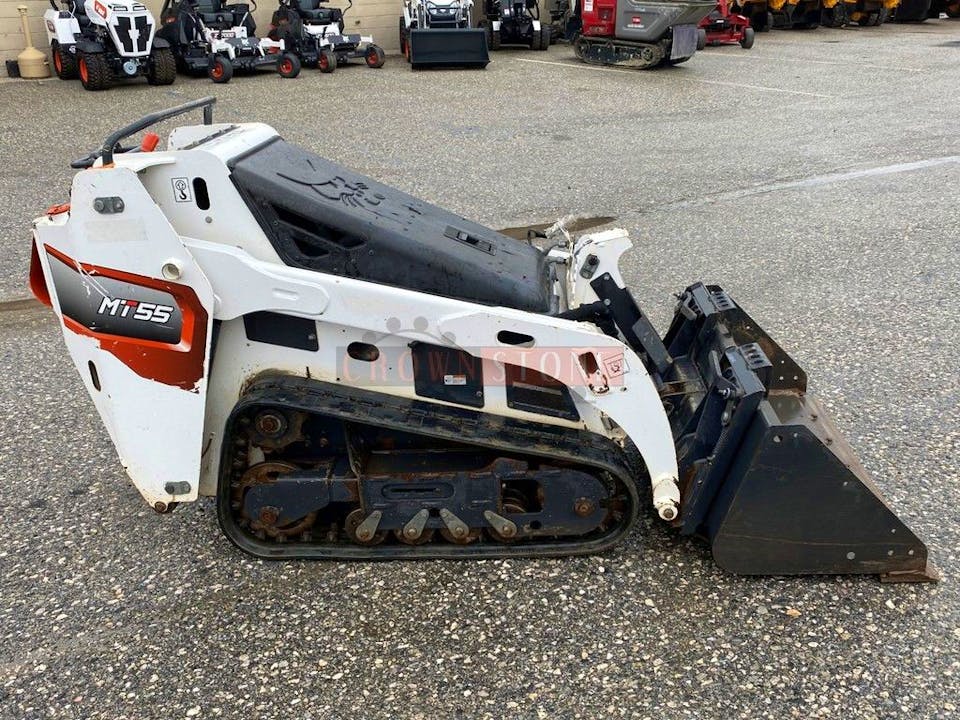

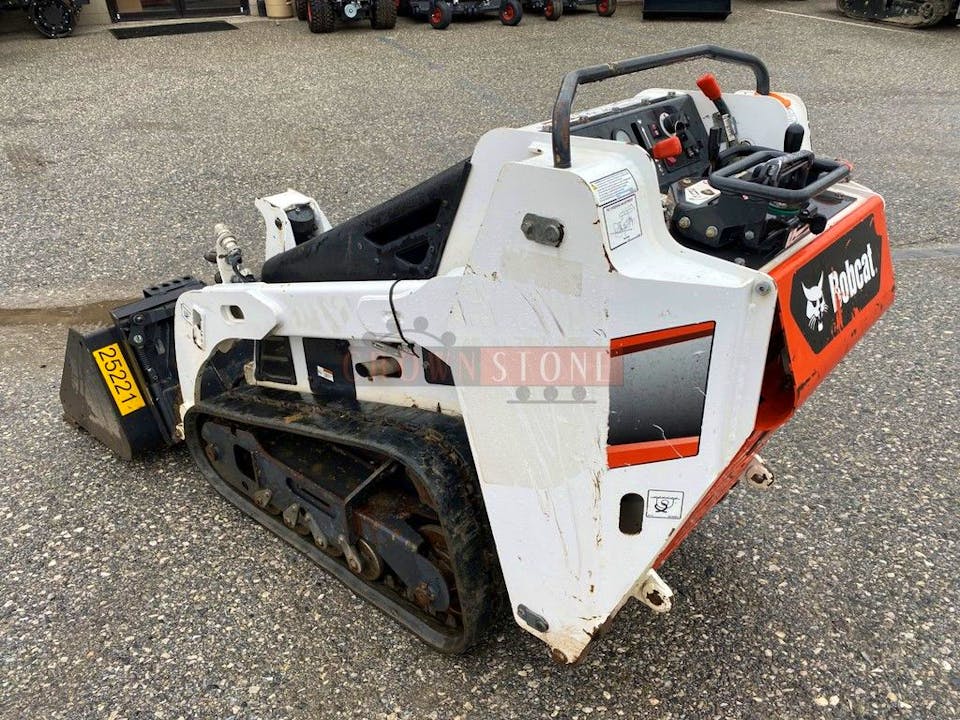

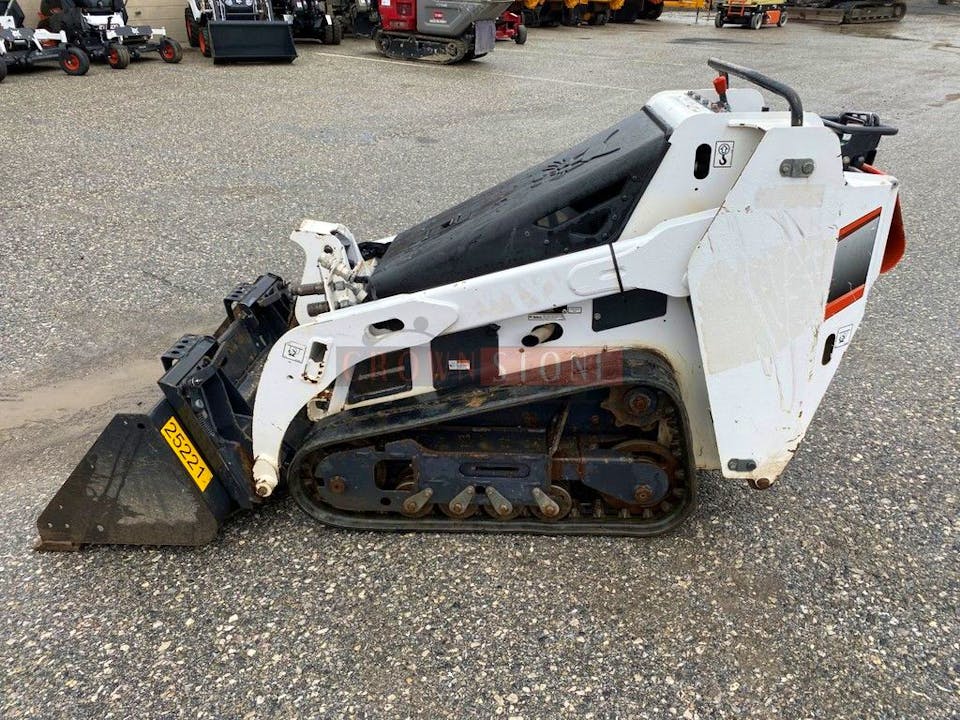

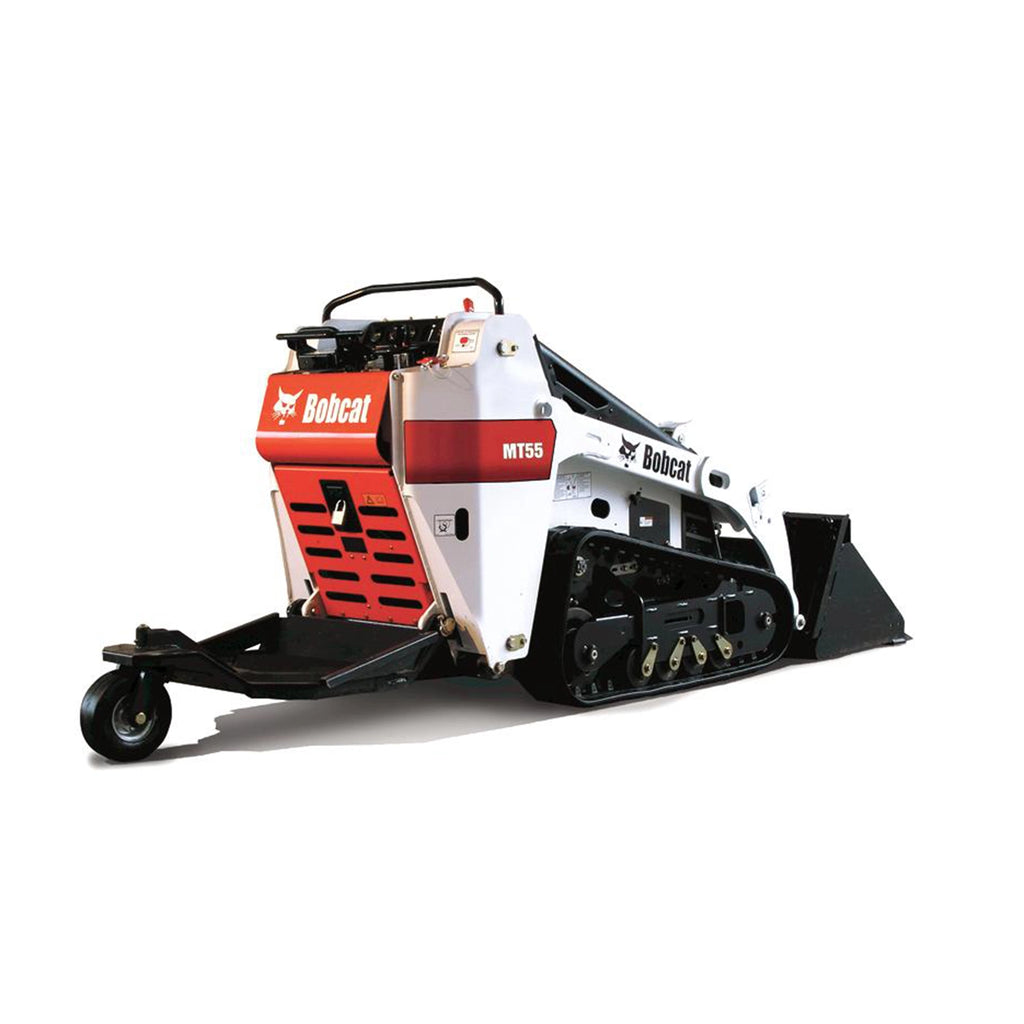

Bobcat® MT55 Mini Track Loader
Description
The Bobcat® MT55 mini track loader tackles big jobs in close quarters with impressive traction and lifting abilities. It turns quickly in its tracks, treads lightly over soft ground and provides endless work-saving opportunities.
The MT55 can complete a long list of jobs. Use it for trenching, digging, carrying materials, demolition, site preparation, snow removal, utility installation, sweeping, stump grinding and more. Equip the MT55 with either the Common Industry Interface (CII) or the exclusive Bob-Tach® mounting system. The Common Industry Interface design allows you to pair the MT55 with many attachments you may already own and use, while the Bob-Tach mounting system delivers rapid attachment changes and superior attachment fitment.
Specs
Engine
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Displacement | 55 in³ |
| Number of Cylinders | 3 |
| Horsepower |
24.8 hp |
Performance
| Rated Operating Capacity (ISO) | 550 lb |
| Tipping Load | 1610 lb |
| Operating Weight | 2610 lb |
| Ground Pressure (Rubber) | 4.9 psi |
| Travel Speed | 3.5 mph |
| Travel Speed (2 - Speed Option) | 1.4 mph |
Capacities
| Fuel Tank | 7 gal |
Hydraulic System
| Pump Capacity | 12 gal/min |
| System Relief @ Quick Couplers | 3,500 psi |
| Auxiliary Std Flow | 17.1 gal/min |
Dimension
| Length | 93.1 in |
| Width | 35.6 in |
| Height | 49.1 in |
| Height to Bucket Hinge Pin | 71.2 in |
| Length of Track on Ground | 34 in |
| Reach @ Maximum Height | 18.2 in |
Attachments
Features may include:- Performance Advantages
- Compact Size
- Simple Operation
- Minimal Ground Disturbance
- Ride-On/Walk-Behind Convenience
- Safety Features
- Do More Than Dig
- Bob-Tach
- Ride-On/Walk-Behind Convenience
- Improved Serviceability
What Makes the MT55 Different
24.8 HP Tier 4 Diesel Engine

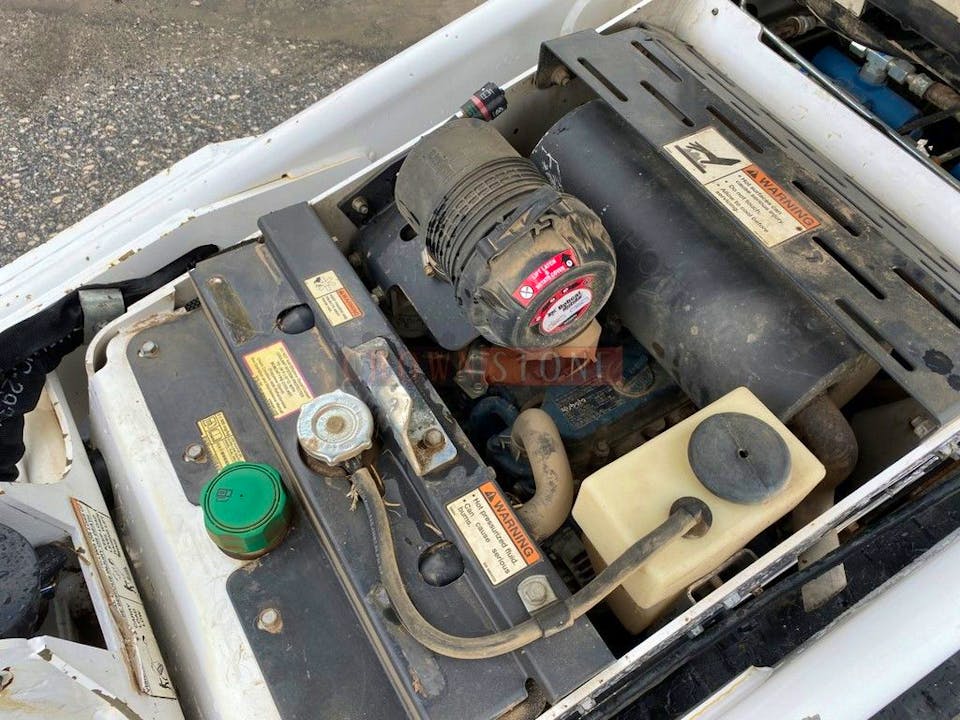

The MT55 is powered by a 24.8 hp, 3-cylinder, 55 cu in liquid-cooled Tier 4 diesel engine that delivers dependable traction and lifting power in a compact package.
550 lb Rated Operating Capacity
With a 550 lbs rated operating capacity, 1,610 lbs tipping load, 71.2 in height to the bucket hinge pin and 18.2 in of reach at maximum height, the MT55 lifts, carries and dumps material that would otherwise take a crew with wheelbarrows.
Compact Size for Close Quarters
At 35.6 in wide, 93.1 in long and 49.1 in tall, the MT55 tackles big jobs in close quarters, turning quickly in its tracks and working where larger loaders cannot go.
Light Footprint, Strong Traction

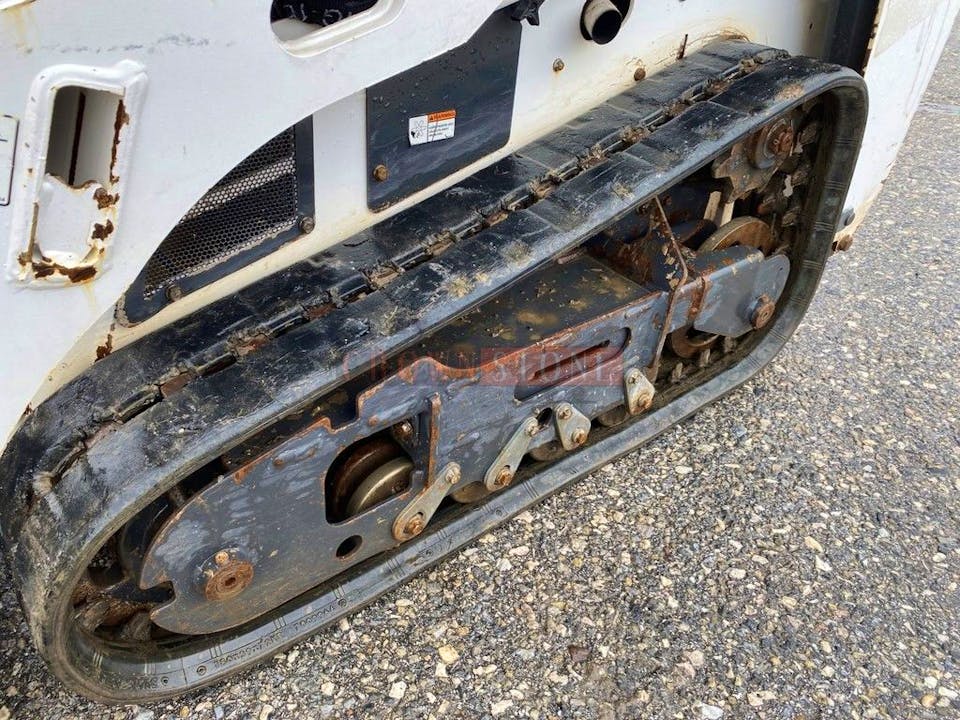

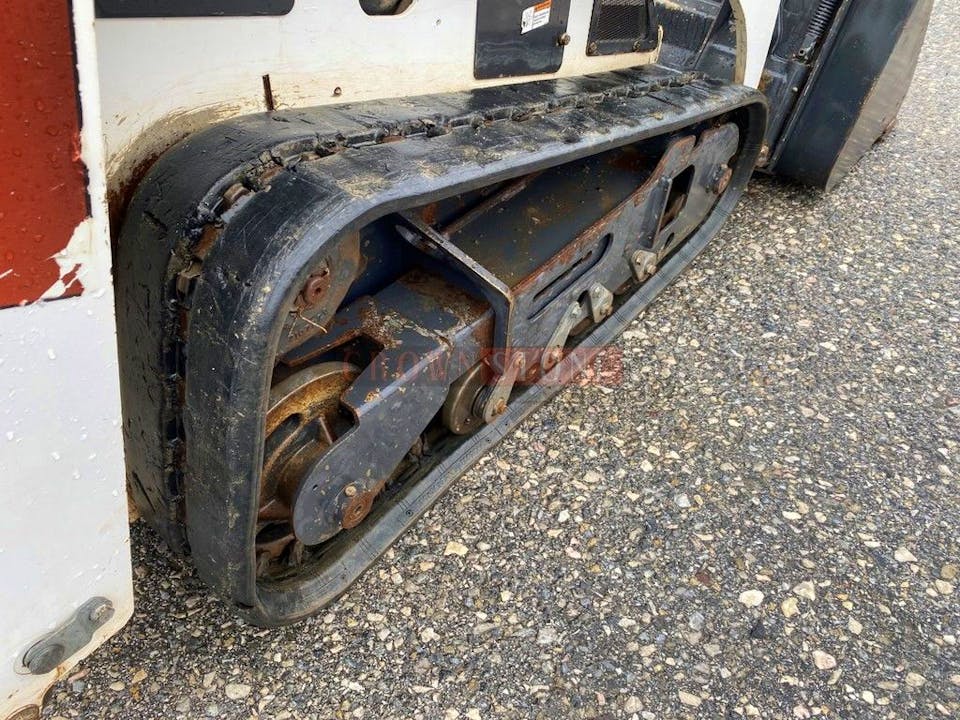

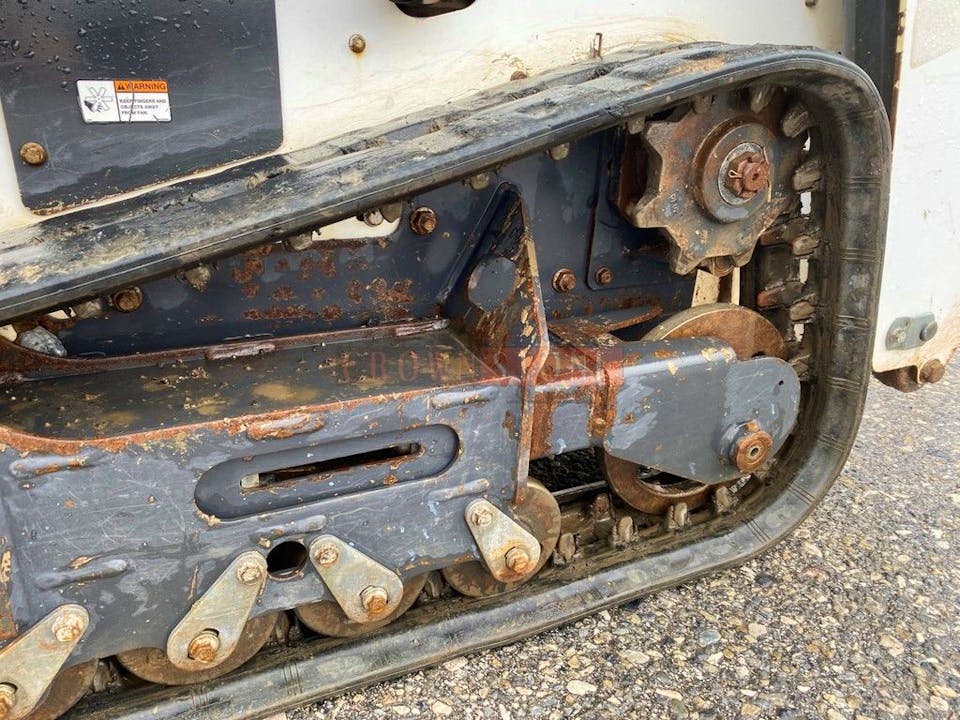

Rubber tracks with 34 in of track on the ground keep ground pressure at just 4.9 psi, so the MT55 treads lightly over soft ground and finished surfaces while delivering impressive traction.
Bob-Tach® or Common Industry Interface Mounting
Equip the MT55 with the exclusive Bob-Tach mounting system for rapid attachment changes and superior attachment fitment, or choose the Common Industry Interface (CII) to pair it with many attachments you may already own.
Bobcat Mini Track Loaders
 |
 |
 |
|
| MT55Viewing | MT100 | MT120 | |
|---|---|---|---|
| Frame / Role | Compact mini track loader | Compact ride-on labor saver | Higher-capacity mini track loader |
| Horsepower | 24.8 hp | 24.8 hp | 24.5 hp |
| Rated Operating Capacity | 550 lbs | 1,000 lbs | 1,200 lbs |
| Tipping Load | 1,610 lbs | 2,898 lbs | 3,469 lbs |
| Operating Weight | 2,610 lbs | 3,390 lbs | 3,720 lbs |
| Travel Speed | 3.5 mph forward | 4.1 mph forward | 4.7 mph forward |
| Auxiliary Standard Flow | — | 11 gpm | 11.8 gpm |
| System Relief | — | 2,900 psi | 3,045 psi |
| Height to Hinge Pin | 71.2 in | 80.9 in | 88.2 in |
| Reach at Maximum Height | 18.2 in | 18.6 in | 22.2 in |
| Overall Width | 35.6 in | 35.6 in | 35.6 in |
| Ground Pressure | 4.9 psi | 5.3 psi standard / 4.0 psi wide | 4.3 psi standard / 3.9 psi wide |
| Best Fit | Trenching, utility installation and tight-access work | Gates, doorways, landscaping and cleanup | Higher lift, heavier loads and newer operator tech |
Specs are model-level published values. Confirm final configuration, options and current availability with your Carleton Equipment location.
MT55 Features & Benefits
Performance 3
Engine Advantage
The Bobcat MT55 is powered by a 24.8 hp, 3-cylinder, 55 cu in liquid-cooled Tier 4 diesel engine that delivers dependable worksite performance in a compact package, with a 7 gal fuel tank for long working days.
Lifting Performance
A 550 lbs rated operating capacity and 1,610 lbs tipping load give the MT55 impressive lifting abilities for its size. A 71.2 in height to the bucket hinge pin and 18.2 in of reach at maximum height make it easy to load into trucks, hoppers and raised beds.
Minimal Ground Disturbance
Rubber tracks with 34 in of track on the ground spread the MT55's 2,610 lbs operating weight across the surface for just 4.9 psi of ground pressure, so you can travel over established lawns and finished surfaces with less worry about repair time and costs.
Versatility 2
Do More Than Dig
The MT55 can complete a long list of jobs. Use it for trenching, digging, carrying materials, demolition, site preparation, snow removal, utility installation, sweeping, stump grinding and more, replacing hand labor with ride-on productivity.
Attachment Interfaces
Equip the MT55 with either the Common Industry Interface (CII) or the exclusive Bob-Tach mounting system. The Common Industry Interface design allows you to pair the MT55 with many attachments you may already own and use, while the Bob-Tach mounting system delivers rapid attachment changes and superior attachment fitment.
Operation 3
Compact Size
At 35.6 in wide, 49.1 in tall and 72.4 in long without an attachment, the MT55 travels and works in confined spaces, passes through gates and doorways, and is easy to load and transport on a trailer.
Simple Operation
The MT55 turns quickly in its tracks and travels at up to 3.5 mph, so operators of all experience levels can get productive quickly and move between tasks without wasted time.
Ride-On/Walk-Behind Convenience

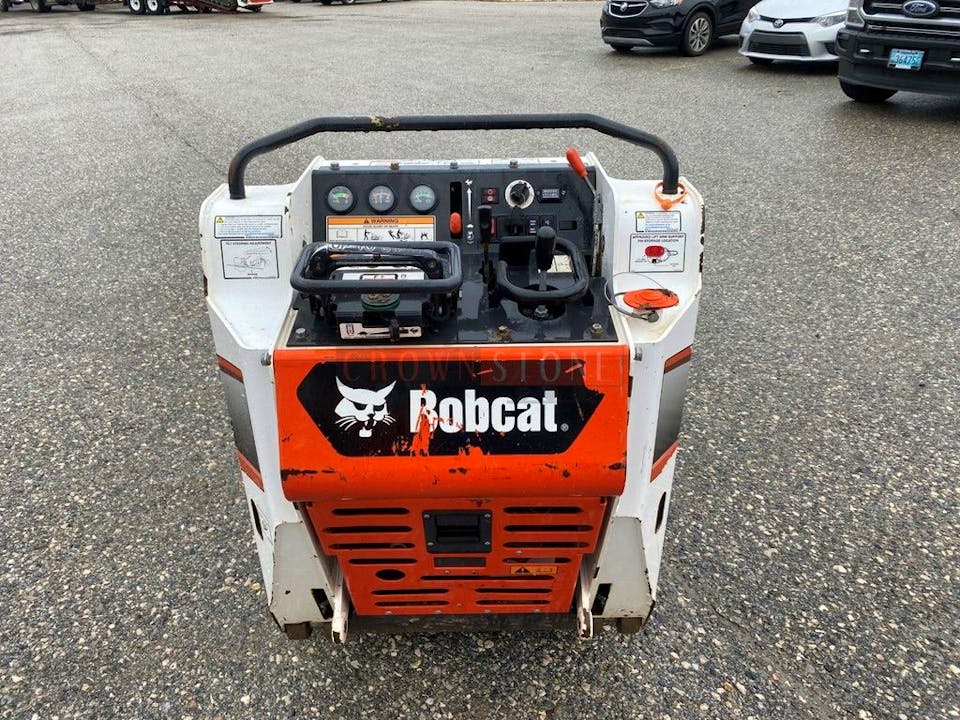

Operators can ride on the platform for a clear view of the attachment and the jobsite, or step off and walk behind the machine when the work calls for it.
Why Buyers Choose the MT55
550 lbs rated operating capacity and 1,610 lbs tipping load in a 2,610 lbs ride-on loader
35.6 in width fits through gates, doorways and tight access points where larger loaders cannot go
24.8 hp Tier 4 3-cylinder diesel engine delivers dependable power for digging, carrying and site prep
4.9 psi ground pressure treads lightly over soft ground, turf and finished surfaces
Bob-Tach or Common Industry Interface mounting pairs with the attachments you already own
Ride-on or walk-behind operation with a 71.2 in hinge pin height for loading trucks and hoppers
Who Uses the MT55 and What For
The MT55 is built for crews that need more productivity than hand labor in places where larger loaders cannot fit, from trenching and utility installation to carrying materials and snow removal.
Landscaping & Grounds
- Carrying mulch, soil, stone and plants through narrow access points
- Site preparation and stump grinding on turf-sensitive properties
- Sweeping and snow removal on walks and drives
Construction & Utility
- Trenching and digging for utility installation
- Demolition cleanup and hauling debris in tight work areas
- Replacing wheelbarrow labor with compact ride-on loader productivity
Rental & Fleet Owners
- Proven platform with dealer parts and service support
- Bob-Tach or CII mounting supports a wide range of customer attachments
- Compact size makes transport, storage and jobsite delivery easier
Talk to a person about the MT55
Carleton Equipment is a family-owned Michigan dealer, here since 1938. Sales, rental, service and parts all come from the same team, and we’ll connect you with the location nearest you.
- Chesterfield
- Coldwater
- Grand Rapids
- Howell
- Kalamazoo
- Livonia
- Saginaw
Full Specifications
General
| Condition | Showroom |
| Machine Type | Mini Track Loader |
Engine
| Horsepower | 24.8 |
Performance
| ROC Solid Undercarriage | 550 LB. |
Capacities
| Fuel Tank | 7 gal. |
Hydraulics
| Auxiliary Std Flow | 12 GPM |
Dimensions & Weight
| Width | 35.6 IN. |
| Operating Weight | 2610 lb |
Serviceability
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
|
