General Info
|
|
|---|---|
| Condition: | Rental |
| Manufacturer: | Bobcat |
| Model: | L23 |
| Machine Type: | Articulating Loader |
| Coupler: | Bob-Tach |
|
Engine
|
|
|---|---|
| Horsepower: | 24.8 |
|
Performance
|
|
|---|---|
| Operating Weight: | 3790 lb |
| Travel Speed: | 8.2 mph |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 12.1 GPM |
|
Dimensions
|
|
|---|---|
| Height: | 78.1" |
| Length: | 122.4" (with bucket) |
| Width: | 44" (with bucket) |
| Wheelbase: | 47.2" |
| Fuel Tank: | 9.6 GAL |
Description

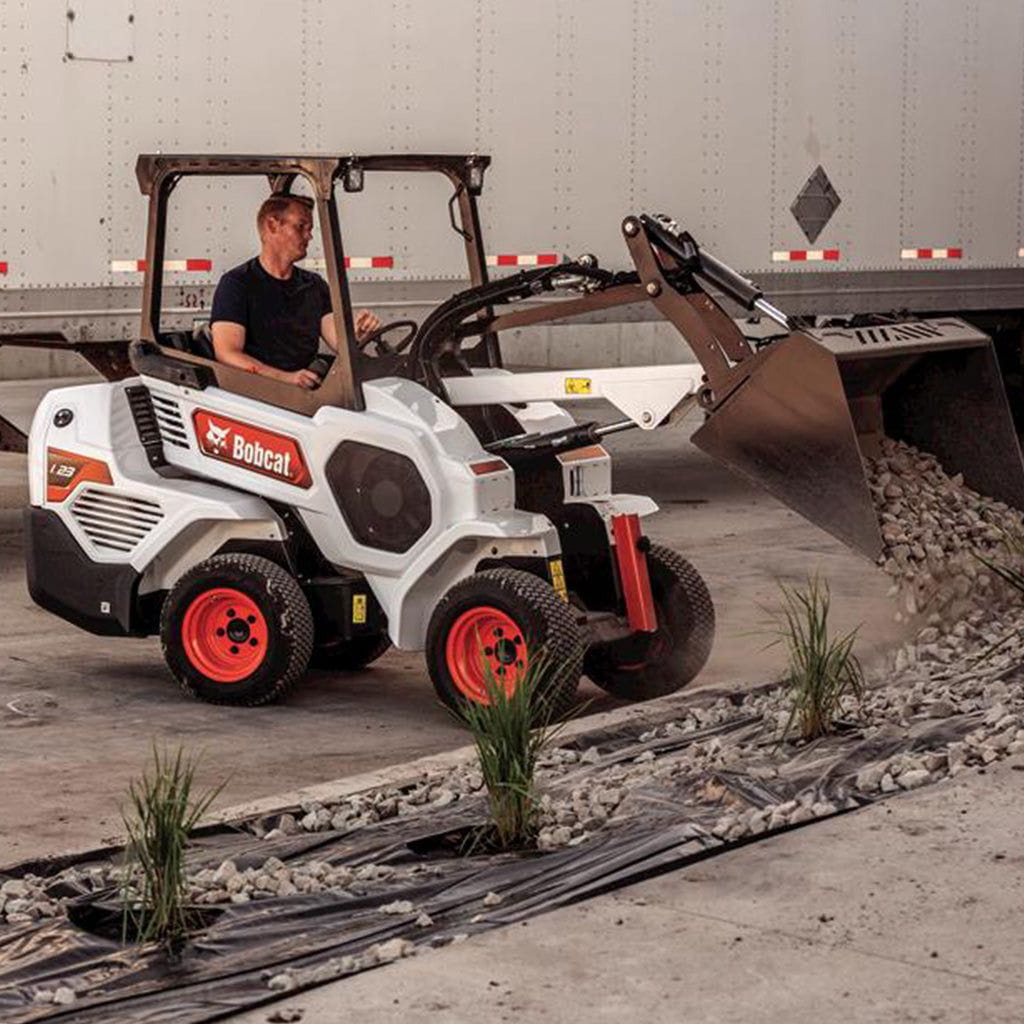

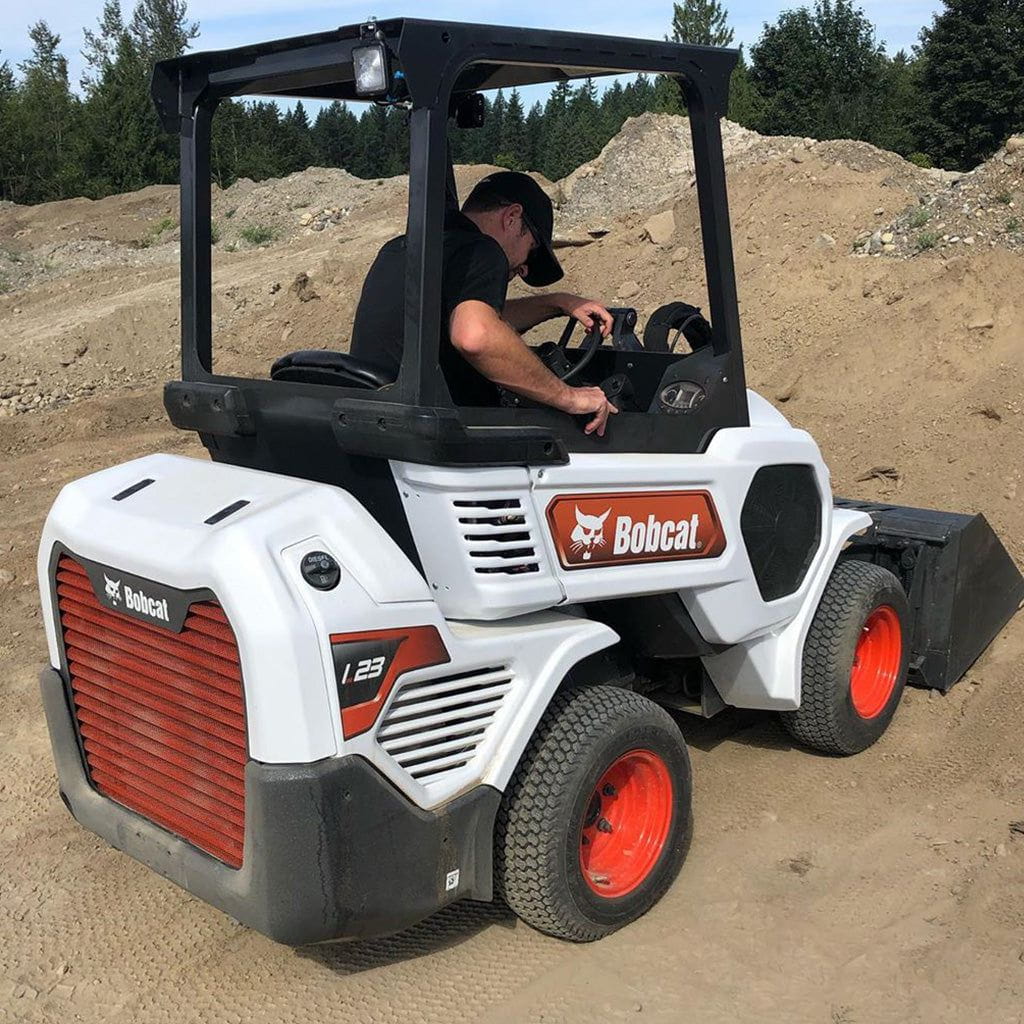

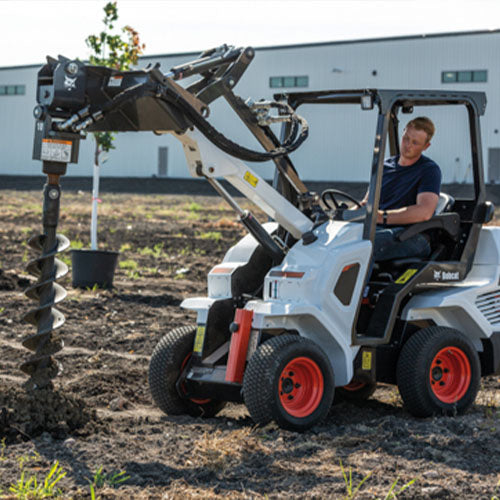

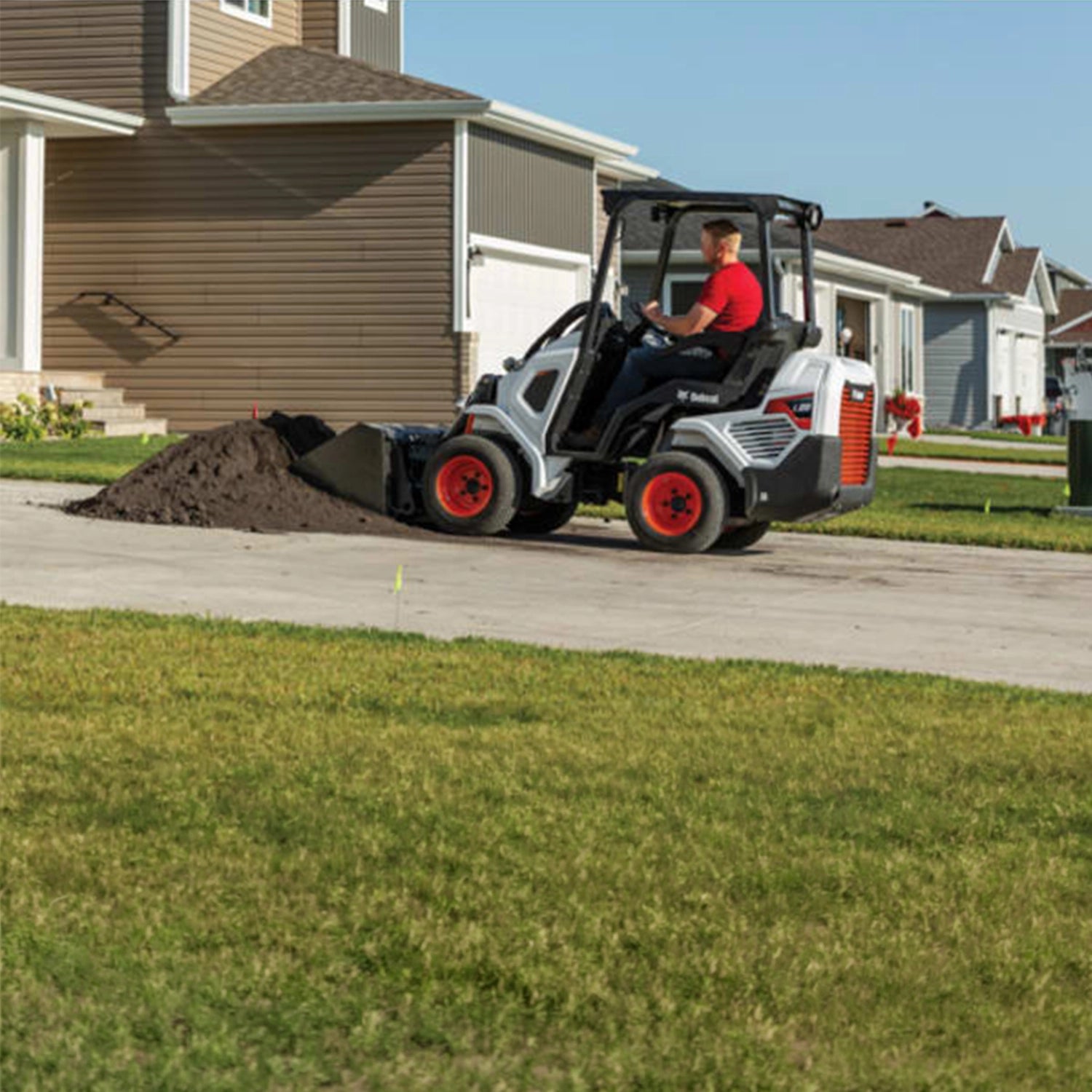

Rent a Bobcat L23 Articulating Loader - Bobcat Rental in Michigan
The L23 Bobcat® small articulated loader delivers impressive lifting capability in a compact and turf-friendly package.
- Minimal ground disturbance
- Tight-turning articulation joint to get through tight spaces
- Impressive lifting capacity
- Power Bob-Tach System
Specs
Key Specs
| Horsepower | 24.8 hp |
| Rated Operating Capacity Straight (ISO) | 1,395 lb |
| Rated Operating Capacity Articulated | 1,159 lb |
| Operating Weight | 3,790 lb |
| Auxiliary Standard Flow | 12.1 gal/min |
| Width (Over Tires) | 43.2 in |
Engine
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 24.8 hp |
| Turbocharged Engine |
No |
Performance
| Rated Operating Capacity Straight (ISO) | 1,395 lb |
| Rated Operating Capacity Articulated (ISO) | 1,159 lb |
| ROC with Counterweight - Straight | 1,815 lb |
| ROC with Counterweight - Articulated | 1,471 lb |
| Tipping Load - Straight | 2,789 lb |
| Tipping Load - Articulated | 2,317 lb |
| Operating Weight | 3,790 lb |
| Travel Speed | 8.2 mph |
Capacities
| Fuel Tank | 9.6 gal |
Hydraulic System
| Auxiliary Std Flow | 12.1 gal/min |
| System Relief @ Quick Couplers | 2,900 psi |
Dimension
| Length | 122.4 in |
| Length without Attachment | 93.2 in |
| Length with Standard Bucket |
122.4 in |
| Width (Over Tires) | 43.2 in |
| Width (With Bucket) | 44 in |
| Height with Operator Cab | 78.1 in |
| Height to Bucket Hinge Pin Extended | 85.4 in |
| Height to Bucket Hinge Pin Retracted | 85.4 in |
| Max Reach | 16.8 in |
| Turning Radius Inside | 77.2 in |
| Turning Radius Outside | 100.9 in |
| Wheelbase | 47.2 in |
| Articulation Angle | 43° |
| Dump Angle @ Maximum Height | 40° |
| Ground Clearance | 5.5 in |
| Rollback Angle | 32° |
| Tire Size | 23X8.5-12 |
| Wheel Tread | 34.4 in |
|
General Info
|
|
|---|---|
| Condition: | Rental |
| Manufacturer: | Bobcat |
| Model: | L23 |
| Machine Type: | Articulating Loader |
| Coupler: | Bob-Tach |
|
Engine
|
|
|---|---|
| Horsepower: | 24.8 |
|
Performance
|
|
|---|---|
| Operating Weight: | 3790 lb |
| Travel Speed: | 8.2 mph |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 12.1 GPM |
|
Dimensions
|
|
|---|---|
| Height: | 78.1" |
| Length: | 122.4" (with bucket) |
| Width: | 44" (with bucket) |
| Wheelbase: | 47.2" |
| Fuel Tank: | 9.6 GAL |
