Drop Hammer | Bobcat


General Info
Condition: Showroom
Manufacturer: Bobcat
Model: Drop Hammer
Engine
Performance
Hydraulics
Dimensions

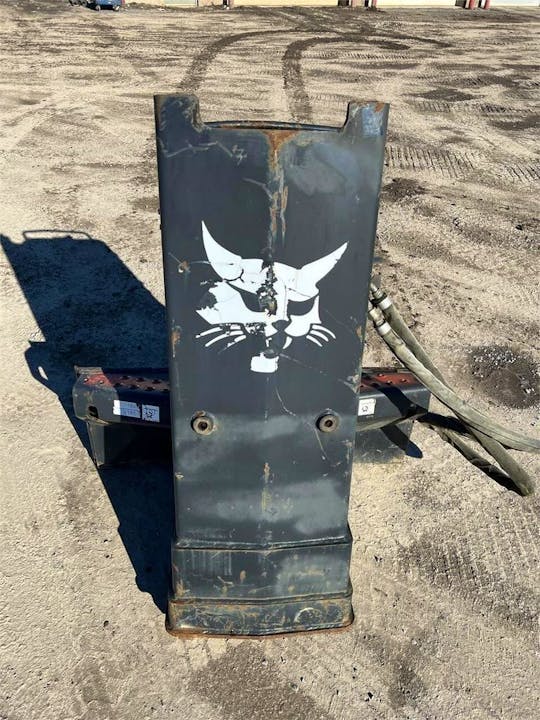

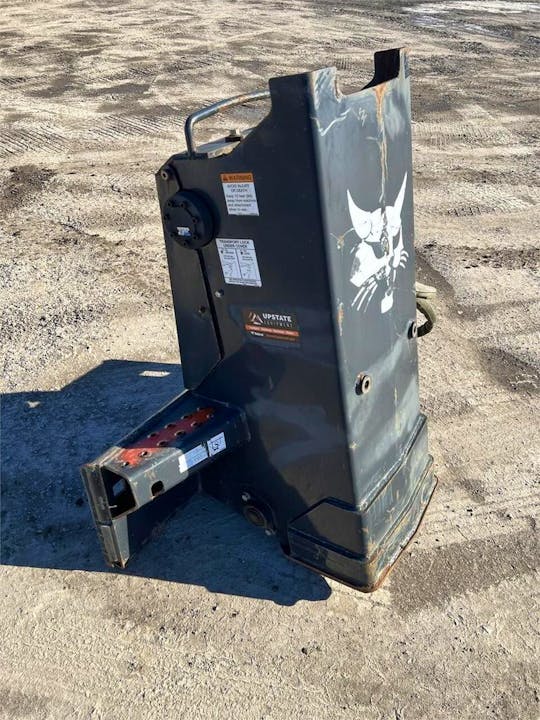

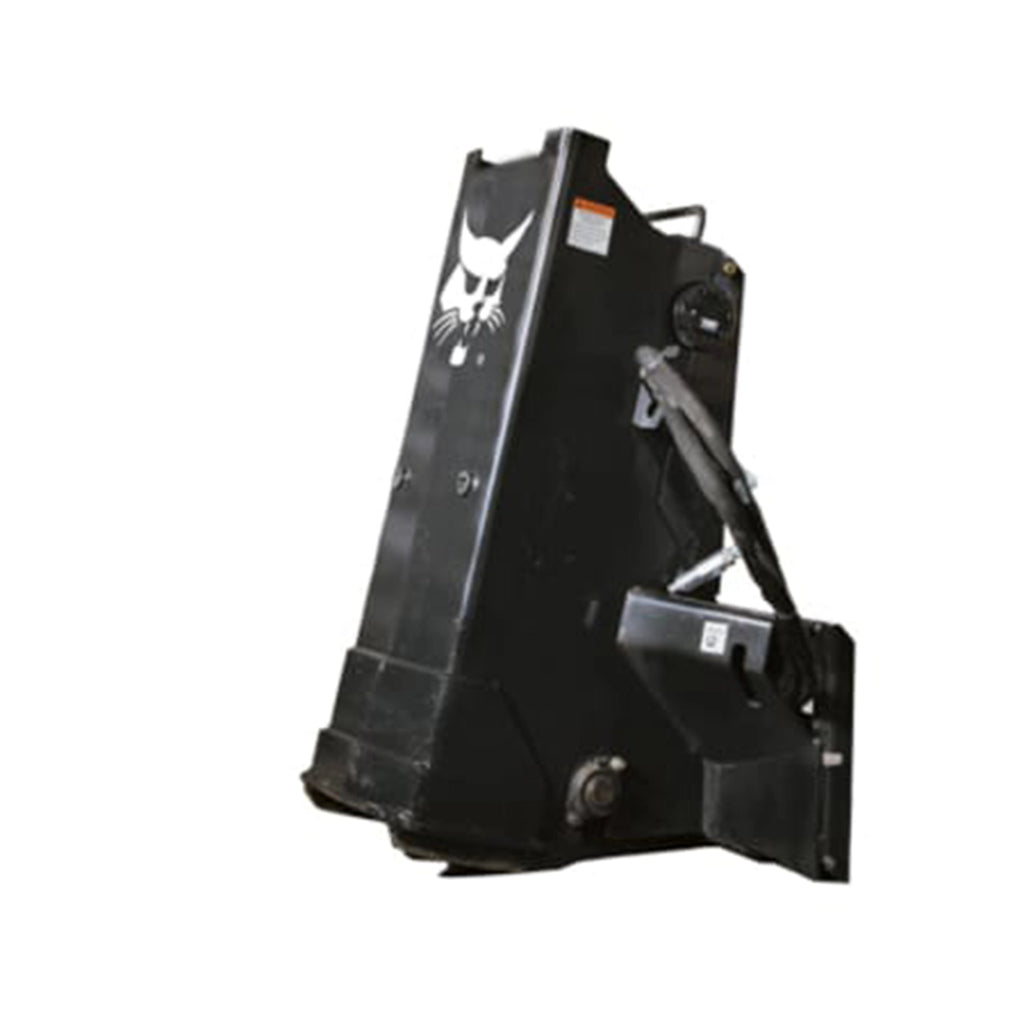

Bobcat Drop Hammer

  • Breaks and demolishes concrete
  • Delivers more than 3,600-foot pounds of impact energy combined with a fast cycle time of 20 blows per minute
  • Fractures the material below the surface, leaving the surface free of jagged debris
  • Allows three seconds to reposition and reset the loader between cycles
  • Generates little vibration or noise compared to standard hydraulic breakers, meaning less wear on the machine and less noise for operator and bystanders

The drop hammer features a chain mechanism with a catch. The catch grabs the weight and raises it up. When the chain rotates over the top, the catch falls and releases the weight, dropping the hammer onto the material to be demolished.


Description

Break and demolish concrete with the drop hammer attachment.

To efficiently break up concrete, the drop hammer delivers over 3,600 foot pounds of impact energy combined with a fast cycle time of 20 blows per minute. Upon impact, the drop hammer fractures the material below the surface, leaving the surface free of jagged debris. Between cycles, the drop hammer attachment allows three seconds to reposition and reset the loader. When the attachment is not in use, the hammer stands in the upright position.

Compared to standard hydraulic breakers, the drop hammer attachment generates little vibration or noise, meaning less wear on the machine and less noise for the operator and bystanders.


Top Tasks

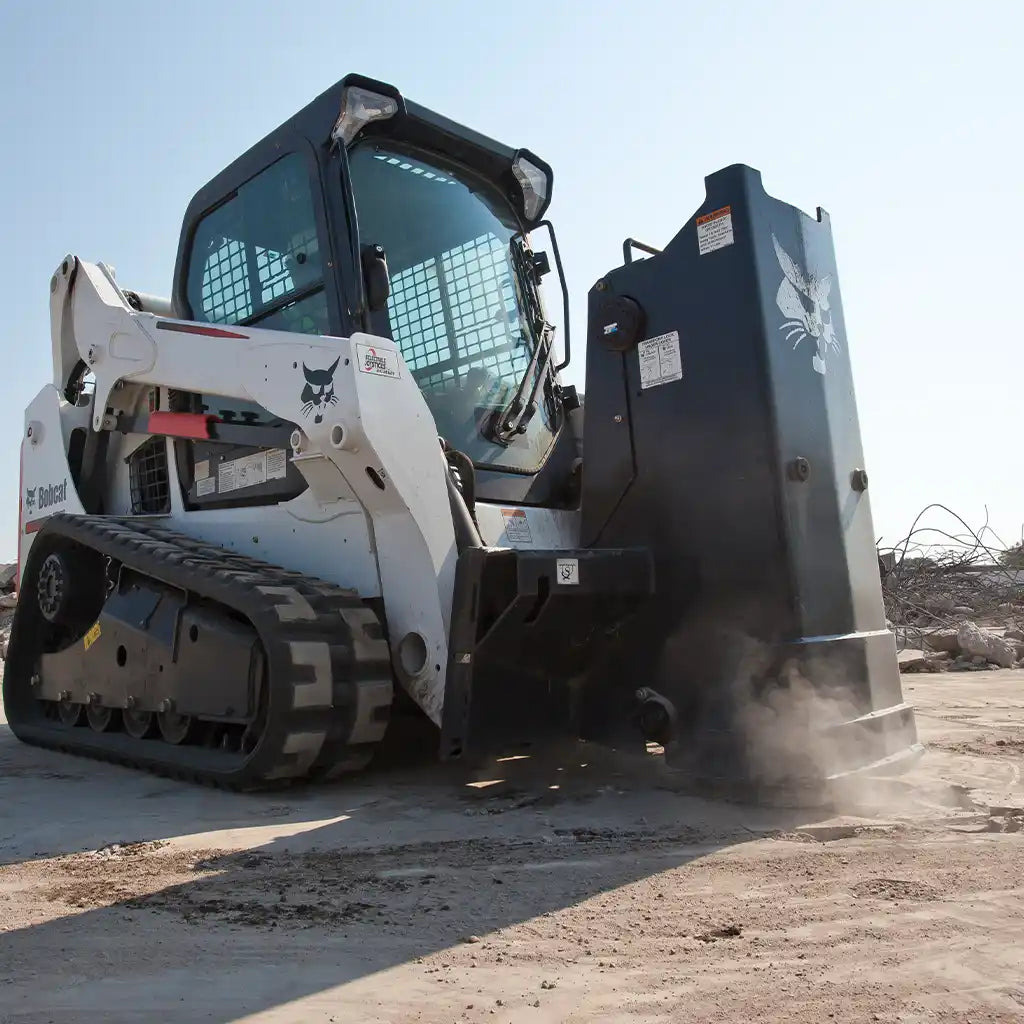

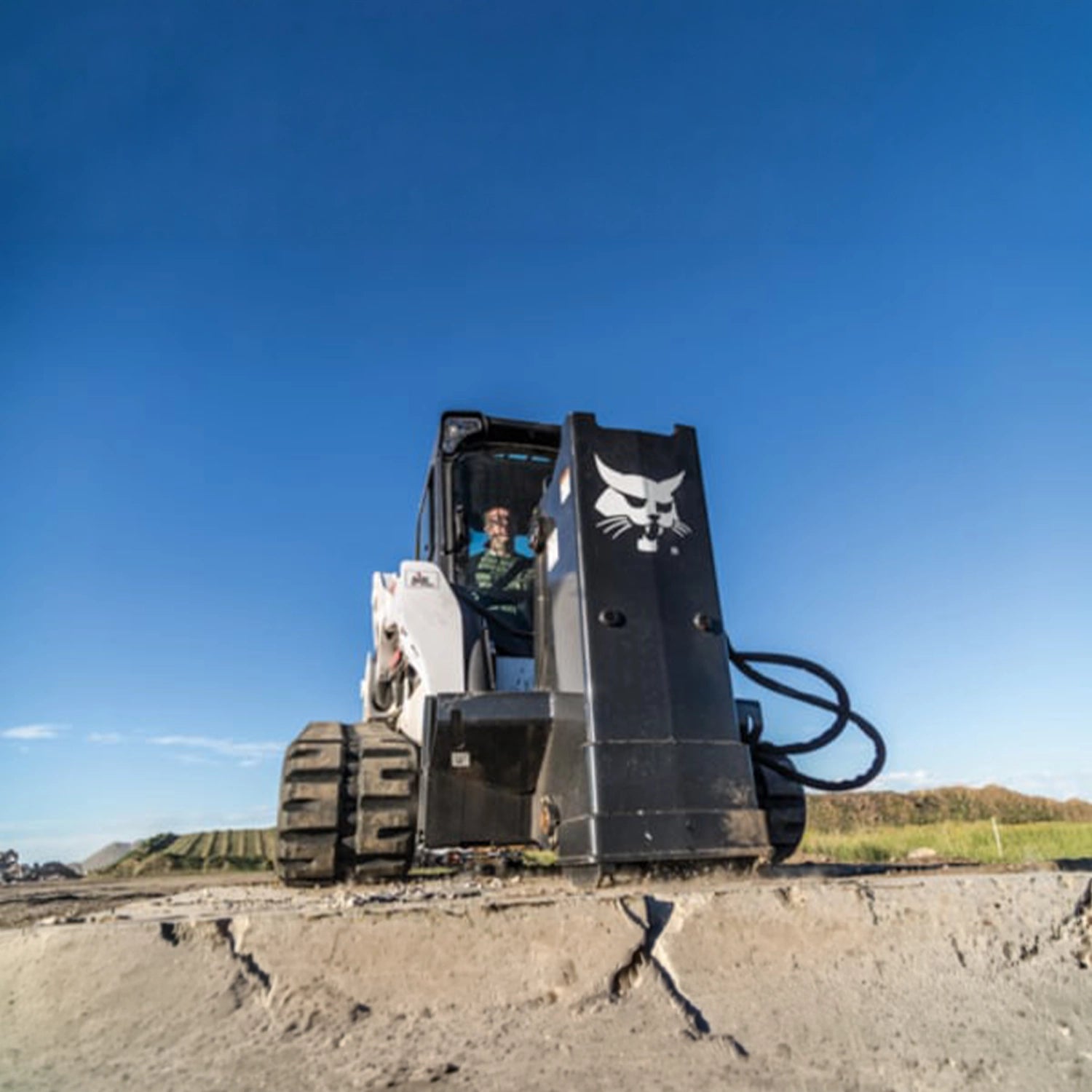

  • Demolish parking lots, driveways and other large flat concrete slabs

How It Works

The drop hammer features a chain mechanism with a catch. The catch grabs the weight and raises it up. When the chain rotates over the top, the catch falls and releases the weight, dropping the hammer onto the material to be demolished.


Features
Break and demolish concrete with the drop hammer attachment.
  • Cushioned Safety Valve: Unique in its industry, the cushioned safety valve allows the operator to stop the hammer in mid-stroke and slowly lower it to a resting position, preventing the hammer from falling if the hydraulic flow is shut off.
  • Drive Motor: Powers the drop hammer attachment with chain drive.
  • Effective Breaking Power: Delivering over 3,600 foot pounds of impact energy for quick and efficient demolishing action. The drop hammer features a 38-in. stroke and a hammer weight of 1,165 pounds.
  • Fast Cycle Time: Delivers a fast cycle time of 20 blows per minute with three seconds between cycles to reposition and reset the loader.
  • Upright Position: When not in use, the hammer stands upright. Also, stores and transports in the upright position.
  • Locking Mechanism: Prevents weight from sliding out top of hammer during transport.
  • Bob-Tach™ Mounting System: Makes easy work of attaching and detaching the drop hammer from the loader. Fast and easy mounting means spending less time on attachment changes and more time on the job.
Specs

General

Operating Weight 1925 lb
Length 29 in
Width 45.2 in
Height 54.9 in
Weight of Hammer 1,140 lb
Height (Hammer Fully Raised) 74 in
Hammer Stroke 38 in
Stroke Rate per Minute 20
Max. Concrete Thickness 18 in
Impact Energy Class 3600 ft-lbs



Compatible Carriers

Skid Steer Loaders
Bobcat A770



Bobcat S550



Bobcat S570



Bobcat S590



Bobcat S595



Bobcat S630



Bobcat S650



Bobcat S740



Bobcat S770



Bobcat S850



Compact Track Loaders
 Bobcat T550



Bobcat T590



Bobcat T595



Bobcat T630



Bobcat T650



Bobcat T740



Bobcat T770



Bobcat T870
