Dozer Blade | Bobcat


Size: 80"
General Info
Condition: Showroom
Manufacturer: Bobcat
Model: Dozer Blade
Machine Type: Skid/Track Loader
Engine
Performance
Hydraulics
Dimensions

Description

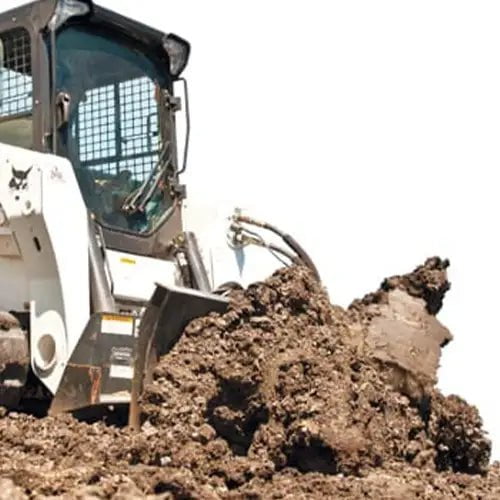

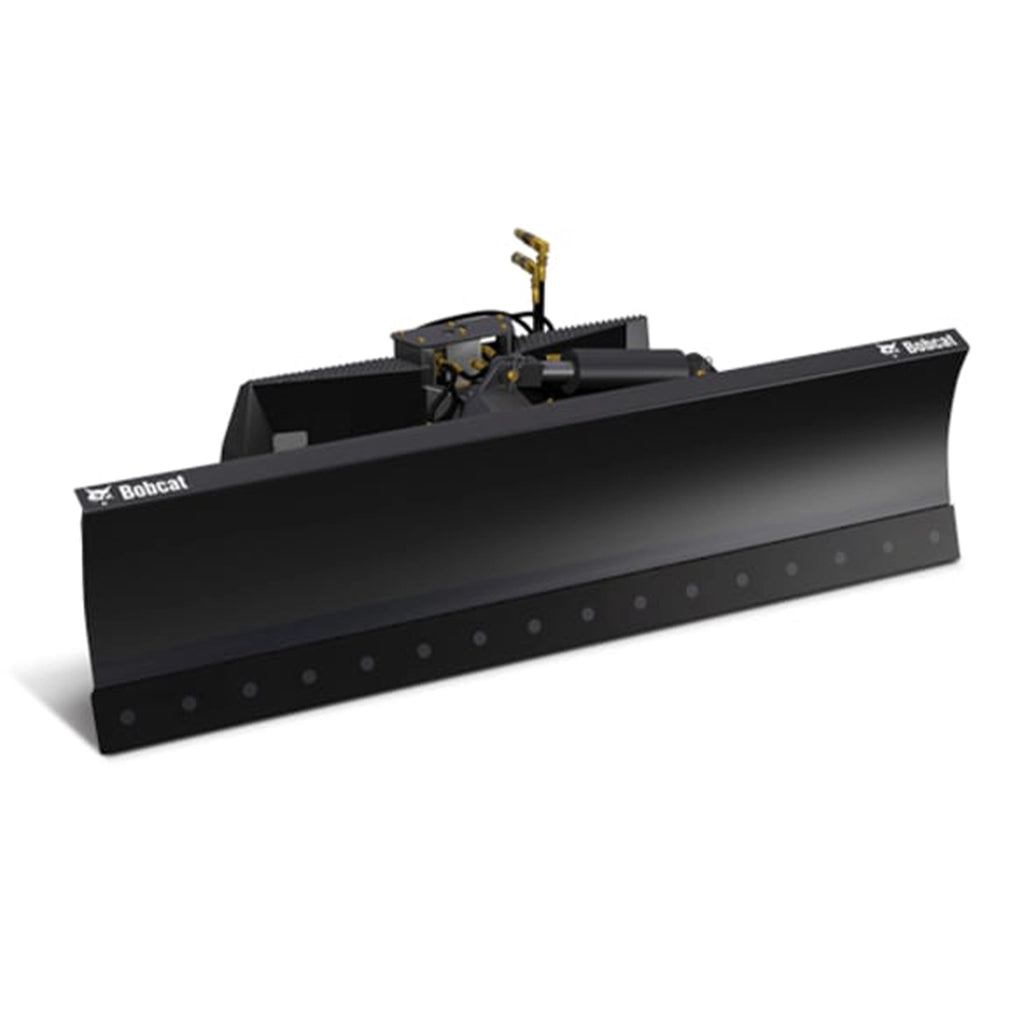

Bobcat 6-Way Dozer Blade

The Bobcat® dozer blade attachment excavates and grades material with optimum performance and durability.

  • Excavates and grades material with optimum performance and durability
  • Turns loaders into mini-crawlers; ideal for construction and landscaping markets
  • Move large amounts of material quickly and easily – no dedicated equipment required
  • Adjustable skid shoes provide depth control as well as forward and reverse grading action

The dozer blade turns loaders into mini-crawlers and it's ideal for construction and landscaping markets. The blade moves and pushes large amount of material quickly and easily, accomplishing jobs that would otherwise require dedicated equipment. Adjustable skid shoes provide depth control as well as forward and reverse grading action.


Features

  • 6-Way Adjustable Blade: Angles +/– 30 degrees and oscillates up to +/– 10 degrees, with electric-over-hydraulic controls for on-the-fly adjustments.
  • Adjustable Depth Guides: Mounted on the dozer blade attachment, adjustable skid shoes guide and control the depth of the dozer blade.
  • Bi-Directional Operation: Operates both in forward and reverse for optimum grading action direction.
  • Cast Design: Designed for handling the toughest applications. The 96-inch dozer blade model features an all-cast design for maximum strength, quickly becoming a dozing machine when combined with the tractive effort of a compact track loader.
  • Fingertip Control: Featured on the 80- through 96-inch models, fingertip controls allow for easy, efficient and comfortable attachment adjustment.
  • Reversible Cutting Edge: Increases the versatility of the attachment while providing better uptime protection and more time between blade exchanges.
Specs
Dozer Blade 80" Blade 90" Blade 96" Blade
Weight 950 lb. 987 lb. 1,580 lb.
Length 33 in. 33 in. 34.8 in.
Width 80 in. 90 in. 96 in.
Height 24.9 in. 25.2 in. 27.7 in.
Oscillation 10°
Angle 30° 30° 30°
Blade Height 24.1 in. 24.2 in. 25.2 in.
Skid Shoes Adjustable Adjustable Adjustable
Working Width (Fully Angled) 69.3 in. 73 in. 83.5 in.
Cutting Edge (reversible) 0.5" x 6"  0.5" x 6"  0.63" x 6"
Cutting Edge (reversible) - Length 6 in. 6 in. 6 in.
Cutting Edge (reversible) - Width 0.5 in. 0.5 in. 0.6 in.
CTL Models 80" Blade 90" Blade 96" Blade
T450

T550

T595

T62

T64

T650
T66

T740

T76
T770

T86

T870

SSL Models 80" Blade 90" Blade 96" Blade
S450

S510

S590

S62

S64

S650
S66

S740
S76
S770

S86
S850

TeleHandler Models 80" Blade 90" Blade 96" Blade
TL519
Toolcat Models 80" Blade 90" Blade 96" Blade
UW53

UW56

Top Tasks

  • Backfill around foundations
  • Create runoff grades
  • Sculpt landscape areas
  • Level, pile or grade loose dirt, gravel or sand
