Bobcat® Snow Blade

Bobcat



Bobcat® Snow Blade

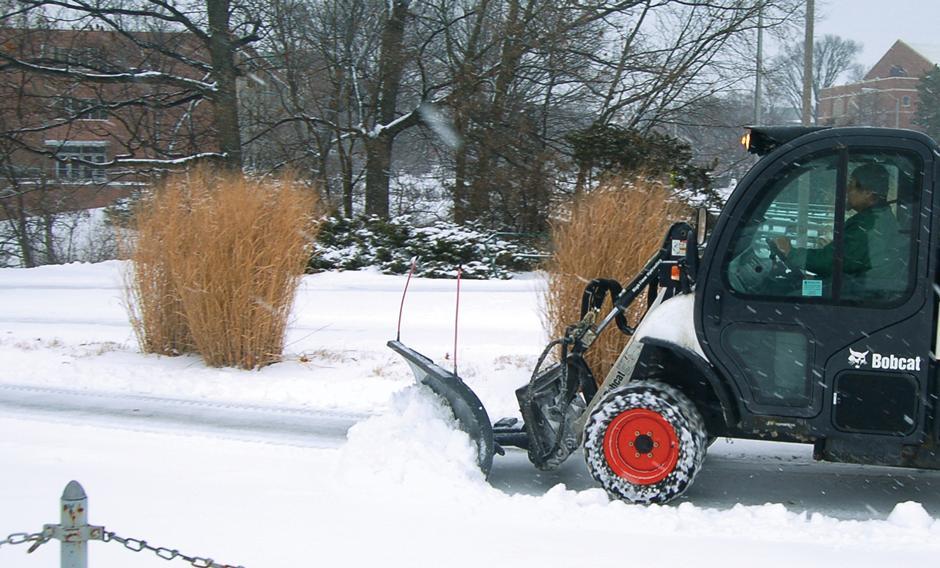

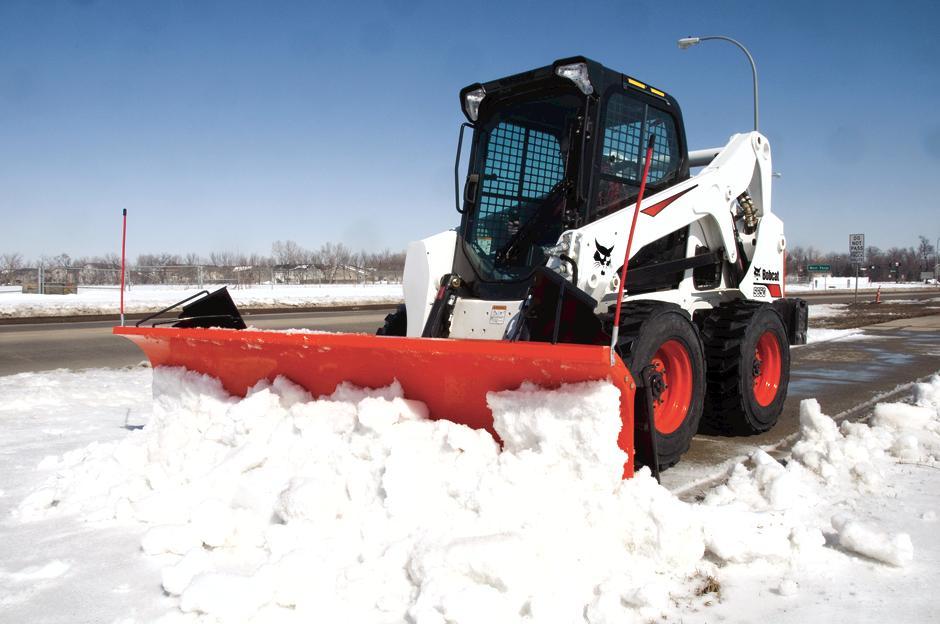

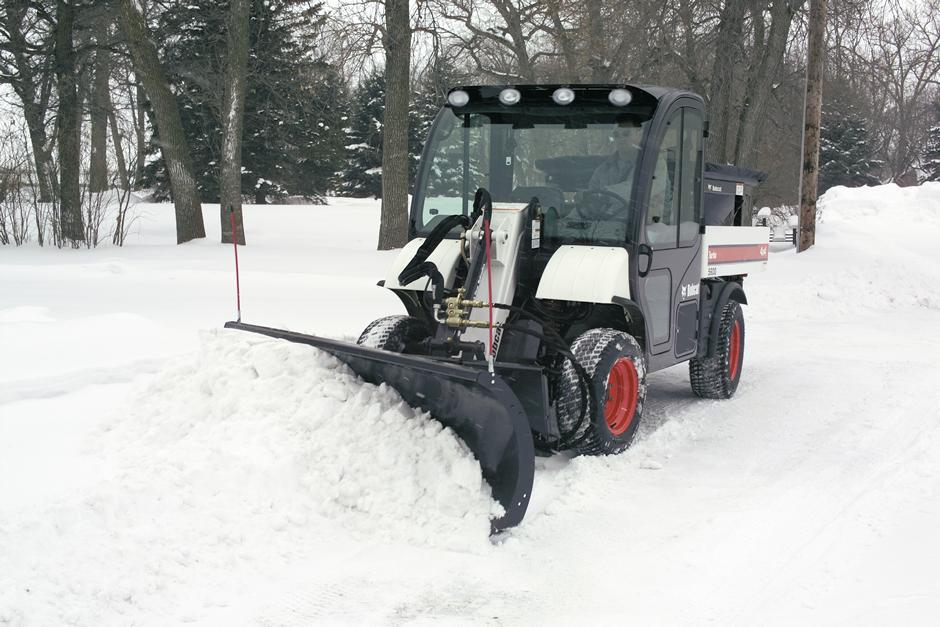

Blades angle 30 degrees to either side to help move snow where you want it.  The blade angle is adjusted from the cab by a fingertip control, which allows the operator to adjust the blade without removing hands from the loader steering levers. The blade oscillates five degrees to keep in contact with the surface, preventing the need for multiple passes to clear snow.

Damage to snow blade components is prevented if the snow blade contacts sections of raised concrete on sidewalks or other obstructions. Standard snow blades feature a trip moldboard and heavy duty snow blades feature a trip edge.

High visibility masts at each end of the moldboard to help keep operators aware of the blade corners. Additionally, since most snow is cleared at night or in the early morning, when it is dark.

The heavy duty snow blades also offer 5 degrees of oscillation to either side that help keep the cutting edge moving snow around drainage in parking lots and transitions from sidewalks to streets.

Optional features include rubber or polyurethane cutting edges and end-wing kits. The end-wing kits make the attachment more versatile by allowing the snow blade to also be used as a snow pusher.

Top Tasks

  • Remove light or moderate snow from sidewalks, driveways and parking lots
  • Moldboard: Angles right or left up to 30 degrees for protection standard snow blades offer trip moldboard and heavy duty snow blades offer trip edge.
  • Depth Shoes: Long lasting and adjustable to match your conditions.
  • Cutting Edge: High carbon steel is standard, rubber and polyurethane are available.
Snow Blade Sizes 54" 60" 72" 84" Heavy Duty 86" 96" Heavy Duty 96" Heavy Duty 108"



General

Operating Weight 310 lb 580 lb 590 lb 620 lb 809 lb 660 lb 867 lb 948 lb
Length 29.7 in 42 in 42 in 42 in 35.6 in 42 in 35.6 in 35.6 in
Width 54 in 60 in 72 in 84 in 86 in 96 in 96 in 108 in
Height 21.9 in 28 in 28 in 28 in 28.5 in 28 in 28.5 in 28.5 in
Cutting Edge (Steel) .38" x 4" .375" x 6" .375 x 6" .375" x 6" .5" x 6" .375" x 6" .5" x 6" .5" x 6"
Cylinder Bore 2 in 2 in 2 in 2 in 2 in 2 in 3.5 in 3.5 in
Cylinder Rod 1.2 in 1.2 in 1.2 in 1.2 in 1.8 in 1.2 in 1.8 in 1.2 in
Cylinder Stroke 5 in 9.6 in 9.6 in 9.6 in 9.6 in 9.6 in 9.6 in 9.6 in
Working Width (Fully Angled) 46.8 in 52 in 63 in 73 in 75 in 83 in 83 in 94 in
Cylinders 1 2 2 2 1 2 1 1
Optional Rubber Cutting Edge 1" x 5" 1" x 6" 1" x 6" 1" x 6" 1" x 6" 1" x 6" 1" x 6" 1" x 6"
Trip Springs 2 4 4 4 4 4 4 6
Degree of Angle Right or Left 30° 30° 30° 30° 30° 30° 30° 30°



Compatible Carriers

Skid-Steer Loaders
Bobcat A770

Bobcat S70

Bobcat S450

Bobcat S550



Bobcat S570



Bobcat S590



Bobcat S595



Bobcat S630



Bobcat S650



Bobcat S740





Bobcat S770





Bobcat S850



Compact Track Loaders
 Bobcat T450



Bobcat T550





Bobcat T590







Bobcat T595





Bobcat T630





Bobcat T650





Bobcat T740



Bobcat T770



Bobcat T870



Toolcat™ Work Machine
Bobcat 5600

Bobcat 5610

Telehandler
Bobcat V519

Mini Track Loaders
Bobcat MT55



Bobcat MT85
