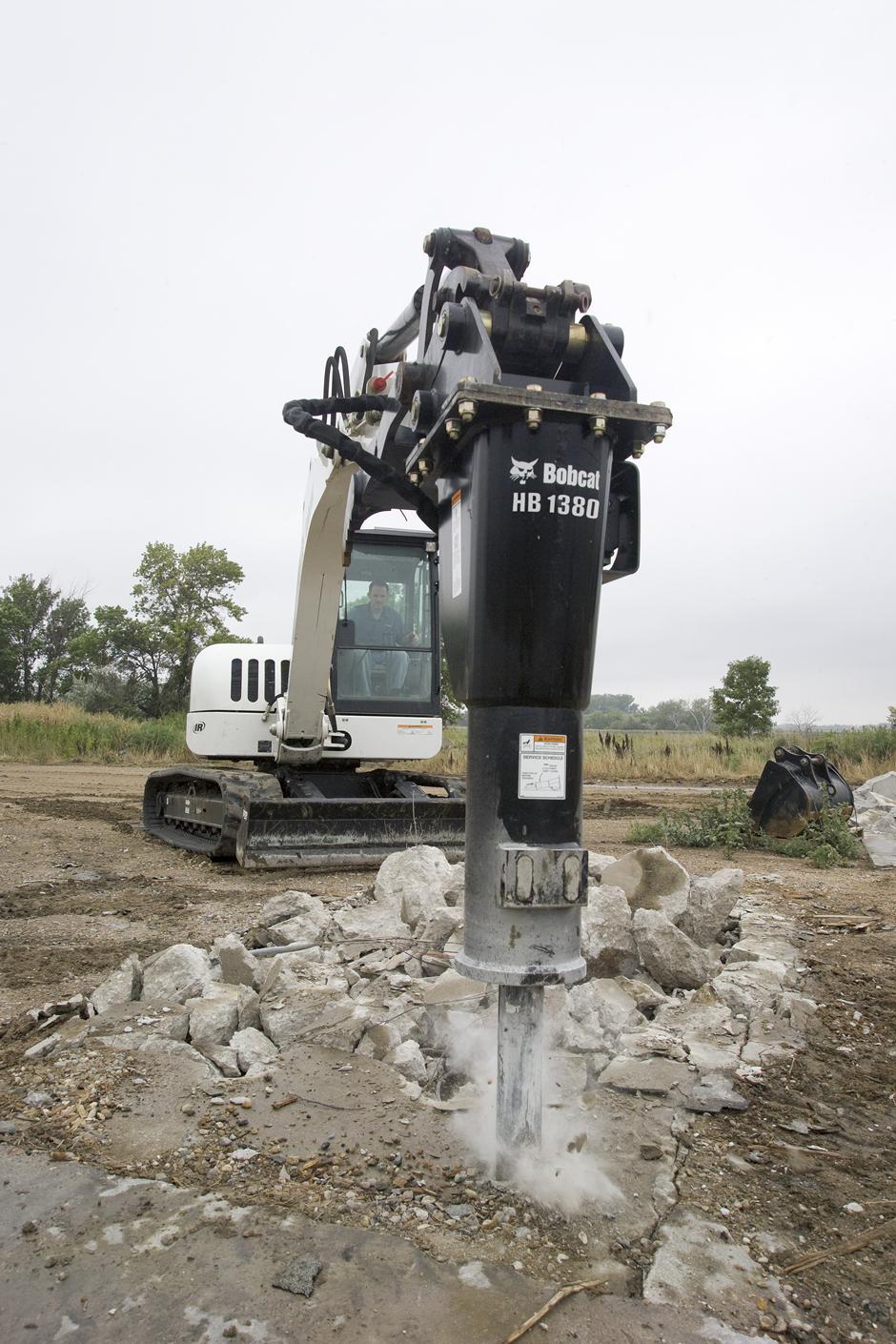

Bobcat® Hydraulic Breaker
Description
Break through concrete, rock, and asphalt easier with the powerful force of the hydraulic breaker.
The hydraulic breaker delivers maximum efficiency by matching hydraulic capacity of the carrier to the breaker, allowing consistent machine to breaker performance. It provides a quieter and smoother operation while still maintaining blows per minute.
Turn your compact loader or excavator into a powerfully precise demolition machine with the hydraulic breaker attachment.
Top Tasks
- Precise demolition jobs

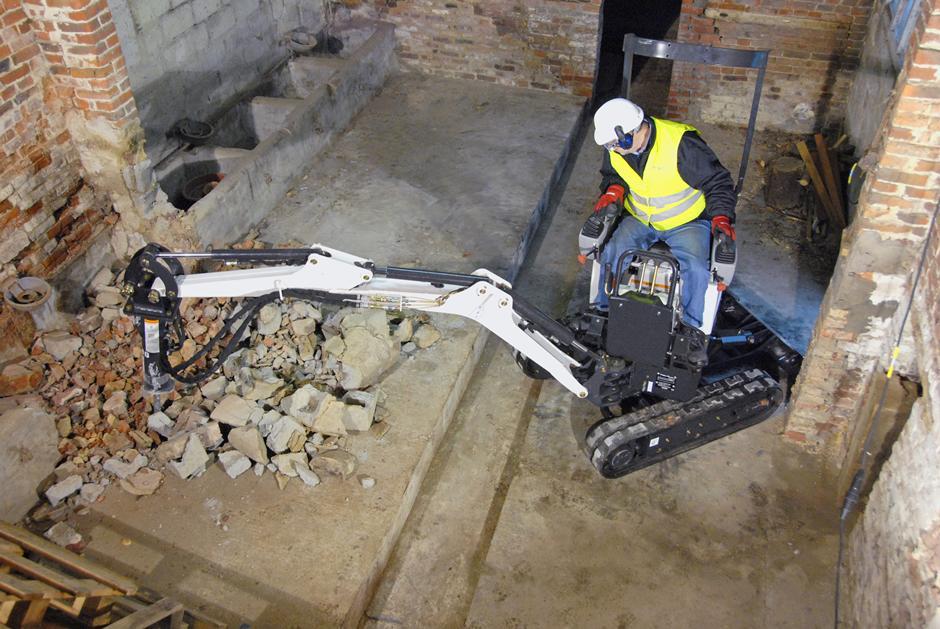

- Interior demolition
- Flatwork demolition
- Road repair
Features
- Auto Power: Automatically regulates pressure, ensuring hydraulic breaker operation regardless of changes in outdoor temperature and delivering maximum performance across a large range of carriers. Also, limits excessive pressure at the time of start-up, preventing possible downtime.
- Breaker Cradle: The cylindrical design improves access to jobs in confined areas, providing accurate attachment operation in more operating environments.
- Carrier Versatility: Quickly and easily switch the hydraulic breaker attachment from a loader to excavator with the Bob-Tach® and X-Change™ attachment mounting systems, maximizing attachment utility.
- Easy, Minimal Maintenance: Designed for minimum downtime, the internal power cell has fewer moving parts. Also, the attachment design includes only 12 main service parts, reducing time spent on maintenance and improving overall lifetime of the attachment.
- Easy Mounting: The Bob-Tach and X-Change attachment mounting systems make attachment mounting easy, decreasing amount of time spent attaching and increasing amount of time spent operating.
- Energy Chamber with Diaphragm: Offering a distinct Bobcat® advantage, the energy chamber keeps the nitrogen pressure constant that maintains attachment performance. No periodic charging required, making it virtually maintenance free.
- Quieter Operation: Upper and lower shock absorbers isolate the breaker from the housing, reducing noise and vibration to deliver operator comfort without sacrificing performance.
- Hose Guard: Protects hoses and fittings from damage when working in tight spaces, providing uptime protection while increasing the utility of the attachment.
- Steel-Ring System: An innovative Bobcat feature, the steel ring system retains the tool bushing and protects the grease access and provides for quick tool changes.
- Included Go/no-go Gauge: Allows operator to quickly verify three critical wear areas. Gauge tells operator whether components meet spec or not – no measuring required.
- Single Lower Bushing: Most models only have a single lower bushing that is easily replaceable on the job.
Options and Accessories
- Breaker Bits: Bobcat offers a selection of breaker tools, equipping you with the right tool for each job. Check out these breaker bits for the hydraulic breaker attachment.
Specs
| Breaker Models | Breaker, Nall Point - HB280 | Breaker, Nall Point - HB680 | Breaker, Nall Point - HB880 | Breaker, Nall Point - HB980 | Breaker, Nall Point - HB1180 | Breaker, Nall Point - HB1380 | Breaker, Nall Point - HB2380 |
General
| Operating Weight | 127 lb | 281 lb | 427 lb | 502 lb | 659 lb | 849 lb | 903 lb |
| Length | 34.1 in | 49.7 in | 46.8 in | 50 in | 54.7 in | 58.6 in | 62.5 in |
| Width | 7.9 in | 11 in | 12.6 in | 12.6 in | 17.4 in | 17.4 in | 17.4 in |
| Height | 9.8 in | 15.8 in | 17.7 in | 17.7 in | 19.9 in | 19.9 in | 19.9 in |
| Blows Per Minute | 1290 | 1340 | 1310 | 1450 | 1280 | 1230 | 910 |
| Blows Per Minute Flow | 6 gal/min | 13 gal/min | 17 gal/min | 21 gal/min | 26 gal/min | 32 gal/min | 33 gal/min |
| Impact Energy Class | 60 ft. lb. (81 J) | 150 ft. lb. (200 J) | 300 ft. lb. (407 J) | 500 ft. lb. (650 J) | 750 ft. lb. (1016 J) | 850 ft. lb. (1152 J) | 1000 ft. lb. (1356 J) |
| Tool Diameter | 1.5 in | 2.2 in | 2.6 in | 2.8 in | 3 in | 3.4 in | 3.8 in |
Compatible Carriers
| Skid Steer Loaders |
| Bobcat A770 |
✅ |
✅ |
✅ |
✅ |
|||
| Bobcat S70 |
✅ |
|
|
||||
| Bobcat S450 |
|
✅ |
✅ |
||||
| Bobcat S550 |
✅ |
✅ |
|||||
| Bobcat S570 |
✅ |
✅ |
|||||
| Bobcat S590 |
✅ |
✅ |
|||||
| Bobcat S595 |
✅ |
✅ |
k | ||||
| Bobcat S630 |
|
✅ |
✅ |
||||
| Bobcat S650 |
✅ |
✅ |
|||||
| Bobcat S740 |
✅ |
✅ |
✅ |
✅ |
|||
| Bobcat S770 |
✅ |
✅ |
✅ |
✅ |
|||
| Bobcat S850 |
|
✅ |
✅ |
✅ |
| Compact Track Loaders |
| Bobcat T450 |
✅ |
✅ |
|||||
| Bobcat T550 |
✅ |
✅ |
|||||
| Bobcat T590 |
✅ |
✅ |
|||||
| Bobcat T595 |
✅ |
✅ |
|||||
| Bobcat T630 |
|
✅ |
✅ |
||||
| Bobcat T650 |
✅ |
✅ |
|||||
| Bobcat T740 |
✅ |
✅ |
✅ |
✅ |
|||
| Bobcat T770 |
✅ |
✅ |
✅ |
✅ |
|||
| Bobcat T870 |
|
✅ |
✅ |
✅ |
| Compact Excavators |
| Bobcat E10 |
✅ |
||||||
| Bobcat E20 |
|
✅ |
|||||
| Bobcat E26 |
✅ |
||||||
| Bobcat E32 25 HP |
|
✅ |
✅ |
||||
| Bobcat E32 M-Series |
✅ |
✅ |
|||||
| Bobcat E35 25 HP |
✅ |
✅ |
|||||
| Bobcat E35 33 HP |
✅ |
✅ |
|||||
| Bobcat E35 M-Series |
✅ |
✅ |
|||||
| Bobcat E42 |
✅ |
✅ |
|||||
| Bobcat E45 |
✅ |
✅ |
|||||
| Bobcat E50 |
✅ |
✅ |
|||||
| Bobcat E55 |
✅ |
✅ |
|||||
| Bobcat E63 |
|
✅ |
✅ |
||||
| Bobcat E85 |
✅ |
✅ |
✅ |
| Mini Track Loaders |
| Bobcat MT55 |
✅ |
||||
| Bobcat MT85 |
✅ |
