Bobcat® Grapple, Root

Get maximum chomping and ripping power with the root grapple attachment.

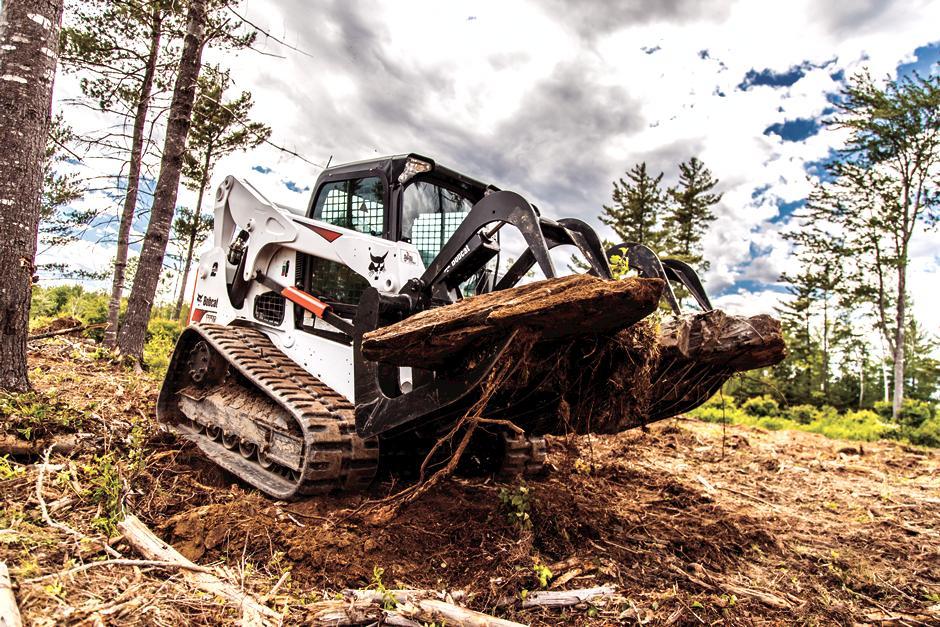

Built to be the biggest, baddest biter of them all, the root grapple rips into tough jobs with ease. The heavy-duty design improves the wear life of the grapple, especially when operating in tough land clearing jobs. Inertia-welded cylinder ends permit strong, smooth operation by improving hydraulic cushioning. And a curved, skeletal tooth design allows materials to be picked up without driving the teeth into the ground.

It’s ideal for jobs such as land clearing, landscaping, demolition, construction, rental or buildings and grounds maintenance. Tear it up, bite it off, and spit it out with the root grapple.

Top Tasks

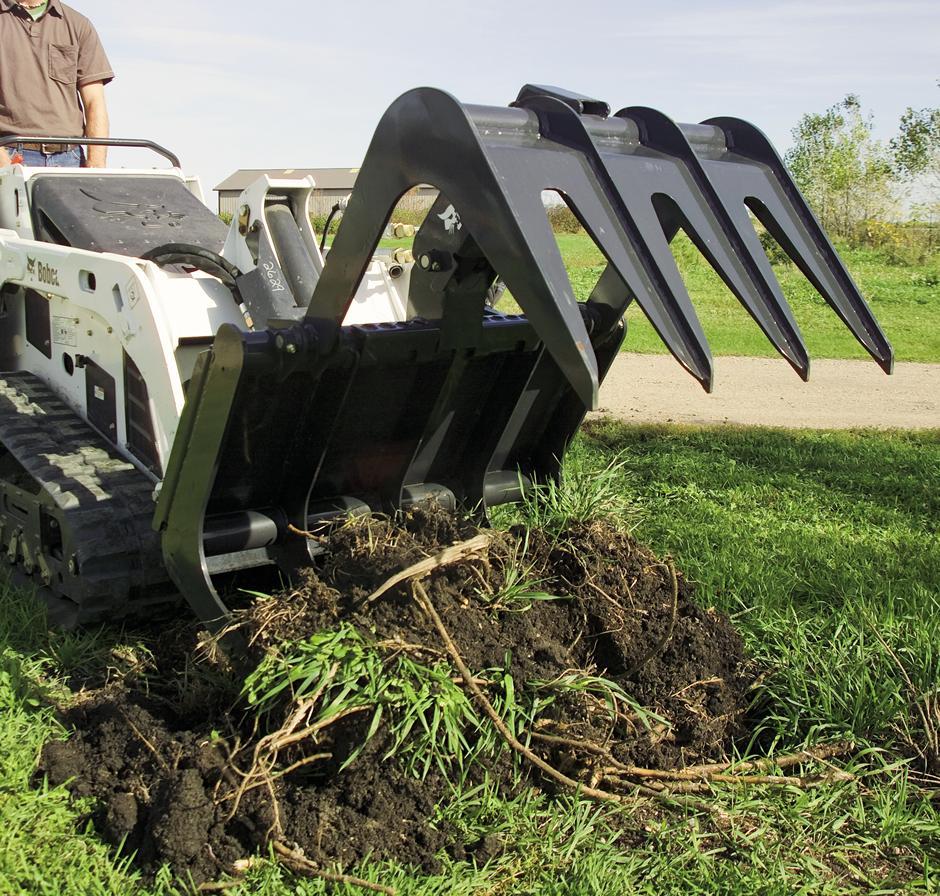

  • Clear rocks, roots, brush, overgrowth and debris

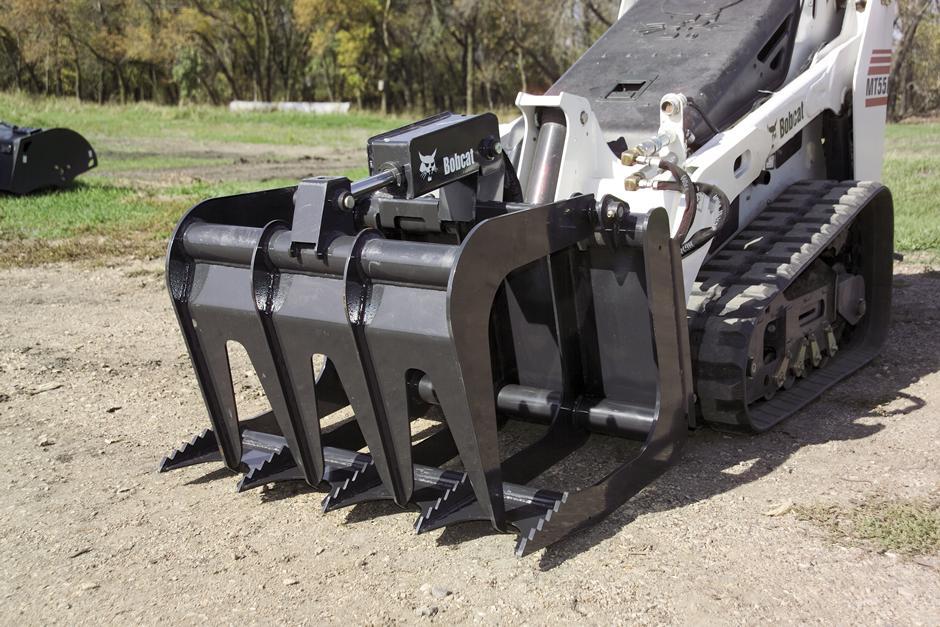

  • Curved Skeletal Tooth Design: Permits material to be picked up without driving teeth into the ground, allowing dirt to fall on site.
  • Fully Enclosed Mounting Frame: Extends wear life by minimizing flexing in the frame area.
  • Inertia-Welded Cylinder Ends: As a Bobcat® exclusive design, the inertia-welded cylinder ends deliver strong, smooth operation by improving hydraulic cushioning at the end of the stroke.
  • Dual Cylinders (Large Grapples Only): With tough Bobcat®-built cylinders, dual cylinders provide the ability to secure uneven loads. Bobcat grapples provide the highest clamping forces in the industry.
Grapple Sizes 36" 48" 66" 72" 82"



General

Operating Weight 297 lb 371 lb 961 lb 1025 lb 1130 lb
Length 30.7 in 30.7 in 42.8 in 42.8 in 42.8 in
Width 36 in 48 in 66 in 72.5 in 82.5 in
Height 29.8 in 29.8 in 34.2 in 34.2 in 34.2 in
Number of Fork Teeth (Factory) 5 7 8 9 11
Number of Fork Teeth (Possible) 5 7 8 9 N/A
Grapple Width 36 in 48 in 66 in 72.5 in N/A
Number of Grapple Tines 1 1 2 2 N/A
Open Height 41.7 in 41.7 in 52.3 in 52.3 in 52.3 in
Open Length 34.7 in 34.7 in N/A N/A N/A
Closed Height 29.8 in 29.8 in 34.4 in 34.4 in 34.4 in
Closed Length 34.7 in 34.7 in 42.8 in 42.8 in N/A



Compatible Carriers

Skid-Steer Loaders
Bobcat A770

Bobcat S70

Bobcat S550









Bobcat S570







Bobcat S590







Bobcat S595







Bobcat S630





Bobcat S650



Bobcat S740





Bobcat S770





Bobcat S850

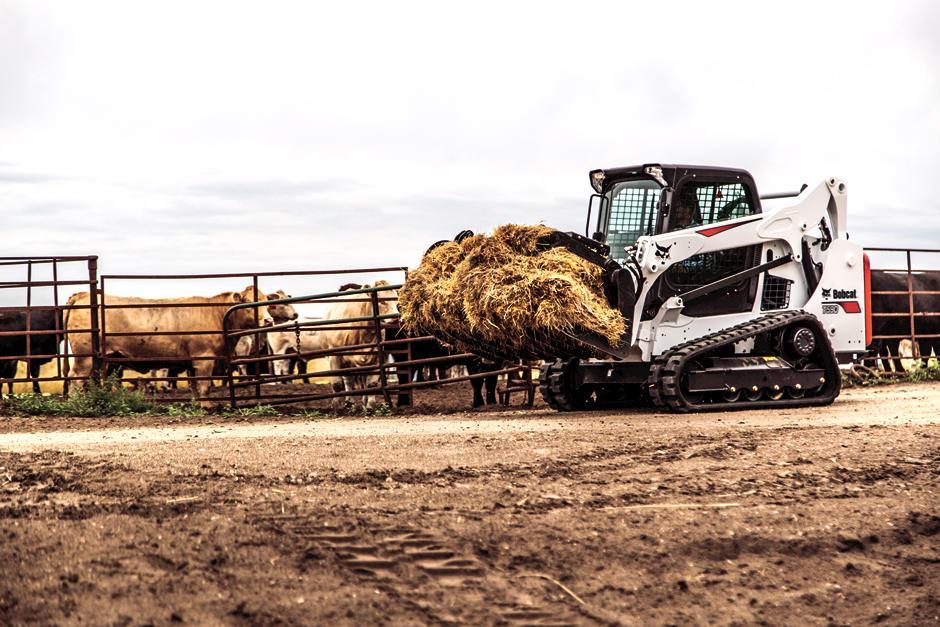

Compact Track Loaders
 Bobcat T450







Bobcat T550







Bobcat T590







Bobcat T595







Bobcat T630





Bobcat T650





Bobcat T740

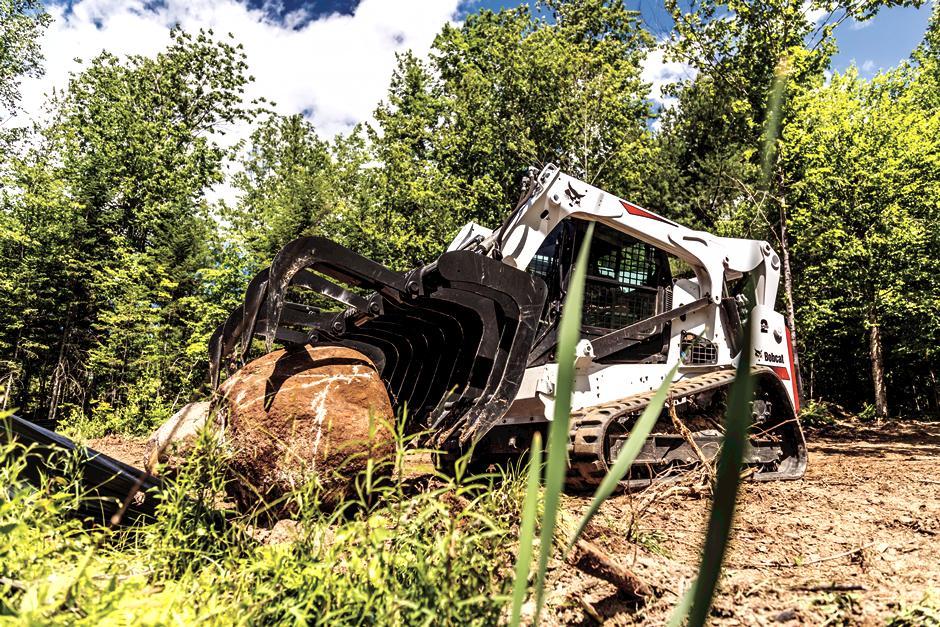

Bobcat T770



Bobcat T870

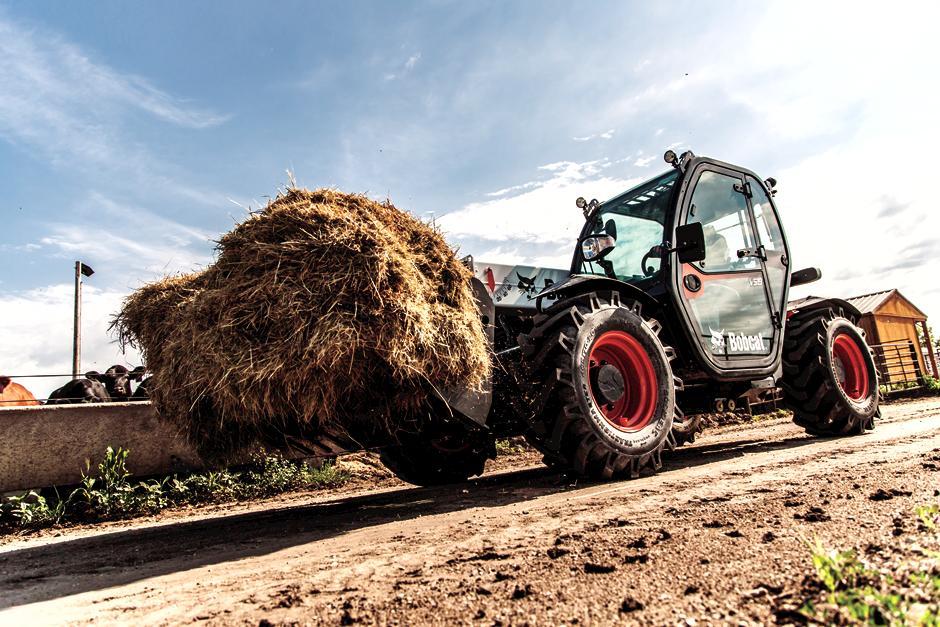

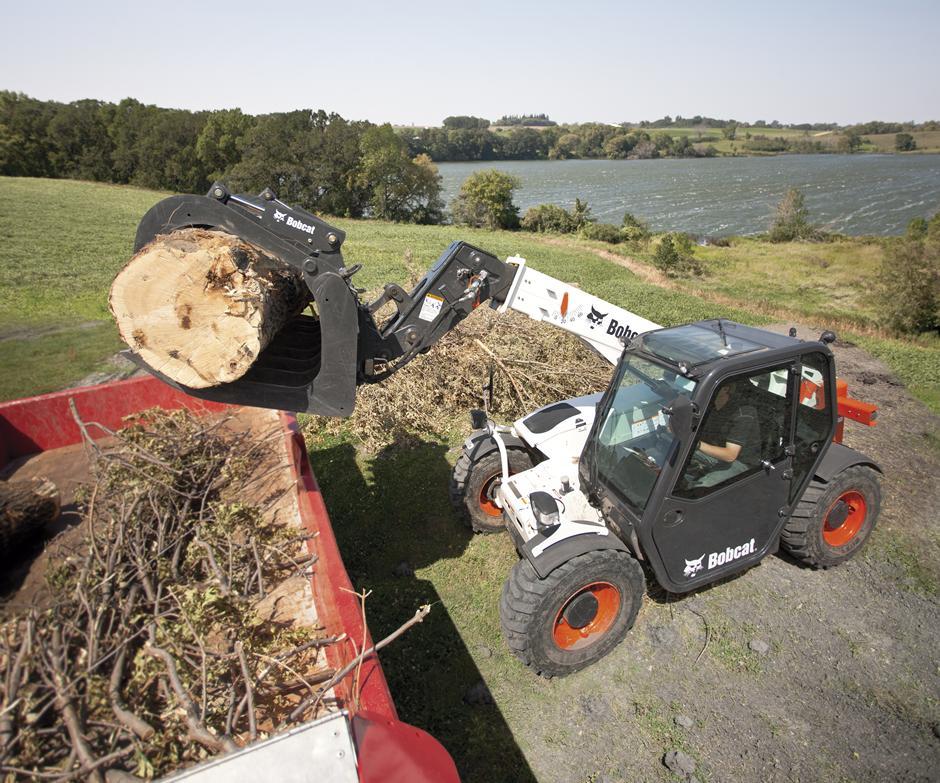

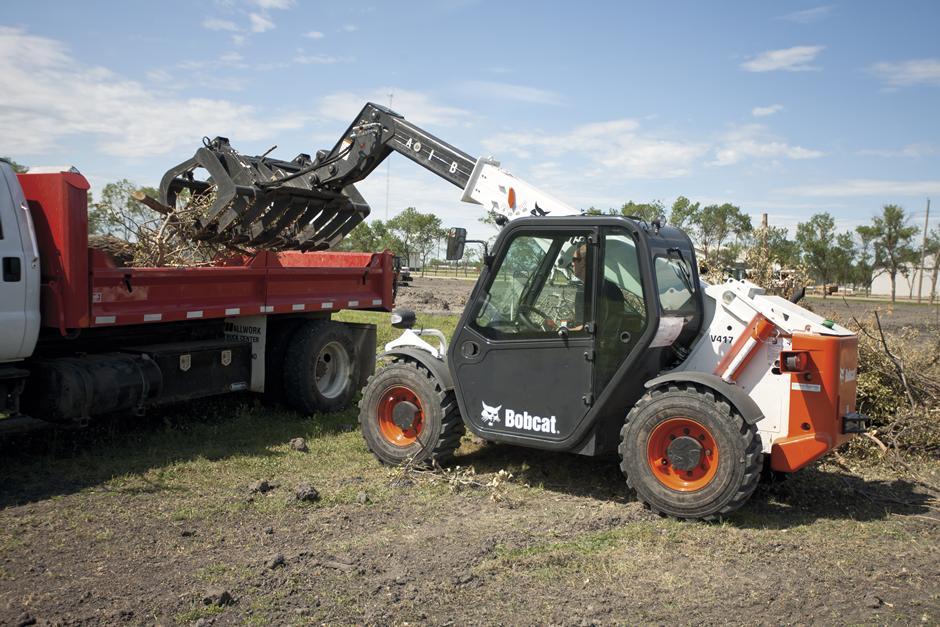

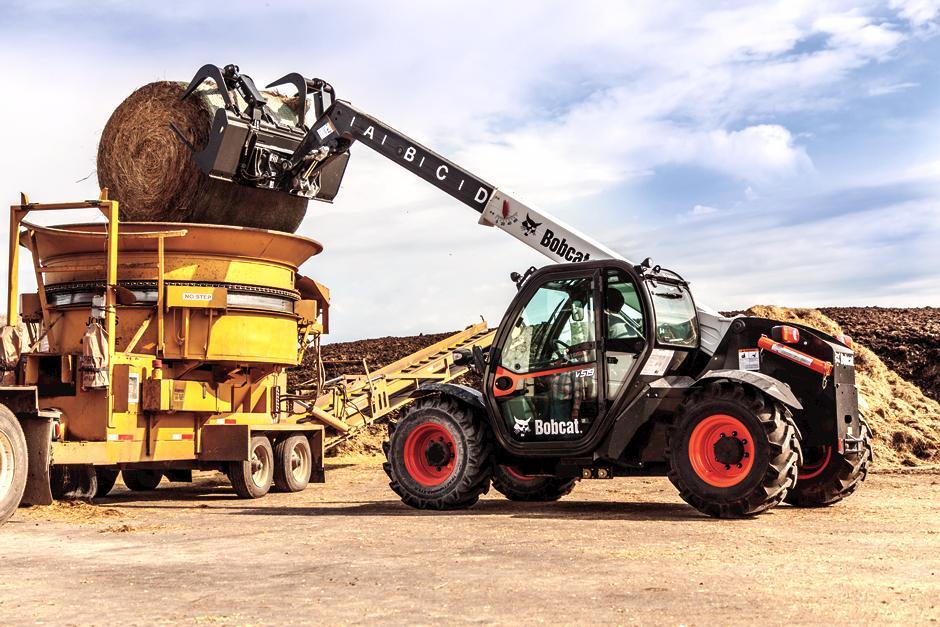

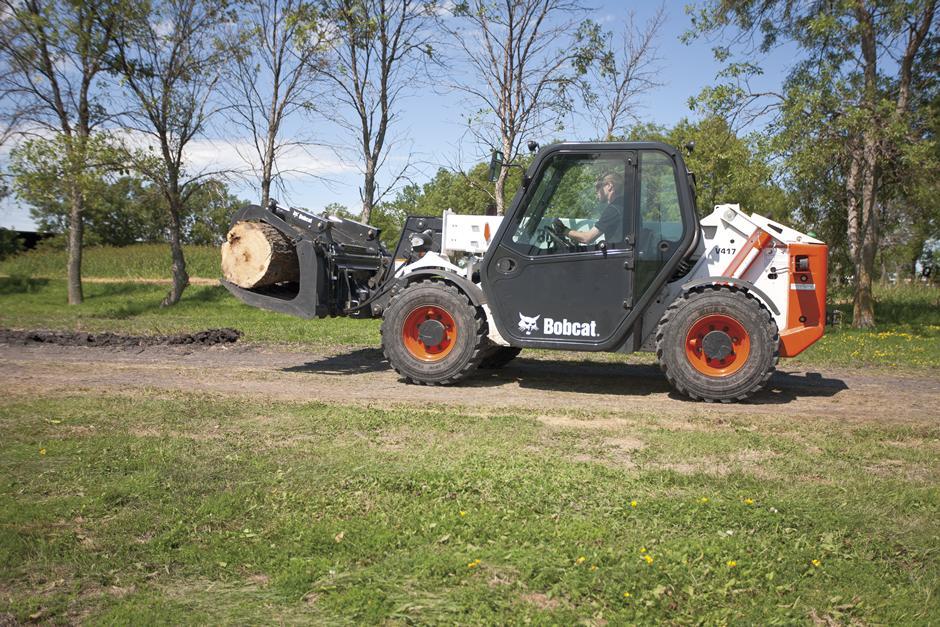

Telehandler

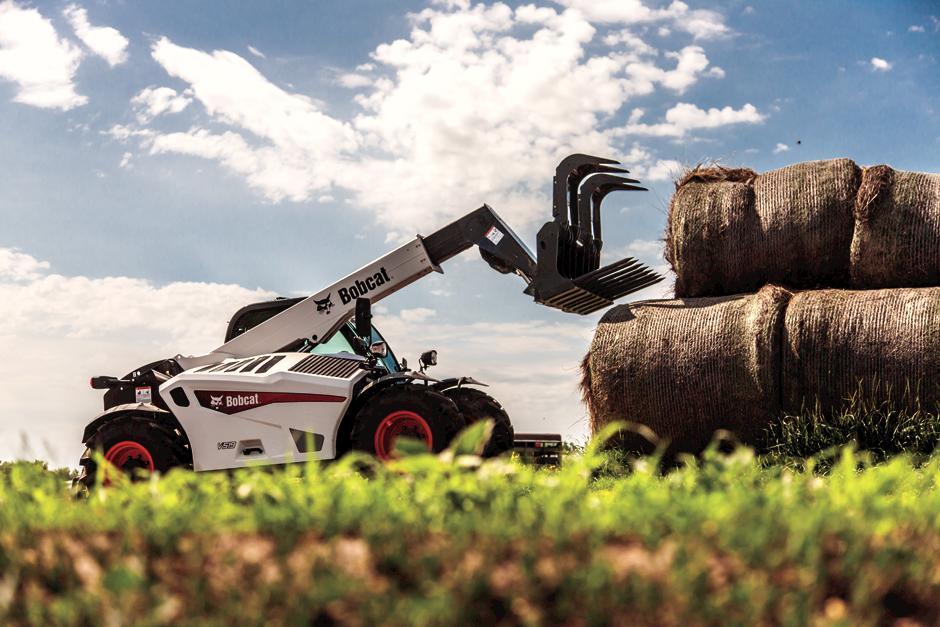

Bobcat V519

Bobcat V723

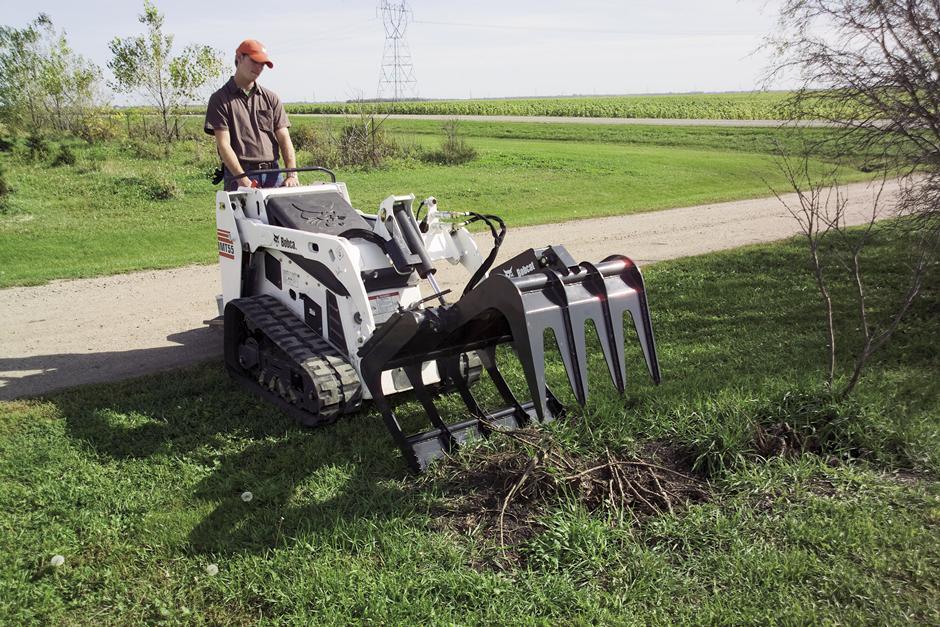

Mini Track Loaders
Bobcat MT55



Bobcat MT85
