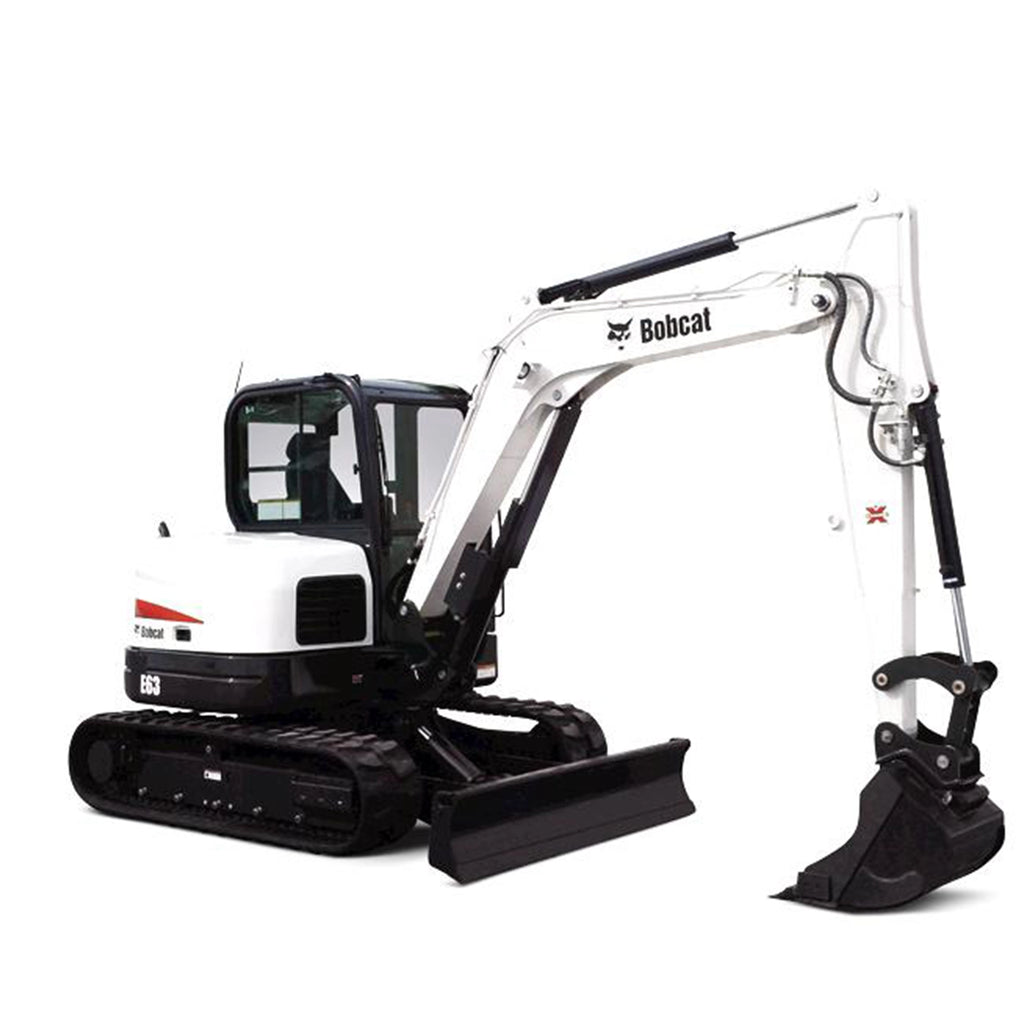

Bobcat® E63 Compact Excavator

With best-in-class over-the-side lifting performance, the Bobcat® E63 compact excavator attacks your most difficult jobs. Improved slew performance makes it an ideal machine for working on slopes. The Tier 4-compliant E63 is a conventional tail swing model. You'll remain comfortable all day long in the standard, fully adjustable super deluxe seat.

 Configuration Bobcat E63

Engine



Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,100 rpm
Horsepower 59.4 hp
Turbocharged Engine

N/A

Optional Horsepower

N/A

Performance

Operating Weight 13,779lb
Weight Class 6.3 t
Travel Speed - High 2.9 mph
Travel Speed - Low 1.6 mph
Arm Digging Force 5,767 lbf
Bucket Digging Force 9,731 lbf
Rated Lift Capacity 5,902 lb
Lift Radius 118 in
Boom Swing - Left 75°
Boom Swing - Right 55°
Maximum Dig Depth 13.5 ft
Max Dump Height 14 ft
Maximum Reach at Ground Level 20.4 ft

Capacities

 Fuel Tank 20.6 gal

Hydraulic System

Auxiliary Std Flow 22.5 gal/min
Auxiliary Pressure 3,046 psi

Dimension

 Length 225.6 in
Overall Length in Travel Position 147.6 in
Width 78 in
Height 100.4 in
Height with Operator Cab 100.4 in
Features may include:
  • Selectable Auxiliary Hydraulic Flow
  • Selectable Control Pattern
  • Auto Idle
  • Auto Shift
  • Fingertip Boom Swing Control
  • 2-Speed Travel
  • Blade Float
  • Engine Monitoring
  • In-Track Swing Frame
  • Protected Components
  • Machine Protection
  • Integrated Slew Brakes
  • Extended Service Intervals
  • Simple Machine Tie-Down
  • X-Frame Undercarriage
  • Cab Comfort
  • Hydraulic Joystick Control
  • Soft Grip Joysticks
  • Rotary Speed Control Knob
  • Extended Greasing Intervals
  • Panoramic Serviceability
  • Centralized Grease Bank
